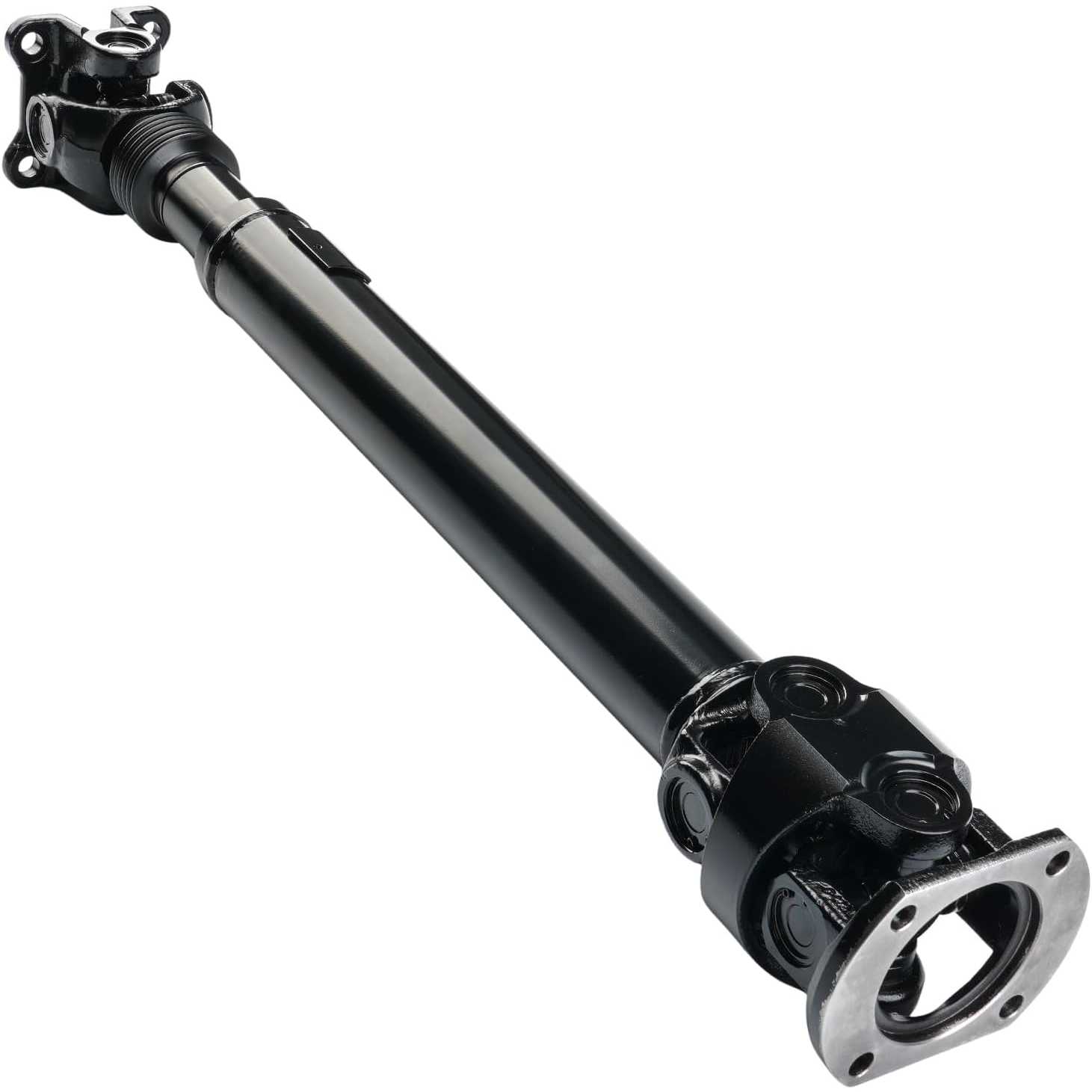

2013-2018 Ram 2500 6.7L L6 | Front Drive Shaft | 938263 - PHILTOP

2013-2018 Ram 2500 6.7L L6 | Front Drive Shaft | 938263 - PHILTOP

Front

Factory-Balanced

Corrosion-Resistant

4.4

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
16ISDSA1277US

Specifications

Brand
PHILTOP
Mounting Type
Flange Mount
Position
Front
Fully Extended Length
33.78 in/858 mm
Fully Compressed Length
32.6 in/828 mm
Shaft Diameter
Φ63.5
Items Included
1x Drive Shaft - 938263
Surface Finish
Painted
Flange Shape
Square
Bolt Hole Quantity
4
Two-Piece Design
No
Universal Joint Size
φ30.18*92
Adjustable Length
Yes
Tube Wall Thickness
0.1 in/2.5 mm
Shaft Material
Steel
Warranty Period
2-Year
Part Number
938263

Highlights

  • (Vehicle Fitments)Fits Ram 2013- 2500/3500 6.7L 4WD, 2014-2018 2500/3500 6.7L 4WD.Please verify vehicle compatibility via Philtop's Confirmed Fit Tool and thoroughly read the product description prior to purchase
  • (Reference Number)938263,5146802AA
  • (Specifications)①Installation Position: Front Side; ②Extended Shaft Length: 33.78 inch; ③Compressed Shaft Length: 32.60 inch; ④Shaft Material: Steel; ⑤Shaft Diameter: Φ63.5; ⑥Shaft Wall Thickness: 0.098 inch; ⑦U-Joint Size: φ30.18*92; ⑧Length is measured end to end across the entire driveshaft; ⑨Mounting Type: Flange mounting; ⑩Flange Type: Square Shape; ⑪Adjustable Length for Custom Fit
  • (High Quality)Choose a shaft that's pre-greased and maintenance-free. Choose a brand that tests every unit for safety and performance. Choose engineering that guarantees a perfect fit with reduced noise and shudder
  • (Drive with Pleasure)PHILTOP combines quality engineering with a focus on driver comfort Our driveshaft, a direct OEM replacement, ensures your vehicle handles smoothly and provides a truly enjoyable ride

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20132014 - 201820132014 - 20182014 - 201520132014 - 20182016 - 201820132014 - 201520132014 - 201620132014 - 2018201320132014 - 201820132014 - 201820132014 - 20182014 - 201520132014 - 20182016 - 201820132014 - 2015201720132014 - 2018201320132014 - 2018
MakeRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRamRam
Model250025002500250025002500250025002500250025002500250025002500250025003500350035003500350035003500350035003500350035003500350035003500
TrimBig HornBig HornLaramieLaramieLaramie LimitedLaramie LonghornLaramie LonghornLimitedLone StarLone StarOutdoorsmanOutdoorsmanSLTSLTSTTradesmanTradesmanBig HornBig HornLaramieLaramieLaramie LimitedLaramie LonghornLaramie LonghornLimitedLone StarLone StarLone StarSLTSLTSTTradesmanTradesman
Engine6.7L L66.7L L66.7L L66.7L L66.7L L66.7L L66.7L L66.7L L66.7L L66.7L L66.7L L66.7L L66.7L L66.7L L66.7L L66.7L L66.7L L66.7L L66.7L L66.7L L66.7L L66.7L L66.7L L66.7L L66.7L L66.7L L66.7L L66.7L L66.7L L66.7L L66.7L L66.7L L66.7L L6
Note
w/ Flat Faced Pinion Flange
-
w/ Flat Faced Pinion Flange
--
w/ Flat Faced Pinion Flange
--
w/ Flat Faced Pinion Flange
-
w/ Flat Faced Pinion Flange
-
w/ Flat Faced Pinion Flange
-
w/ Flat Faced Pinion Flange
w/ Flat Faced Pinion Flange
-
w/ Flat Faced Pinion Flange
-
w/ Flat Faced Pinion Flange
--
w/ Flat Faced Pinion Flange
--
w/ Flat Faced Pinion Flange
--
w/ Flat Faced Pinion Flange
-
w/ Flat Faced Pinion Flange
w/ Flat Faced Pinion Flange
-

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the driveshaft length, spline count, flange type, mounting pattern and number of sections.
  • Inspect the shaft tube, U-joints, splines, center support bearing and rubber cushions for damage or excessive play.
  • Measure driveshaft length with the vehicle at normal ride height, not with the suspension hanging freely.
  • Support the vehicle securely and keep the transmission and rear axle at approximately the same height.
  • Before removal, clearly mark the front and rear orientation, flange positions and section alignment. The driveshaft must not be installed backward.

Installation Steps

  • Step-1: Place the transmission in Neutral when rotation is required, secure the wheels and support the driveshaft.
  • Step-2: Loosen the rear flange bolts gradually in a diagonal sequence.
  • Step-3: Disconnect the rear flange, center support bearing and front connection. Keep the driveshaft supported horizontally.
  • Step-4: Cap the transmission and differential openings immediately to prevent fluid leakage and contamination.
  • Step-5: Install the front end in the correct direction and align all previously made orientation and phase marks.
  • Step-6: Install the center support bearing without twisting or preloading its rubber cushion.
  • Step-7: Connect the rear flange and hand-start all bolts.
  • Step-8: Use a torque wrench to tighten all flange and support-bearing bolts to the vehicle manufacturer's specified torque. Do not use an impact wrench.

After Installation

  • Confirm all phase marks remain aligned and the driveshaft has not been installed front-to-rear.
  • Rotate the shaft by hand and check for binding, interference or abnormal joint movement.
  • Perform a low-speed road test, then gradually increase speed while checking for noise or vibration.
  • Reinspect all fasteners, support bearings and transmission or differential seals after the test drive.

Product Description

Drive Shaft AssemblyDrive Shaft Assembly

Reviews

4.4/5

Based on 5 reviews

560%
420%
320%
20%
10%

DIY_Karen_786

10/21/2025

Got here quick, and the packaging was solid. No dings or scratches on the part. Customer service was friendly and helpful when I called with a question about fitment. Smooth transaction.

Nancy_FirstCar_783

11/29/2025

Installation was surprisingly easy, everything lined up perfectly. Feels way more robust than the original. Definitely a good upgrade for the price.

FAQS

No FAQs have been added for this product yet.
