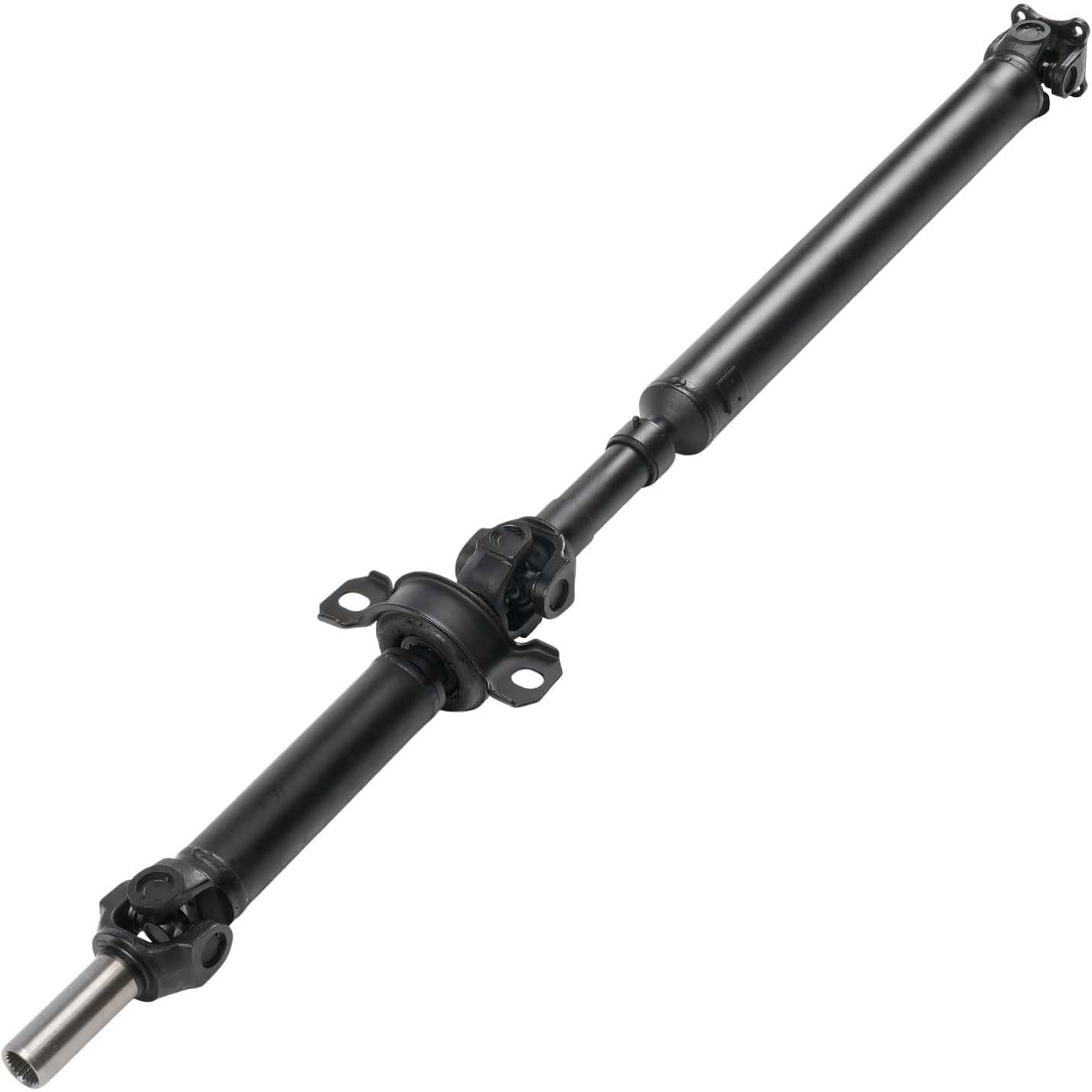

2003-2006 Kia Sorento 3.5L V6 | Rear Drive Shaft | 936211 - PHILTOP

2003-2006 Kia Sorento 3.5L V6 | Rear Drive Shaft | 936211 - PHILTOP

Rear

Factory-Balanced

Corrosion-Resistant

4.5

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
73ISDSA0307US

Specifications

Brand
PHILTOP
Mounting Type
Flange Mount
Position
Rear
Fully Extended Length
62.2 in/1580 mm
Fully Compressed Length
58.86 in/1495 mm
Shaft Diameter
Φ63.5
Items Included
1x Drive Shaft - 936211
Surface Finish
Painted
Flange Shape
Square
Output Shaft Spline Count
23T
Bolt Hole Quantity
4
Two-Piece Design
Yes
Adjustable Length
Yes
Tube Wall Thickness
0.08 in/2 mm
Shaft Material
Steel
Warranty Period
2-Year
Part Number
936211

Highlights

  • (Vehicle Fitments)Designed for Kia 2003-2006 Sorento RWD Automatic.Please verify vehicle compatibility via Philtop's Confirmed Fit Tool and thoroughly read the product description prior to purchase
  • (Reference Number)936211,491003E400,491003E450
  • (Specifications)①Installation Position: Rear Side; ②Extended Shaft Length: 62.20 inch; ③Compressed Shaft Length: 58.86 inch; ④Shaft Material: Steel; ⑤Shaft Diameter: Φ63.5; ⑥Shaft Wall Thickness: 0.079 inch; ⑦Length is measured end to end across the entire driveshaft; ⑧Mounting Type: Flange mounting; ⑨Flange Type: Square Shape; ⑩Design: Two-Piece; ⑪Adjustable Length for Custom Fit
  • (Easy Installation)Say goodbye to ill-fitting parts and endless adjustments. Precision engineering ensures a perfect match for your vehicle, making installation quick and straightforward. Save time, reduce frustration, and drive away with complete confidence
  • (Buy with Confidence)Say goodbye to rough rides and hello to PHILTOP's premium driving experience. Our OEM-replacement drive shaft is designed for safety, comfort, and superior quality, significantly smoothing your vehicle's performance for a more enjoyable journey

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2003 - 20062003 - 2006
MakeKiaKia
ModelSorentoSorento
TrimEXLX
Engine3.5L V63.5L V6
Note--

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the driveshaft length, spline count, flange type, mounting pattern and number of sections.
  • Inspect the shaft tube, U-joints, splines, center support bearing and rubber cushions for damage or excessive play.
  • Measure driveshaft length with the vehicle at normal ride height, not with the suspension hanging freely.
  • Support the vehicle securely and keep the transmission and rear axle at approximately the same height.
  • Before removal, clearly mark the front and rear orientation, flange positions and section alignment. The driveshaft must not be installed backward.

Installation Steps

  • Step-1: Place the transmission in Neutral when rotation is required, secure the wheels and support the driveshaft.
  • Step-2: Loosen the rear flange bolts gradually in a diagonal sequence.
  • Step-3: Disconnect the rear flange, center support bearing and front connection. Keep the driveshaft supported horizontally.
  • Step-4: Cap the transmission and differential openings immediately to prevent fluid leakage and contamination.
  • Step-5: Install the front end in the correct direction and align all previously made orientation and phase marks.
  • Step-6: Install the center support bearing without twisting or preloading its rubber cushion.
  • Step-7: Connect the rear flange and hand-start all bolts.
  • Step-8: Use a torque wrench to tighten all flange and support-bearing bolts to the vehicle manufacturer's specified torque. Do not use an impact wrench.

After Installation

  • Confirm all phase marks remain aligned and the driveshaft has not been installed front-to-rear.
  • Rotate the shaft by hand and check for binding, interference or abnormal joint movement.
  • Perform a low-speed road test, then gradually increase speed while checking for noise or vibration.
  • Reinspect all fasteners, support bearings and transmission or differential seals after the test drive.

Product Description

Drive Shaft AssemblyDrive Shaft Assembly
