2011 Jeep Grand Cherokee 5.7L V8 | Rear Drive Shaft | 976971 - PHILTOP

2011 Jeep Grand Cherokee 5.7L V8 | Rear Drive Shaft | 976971 - PHILTOP

Rear

Factory-Balanced

Corrosion-Resistant

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
61ISDSA1827US

Specifications

Brand
PHILTOP
Mounting Type
Adapter Plate + Cv Joint
Position
Rear
Fully Extended Length
48.7 in/1237 mm
Fully Compressed Length
46.73 in/1187 mm
Shaft Diameter
Φ63.5
Items Included
1x Drive Shaft - 976971
Surface Finish
Painted
Two-Piece Design
Yes
Adjustable Length
Yes
Tube Wall Thickness
0.08 in/2 mm
Shaft Material
Steel
Warranty Period
2-Year
Part Number
976971

Highlights

  • (Vehicle Fitments)Designed for Jeep 2011 Grand Cherokee 5.7L AWD Limited.Please verify vehicle compatibility via Philtop's Confirmed Fit Tool and thoroughly read the product description prior to purchase
  • (Reference Number)976971,52123514AA,52123514AB,52123514AC,52123514AD
  • (Specifications)①Installation Position: Rear Side; ②Extended Shaft Length: 48.70 inch; ③Compressed Shaft Length: 46.73 inch; ④Shaft Material: Steel; ⑤Shaft Diameter: Φ63.5; ⑥Shaft Wall Thickness: 0.079 inch; ⑦Length is measured end to end across the entire driveshaft; ⑧Mounting Type: Coupling Disc + Ball Cage; ⑨Design: Two-Piece; ⑩Adjustable Length for Custom Fit
  • (High Quality)Heavy-duty forged steel and superior alloy connections provide the strength needed for reliable torque transfer in demanding applications Factory dynamic balancing ensures quiet, smooth, and dependable operation
  • (Drive with Pleasure)PHILTOP guarantees smooth performance every time with our OEM-grade driveshaft Designed as a direct replacement, it restores your vehicle's ride quality for a consistently comfortable journey

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2011
MakeJeep
ModelGrand Cherokee
TrimLimited
Engine5.7L V8
Note
w/ Sales Code DR1 (230 mm Rear Axle);w/ Sales Code DSF (Electronic Limited Slip Differential Rear Axle)

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the driveshaft length, spline count, flange type, mounting pattern and number of sections.
  • Inspect the shaft tube, U-joints, splines, center support bearing and rubber cushions for damage or excessive play.
  • Measure driveshaft length with the vehicle at normal ride height, not with the suspension hanging freely.
  • Support the vehicle securely and keep the transmission and rear axle at approximately the same height.
  • Before removal, clearly mark the front and rear orientation, flange positions and section alignment. The driveshaft must not be installed backward.

Installation Steps

  • Step-1: Place the transmission in Neutral when rotation is required, secure the wheels and support the driveshaft.
  • Step-2: Loosen the rear flange bolts gradually in a diagonal sequence.
  • Step-3: Disconnect the rear flange, center support bearing and front connection. Keep the driveshaft supported horizontally.
  • Step-4: Cap the transmission and differential openings immediately to prevent fluid leakage and contamination.
  • Step-5: Install the front end in the correct direction and align all previously made orientation and phase marks.
  • Step-6: Install the center support bearing without twisting or preloading its rubber cushion.
  • Step-7: Connect the rear flange and hand-start all bolts.
  • Step-8: Use a torque wrench to tighten all flange and support-bearing bolts to the vehicle manufacturer's specified torque. Do not use an impact wrench.

After Installation

  • Confirm all phase marks remain aligned and the driveshaft has not been installed front-to-rear.
  • Rotate the shaft by hand and check for binding, interference or abnormal joint movement.
  • Perform a low-speed road test, then gradually increase speed while checking for noise or vibration.
  • Reinspect all fasteners, support bearings and transmission or differential seals after the test drive.

Product Description

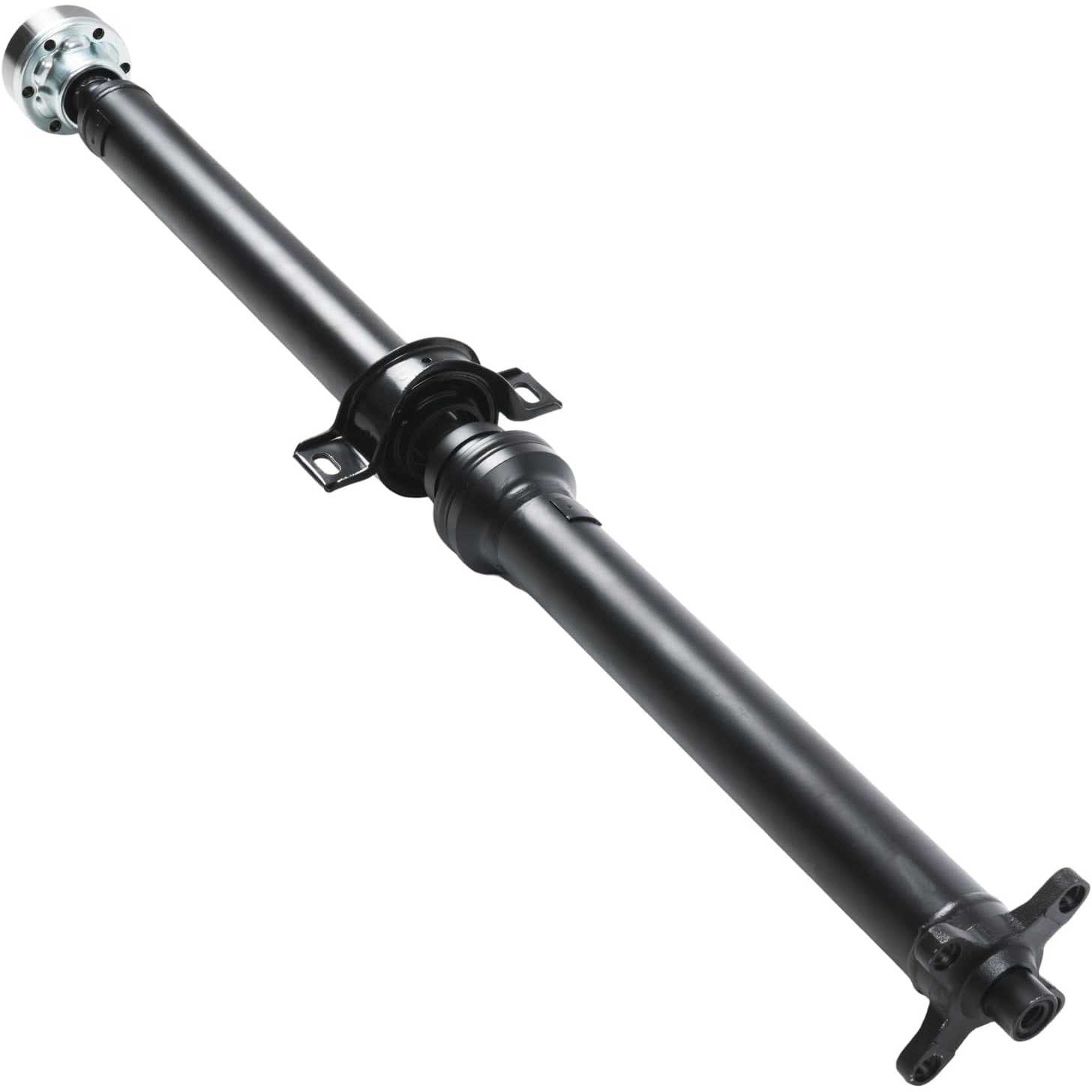

Drive Shaft AssemblyDrive Shaft Assembly

Reviews

4.7/5

Based on 9 reviews

578%
411%
311%
20%
10%

RickFixIt_667

02/12/2026

Super fast shipping and arrived in perfect condition. The customer service team was really helpful and answered my questions right away. Excellent experience.

Steve_DIYer_503

02/25/2026

Installation was surprisingly easy. It fit my Grand Cherokee perfectly without any modifications needed. A solid replacement part.

FAQS

No FAQs have been added for this product yet.
