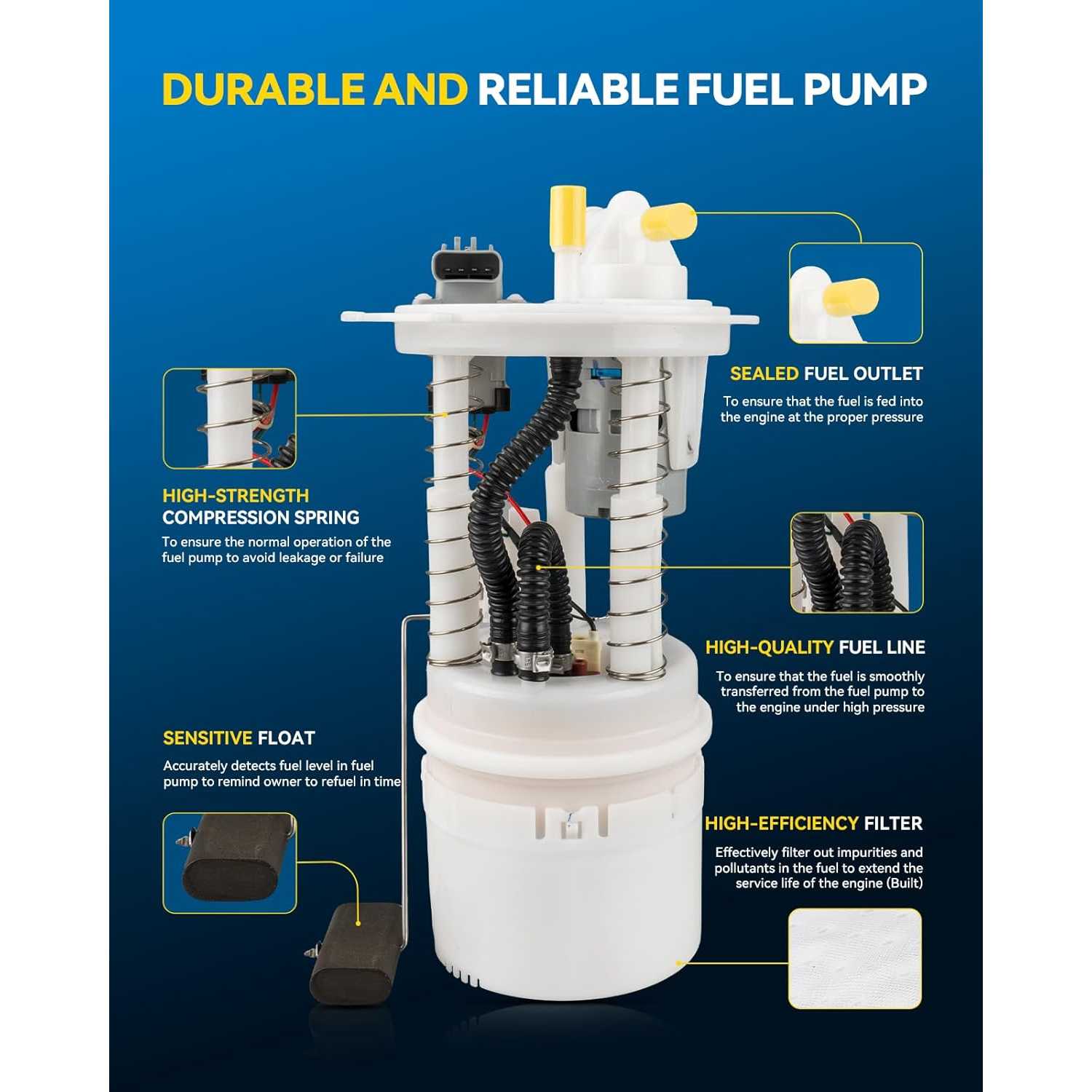

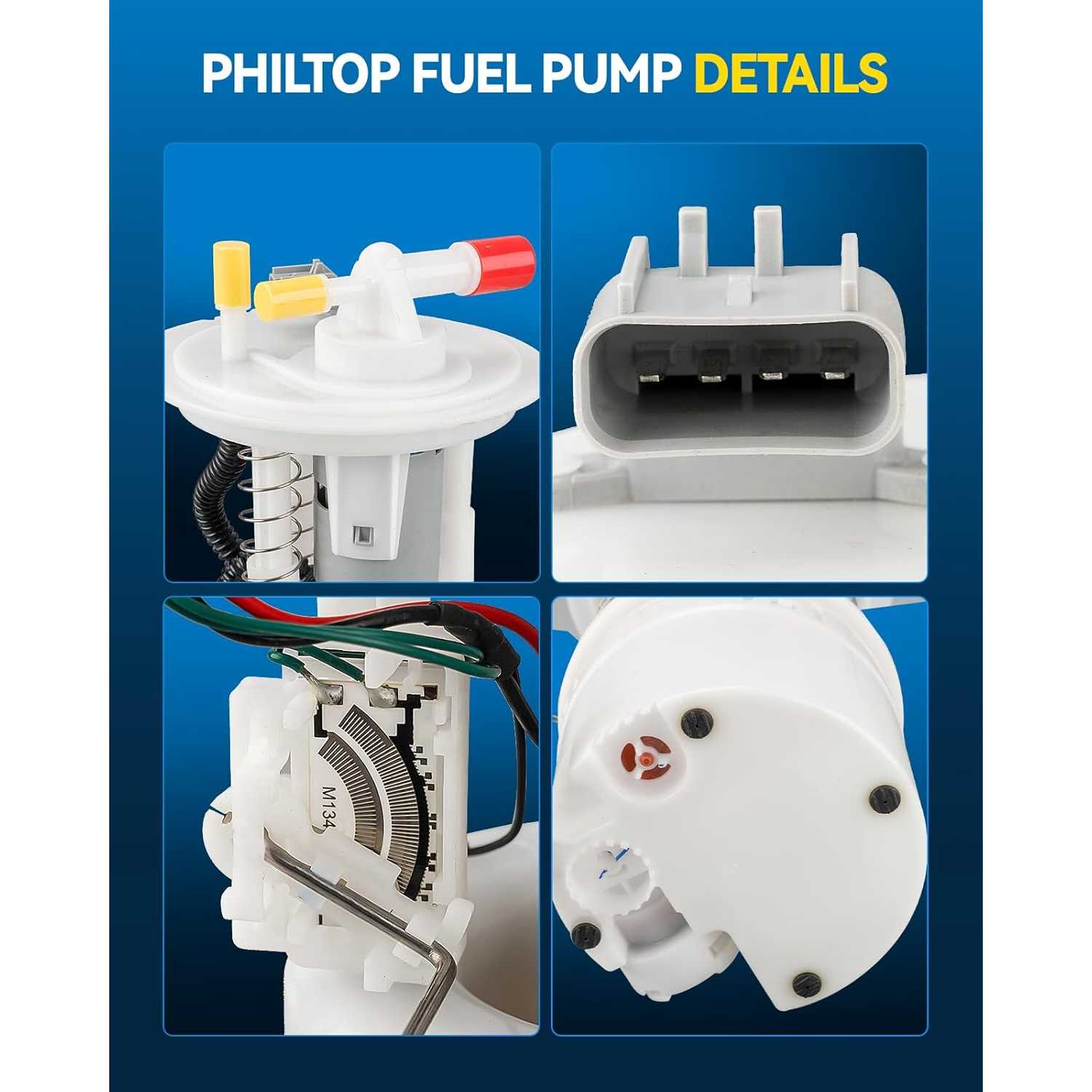

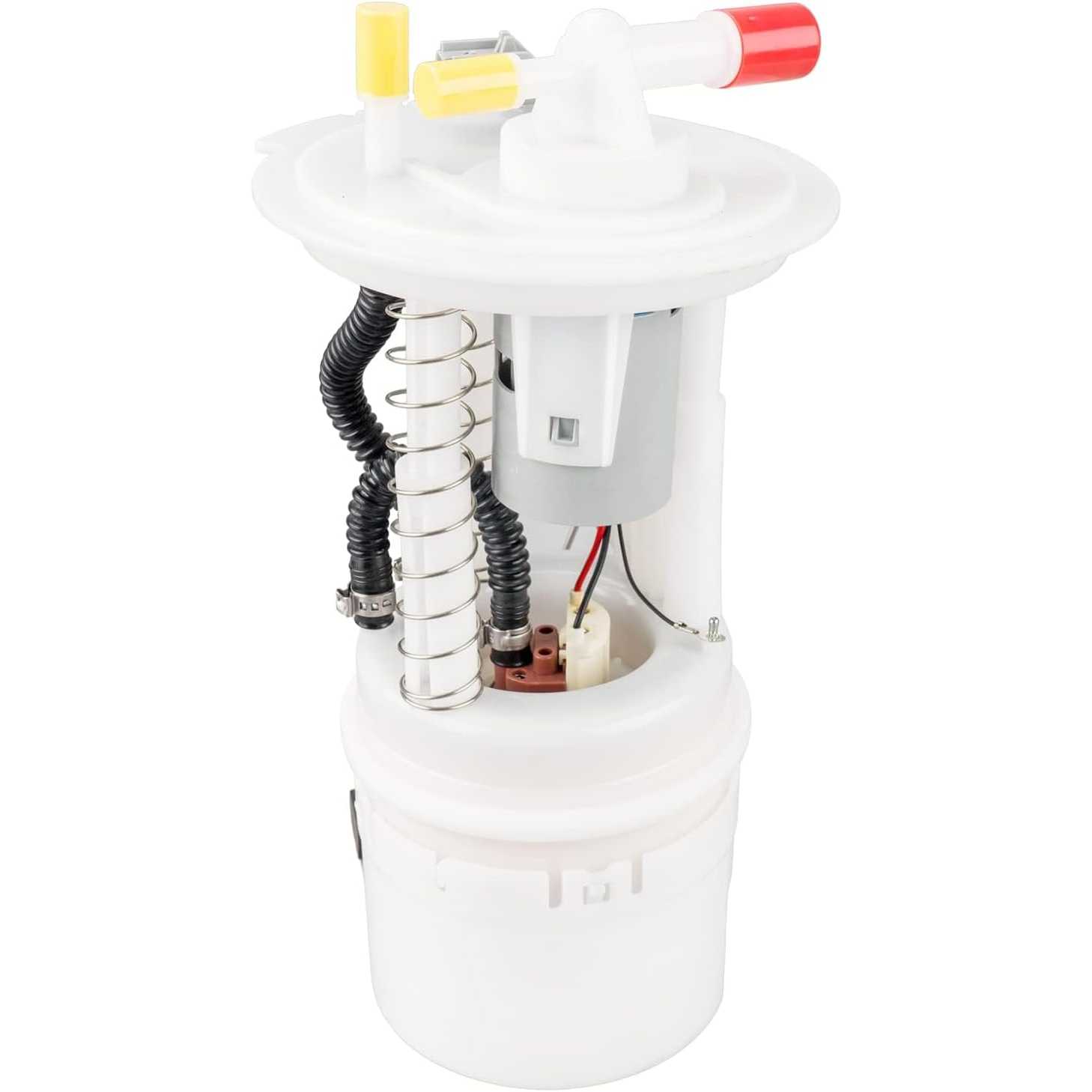

2003-2006 Chrysler Sebring 2.4L L4/2.7L V6 | Fuel Pump Assembly | OE#RL093455AD/FG0427 - PHILTOP

2003-2006 Chrysler Sebring 2.4L L4/2.7L V6 | Fuel Pump Assembly | OE#RL093455AD/FG0427 - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Seal Included

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
9010FUP272AUS

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
No
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
1050.0 Ω
Resistance Ohms Full
60.0 Ω
Average Flow Rating
34 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
60.0 PSI
Outlet Outside Diameter
0.375 in
Outlet Quantity
3
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller
Items Included

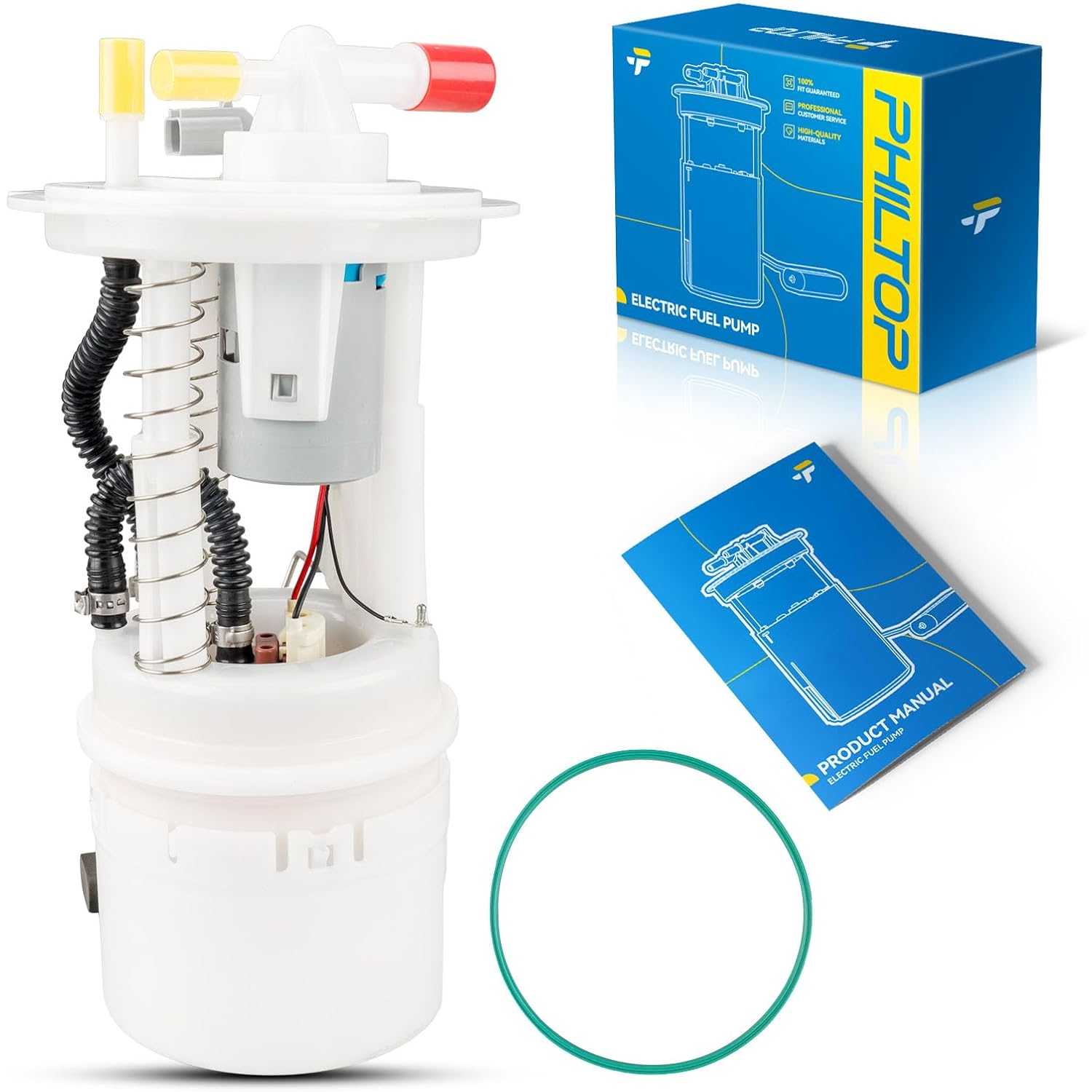

1x Fuel Pump Assembly - FG0427
Warranty Period
2-Year
OE Number
RL093455AD,5093455AA,5093455AB,P642M,P816M,5093455AC,5093455AD
Part Number
FG0427,SP7167M,P76047M,9533039,5202350,TU155,USEP7167M,147GE,E7167M,P76020,67676,P75033M,RE0914S,4010390,AFS0914S,67675,F3178A,MO157,150081,67690,M2290669,B13112436TG,C0467M,M635575,1234862,DFG0427,A30447,EG167M,TNKSP7167M,5202820,2920252

Highlights

  • Fitment: Compatible with [Chrysler] 2003-2006 Sebring(engineVIN: R/X), 2004-2005 Sebring(engineVIN: J), [Dodge] 2003,2005 Stratus(engineVIN: R), 2003-2005 Stratus(engineVIN: X), 2004 Stratus ES/R/T/SE(engineVIN: R), 2004-2005 Stratus(engineVIN: J), 2006 Stratus GAS.
  • Reference Number: 147GE, 4010390, 67676, AFS0914S, 67675, F3178A, USEP7167M, FG0427, MO157, SP7167M, 9533039, 5093455AA, P75033M, RL093455AD, 5202350, 5093455AC, TU155, P642M, E7167M, P816M, 5093455AD, 5093455AB, 150081, P76020, 67690, P76047M, RE0914S, 2920252, 1234862, M635575, 5202820, TNKSP7167M, EG167M, A30447, B13112436TG, DFG0427, M2290669, C0467M.
  • Related Parts: ① Fuel Pump, ② Strainer, ③ Seal Ring.
  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2004 - 20062004 - 20052003 - 20062003 - 20042003 - 20042003 - 20042003 - 20062005 - 20062004 - 200620032003 - 20042003 - 20062003 - 20042003 - 20042003 - 200620032005 - 2006
MakeChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodge
ModelSebringSebringSebringSebringSebringSebringSebringSebringSebringStratusStratusStratusStratusStratusStratusStratusStratus
TrimBaseBaseGTCLXLXLXiLimitedTSiTouringESESR/TSESESXTSXTSXT
Engine2.4L L42.7L V62.7L V62.4L L42.7L V62.7L V62.7L V62.7L V62.7L V62.4L L42.7L V62.7L V62.4L L42.7L V62.4L L42.7L V62.7L V6
Note-----------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

Electric Fuel PumpElectric Fuel Pump

Reviews

5.0/5

Based on 1 review

5100%
40%
30%
20%
10%

MEG

08/31/2024

Verified buyer

Fit well had correct squared Oring back on the road for cheap in an old car
