2002-2003 Audi A4 1.8L L4/3.0L V6 | Fuel Pump Assembly | OE#8E0919051P/P76316M - PHILTOP

2002-2003 Audi A4 1.8L L4/3.0L V6 | Fuel Pump Assembly | OE#8E0919051P/P76316M - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

4.6

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
54ISFUP3447US

Specifications

Brand
PHILTOP
Gasket or Seal Included
No
Pressure Sensor Included
No

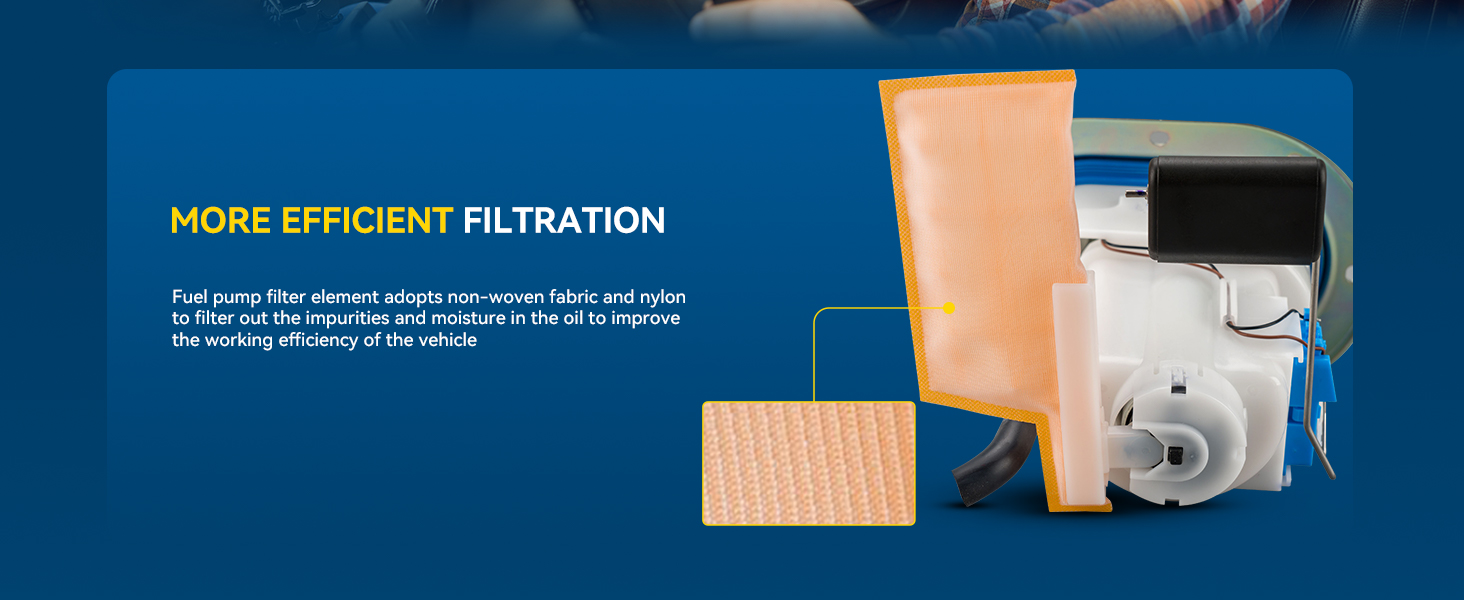

Strainer Included
Yes

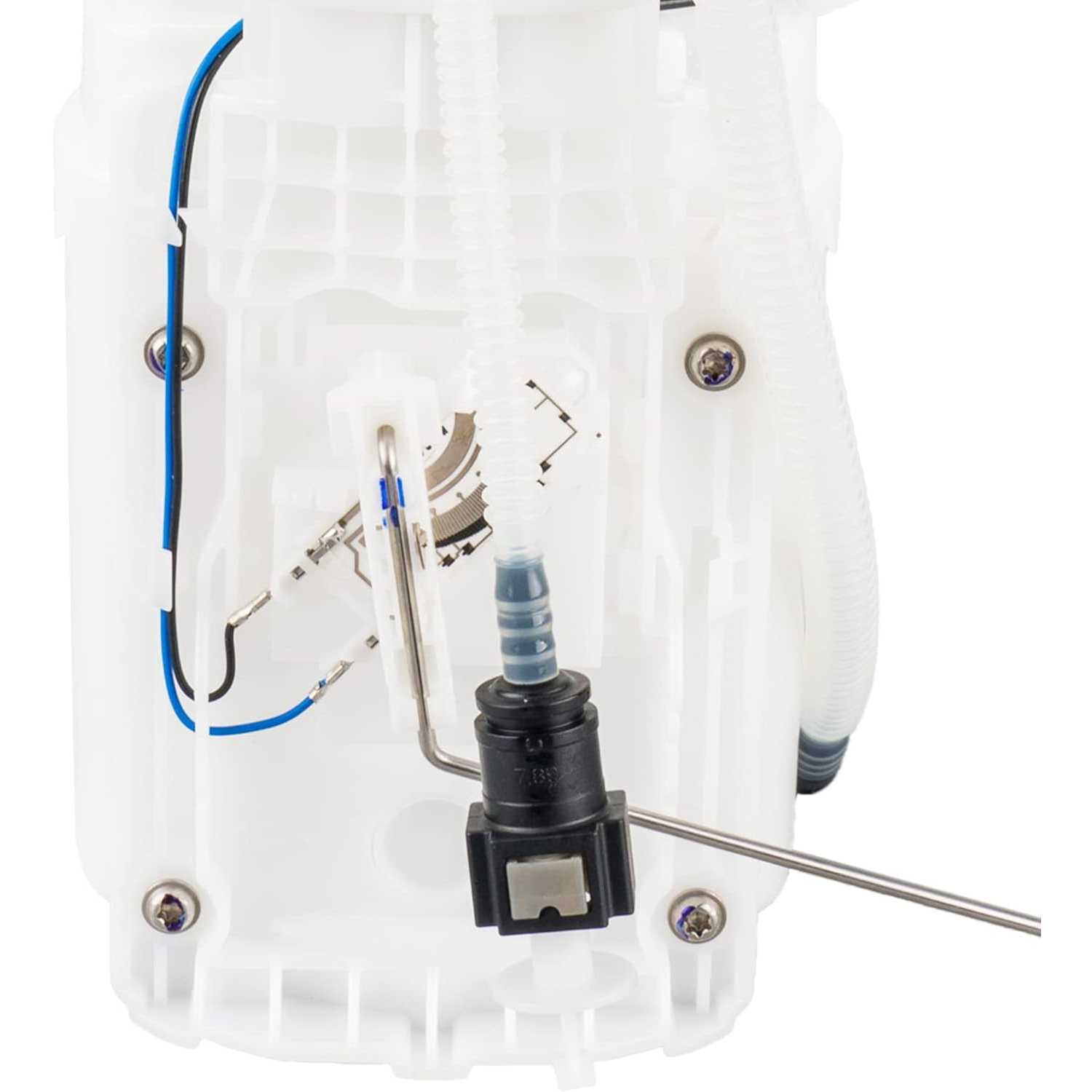

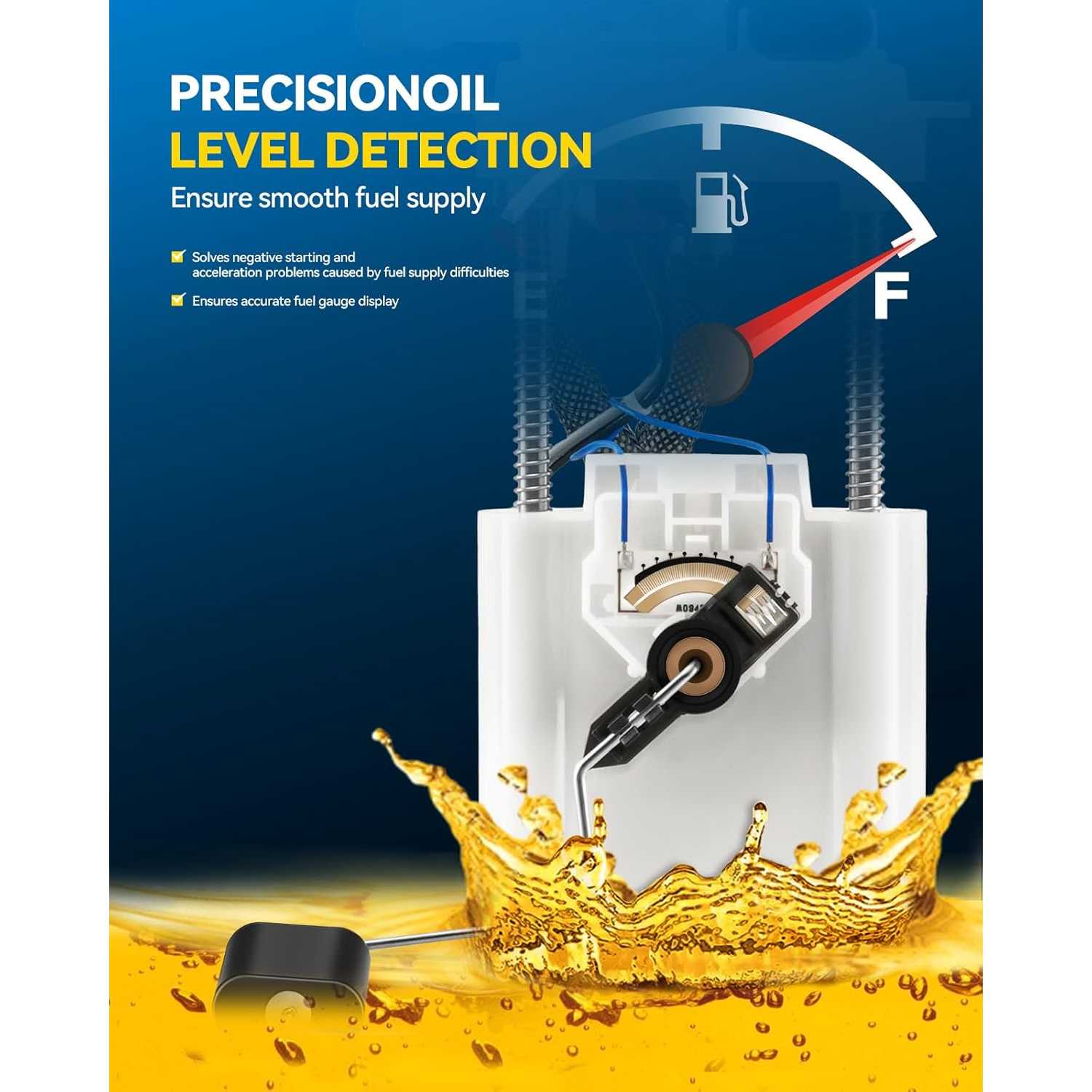

Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
305.0 Ω
Resistance Ohms Full
56.0 Ω
Average Flow Rating
52 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
101.0 PSI
Outlet Outside Diameter
0.313 in
Outlet Quantity
3
Outlet Type
Quick Connect

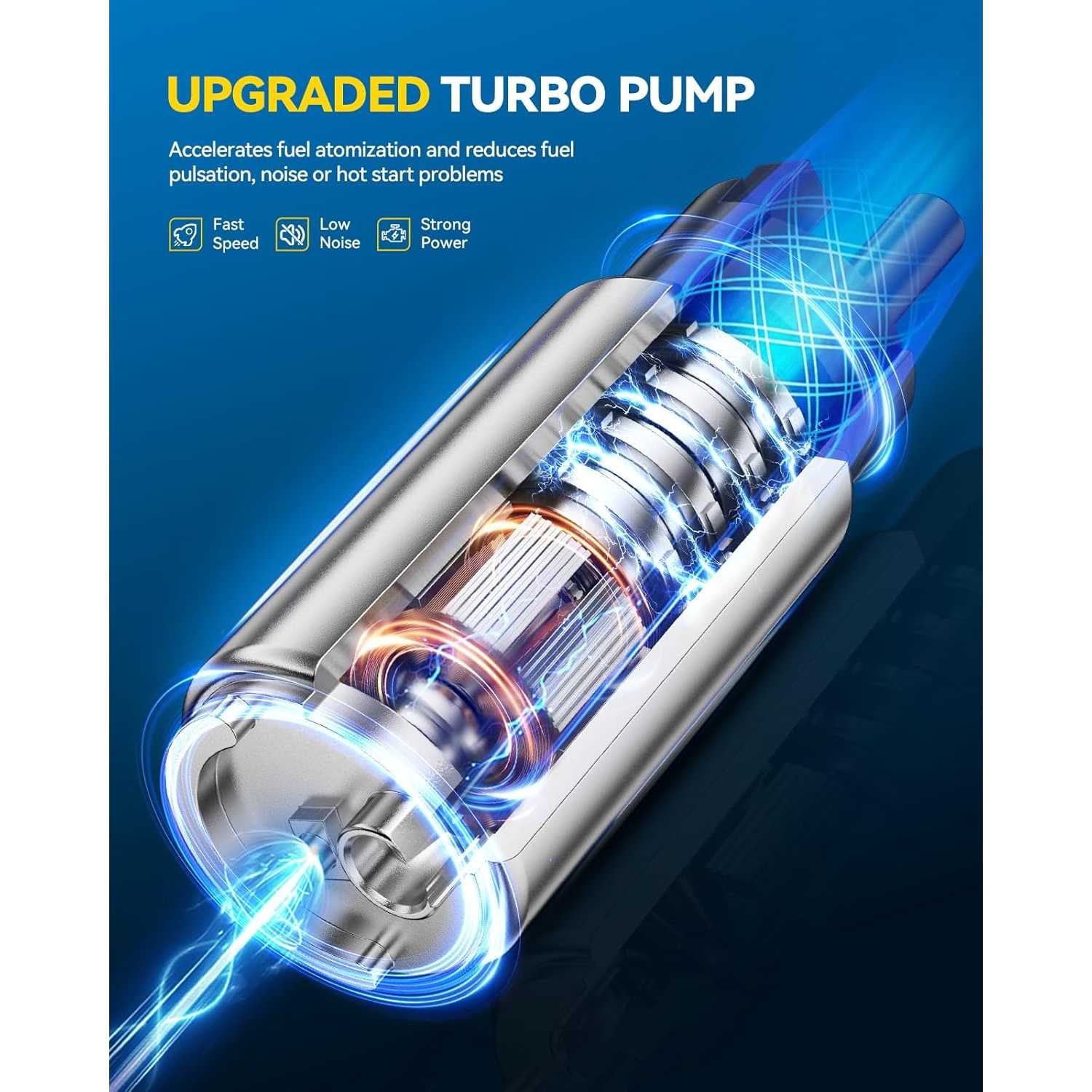

Pump Structure
Turbine Impeller
Items Included
1x Fuel Pump Assembly - FG1719
Warranty Period
2-Year
OE Number
8E0919051P,8E0919051AG,8E0919051BJ,8E0919051CJ
Part Number
P76316M,SP5017M,FG1719

Highlights

  • #40,960 in Automotive (See Top 100 in Automotive)
  • #140 in Automotive Replacement Electric Fuel Pumps
  • Fitment: Compatible with 2002-2003 Audi A4.
  • Reference Number: C0554M, A2C53171435Z, E8476M, 8E0919051CJ, 8E0919051P, P76396M, SP5019M, 4010347, TNKSP5017M, 8E0919051CG, 8E0919051AG, A41014, 8E0919051BJ, P76316M, SP5017M, A27148, 228235036006Z, FG1719, C0555M, 2920568, C18112783TG, M2496306, M635629, B18111460TG.
  • Related Parts: ① Fuel Pump, ② Strainer, ③Seal Ring.
  • Boost Fuel Efficiency by 20%: Delivers consistent high fuel pressure and optimal flow rate to eliminate hesitation, power loss, and rough idling. Ensures your engine receives adequate fuel supply for smoother acceleration, improved throttle response, and better fuel economy, making it run like new again.
  • Superior Durability: Engineered for longevity, this fuel pump assembly minimizes wear through premium design. It delivers consistent performance with <15% flow loss after rigorous 3500-hour endurance testing, ensuring reliable operation far beyond standard units.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2002 - 20032002 - 200320032003
MakeAudiAudiAudiAudi
ModelA4A4A4A4
TrimBaseBaseCabrioletCabriolet
Engine1.8L L43.0L V61.8L L43.0L V6
Note
From Chassis/VIN 8E-2-020-001 To Chassis/VIN 8E-3-385 930
From Chassis/VIN 8E-2-020-001 To Chassis/VIN 8E-3-385 930
From Chassis/VIN 8E-2-020-001 To Chassis/VIN 8E-3-385 930
From Chassis/VIN 8E-2-020-001 To Chassis/VIN 8E-3-385 930

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

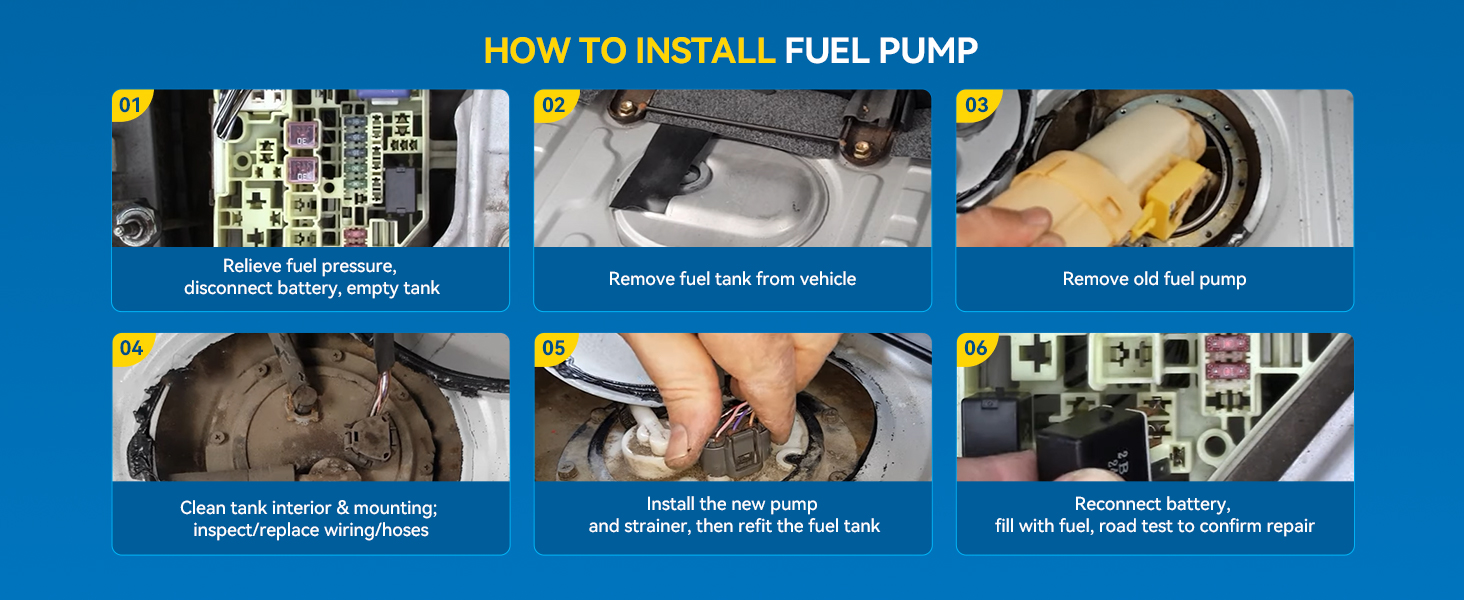

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

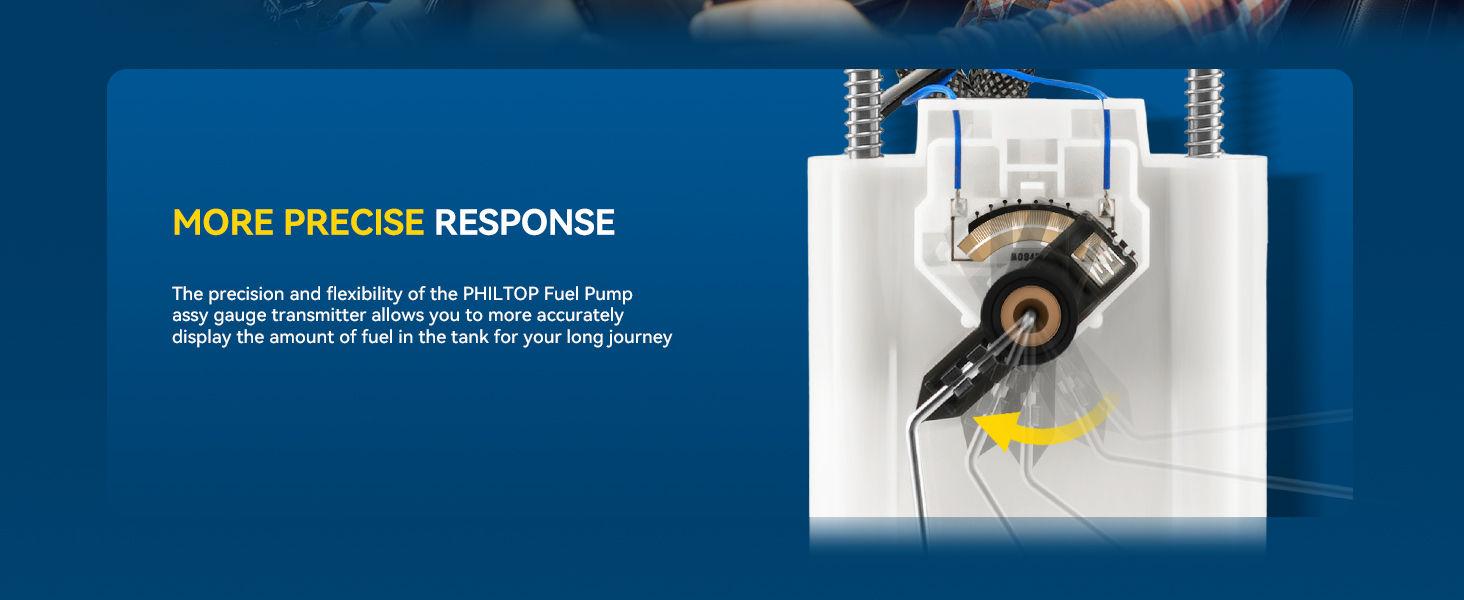

1fuel pump
