2011-2017 Jeep Wrangler 3.8L V6/3.6L V6 | Fuel Pump Assembly | OE#68065575AB/FG1193 - PHILTOP

2011-2017 Jeep Wrangler 3.8L V6/3.6L V6 | Fuel Pump Assembly | OE#68065575AB/FG1193 - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Seal Included

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
68ISFUP3117US

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
No
Strainer Included
Yes

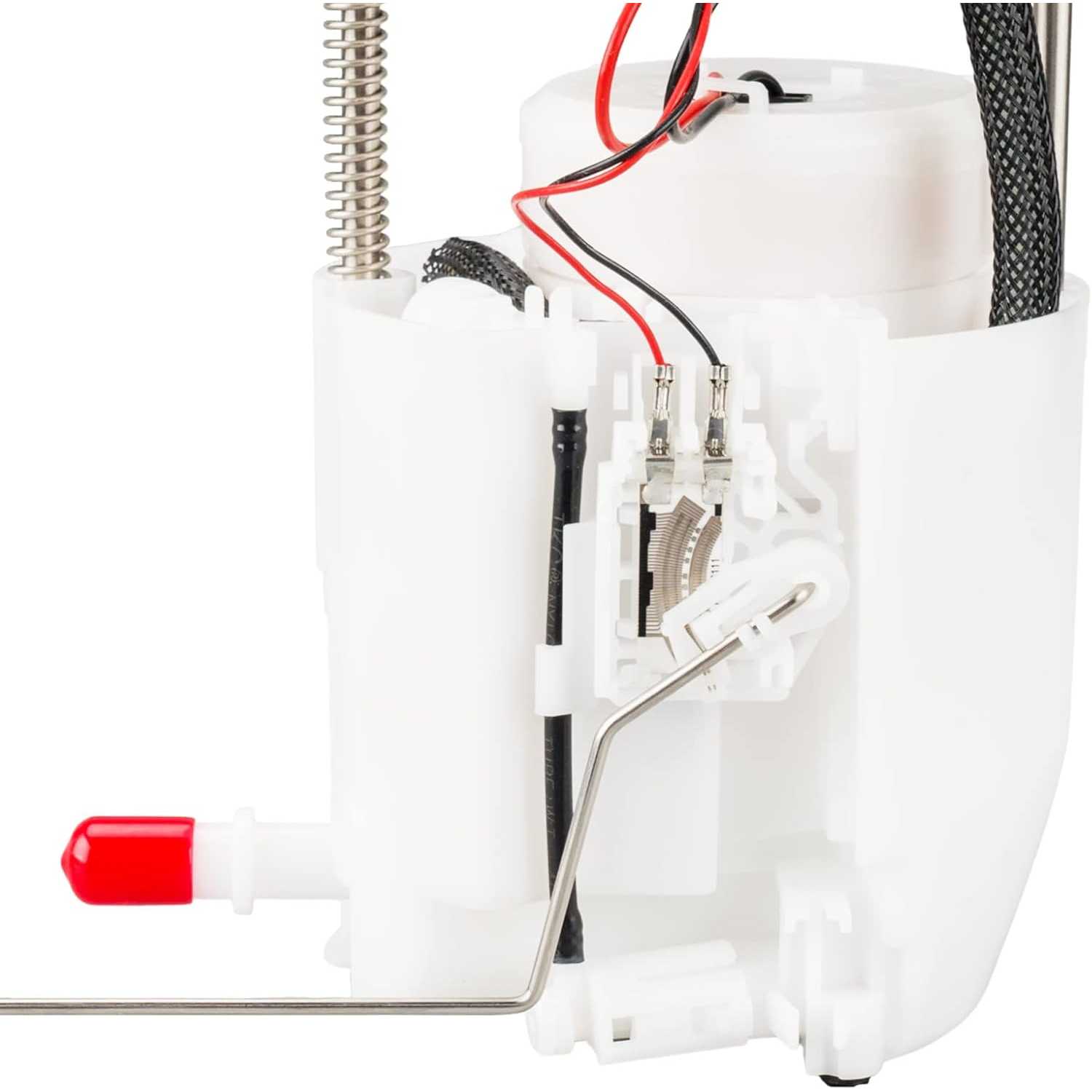

Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
990.0 Ω
Resistance Ohms Full
50.0 Ω
Average Flow Rating
28 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
62.0 PSI
Outlet Outside Diameter
0.375 in
Outlet Quantity
1
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller
Items Included
1x Fuel Pump Assembly - FG1193
Warranty Period
2-Year
OE Number
68065575AB,68065575AD,68003334AA,68003385AA,68003388AA,68065575AE,68065575AA,68065575AC
Part Number
FG1193,P76752M,SP7210M,USEP7265M

Highlights

  • #40,954 in Automotive (See Top 100 in Automotive)
  • #140 in Automotive Replacement Electric Fuel Pumps
  • Fitment: Compatible with [Jeep] 2011-2017 Wrangler(From 03/31/2011), 2018 Wrangler JK.
  • Reference Number: 68003385AA, 68003334AA, 68065575AA, USEP7265M, 68003388AA, 68065575AE, SP7210M, 68065575AB, 68065575AD, FG1193, P76752M, 68065575AC.

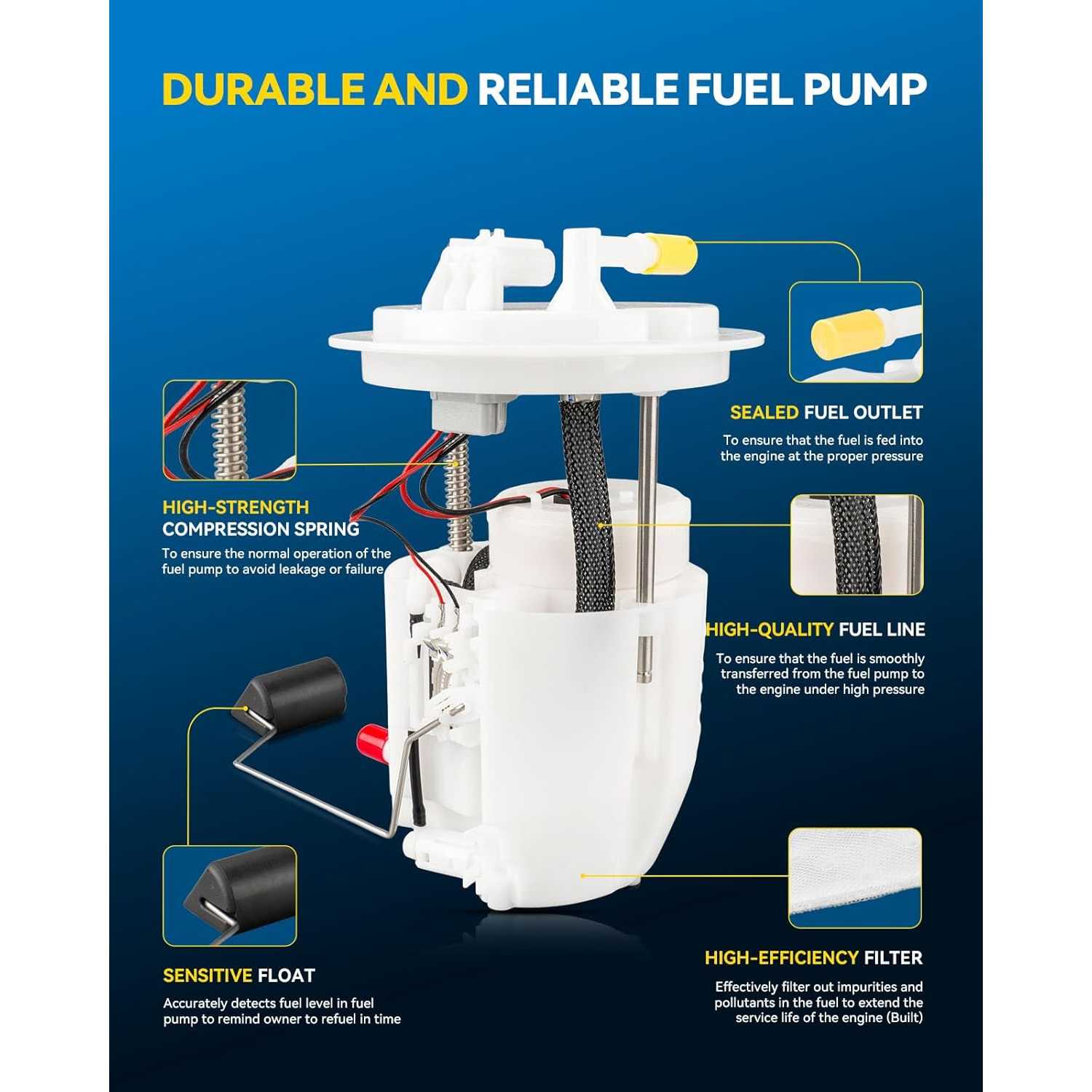

  • Related Parts: ① Fuel Pump, ② Strainer, ③Seal Ring.
  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year201120162012 - 201720112012 - 201720112012 - 201720112016201120162012 - 201720112012 - 201720112012 - 20172011201620182018201820182018201820182018
MakeJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeep
ModelWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWranglerWrangler JKWrangler JKWrangler JKWrangler JKWrangler JKWrangler JKWrangler JKWrangler JK
Trim70th Anniversary75th AnniversaryRubiconRubiconSaharaSaharaSportSportSport SUnlimited 70th AnniversaryUnlimited 75th AnniversaryUnlimited RubiconUnlimited RubiconUnlimited SaharaUnlimited SaharaUnlimited SportUnlimited SportUnlimited Sport SRubiconSaharaSportSport SUnlimited RubiconUnlimited SaharaUnlimited SportUnlimited Sport S
Engine3.8L V63.6L V63.6L V63.8L V63.6L V63.8L V63.6L V63.8L V63.6L V63.8L V63.6L V63.6L V63.8L V63.6L V63.8L V63.6L V63.8L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V6
Note
From 03/31/2011
From 03/31/2011
From 03/31/2011
From 03/31/2011
From 03/31/2011
From 03/31/2011
From 03/31/2011
From 03/31/2011
From 03/31/2011
From 03/31/2011
From 03/31/2011
From 03/31/2011
From 03/31/2011
From 03/31/2011
From 03/31/2011
From 03/31/2011
From 03/31/2011
From 03/31/2011
--------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

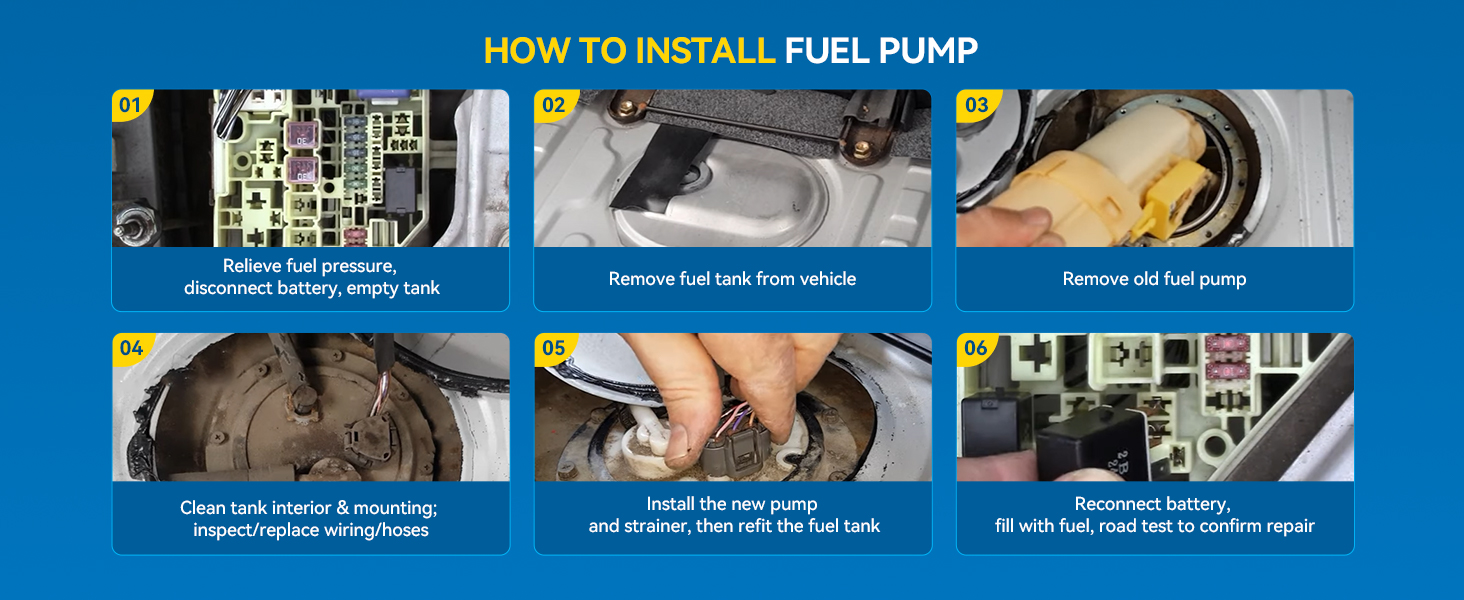

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

1fuel pump

Reviews

5.0/5

Based on 3 reviews

5100%
40%
30%
20%
10%

Kelly_SUV_Life_568

11/19/2025

Shipping was speedy and the packaging was secure. Everything arrived in perfect condition. Customer service was responsive when I reached out with a question. Very satisfied.

Mike from Texas_109

01/19/2026

This was a straightforward installation, took about as long as expected. It’s a solid replacement part and feels like it’ll last. Much better than the old one.
