1998-1999 Chevrolet Tahoe 5.7L V8 | Fuel Pump Assembly | OE#25314021/FG0088 - PHILTOP

1998-1999 Chevrolet Tahoe 5.7L V8 | Fuel Pump Assembly | OE#25314021/FG0088 - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Pressure Sensor Included

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
86ISFUP2537US

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
Yes

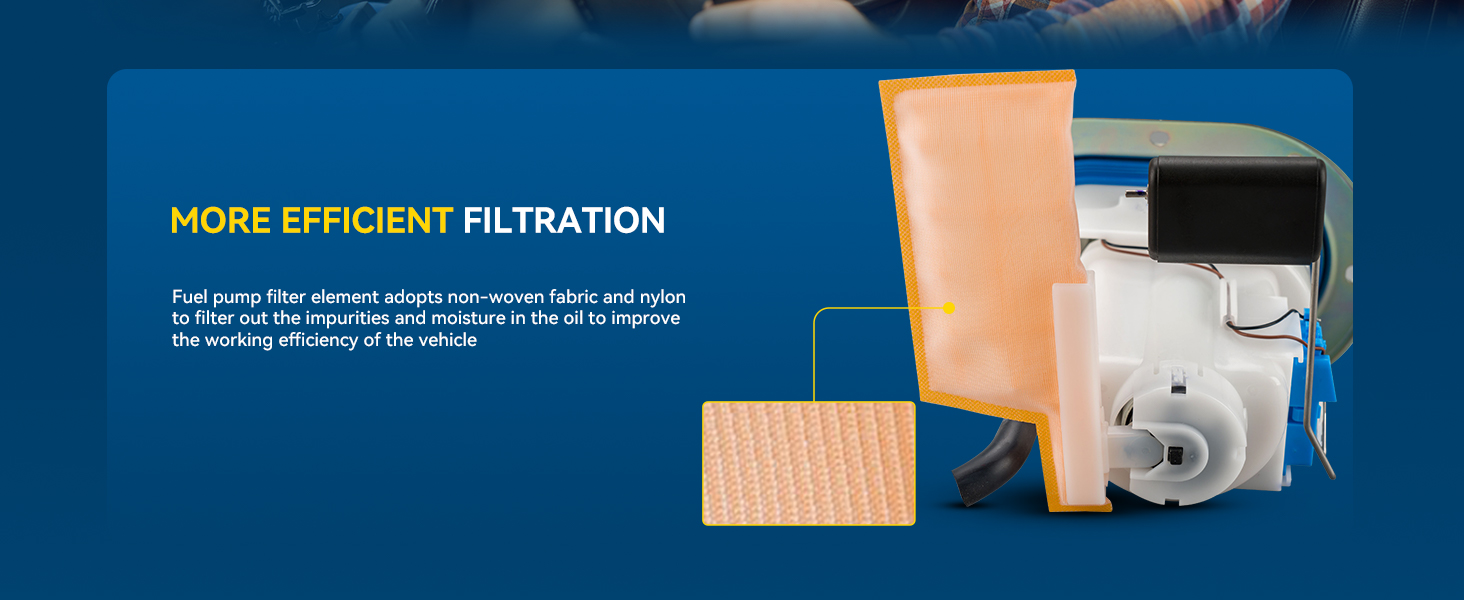

Strainer Included
Yes

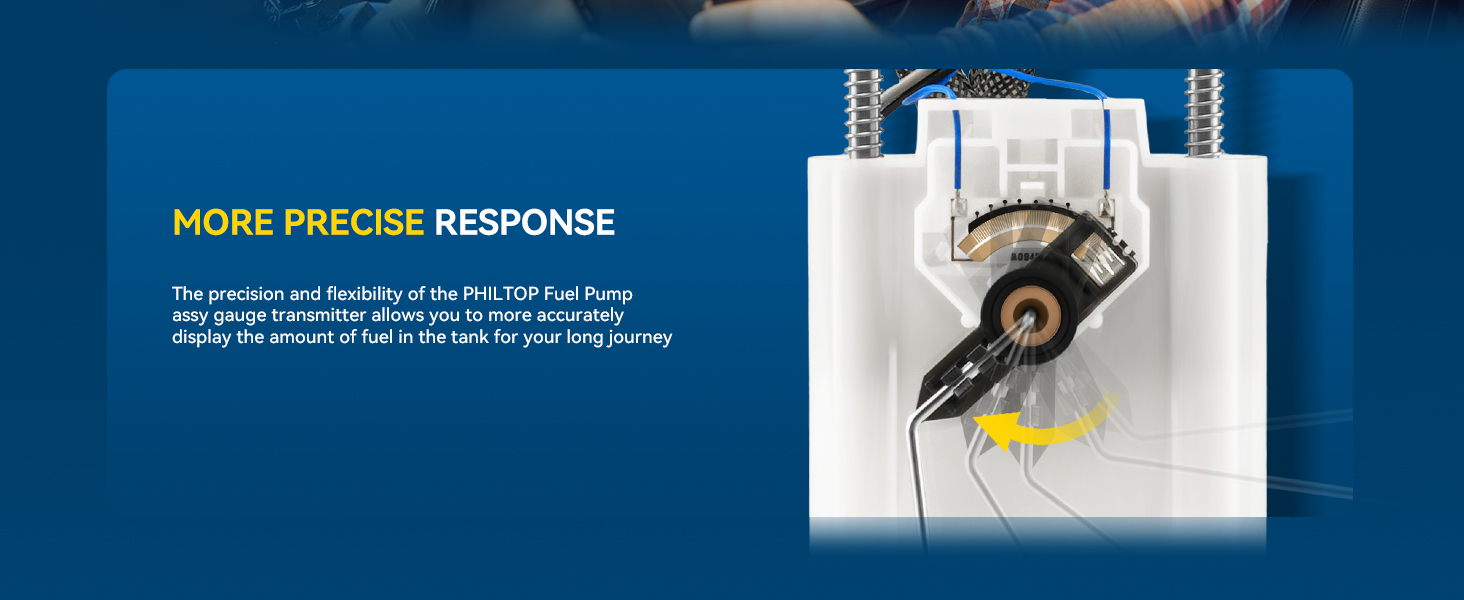

Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
40.0 Ω
Resistance Ohms Full
250.0 Ω
Average Flow Rating
32 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
109.0 PSI
Outlet Outside Diameter
0.375 in
Outlet Quantity
2
Outlet Type
Quick Connect
Pump Structure

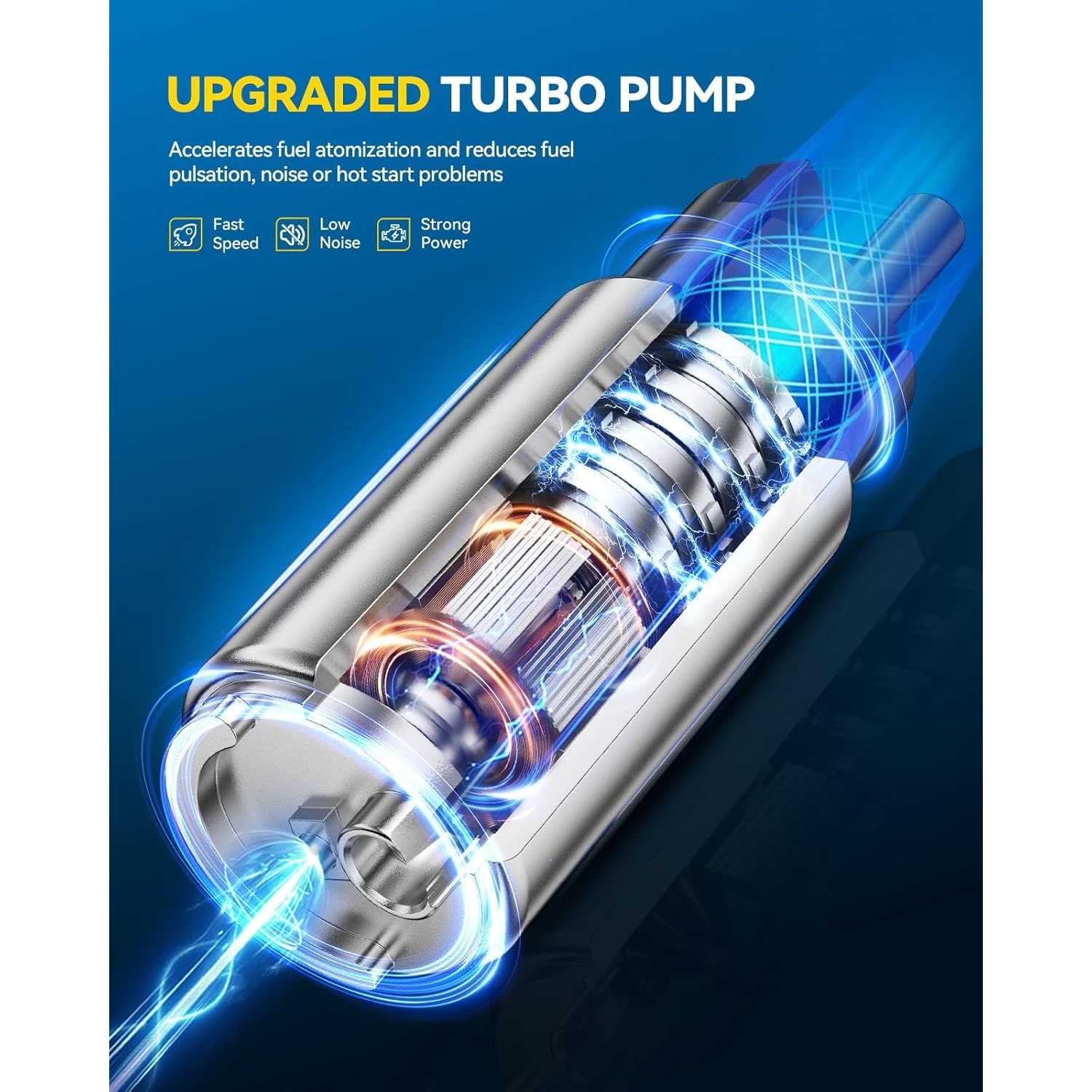

Turbine Impeller
Items Included
1x Fuel Pump Assembly - FG0088
Warranty Period
2-Year
OE Number
25314021,P572M,19177227,25314325,19332073,19369885
Part Number
FG0088,SP6148M,9535045,5302286,USEP3963M,69183,150218,F2974A,1AMFP00168,402P3963M,C0362M,4010149,MO132,EFG0088,E3963MN,FP5211,RE0477S,TNKSP6148M,EC963M

Highlights

  • #11,629 in Automotive (See Top 100 in Automotive)
  • #30 in Automotive Replacement Electric Fuel Pumps
  • Fitment: Compatible with [Chevrolet] 1998-1999 Tahoe 5.7L 2doors.
  • Reference Number: 19177227, F2974A, 69183, 1AMFP00168, 25314325, EFG0088, 402P3963M, 25314021, FG0088, 19332073, C0362M, P572M, SP6148M, 19369885, 4010149, USEP3963M, 150218, 9535045, 5302286, MO132, E3963MN, FP5211, RE0477S, TNKSP6148M, EC963M.

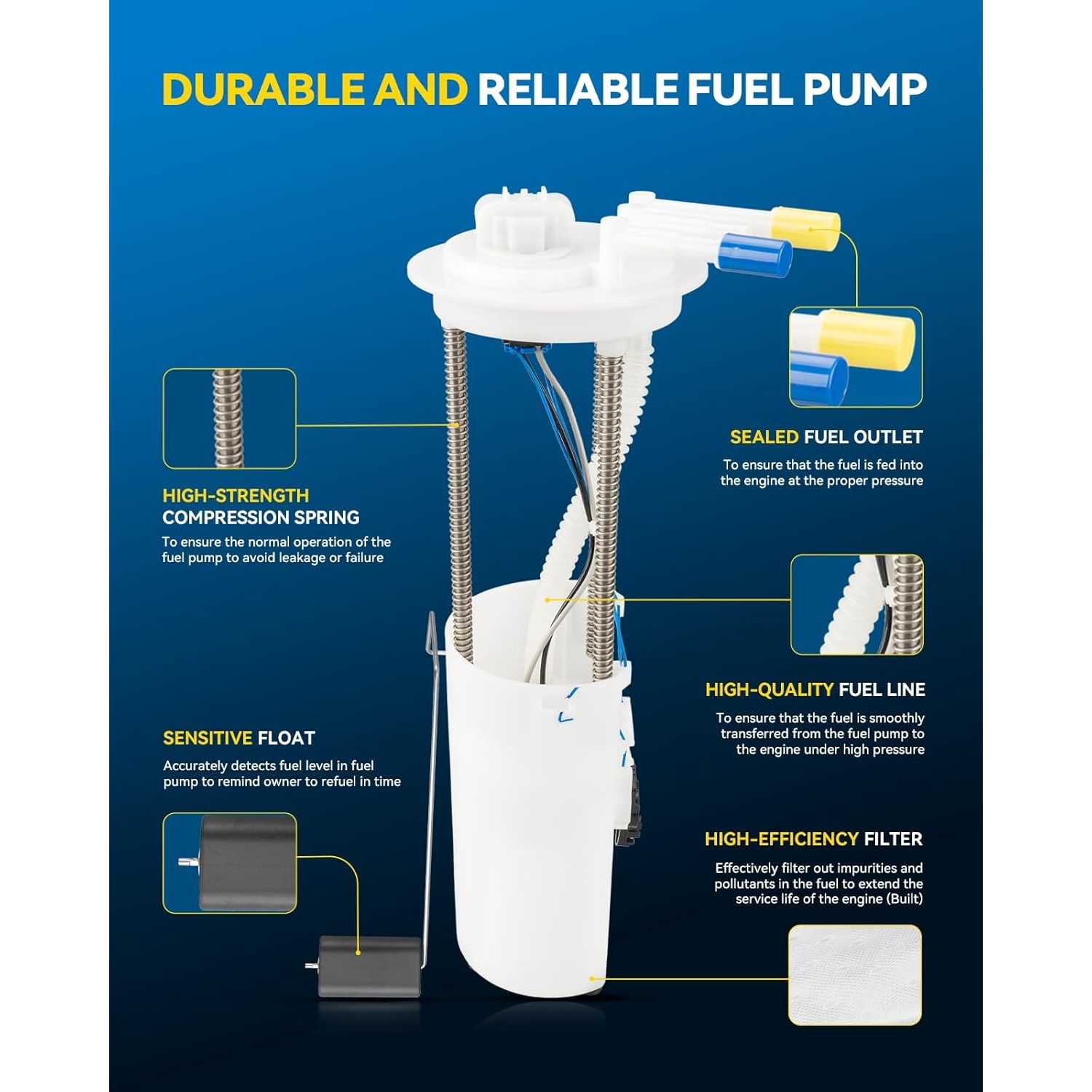

  • Related Parts: ① Fuel Pump, ② Seal Ring, ③ Strainer, ④ Pressure Sensors.

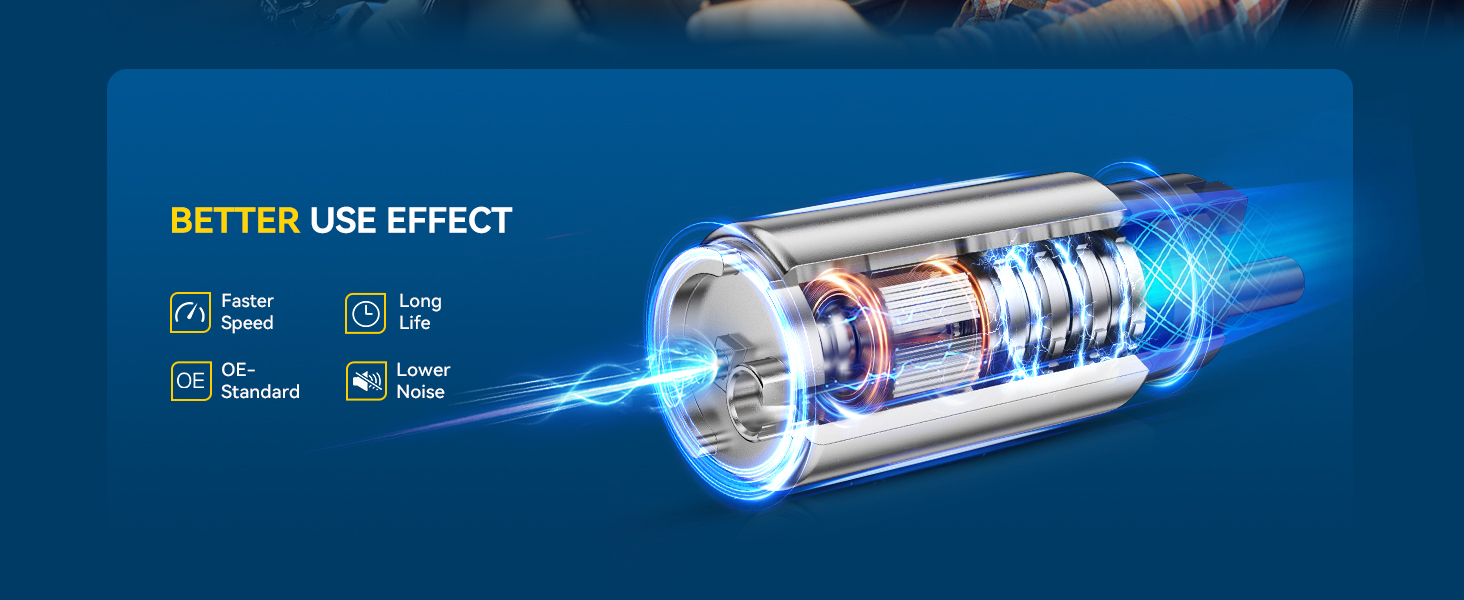

  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1998 - 19991998 - 19991998 - 1999
MakeChevroletChevroletChevrolet
ModelTahoeTahoeTahoe
TrimBaseLSLT
Engine5.7L V85.7L V85.7L V8
Note
with Fuel Pump Module Code GFL;without Robust or Low Lubricity Fuel System Sender
with Fuel Pump Module Code GFL;without Robust or Low Lubricity Fuel System Sender
with Fuel Pump Module Code GFL;without Robust or Low Lubricity Fuel System Sender

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

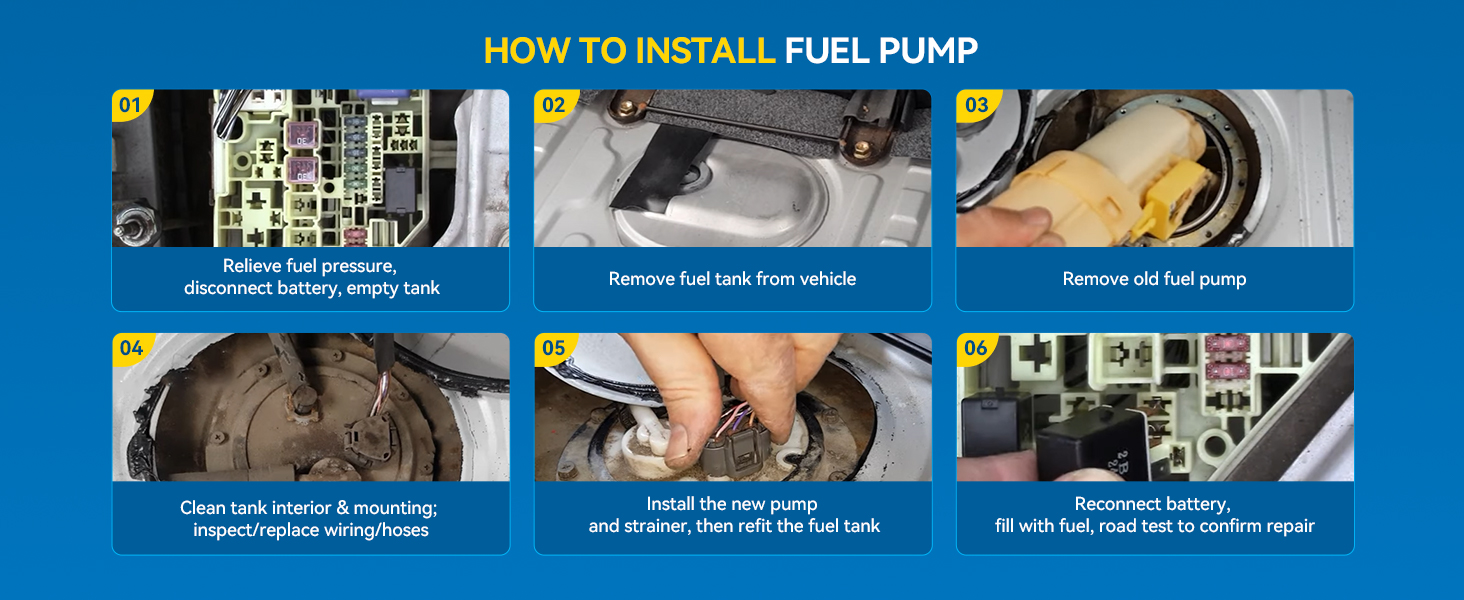

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

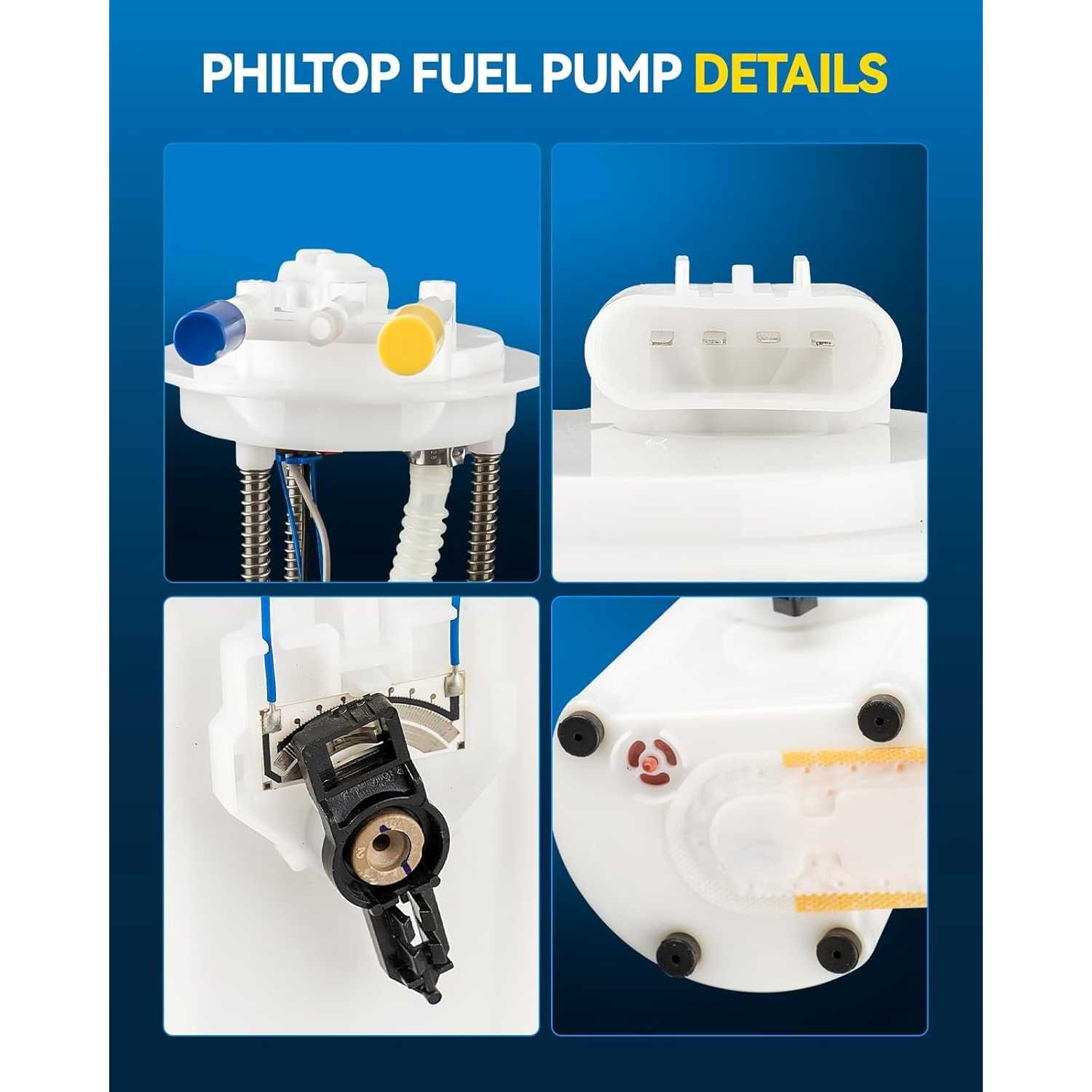

Product Description

1fuel pump

Reviews

4.7/5

Based on 3 reviews

567%
433%
30%
20%
10%

Jennifer_Auto_41

02/24/2026

Looks exactly like the factory part and works perfectly. The price was amazing compared to other places. My Tahoe is running like new again, totally worth it.

Chris_GearHead_596

04/13/2026

Came in super quick, and the packaging was really good. I called them with a question about the filter screen, and they were super helpful. Great service!
