1999-2002 Mercury Cougar 2.0L/2.5L | Fuel Pump Assembly | OE#XS2Z9H307AH/P74954M - PHILTOP

1999-2002 Mercury Cougar 2.0L/2.5L | Fuel Pump Assembly | OE#XS2Z9H307AH/P74954M - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Seal Included

4.6

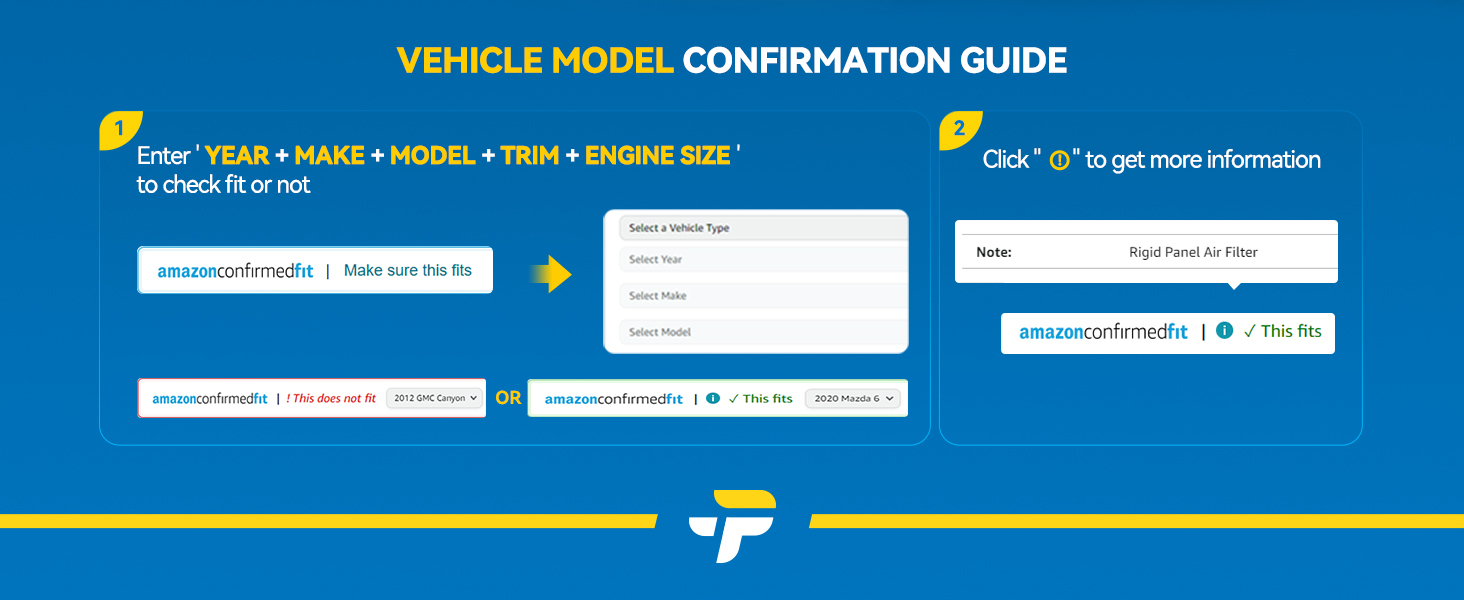

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
68ISFUP3317US

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
No

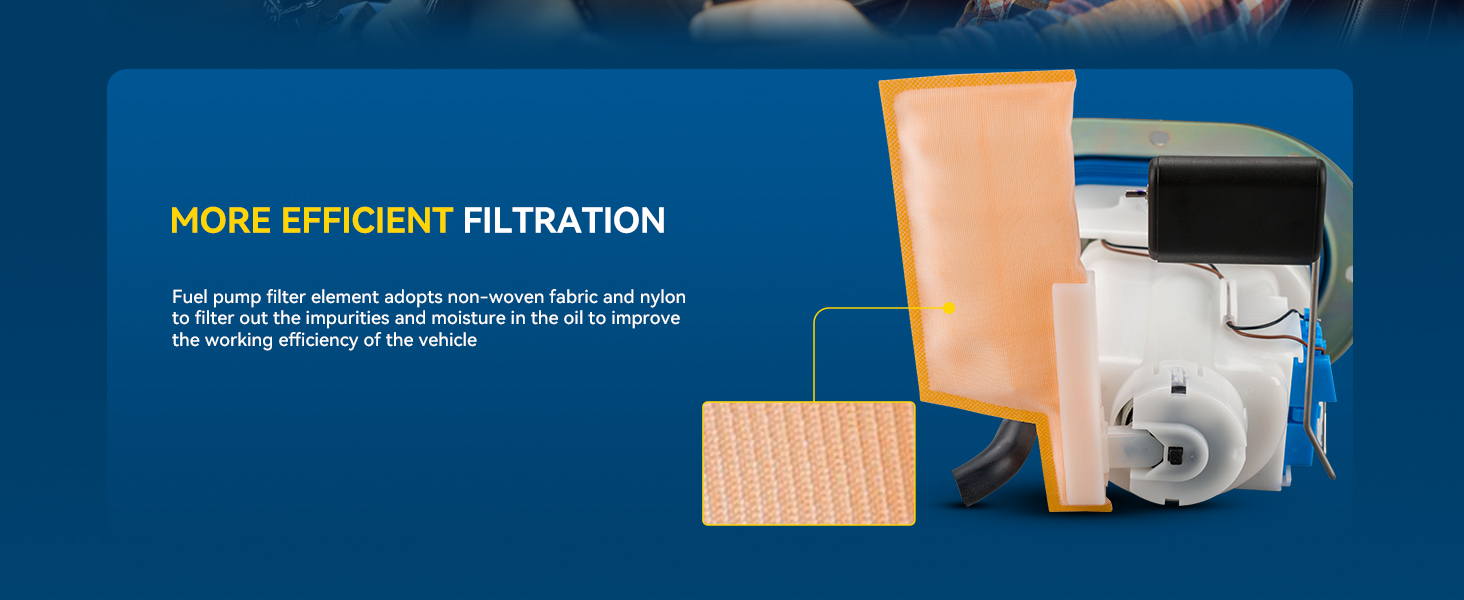

Strainer Included
Yes

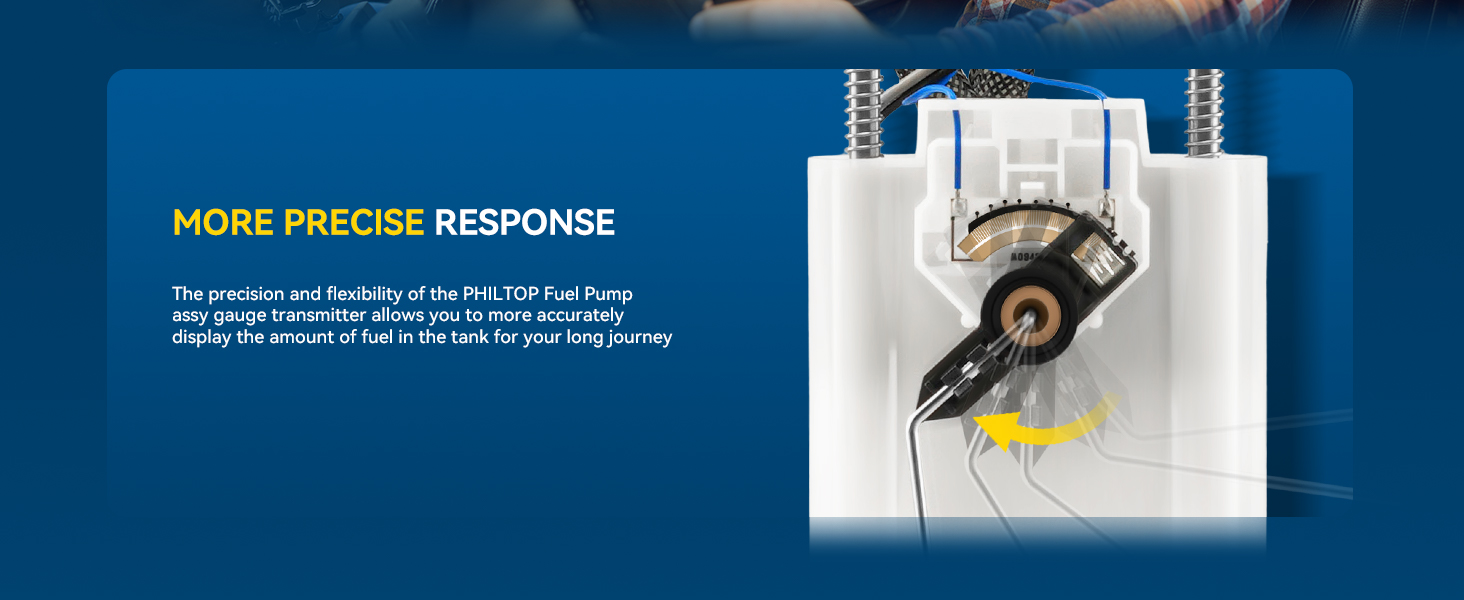

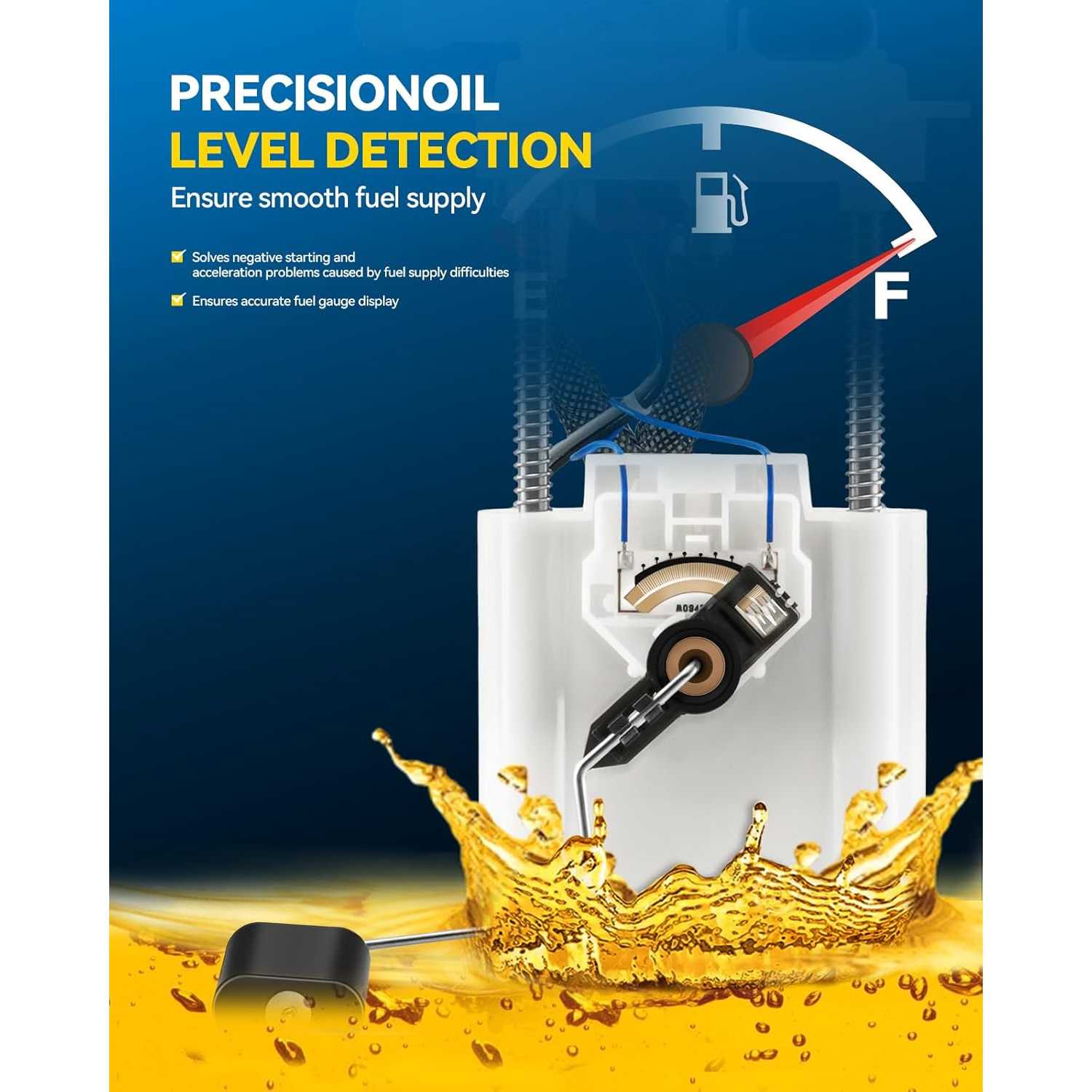

Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
15.0 Ω
Resistance Ohms Full
160.0 Ω
Average Flow Rating
37 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
80.0 PSI
Outlet Outside Diameter
0.313 in
Outlet Quantity
1
Outlet Type
Quick Connect

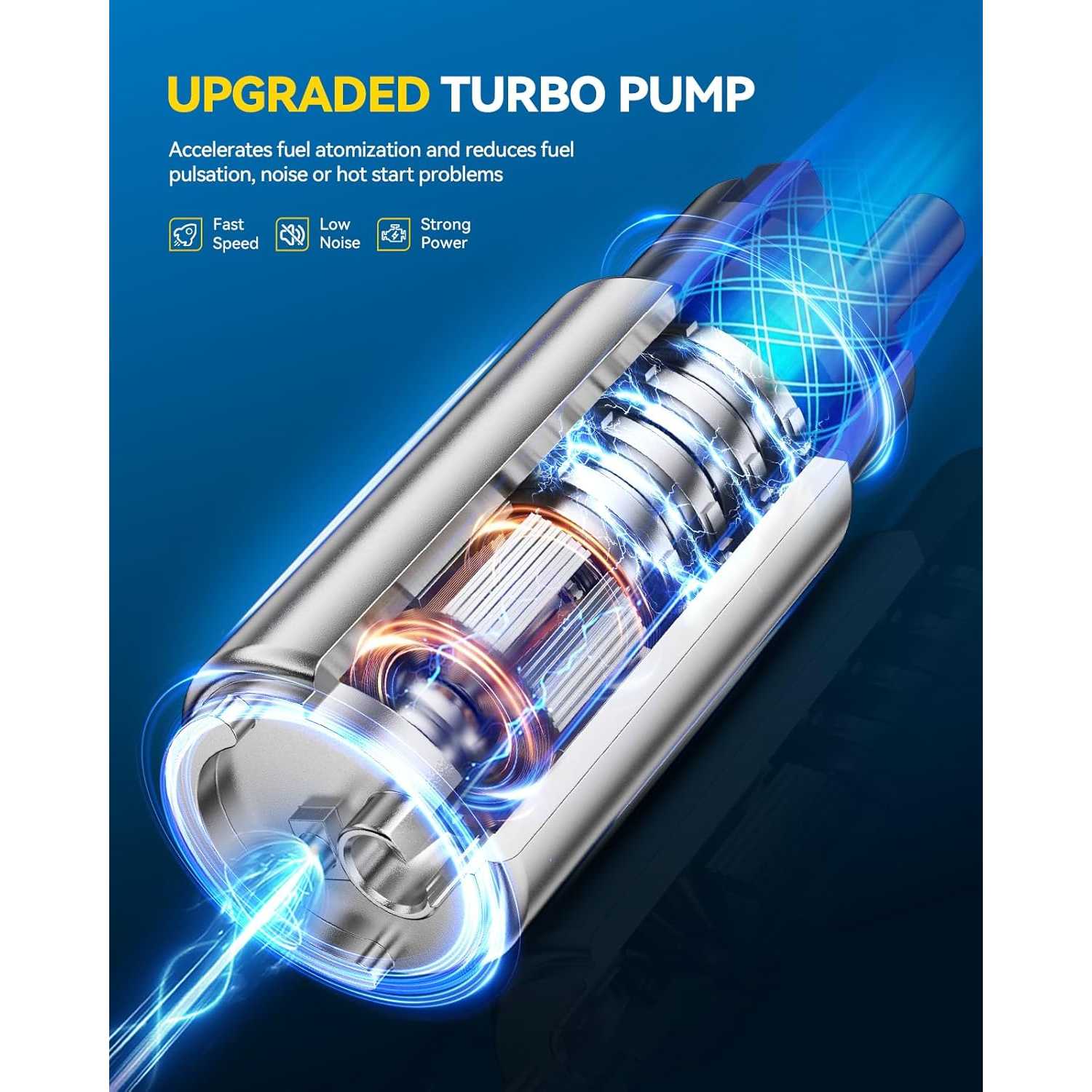

Pump Structure
Turbine Impeller
Items Included
1x Fuel Pump Assembly - FG1357
Warranty Period
2-Year
OE Number
XS2Z9H307AH,XS2Z9H307AK,XS2Z9H307CA,XS2Z9H307AG,XS2Z9H307AA
Part Number
P74954M,FG1357,SP8020M,USEP2273M

Highlights

  • #11,636 in Automotive (See Top 100 in Automotive)
  • #30 in Automotive Replacement Electric Fuel Pumps
  • Fitment: Compatible with [Ford] 1999-2000 Contour, [Mercury] 1999-2002 Cougar, 1999-2000 Mystique, (From 05/03/1999).
  • Reference Number: XS2Z9H307AG, XS2Z9H307AH, XS2Z9H307AA, P74954M, FG1357, SP8020M, XS2Z9H307CA, USEP2273M, XS2Z9H307AK.

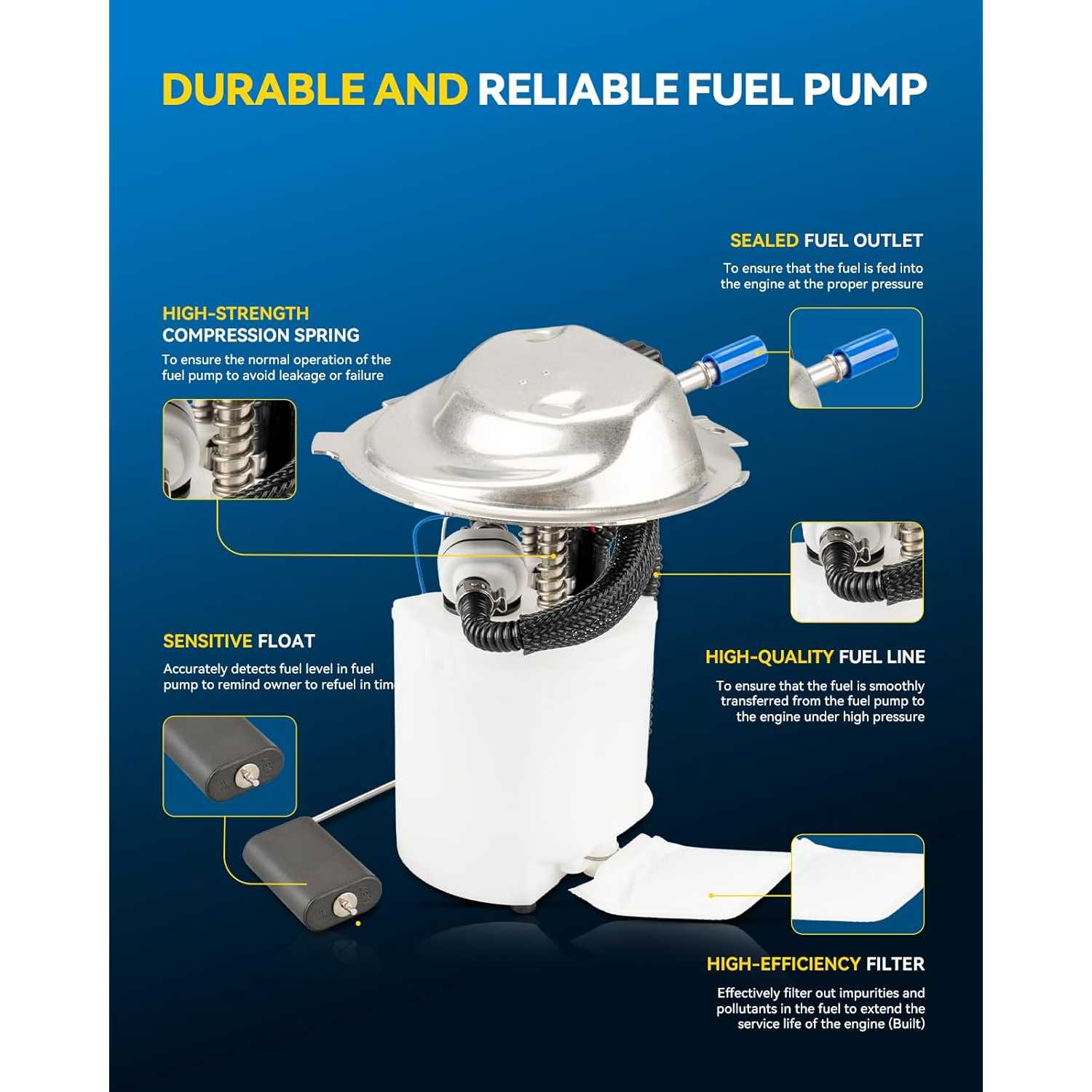

  • Related Parts: ① Fuel Pump, ② Seal Ring, ③ Strainer.
  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1999 - 20001999 - 20001999 - 20001999 - 20001999 - 20001999 - 20022001 - 200220011999 - 20021999 - 20001999 - 2000
MakeFordFordFordFordFordMercuryMercuryMercuryMercuryMercuryMercury
ModelContourContourContourContourContourCougarCougarCougarCougarMystiqueMystique
TrimLXLXSESESVTBaseBaseSV6GSLS
Engine2.0L L42.5L V62.0L L42.5L V62.5L V62.0L L42.5L V62.5L V62.5L V62.0L L42.5L V6
Note
From 05/03/1999
From 05/03/1999
From 05/03/1999
From 05/03/1999
From 05/03/1999
From 05/03/1999
From 05/03/1999
From 05/03/1999
From 05/03/1999
From 05/03/1999
From 05/03/1999

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

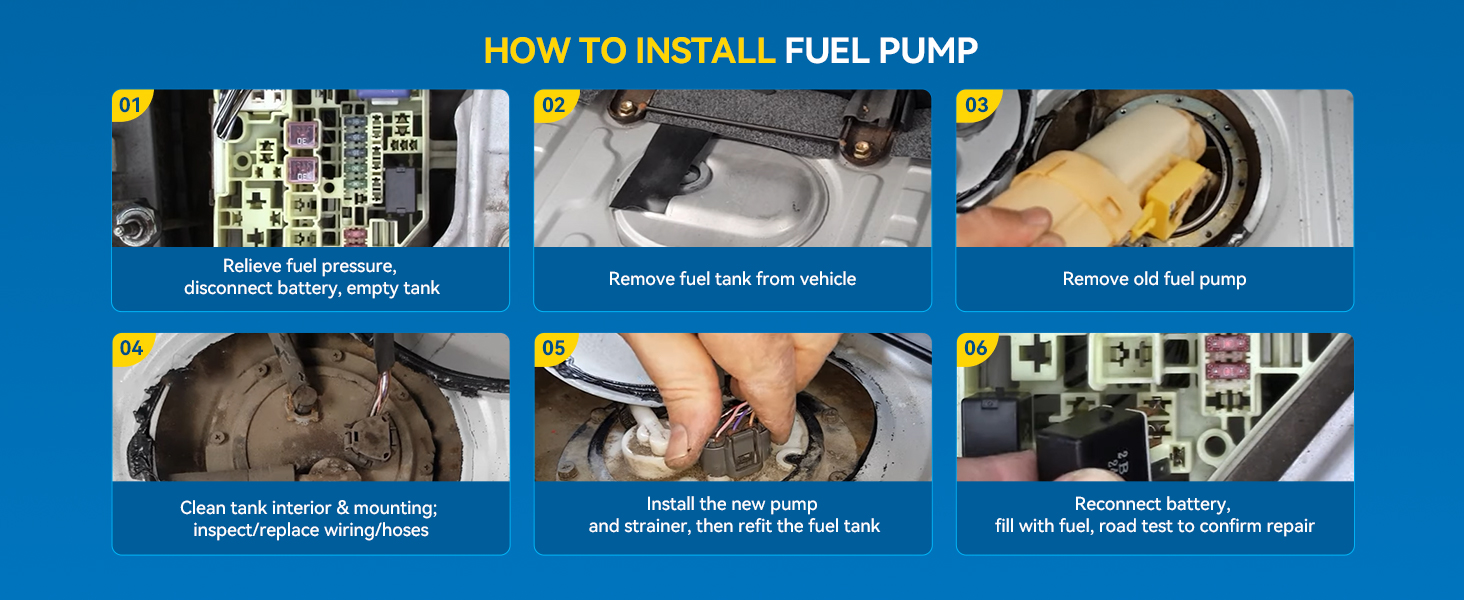

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

1fuel pump
