2000-2003 Chevrolet Impala 3.4L V6 | Fuel Pump Assembly | OE#19180109/SP6177M - PHILTOP

2000-2003 Chevrolet Impala 3.4L V6 | Fuel Pump Assembly | OE#19180109/SP6177M - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Pressure Sensor Included

4.5

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
84ISFUP2557US

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
Yes
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
40.0 Ω
Resistance Ohms Full
250.0 Ω
Average Flow Rating
17 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
109.0 PSI
Outlet Outside Diameter
0.375 in
Outlet Quantity
3
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller
Items Included
1x Fuel Pump Assembly - FG0111
Warranty Period
2-Year
OE Number
19180109,25344933,89060193,25345021,25349604,19369955,19332109,19331286,P1001M,8253318610,P1012M,19369965,19177221,25331861,25317743
Part Number
SP6177M,FG0111,P74928M,9530034,TU428,5302100,USEP3542M

Highlights

  • #11,629 in Automotive (See Top 100 in Automotive)
  • #30 in Automotive Replacement Electric Fuel Pumps
  • Fitment: Compatible with [Chevrolet] 2000-2003 Impala, 2000-2003 Monte Carlo, [Buick] 2000-2003 Century, 2000-2003 Regal Naturally Aspirated, [Pontiac] 2001-2003 Grand Prix Naturally Aspirated, [Oldsmobile] 2001-2002 Intrigue, (with 2 Connectors;with 3 Tube Ports).
  • Reference Number: 19180109, 25344933, 5302100, 89060193, 25345021, USEP3542M, 25349604, 19369955, SP6177M, FG0111, 19332109, 19369965, P74928M, 19331286, 25317743, P1001M, 9530034, 8253318610, 19177221, 25331861, TU428, P1012M.

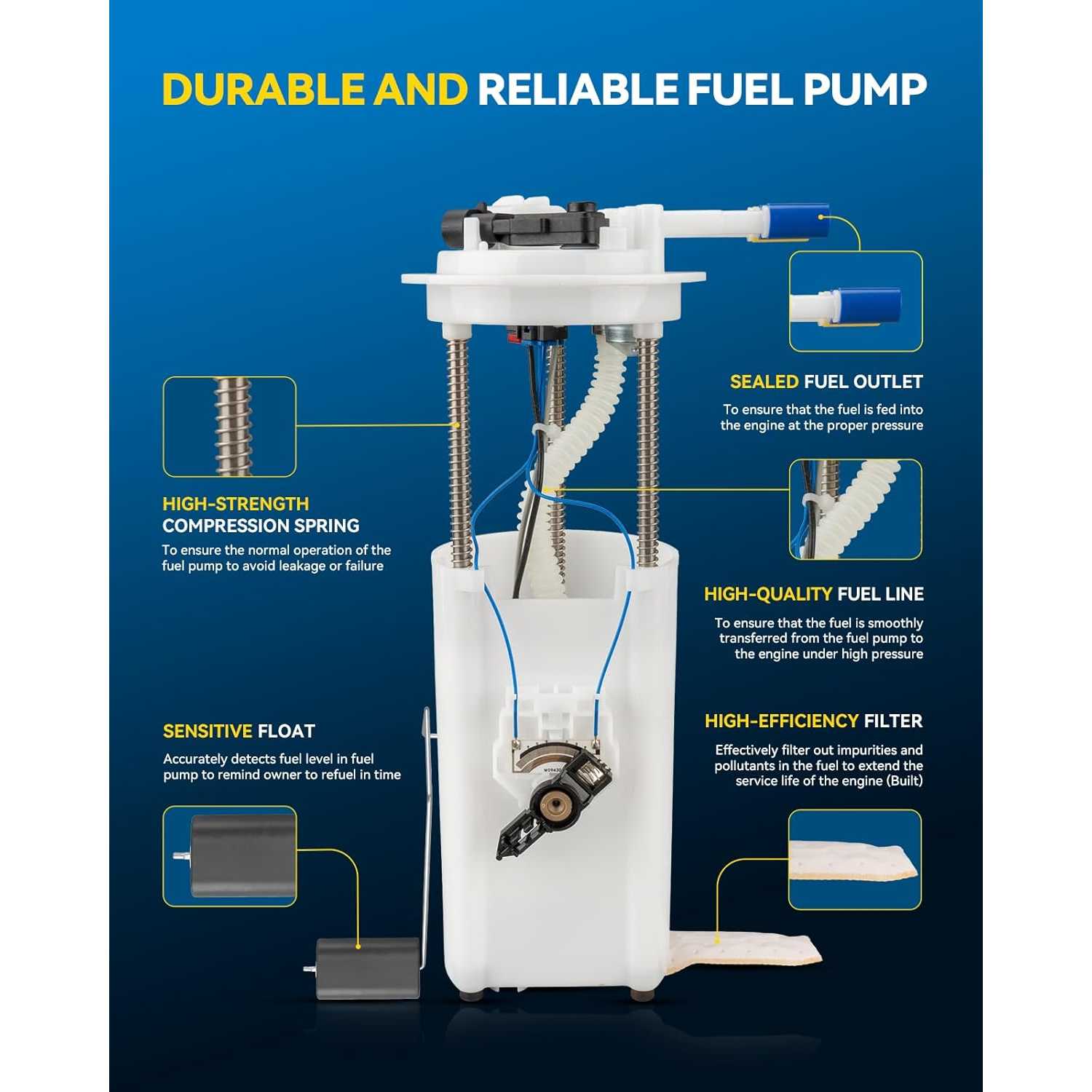

  • Related Parts: ① Fuel Pump, ② Seal Ring, ③ Strainer, ④ Pressure Sensors.
  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2000 - 20032000 - 20022000 - 200320002000 - 20032000 - 20032000 - 2003200320032000 - 2003200320032000 - 200320022002200320032001 - 20022001 - 20022001 - 20022001 - 20032001 - 20032001 - 2002
MakeBuickBuickBuickBuickChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletOldsmobileOldsmobileOldsmobilePontiacPontiacPontiac
ModelCenturyCenturyRegalRegalImpalaImpalaImpalaImpalaImpalaMonte CarloMonte CarloMonte CarloMonte CarloMonte CarloMonte CarloMonte CarloMonte CarloIntrigueIntrigueIntrigueGrand PrixGrand PrixGrand Prix
TrimCustomLimitedLSLSEBaseBaseLSLS SportPoliceLSLS CompetitionLS SportSSSS 35th Anniversary EditionSS Dale Earnhardt Signature EditionSS High SportSS Pace CarGLGLSGXGTSESE
Engine3.1L V63.1L V63.8L V63.8L V63.4L V63.8L V63.8L V63.8L V63.8L V63.4L V63.4L V63.4L V63.8L V63.8L V63.8L V63.8L V63.8L V63.5L V63.5L V63.5L V63.8L V63.1L V63.8L V6
Note
with 2 Connectors;with 3 Tube Ports
with 2 Connectors;with 3 Tube Ports
with 2 Connectors;with 3 Tube Ports
with 2 Connectors;with 3 Tube Ports
with 2 Connectors;with 3 Tube Ports
with 2 Connectors;with 3 Tube Ports
with 2 Connectors;with 3 Tube Ports
with 2 Connectors;with 3 Tube Ports
with 2 Connectors;with 3 Tube Ports
with 2 Connectors;with 3 Tube Ports
with 2 Connectors;with 3 Tube Ports
with 2 Connectors;with 3 Tube Ports
with 2 Connectors;with 3 Tube Ports
with 2 Connectors;with 3 Tube Ports
with 2 Connectors;with 3 Tube Ports
with 2 Connectors;with 3 Tube Ports
with 2 Connectors;with 3 Tube Ports
with 2 Connectors;with 3 Tube Ports
with 2 Connectors;with 3 Tube Ports
with 2 Connectors;with 3 Tube Ports
with 2 Connectors;with 3 Tube Ports
with 2 Connectors;with 3 Tube Ports
with 2 Connectors;with 3 Tube Ports

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

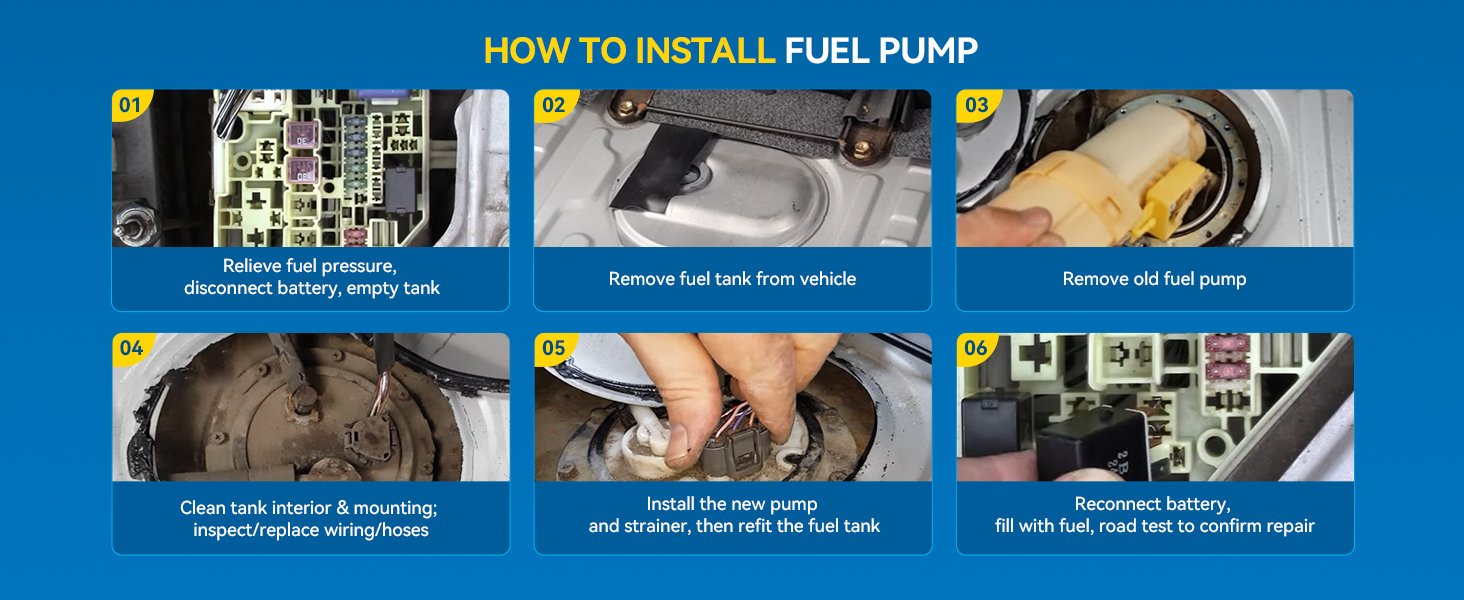

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

1fuel pump
