2002-2003 Nissan Altima 2.5L/3.5L | Fuel Pump Assembly | OE#170408J100/FG0501 - PHILTOP

2002-2003 Nissan Altima 2.5L/3.5L | Fuel Pump Assembly | OE#170408J100/FG0501 - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Seal Included

4.6

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
78ISFUP1357US

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
No
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
81.0 Ω
Resistance Ohms Full
5.0 Ω
Average Flow Rating
29 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
62.0 PSI
Outlet Outside Diameter
0.375 in
Outlet Quantity
1
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller
Items Included
1x Fuel Pump Assembly - FG0501
Warranty Period
2-Year
OE Number
170408J100,170408J000,170408J005,170408J105,P3386M
Part Number
FG0501,P76171M,SP4008M,USEP8496M,5502060,033GE,1AMFP00066,E8496M,AFS1085S,DFG0501,M2425954,150306,4010315,MO364,B14111058TG,C0563M,830526,RE1085S,FP5260,TNKSP4008M,402P8496M,EH496M,PN3105,2920415

Highlights

  • #11,629 in Automotive (See Top 100 in Automotive)
  • #30 in Automotive Replacement Electric Fuel Pumps
  • Fitment: Compatible with [Nissan] 2002-2003 Altima.
  • Reference Number: AFS1085S, P3386M, 170408J005, USEP8496M, FG0501, 5502060, 1AMFP00066, E8496M, 170408J105, P76171M, SP4008M, DFG0501, M2425954, 033GE, 170408J100, 4010315, MO364, 150306, 170408J000, 2920415, FP5260, RE1085S, 830526, TNKSP4008M, EH496M, 402P8496M, PN3105, B14111058TG, C0563M.

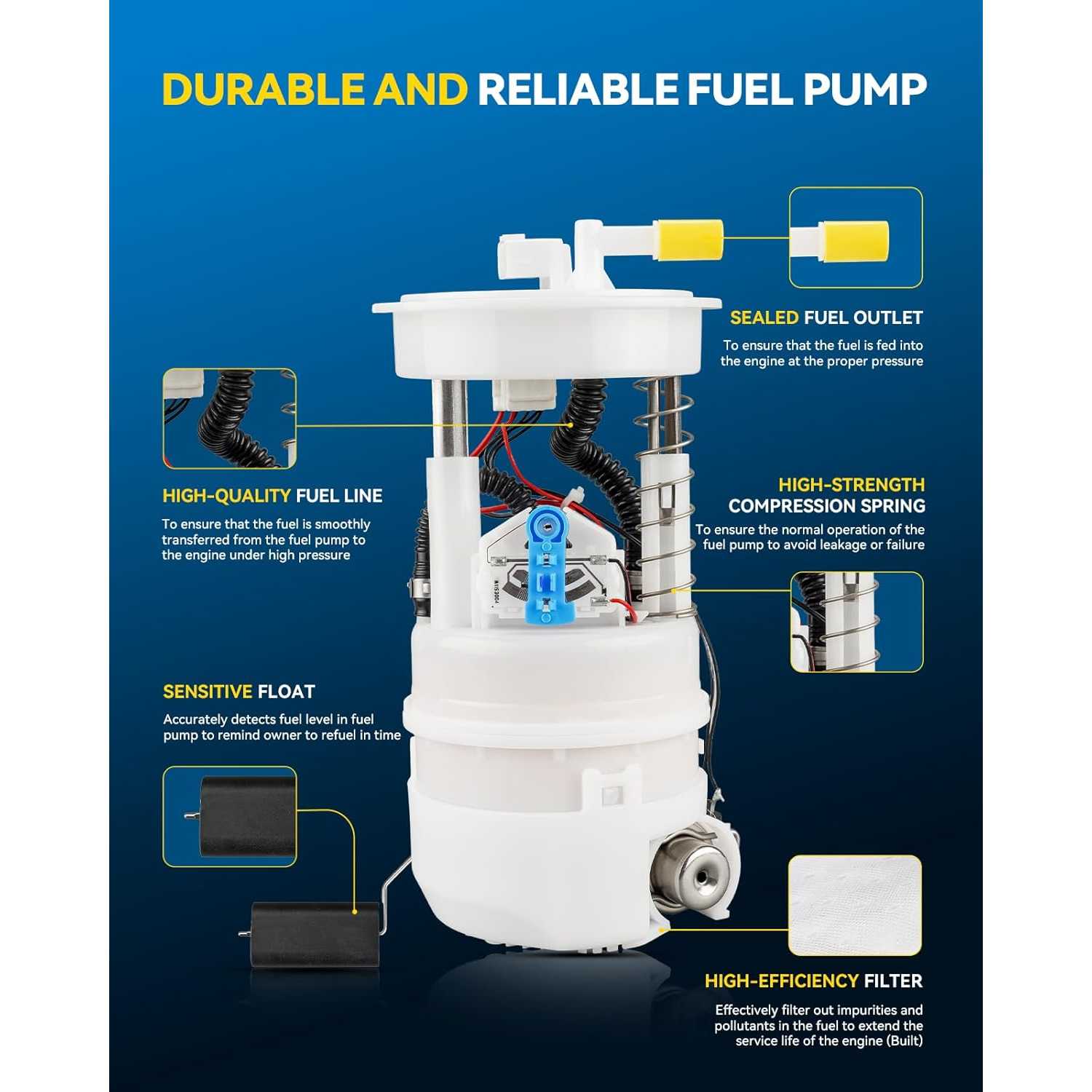

  • Related Parts: ① Fuel Pump, ② Seal Ring, ③ Strainer.

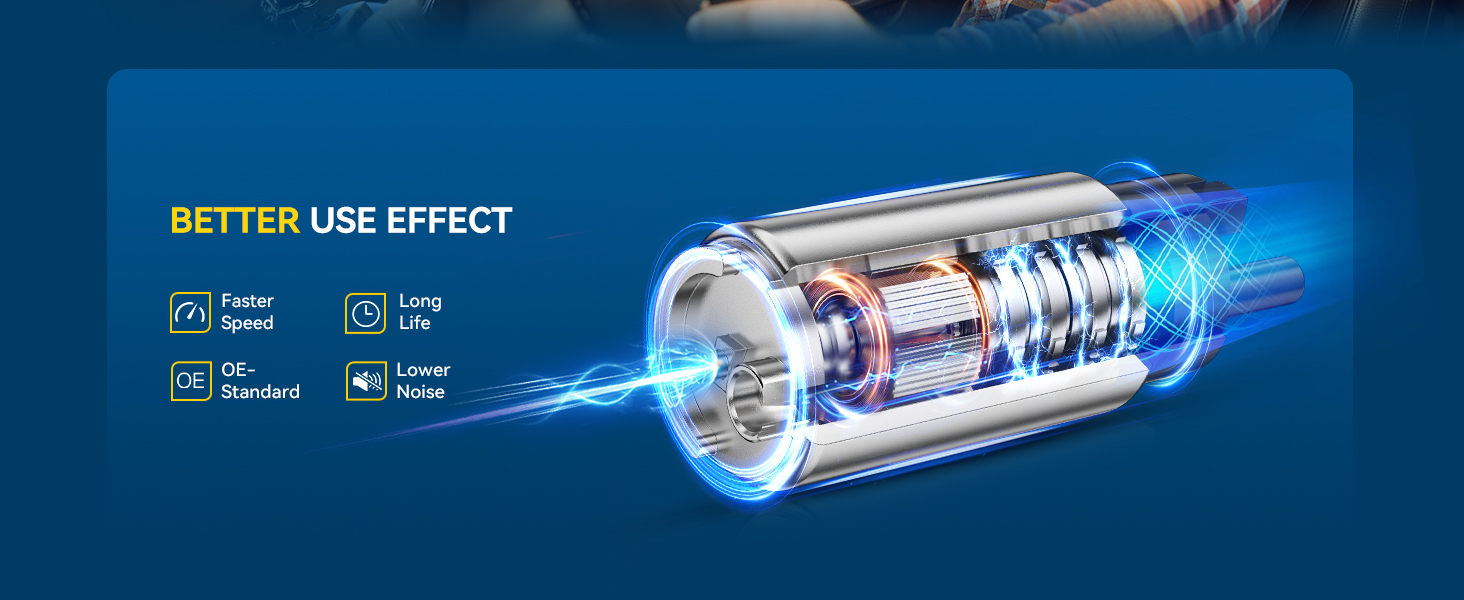

  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2002 - 20032002 - 20032002 - 20032002 - 2003
MakeNissanNissanNissanNissan
ModelAltimaAltimaAltimaAltima
TrimBaseSSESL
Engine2.5L L42.5L L43.5L V62.5L L4
Note----

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

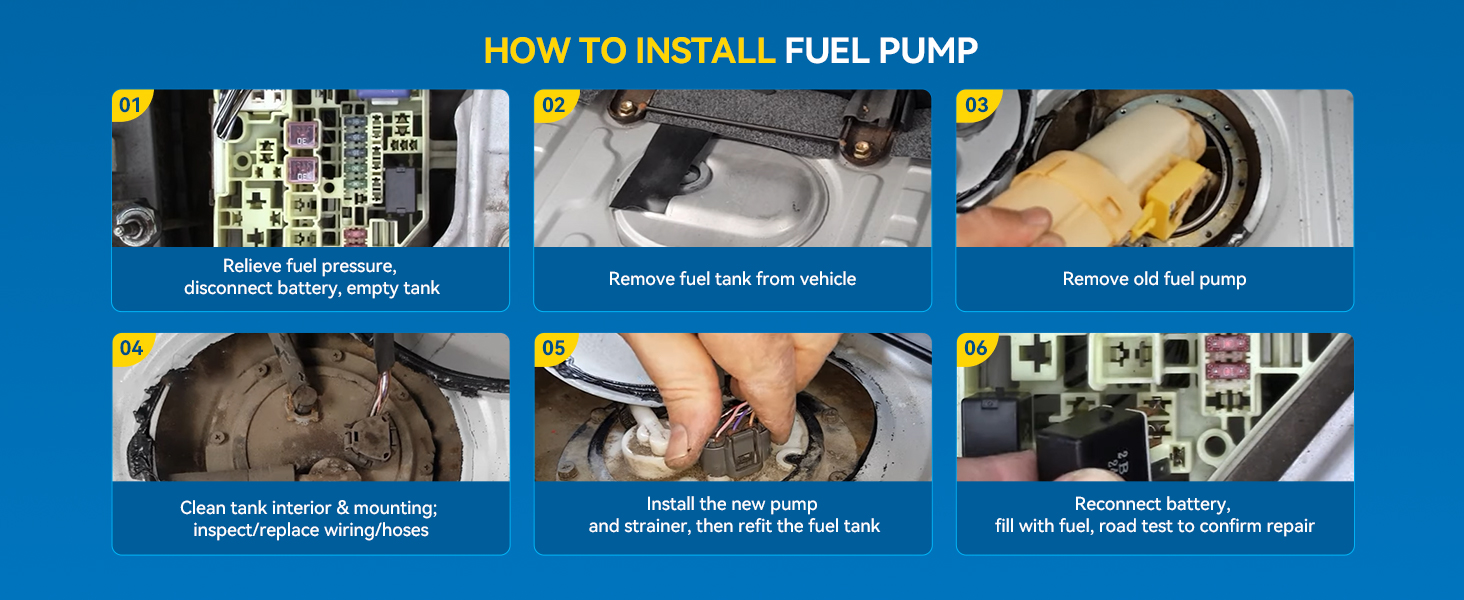

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

1fuel pump

Reviews

4.6/5

Based on 7 reviews

571%
414%
314%
20%
10%

Tom_Handy_587

02/13/2026

This fuel pump looks really nice, feels solid. For the price, it's an absolute steal. I was expecting less, but it's a great quality part. Works perfectly in my car.

SarahDrives_625

11/28/2025

This pump looks really solid and well-built. For the price, it's a fantastic deal. I was expecting something a bit less impressive, but it's a quality part. Happy with the purchase.

FAQS

No FAQs have been added for this product yet.
