2002-2003 Saturn Vue 2.2L L4 | Fuel Pump Assembly | OE#22690014/P76239M - PHILTOP

2002-2003 Saturn Vue 2.2L L4 | Fuel Pump Assembly | OE#22690014/P76239M - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Seal Included

4.6

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
89ISFUP2587US

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
No
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
125.0 Ω
Resistance Ohms Full
20.0 Ω
Average Flow Rating
20 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
73.0 PSI
Outlet Outside Diameter
0.375 in
Outlet Quantity
2
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller
Items Included
1x Fuel Pump Assembly - FG0175
Warranty Period
2-Year
OE Number
22690014,25335259,22704023,P1554M,22703511,22716735
Part Number
FG0175,P76239M,SP3585M,5302620,USEP3585M,AFS0958S,150324,DFG0175,MU273,F2496A,D11111254TG,67486,TNKSP3585M,402P3585M,PN3162,2920339,M2496170,RE0958S,C0224M,4010327

Highlights

  • #11,629 in Automotive (See Top 100 in Automotive)
  • #30 in Automotive Replacement Electric Fuel Pumps
  • Fitment: Compatible with Right For:, [Saturn] 2002-2003 Vue, (Primary Fuel Tank).
  • Reference Number: 22690014, 25335259, P76239M, FG0175, SP3585M, 22704023, 5302620, P1554M, AFS0958S, 150324, DFG0175, MU273, USEP3585M, 22703511, 22716735, 2920339, 4010327, 67486, M2496170, RE0958S, TNKSP3585M, C0224M, 402P3585M, PN3162, D11111254TG, F2496A.

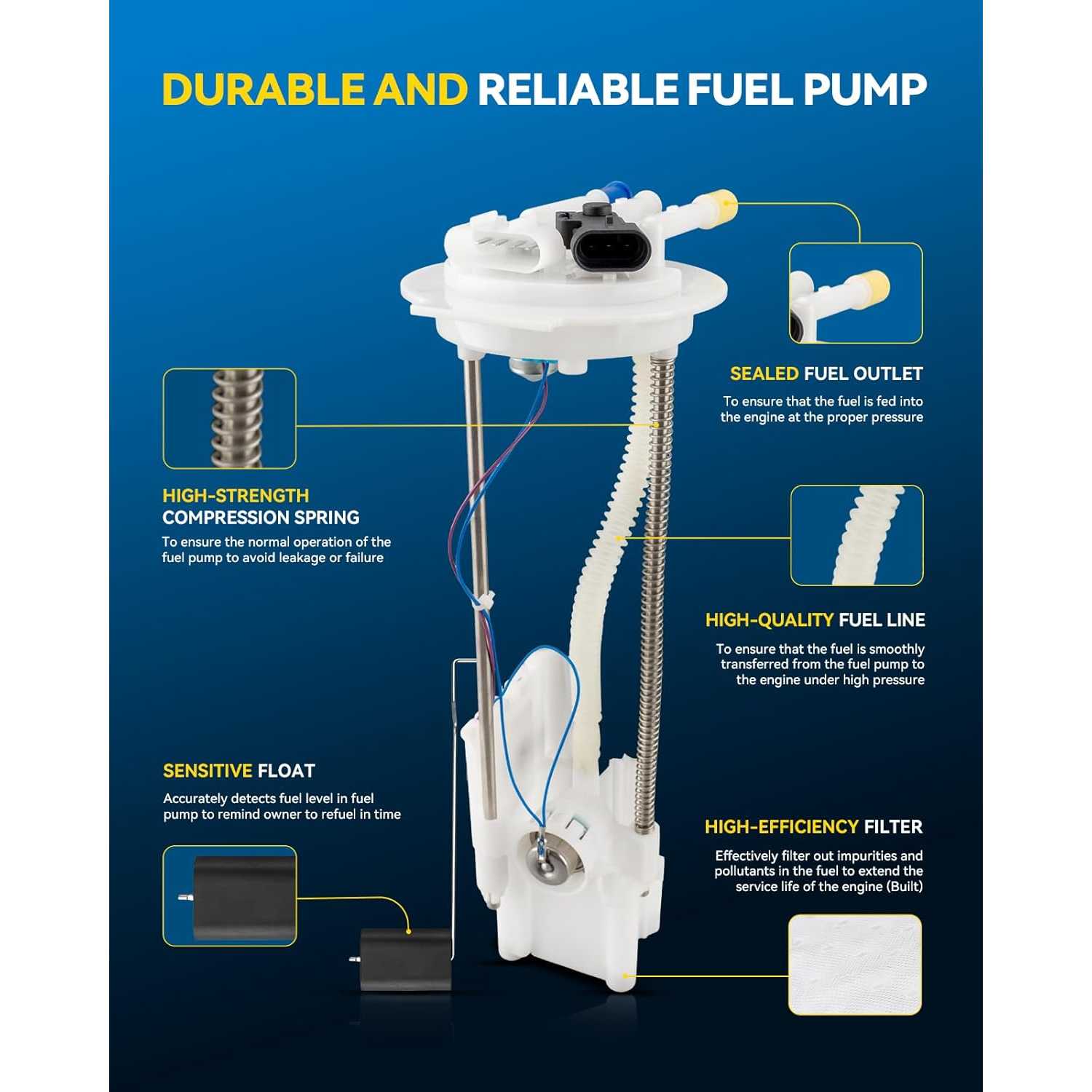

  • Related Parts: ① Fuel Pump, ② Seal Ring, ③ Strainer.
  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2002 - 20032002 - 2003
MakeSaturnSaturn
ModelVueVue
TrimBaseBase
Engine2.2L L43.0L V6
Note
Primary Fuel Tank
Primary Fuel Tank

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

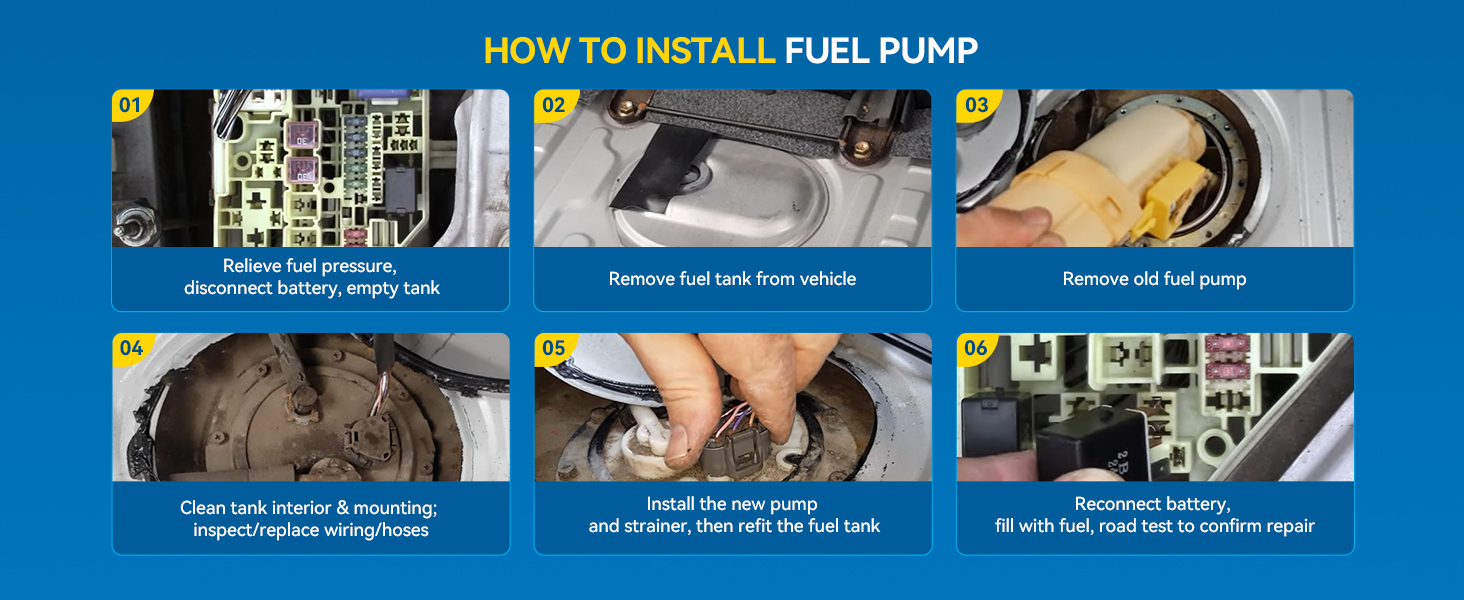

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

1fuel pump
