2005-2006 Chevrolet Silverado 1500 HD 6.0L V8 | Fuel Pump Assembly | OE#19167471/FG0341 - PHILTOP

2005-2006 Chevrolet Silverado 1500 HD 6.0L V8 | Fuel Pump Assembly | OE#19167471/FG0341 - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Seal Included

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
65ISFUP1027US

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
No
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
250.0 Ω
Resistance Ohms Full
40.0 Ω
Average Flow Rating
28 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
73.0 PSI
Outlet Outside Diameter
0.375 in
Outlet Quantity
3
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller
Items Included
1x Fuel Pump Assembly - FG0341
Warranty Period
2-Year
OE Number
19167471,19133453,19133452,25349211,19167470,88965437,25384363,25384362,19303378,88965433,19352887,19303376
Part Number
FG0341,P76242M,SP61157M,USEP3832M

Highlights

  • #11,629 in Automotive (See Top 100 in Automotive)
  • #30 in Automotive Replacement Electric Fuel Pumps
  • Fitment: Compatible with [Chevrolet] 2005-2006 Silverado 1500 HD(BedLength:78.0), 2007 Silverado 1500 HD Classic(BedLength:78.0), 2004 Silverado 2500(BedLength:78.0), 2004-2006 Silverado 2500 HD GAS(BedLength:78.0; WheelBase:143.5/153.0), 2007 Silverado 2500 HD Classic 6.0/8.1L LS/LT/WT(BedLength:78.0; WheelBase:143.5), 2007 Silverado 2500 HD Classic 6.0L LS/WT(BedLength:78.0; WheelBase:153.0), 2007 Silverado 2500 HD Classic 6.0/8.1L LT(BedLength:78.0; WheelBase:153.0), [GMC] 2005-2006 Sierra 1500 HD(BedLength:78.0), 2007 Sierra 1500 HD Classic(BedLength:78.0), 2004 Sierra 2500(BedLength:78.0), 2004-2005 Sierra 2500 HD GAS(BedLength:78.0; WheelBase:143.5).
  • Reference Number: 19133452, 25349211, 88965437, 9535126, E3604M, 66073, SP61157M, MU1157, FG0341, SP3604M, P76242M, 9535131, 67517, A30277, 67445, 9535130, 19167470, 19167471, 19133453, A46193, TU482, TNKSP61157M, M3496247, USEP3832M, 88965433, 19352887, 19303378, 19303376, 2920289, MU1341, 4010449, 1234875, 25384362, 25384363, DFG0341, D0318M.

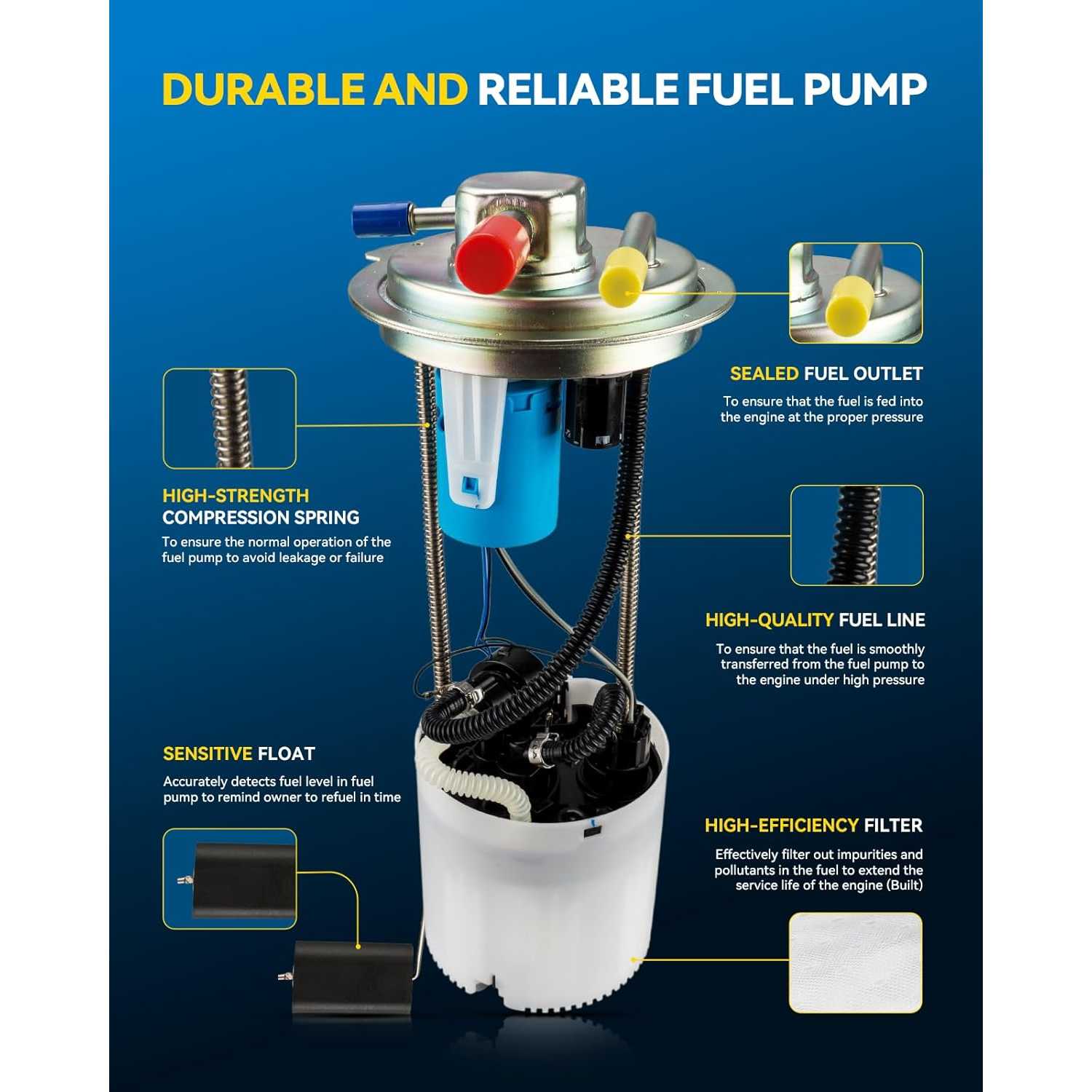

  • Related Parts: ① Fuel Pump, ② Seal Ring, ③ Strainer.
  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year200520052005 - 200620042004200420042004 - 20052004 - 20052004 - 20062004 - 20062004 - 20062004 - 20062004 - 20062004 - 20062007200720072007200720072005 - 20062005 - 20062007200720042004200420042004 - 20052004 - 2005200620062004 - 20062004 - 20062004 - 20062004 - 20062004 - 20062004 - 200620072007200720072007200720072007
MakeChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMC
ModelSilverado 1500 HDSilverado 1500 HDSilverado 1500 HDSilverado 2500Silverado 2500Silverado 2500Silverado 2500Silverado 2500 HDSilverado 2500 HDSilverado 2500 HDSilverado 2500 HDSilverado 2500 HDSilverado 2500 HDSilverado 2500 HDSilverado 2500 HDSilverado 2500 HD ClassicSilverado 2500 HD ClassicSilverado 2500 HD ClassicSilverado 2500 HD ClassicSilverado 2500 HD ClassicSilverado 2500 HD ClassicSierra 1500 HDSierra 1500 HDSierra 1500 HD ClassicSierra 1500 HD ClassicSierra 2500Sierra 2500Sierra 2500Sierra 2500Sierra 2500 HDSierra 2500 HDSierra 2500 HDSierra 2500 HDSierra 2500 HDSierra 2500 HDSierra 2500 HDSierra 2500 HDSierra 2500 HDSierra 2500 HDSierra 2500 HD ClassicSierra 2500 HD ClassicSierra 2500 HD ClassicSierra 2500 HD ClassicSierra 2500 HD ClassicSierra 2500 HD ClassicSierra 2500 HD ClassicSierra 2500 HD Classic
TrimBaseLSLTBaseLSLTWTBaseBaseLSLSLTLTWTWTLSLSLTLTWTWTSLESLTSLESLTBaseSLESLTWTBaseBaseSLSLSLESLESLTSLTWTWTSLSLSLESLESLTSLTWTWT
Engine6.0L V86.0L V86.0L V86.0L V86.0L V86.0L V86.0L V86.0L V88.1L V86.0L V88.1L V86.0L V88.1L V86.0L V88.1L V86.0L V88.1L V86.0L V88.1L V86.0L V88.1L V86.0L V86.0L V86.0L V86.0L V86.0L V86.0L V86.0L V86.0L V86.0L V88.1L V86.0L V88.1L V86.0L V88.1L V86.0L V88.1L V86.0L V88.1L V86.0L V88.1L V86.0L V88.1L V86.0L V88.1L V86.0L V88.1L V8
Note
Module has 1 Electrical Connector(s);without Evaporative Emission
Module has 1 Electrical Connector(s);without Evaporative Emission
Module has 1 Electrical Connector(s);without Evaporative Emission
Module has 1 Electrical Connector(s);without Evaporative Emission
Module has 1 Electrical Connector(s);without Evaporative Emission
Module has 1 Electrical Connector(s);without Evaporative Emission
Module has 1 Electrical Connector(s);without Evaporative Emission
Module has 1 Electrical Connector(s);without Evaporative Emission
Module has 1 Electrical Connector(s);without Evaporative Emission
Module has 1 Electrical Connector(s);without Evaporative Emission
Module has 1 Electrical Connector(s);without Evaporative Emission
Module has 1 Electrical Connector(s);without Evaporative Emission
Module has 1 Electrical Connector(s);without Evaporative Emission
Module has 1 Electrical Connector(s);without Evaporative Emission
Module has 1 Electrical Connector(s);without Evaporative Emission
--
Module has 1 Electrical Connector(s);without Evaporative Emission
Module has 1 Electrical Connector(s);without Evaporative Emission
--
Module has 1 Electrical Connector(s);without Evaporative Emission
Module has 1 Electrical Connector(s);without Evaporative Emission
Module has 1 Electrical Connector(s);without Evaporative Emission
Module has 1 Electrical Connector(s);without Evaporative Emission
Module has 1 Electrical Connector(s);without Evaporative Emission
Module has 1 Electrical Connector(s);without Evaporative Emission
Module has 1 Electrical Connector(s);without Evaporative Emission
Module has 1 Electrical Connector(s);without Evaporative Emission
Module has 1 Electrical Connector(s);without Evaporative Emission
Module has 1 Electrical Connector(s);without Evaporative Emission
Module has 1 Electrical Connector(s);without Evaporative Emission
Module has 1 Electrical Connector(s);without Evaporative Emission
Module has 1 Electrical Connector(s);without Evaporative Emission
Module has 1 Electrical Connector(s);without Evaporative Emission
Module has 1 Electrical Connector(s);without Evaporative Emission
Module has 1 Electrical Connector(s);without Evaporative Emission
Module has 1 Electrical Connector(s);without Evaporative Emission
Module has 1 Electrical Connector(s);without Evaporative Emission
--------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

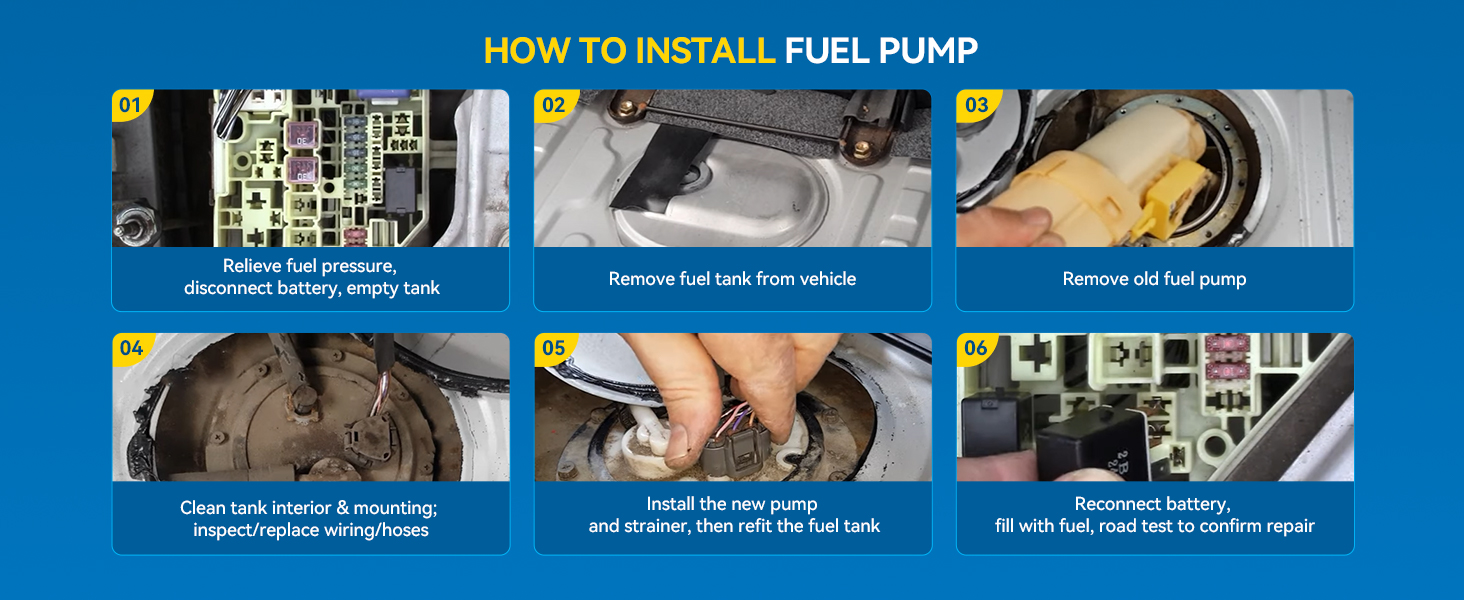

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.
