2005-2006 Toyota Tundra 4.0L/4.7L | Fuel Pump Assembly | OE#232170F020/FG0921 - PHILTOP

2005-2006 Toyota Tundra 4.0L/4.7L | Fuel Pump Assembly | OE#232170F020/FG0921 - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Seal Included

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
96ISFUP2947US

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
No
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
111.0 Ω
Resistance Ohms Full
4.0 Ω
Average Flow Rating
21 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
78.0 PSI
Outlet Outside Diameter
0.313 in
Outlet Quantity
2
Outlet Type
Push In
Pump Structure
Turbine Impeller
Items Included
1x Fuel Pump Assembly - FG0921
Warranty Period
2-Year
OE Number
232170F020,770200C061,770200C060
Part Number
FG0921,SP9000M,P76330M,USEP8694M,4010525,DFG0921,2920631,1234853,M2496369,TNKSP9000M,B15111852TG,C0653M

Highlights

  • #11,629 in Automotive (See Top 100 in Automotive)
  • #30 in Automotive Replacement Electric Fuel Pumps
  • Fitment: Compatible with [Toyota] 2005-2006 Tundra, 2005-2007 Sequoia.
  • Reference Number: FG0921, SP9000M, 770200C061, 232170F020, P76330M, 770200C060, USEP8694M, 4010525, DFG0921, 2920631, 1234853, M2496369, TNKSP9000M, B15111852TG, C0653M.
  • Related Parts: ① Fuel Pump, ② Seal Ring, ③ Strainer.

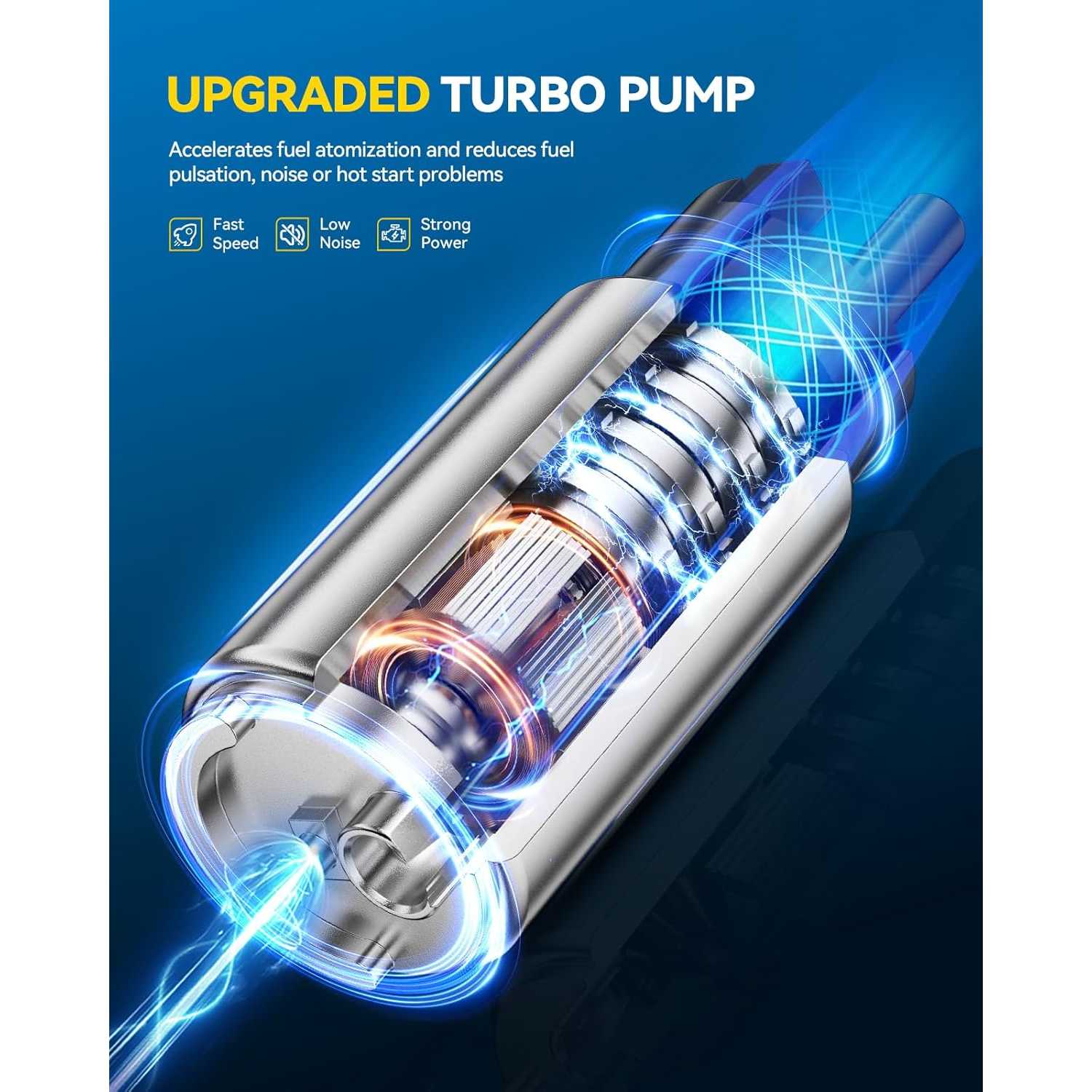

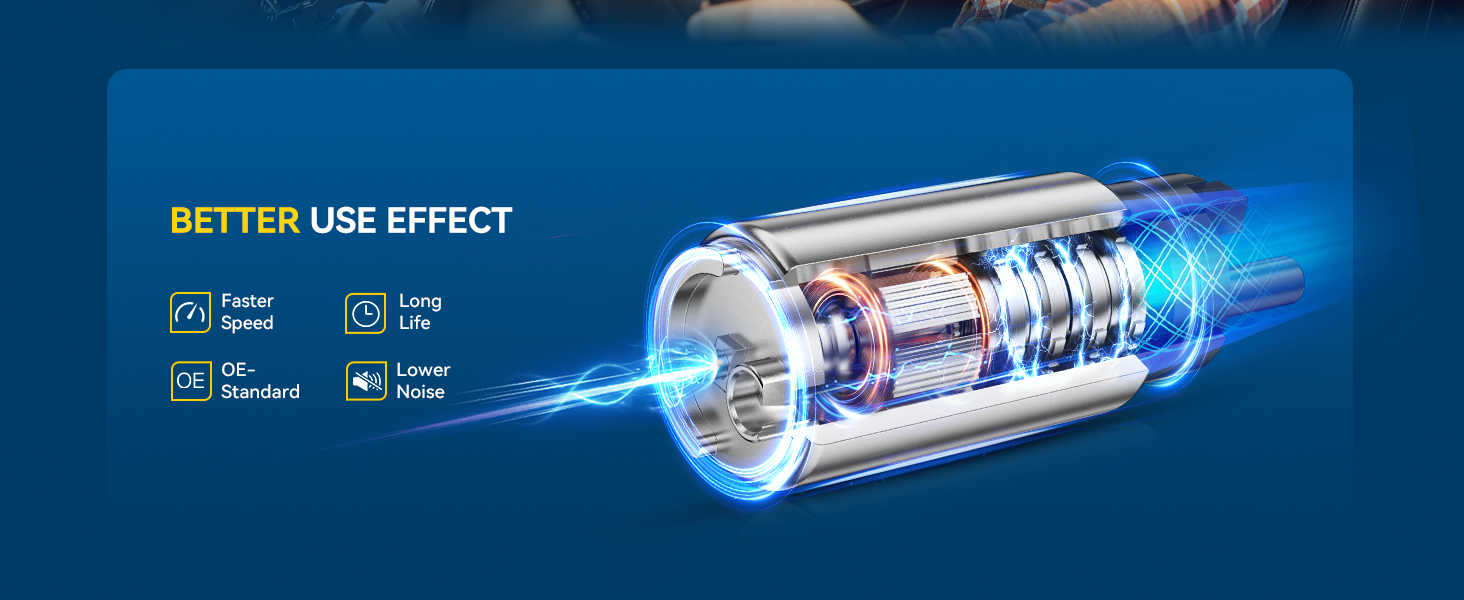

  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2005 - 20072005 - 20072005 - 20062005 - 20062005 - 20062005 - 20062005 - 2006
MakeToyotaToyotaToyotaToyotaToyotaToyotaToyota
ModelSequoiaSequoiaTundraTundraTundraTundraTundra
TrimLimitedSR5BaseBaseLimitedSR5SR5
Engine4.7L V84.7L V84.0L V64.7L V84.7L V84.0L V64.7L V8
Note-------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

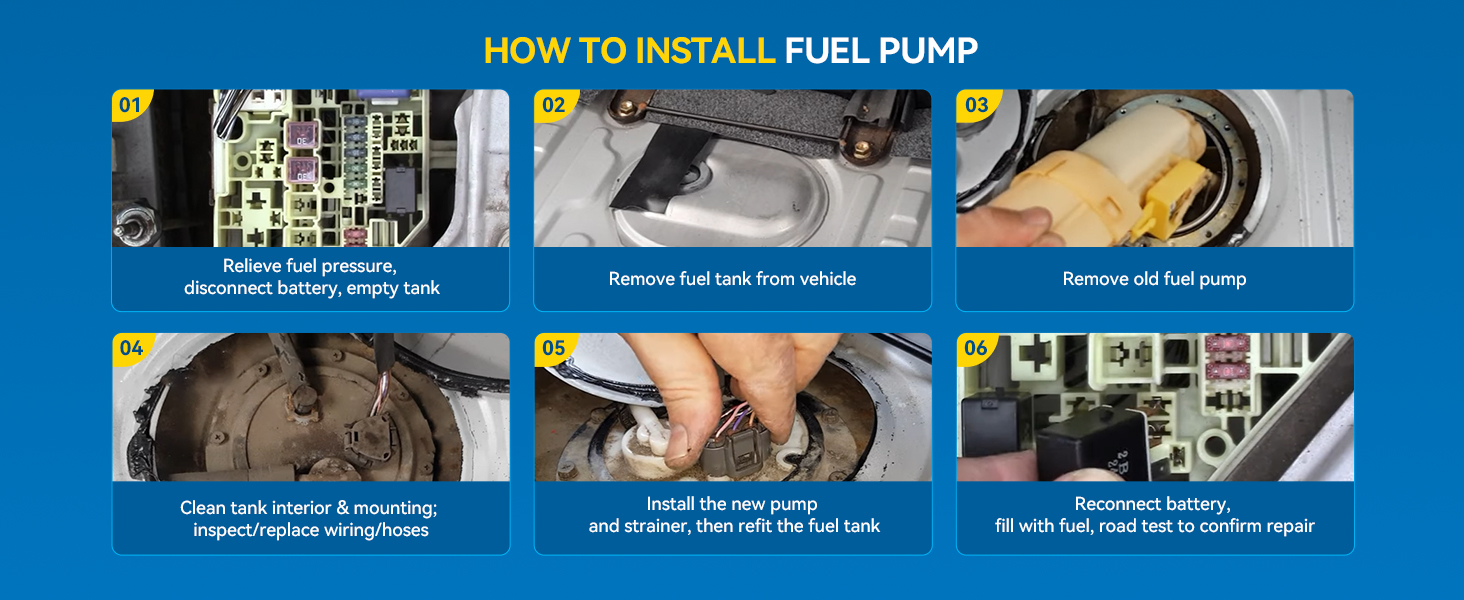

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.
