2011-2013 Kia Sorento 3.5L V6 | Fuel Pump Assembly | OE#353011U500/FG1189 - PHILTOP

2011-2013 Kia Sorento 3.5L V6 | Fuel Pump Assembly | OE#353011U500/FG1189 - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Pressure Sensor Included

4.4

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
94ISFUP3107US

Specifications

Brand
PHILTOP
Gasket or Seal Included
No
Pressure Sensor Included
Yes
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
93.0 Ω
Resistance Ohms Full
6.0 Ω
Average Flow Rating
19 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
80.0 PSI
Outlet Outside Diameter
0.313 in
Outlet Quantity
2
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller
Items Included
1x Fuel Pump Assembly - FG1189
Warranty Period
2-Year
OE Number
353011U500,311101U500
Part Number
FG1189,SP3043M,P76775M,USEP9030M

Highlights

  • #11,629 in Automotive (See Top 100 in Automotive)
  • #30 in Automotive Replacement Electric Fuel Pumps
  • Fitment: Compatible with [Kia] 2011-2013 Sorento 3.5L, [Hyundai] 2010-2012 Santa Fe 3.5L.
  • Reference Number: USEP9030M, FG1189, SP3043M, P76775M, 311101U500, 353011U500.
  • Related Parts: ① Fuel Pump, ② Strainer, ③ Pressure Sensors.
  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2011 - 20122010 - 20122010 - 20122011 - 20132011 - 20132011 - 2013
MakeHyundaiHyundaiHyundaiKiaKiaKia
ModelSanta FeSanta FeSanta FeSorentoSorentoSorento
TrimGLSLimitedSEEXLXSX
Engine3.5L V63.5L V63.5L V63.5L V63.5L V63.5L V6
Note------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

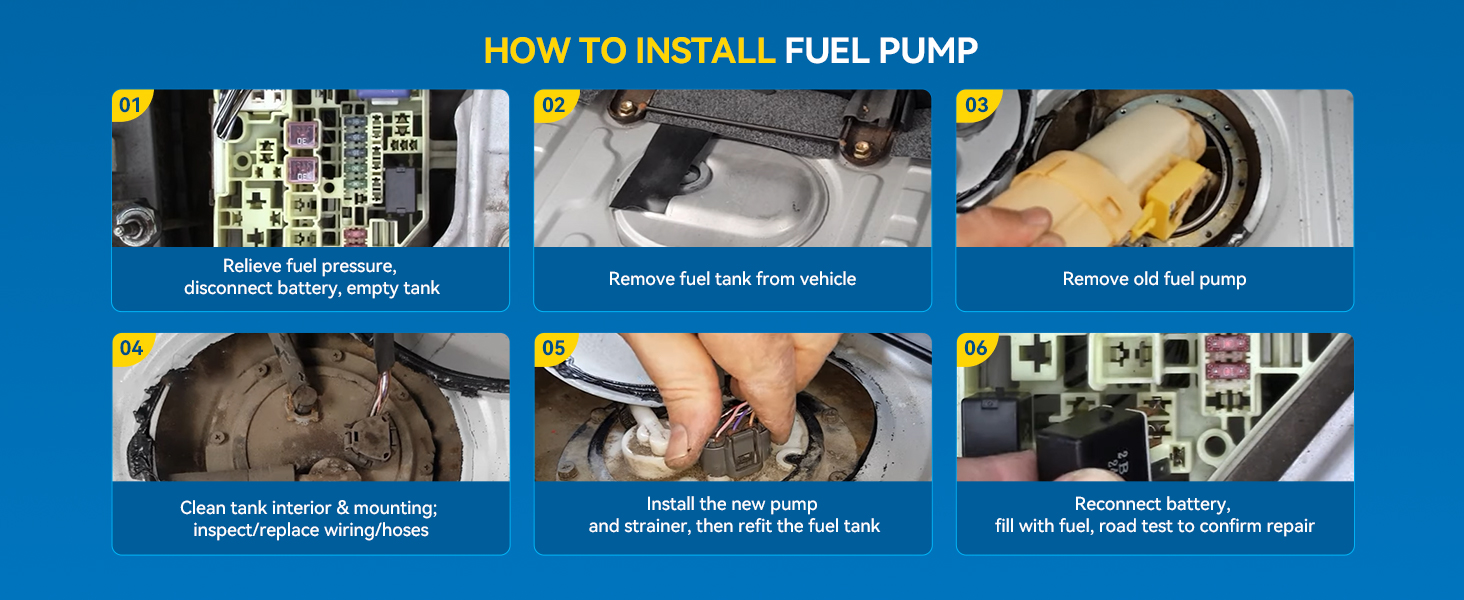

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

1fuel pump

Reviews

4.4/5

Based on 7 reviews

557%
429%
314%
20%
10%

Rob_HomeGarage_498

12/09/2025

This fuel pump looks and feels like a quality component. The price was fantastic for what you get. My car starts up instantly now, and it's running so much smoother. Great value!

CarGuy_John_565

04/05/2026

Installation was straightforward, no weird fitment issues like some aftermarket parts. It's a direct replacement and feels just as good as the original. Glad I went with this one.

FAQS

No FAQs have been added for this product yet.
