2011-2014 GMC Sierra 3500 HD 6.0L V8 | Fuel Pump Assembly | FG2308 - PHILTOP

2011-2014 GMC Sierra 3500 HD 6.0L V8 | Fuel Pump Assembly | FG2308 - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Pressure Sensor Included

4.6

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
8711FUP6827US

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
Yes
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
250.0 Ω
Resistance Ohms Full
40.0 Ω
Average Flow Rating
42 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
100.0 PSI
Outlet Outside Diameter
0.375 in
Outlet Quantity
3
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller
Items Included
1x Fuel Pump Assembly - FG2308
Warranty Period
2-Year
Part Number
FG2308

Highlights

  • #3,989 in Automotive (See Top 100 in Automotive)
  • #5 in Automotive Replacement Electric Fuel Pumps
  • Fitment: Compatible with [Chevrolet]2011-2014 Silverado 3500 HD 6.0L Cab & Chassis(BedLength:78.8), [GMC]2011,2013-2014 Sierra 3500 HD 6.0L Cab & Chassis(BedLength:78.8)2012 Sierra 3500 HD 6.0L Cab & Chassis SLE/WT(BedLength:78.8)(40 Gallon Rear Fuel Tank).
  • Reference Number: 13581922, 13589707, 13581920, 13589706, 13577634, 13577632, 13581918, 13589708, FG2308, 13505232.

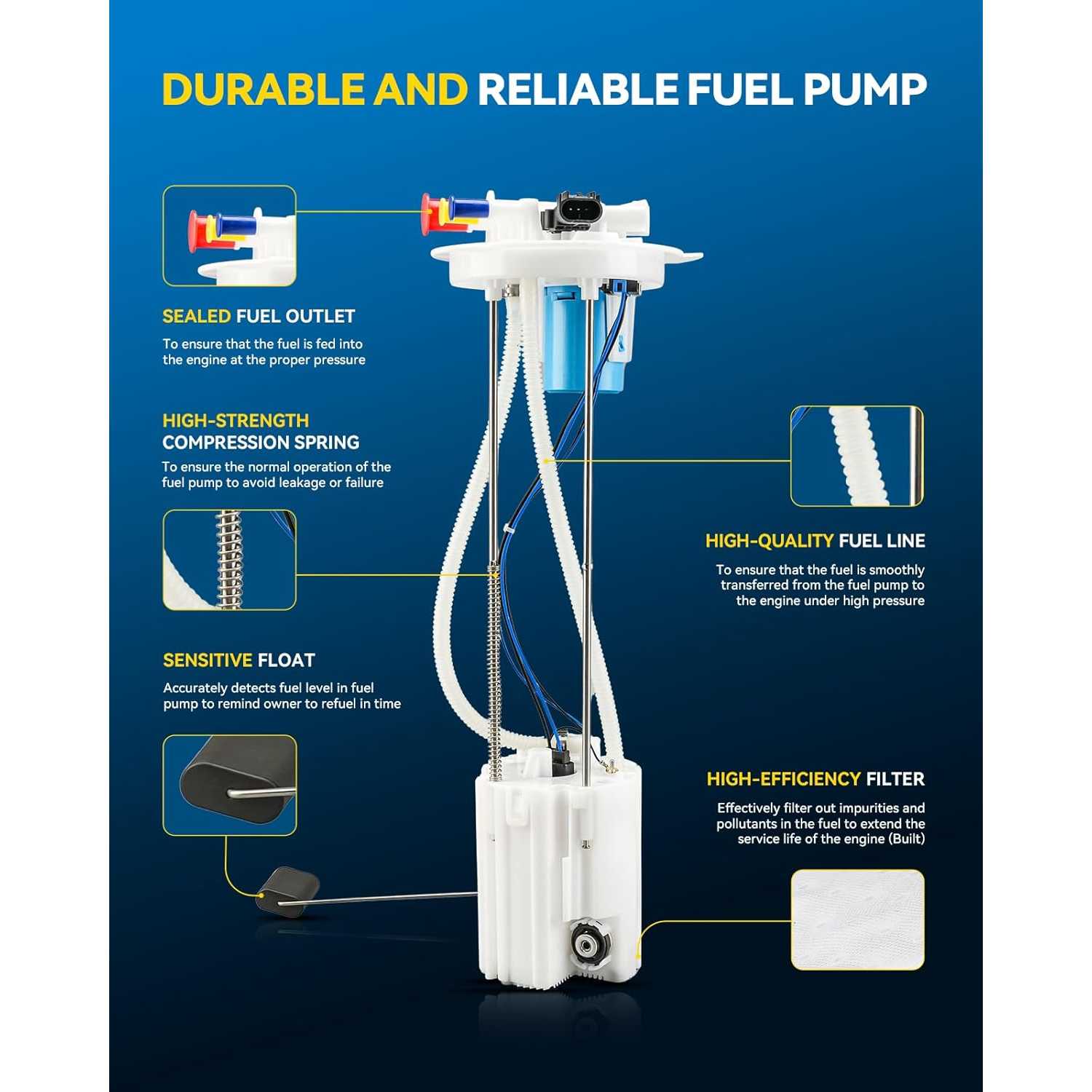

  • ①Fuel Pump, ②Seal Ring, ③Strainer, ④Pressure Sensor, ⑤Instructions.

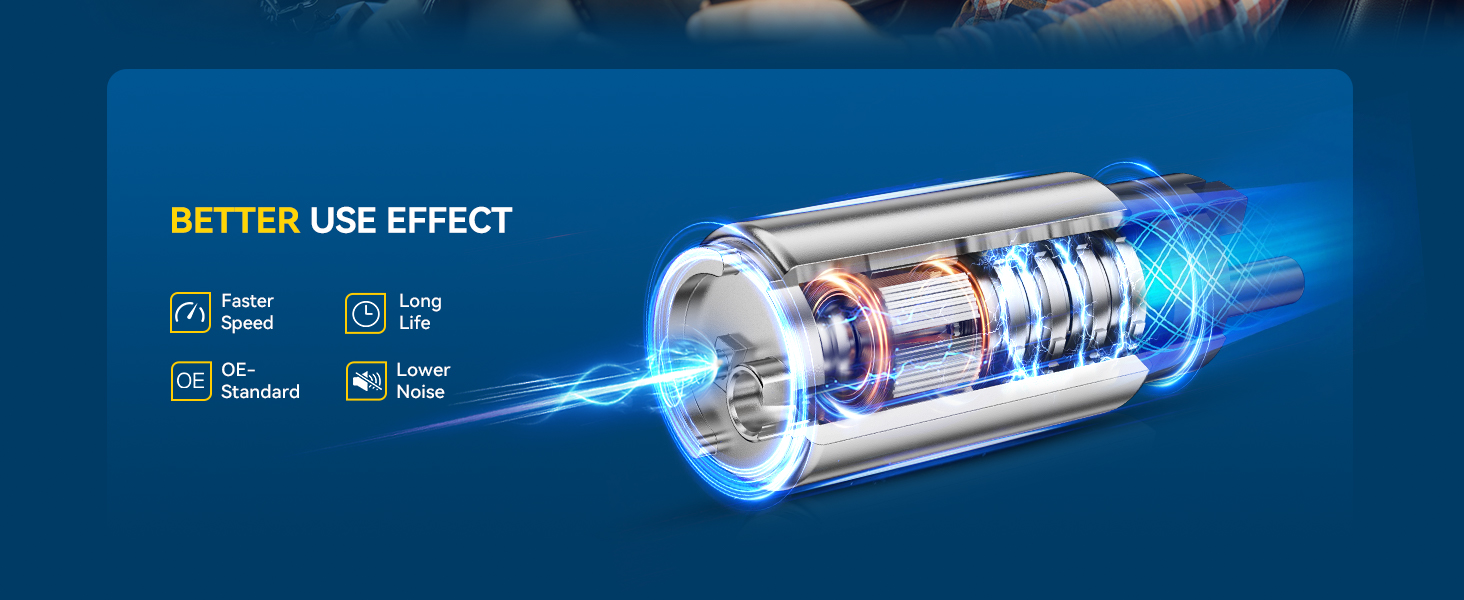

  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2011 - 20142011 - 20142011 - 20122013 - 201420112011 - 20122013 - 2014
MakeChevroletChevroletGMCGMCGMCGMCGMC
ModelSilverado 3500 HDSilverado 3500 HDSierra 3500 HDSierra 3500 HDSierra 3500 HDSierra 3500 HDSierra 3500 HD
TrimLTWTSLESLESLTWTWT
Engine6.0L V86.0L V86.0L V86.0L V86.0L V86.0L V86.0L V8
Note
40 Gallon Rear Fuel Tank
40 Gallon Rear Fuel Tank
-
40 Gallon Rear Fuel Tank
--
40 Gallon Rear Fuel Tank

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

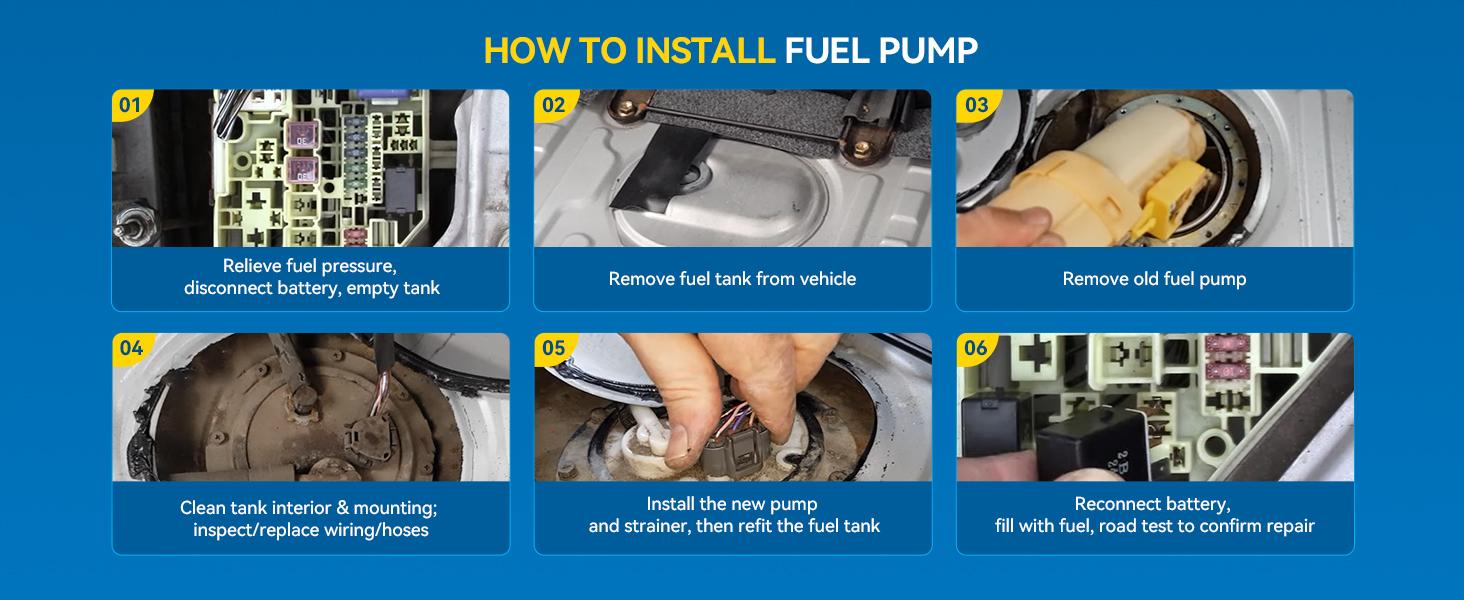

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

1fuel pump

Reviews

4.6/5

Based on 5 reviews

580%
40%
320%
20%
10%

Amanda_MomOfThree_314

03/27/2026

This fuel pump was surprisingly easy to install. All the connections were perfect, and it fit right into place. Much smoother installation than the last one I did on a different truck.

DaveTheMechanic_128

12/22/2025

Looks and feels like a quality part, very clean finish. It's a fraction of the cost of the OEM pump. My truck is running great with it installed. Definitely a good buy.
