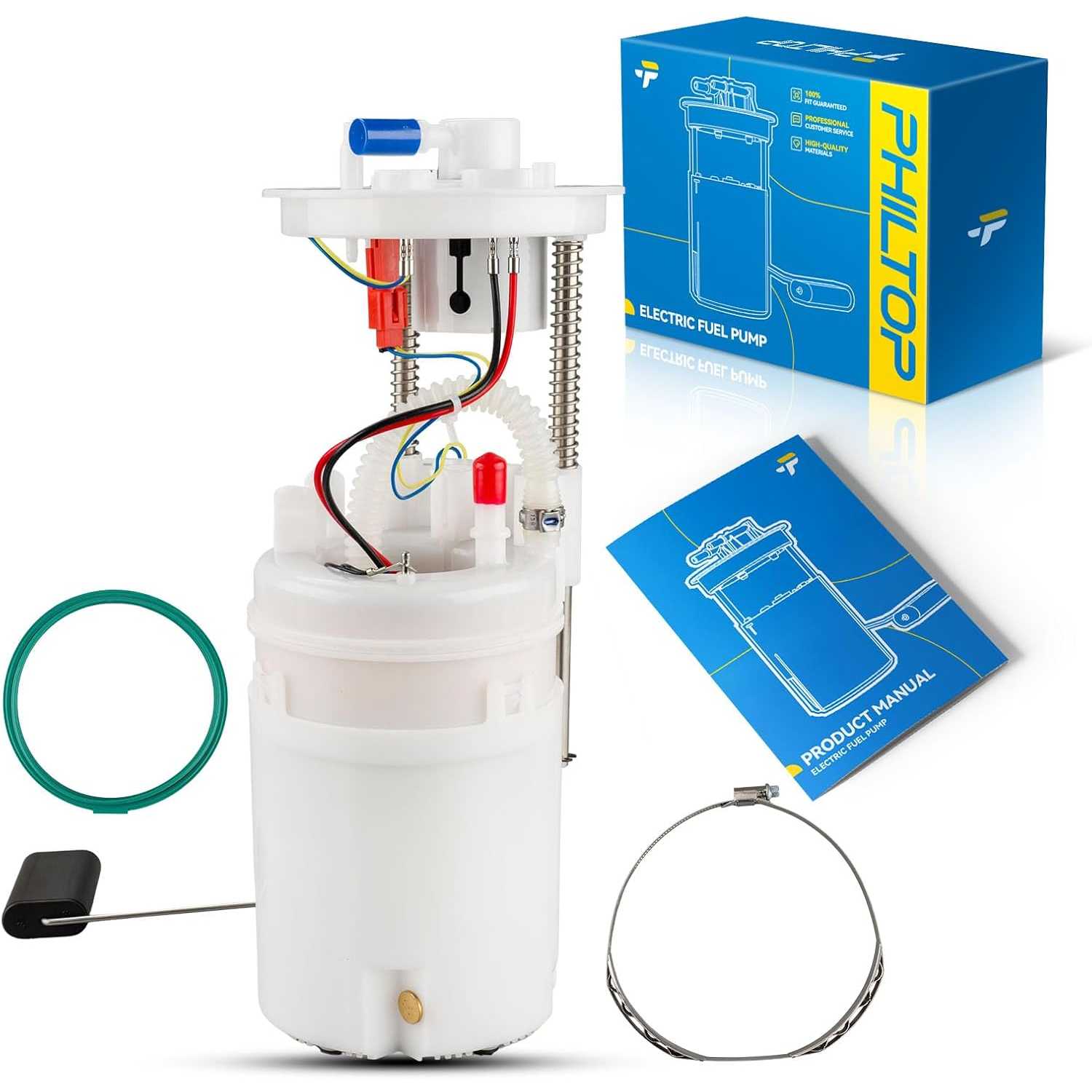

2007-2010 BMW X5 3.0L L6 | Fuel Pump Assembly | OE#16114858372/FG1176 - PHILTOP

2007-2010 BMW X5 3.0L L6 | Fuel Pump Assembly | OE#16114858372/FG1176 - PHILTOP

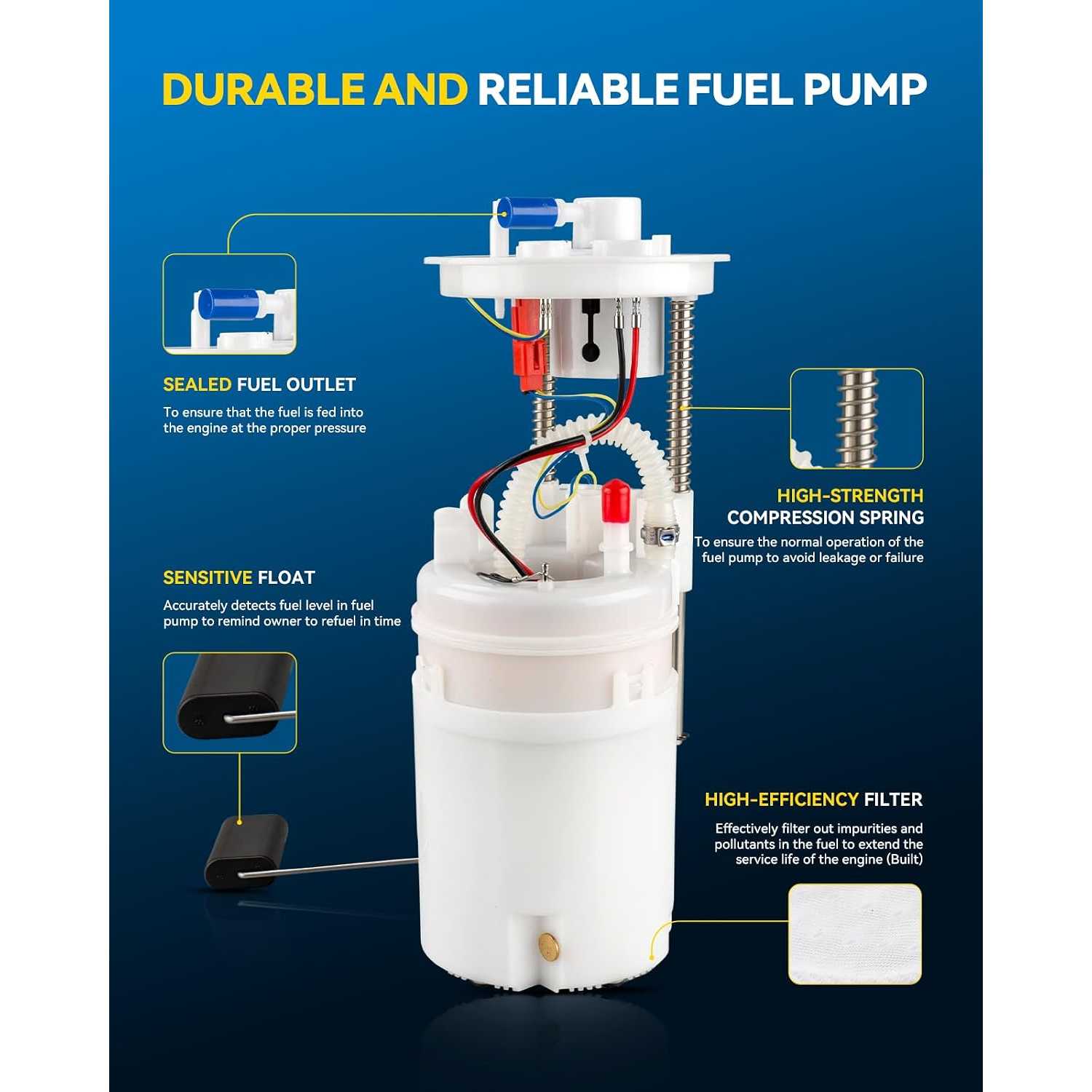

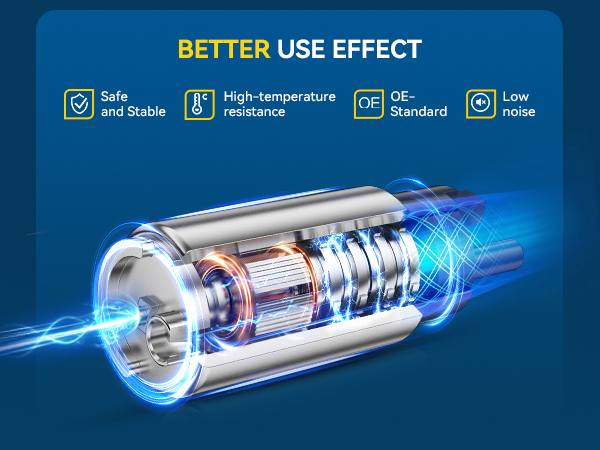

Carbon Commutator

Precision Ceramic Resistor

Seal Included

5.0

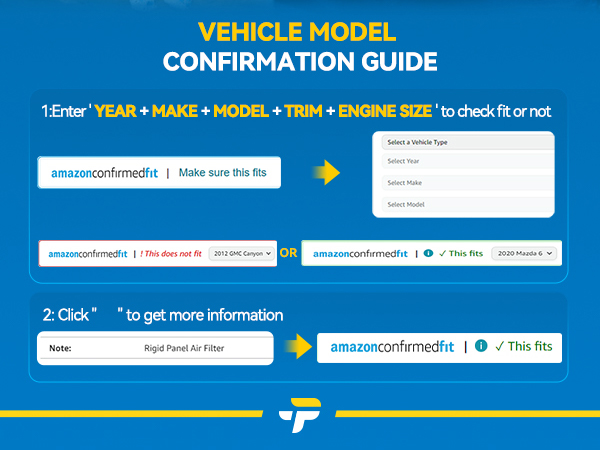

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
9316FUP092HUS

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
No

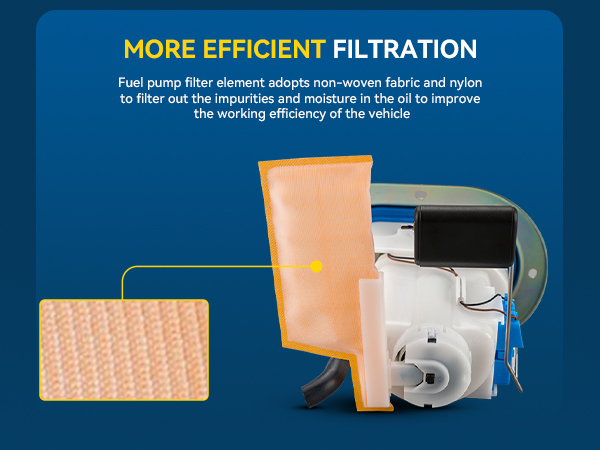

Strainer Included
Yes

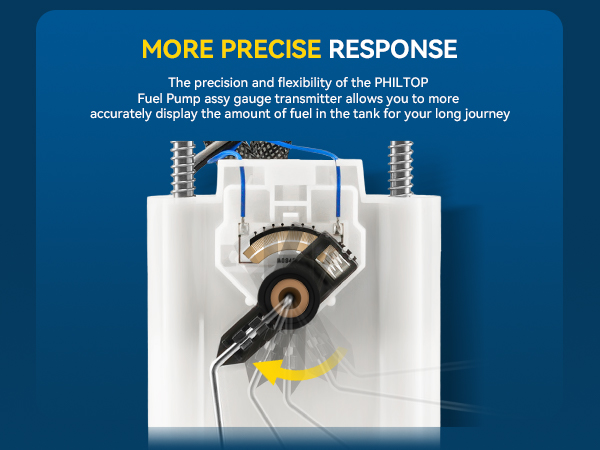

Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
990.0 Ω
Resistance Ohms Full
50.0 Ω
Average Flow Rating
44 GPH
In Tank or External
In Tank
Lock Ring Included
Yes
Material
Metal, Plastic
Maximum Pressure
109.0 PSI
Outlet Outside Diameter
0.375 in
Outlet Quantity
1
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller
Items Included
1x Fuel Pump Assembly - FG1176
Warranty Period
2-Year
OE Number
16117195474,16117212633,16114858372,16117295459,16117195463
Part Number
FG1176,SP5113M,P77219M,USEP8814M,DFG1176,F4825A,TNKSP5113M,C18113396TG,M2520993

Highlights

Product highlights are being verified.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2007 - 20082009 - 2010
MakeBMWBMW
ModelX5X5
Trim3.0sixDrive30i
Engine3.0L L63.0L L6
Note
Primary Fuel Tank
Primary Fuel Tank

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

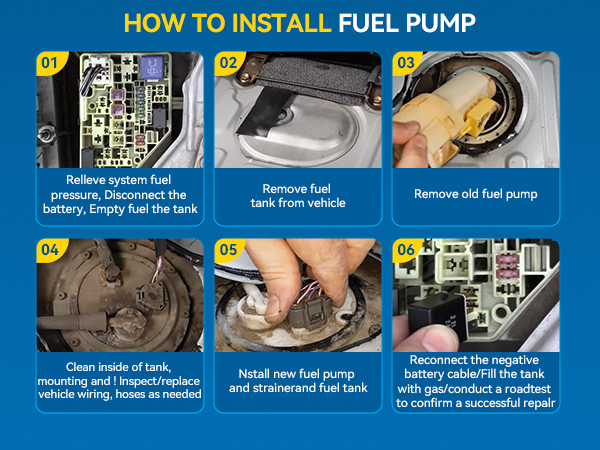

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

Electric Fuel PumpElectric Fuel Pump

Reviews

5.0/5

Based on 3 reviews

5100%
40%
30%
20%
10%

Gerardo Segura

05/24/2025

Verified buyer

Fit and work perfect

Yainet de leon

03/04/2025

Verified buyer

Súper producto , la calidad la mejor , facial de poner en el carro
