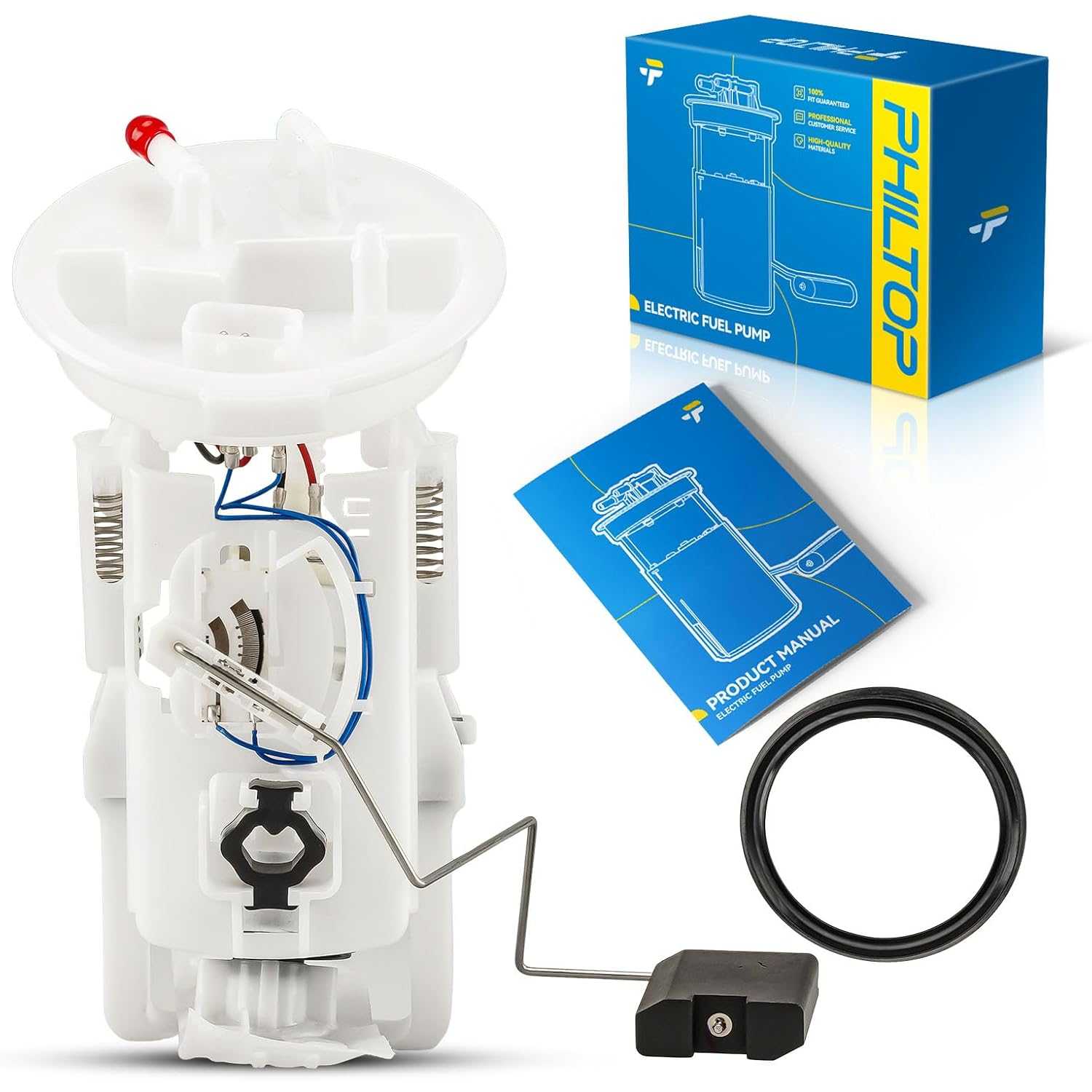

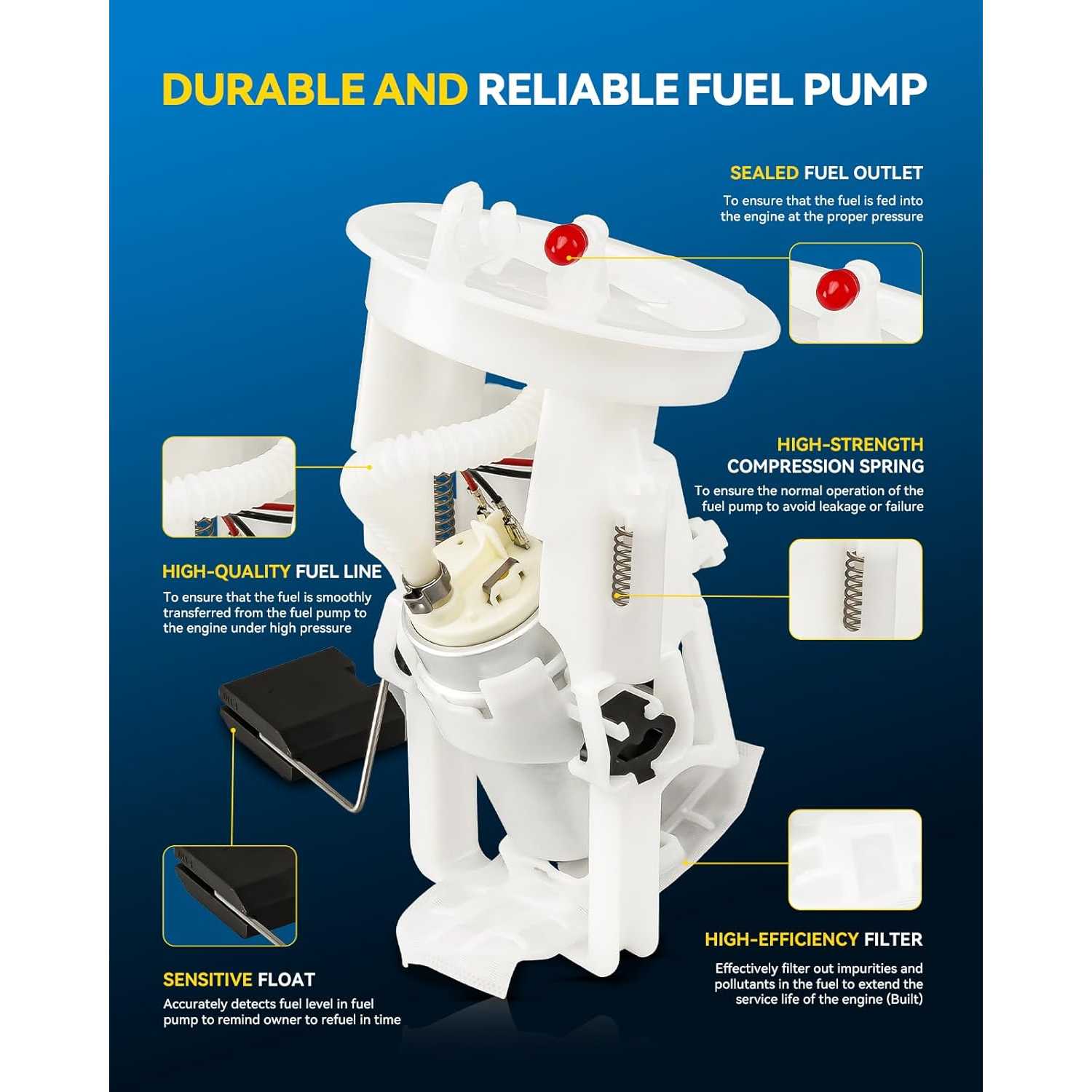

2001-2005 BMW 330i 3.0L L6 | Fuel Pump Assembly | OE#16141184276/FG0415 - PHILTOP

2001-2005 BMW 330i 3.0L L6 | Fuel Pump Assembly | OE#16141184276/FG0415 - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Seal Included

5.0

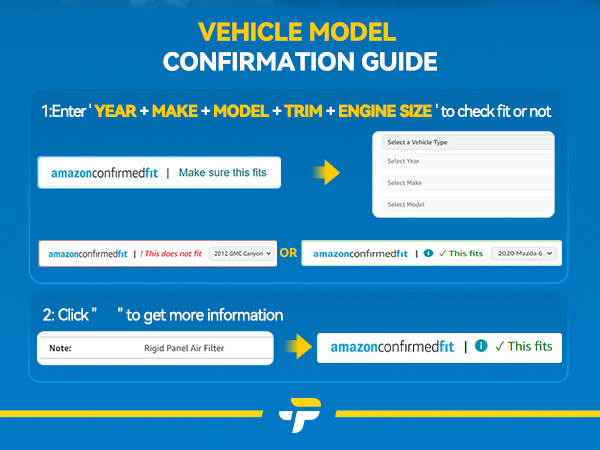

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
3712FUP060VUS

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
No

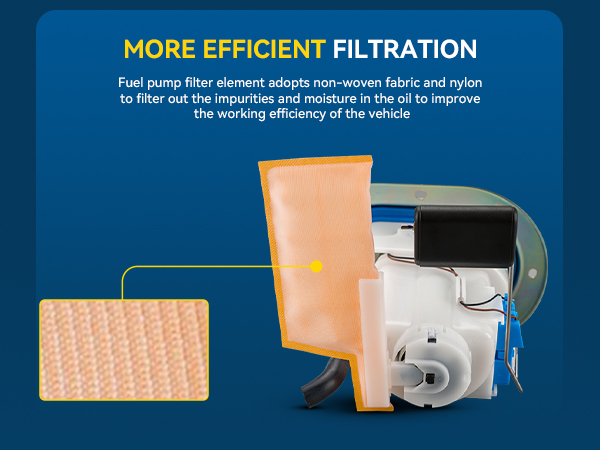

Strainer Included
Yes

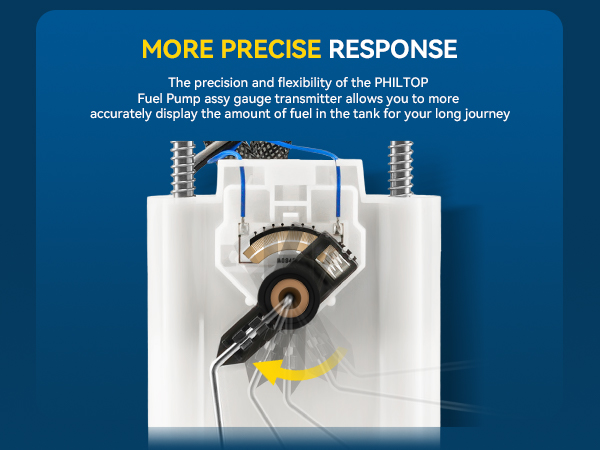

Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
70.0 Ω
Resistance Ohms Full
395.0 Ω
Average Flow Rating
29 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
80.0 PSI
Outlet Outside Diameter
0.375 in
Outlet Quantity
1
Outlet Type
Hose
Pump Structure
Turbine Impeller
Items Included
1x Fuel Pump Assembly - FG0415
Warranty Period
2-Year
OE Number
16141184276,16146752895,16146752499,16146766942,P3071M
Part Number
FG0415,P76300M,SP5008M,5152020,USEP8416M,E8416M,1520992,69497,SP1304,4010238,AFS1076S,M2275187,150246,CFG0415,EH416M,FP5196,402P8416M,PN3046,2920313,1234790,RE1076S,830619,TNKSP5008M,B18111056TG,C0540M

Highlights

  • Fitment: Compatible with [BMW] 1999-2000 323i Sedan, 2000 323i Wagon, 323Ci, 328Ci, 2001-2006 325Ci, 330Ci, 2001-2005 325i, 325xi, 330i, 330xi, 1999-2000 328i Sedan.
  • Reference Number: SP1304, 4010238, 16146752895, AFS1076S, FP5196, M2275187, 16141184276, USEP8416M, 5152020, 16146752499, 150246, FG0415, P76300M, SP5008M, 16146766942, 69497, 402P8416M, E8416M, CFG0415, EH416M, 1520992, PN3046, 2920313, 1234790, RE1076S, 830619, TNKSP5008M, B18111056TG, P3071M, C0540M.
  • Related Parts: ① Fuel Pump.
  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20001999 - 20002001 - 20062001 - 20052001 - 200520001999 - 20002001 - 20062001 - 20052001 - 2005
MakeBMWBMWBMWBMWBMWBMWBMWBMWBMWBMW
Model323Ci323i325Ci325i325xi328Ci328i330Ci330i330xi
TrimBaseBaseBaseBaseBaseBaseBaseBaseBaseBase
Engine2.5L L62.5L L62.5L L62.5L L62.5L L62.8L L62.8L L63.0L L63.0L L63.0L L6
Note----------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

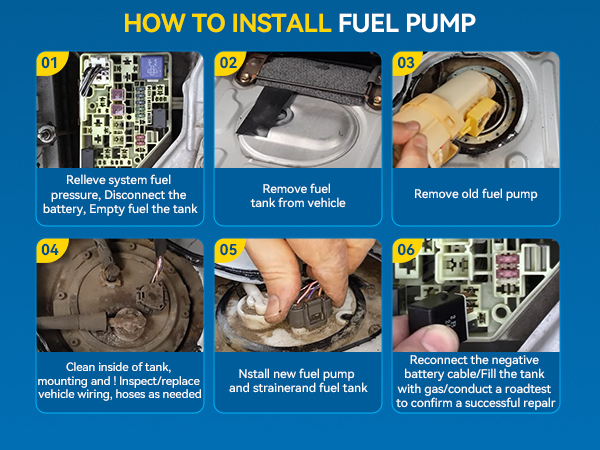

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

Electric Fuel PumpElectric Fuel Pump

Reviews

5.0/5

Based on 1 review

5100%
40%
30%
20%
10%

Jason K.

03/13/2026

Verified buyer

Good pump
