2006-2010 Kia Sedona 3.8L V6 | Timing Chain - PHILTOP

2006-2010 Kia Sedona 3.8L V6 | Timing Chain - PHILTOP

Premium Timing Chain

Complete Kit

4.5

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
74ISETC0947US

Specifications

Brand
PHILTOP

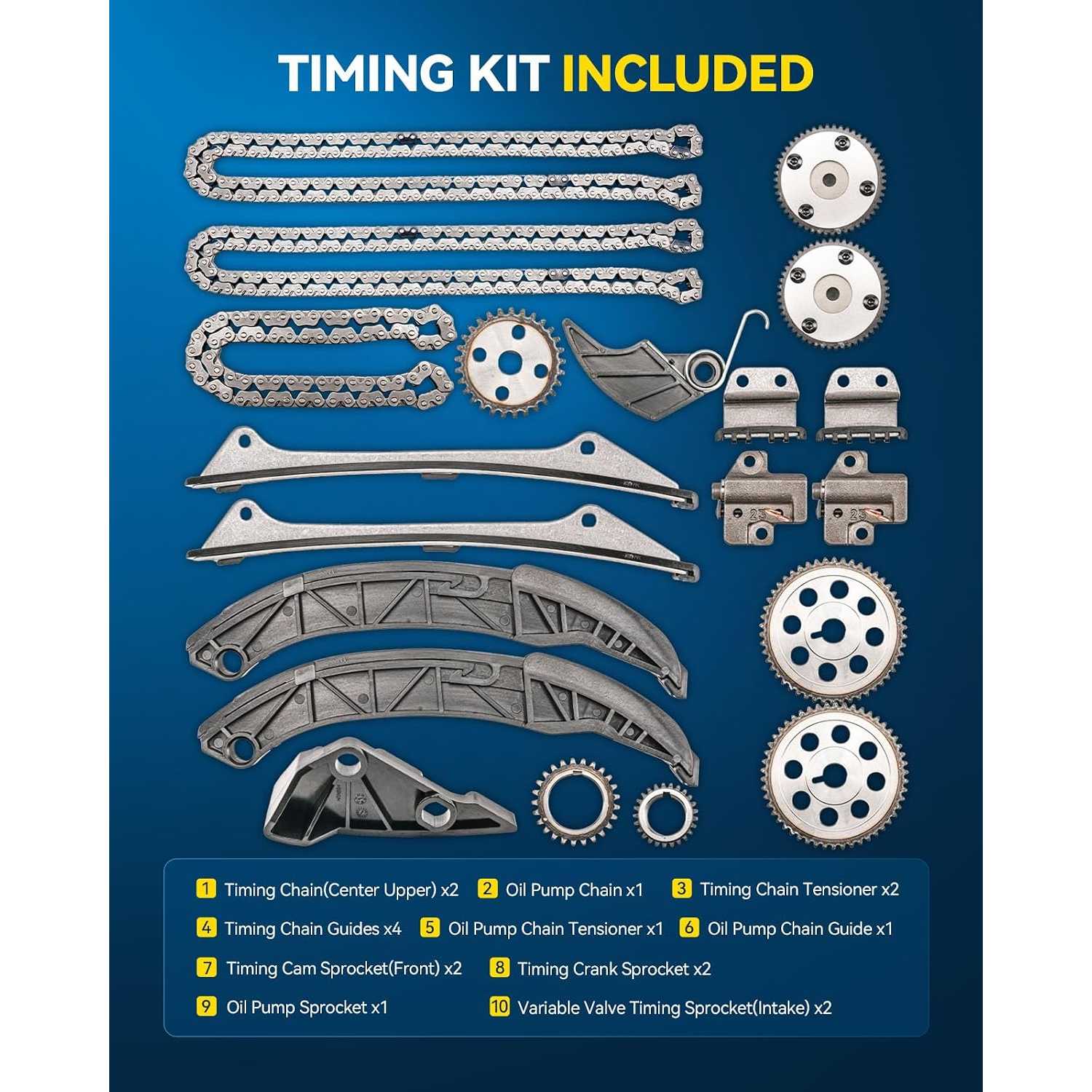

Items Included
2x Timing Chain(Center Upper) 1x Oil Pump Chain 2x Timing Chain Tensioner 2x Timing Chain Guide / Damper 2x Timing Chain Guide / Damper(Upper&Lower) 1x Oil Pump Chain Tensioner 1x Oil Pump Chain Guide 2x Timing Cam Sprocket(Front) 1x Timing Crank Sprocket(Outer) 1x Oil Pump Sprocket 1x Timing Crank Sprocket(Inner) 2x Variable Valve Timing Sprocket(Intake)
Number of Pieces
17
Material
Aluminum/Iron
Universal Fitment
No
Warranty Period
2-Year

Highlights

  • [Vehicle Fitment]: PHILTOP Engine Timing Chain Kit Compatible with Kia Sedona 2006-2010 3.8L, Amanti 2007-2009 3.8L, Hyundai Veracruz 2007-2012 3.8L
  • [Kit Contents]: Kit includes OE matched components: 1x Timing Chain, 1x Oil Pump Chain, 1x Timing Chain Tensioner, 2x Timing Chain Guide / Damper, 1x Oil Pump Chain Tensioner, 1x Oil Pump Chain Guide, 2x Variable Valve Timing Sprocket(Intake & Exhaust) - all packed in one convenient box, ready to install
  • [Part number]: 9-0771S+243503C113, 9-5884, 9-5883, 9-5559, 9-5886, 9-5885, 9-5882, S-1077, S-1076, S-1078, S-1079, C-771, C-772, 248103C200, 2441025000, 2441025001, 244103C100, 244103C250, 244103C300, 244103CAA0, 244713C100, 231223C100, 231223C400, 244203C100, 231213C100, 231213C400, 243123C100, 242213C100, 242213C400, 243223C100, 248203C100, 248203CAA0, 213123C100, 213123C400, 245603C100, VCTA1002I, 241003C205, 241003C225, 241003C405, 241003C605, 244103C200, 241003C805, 243503C112
  • [High-Quality Materials] : PHILTOP Timing Chain Kit Crafted from top-tier materials & built to OEM specs. High-strength steel chains + heat-resistant guides cut stretch/noise, boosting engine lifespan. Rigorously tested for 100K+ mile reliability
  • [365-Day Quality Guarantee]: Free replacement available if quality issues occur—just contact us. For any questions, reach out first: we reply within 24 working hours

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2007 - 20122007 - 20122007 - 20082007 - 200920072008 - 20102006 - 20072008 - 20102006 - 20072008 - 2010
MakeHyundaiHyundaiHyundaiKiaKiaKiaKiaKiaKiaKia
ModelVeracruzVeracruzVeracruzAmantiSedonaSedonaSedonaSedonaSedonaSedona
TrimGLSLimitedSEBaseBaseBaseEXEXLXLX
Engine3.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V63.8L V6
Note--
Sprockets Included
Sprockets Included
Sprockets Included
-
Sprockets Included
-
Sprockets Included
-

How to Install?

Checks Before Installation

  • Identify whether the problem comes from the tensioner, a stretched chain, damaged guides or incorrect camshaft timing.
  • Check the engine oil condition, oil pressure, oil passages and check valves. Blocked oil passages can quickly damage new timing components.
  • Confirm the kit contains the correct chains, tensioners, guides, sprockets, seals and timing-cover gasket or RTV.
  • Determine whether any sprocket is integrated with the camshaft and must be replaced as an assembly.
  • Set the engine to TDC before disassembly.

Installation Steps

  • Step-1: Mark the relationship between the chain and sprockets, using the colored chain links as references.
  • Step-2: Release the spring-loaded tensioner slowly and secure the camshafts immediately after removing the chain.
  • Step-3: Inspect every plastic guide and tensioner shoe for cracks. Do not force them into position.
  • Step-4: Clean the timing-cover surface with a plastic scraper. Do not use grinding wheels or wire brushes.
  • Step-5: Apply RTV only where specified and keep sealant away from oil passages.
  • Step-6: Pre-fill the hydraulic tensioner with clean engine oil before installation to prevent dry running at startup.
  • Step-7: Replace TTY crankshaft bolts and tighten them using the specified torque-plus-angle procedure.

After Installation

  • At first startup, immediately check the oil-pressure warning light and listen for continuous chain rattling during the first 30 seconds.
  • Replace the engine oil and oil filter after installation to remove metal particles and sealant residue.
  • Check the timing cover for leaks within the first 100 miles.
  • Scan for codes and perform camshaft/crankshaft position relearning when required.
  • Follow a 5,000–7,500-mile oil-change interval, as clean oil is critical to timing-chain life.

Product Description

11

Reviews

4.5/5

Based on 2 reviews

550%
450%
30%
20%
10%

Tom_Handy_218

05/08/2026

Looks like a high-quality kit, and the price was unbeatable. I was expecting to pay way more for a timing chain set. Really happy with the appearance and the value.

DIY_Karen_482

10/22/2025

Everything arrived quickly, but the instructions included were not very detailed. I managed to get it done by looking up a guide, but it would have been nice to have better instructions.
