1990-1996 Ford F-150 4.9L | Fuel Pump Assembly | OE#F6TZ9A407CA/FG0199 - PHILTOP

1990-1996 Ford F-150 4.9L | Fuel Pump Assembly | OE#F6TZ9A407CA/FG0199 - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Seal Included

5.0

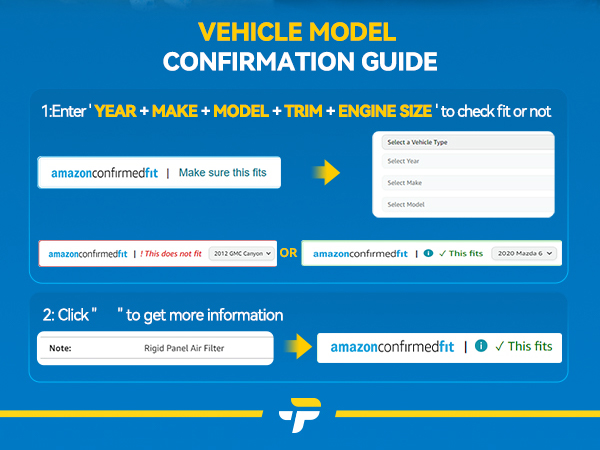

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
5897FUP110RUS

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
No

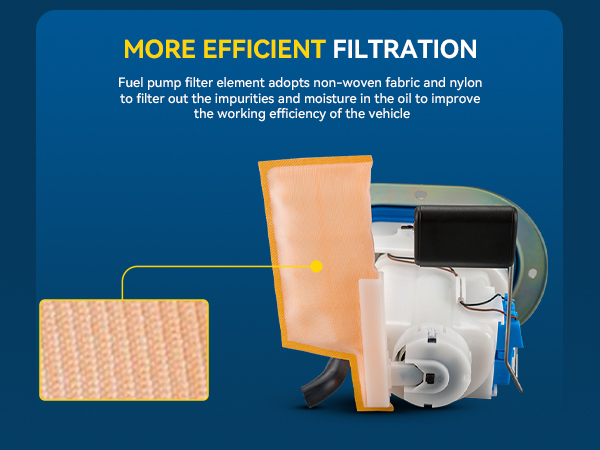

Strainer Included
Yes
Fuel Level Sender Assembly Included
No
Average Flow Rating
24 GPH
In Tank or External
In Tank
Material
Metal, Plastic
Maximum Pressure
70.0 PSI
Outlet Outside Diameter
0.313 in
Outlet Type
Female Quick Connect
Pump Structure
Turbine Impeller
Items Included
1x Fuel Pump Assembly - FG0199
Warranty Period
2-Year
OE Number
F6TZ9A407CA,F6TZ9A407CC,F4TZ9A407C,F4TZ9A407R,12356977,F0TZ9A407CA,F0TZ9H307C,F0TZ9A407C,F0TU9B263DA,F6TU9A407CB,P110M,F0TF9H307CC,P155,P155M,F2TU9H307CA,F3TZ9H307P,F3TZ9A407P,F3TZ9A407CA,F3TZ9A407C,F3TU9A407PA,F3TU9A407CA,F2TZ9H307C,F2TZ9A407CA,F2TZ9A407C,F0TF9H307CD,EFP322M,F0TU9B263BA,F3TZ9A407H,F4TZ9A407H
Part Number
FG0199,P74108,TU201,9533005,SP155,5992010,USEP2064MN,002GE

Highlights

Product highlights are being verified.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1990 - 19921990 - 19921990 - 19921995 - 19961995 - 19961995 - 19961993 - 19951995 - 19961995 - 19961995 - 19961990 - 19961990 - 19961990 - 19961993 - 19961993 - 19961993 - 19961990 - 19921990 - 19921990 - 19921990 - 19921990 - 19921990 - 19921995 - 19961995 - 199619951995 - 19961995 - 199619951990 - 19961990 - 19961990 - 19951993 - 19961993 - 19961993 - 19951990 - 19921990 - 19921990 - 19921997199719971997199719971990 - 19921990 - 19921990 - 19921995199519951995 - 19961995 - 19961995 - 19961990 - 19911993 - 19961990 - 19971990 - 19971993 - 19961993 - 19971993 - 19971990 - 19911990 - 19921990 - 199219971990 - 19921993 - 19971994 - 1997
MakeFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFord
ModelF-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250F-250 HDF-250 HDF-250 HDF-250 HDF-350F-350F-350F-350F-350F-350F-350F-350F-350F-350F-350F-350F-350F-350F-350F-350F-350F-350F-350F-350F-350F-Super DutyF-Super DutyF-Super DutyF-Super Duty
TrimCustomCustomCustomEddie BauerEddie BauerEddie BauerLightningSpecialSpecialSpecialXLXLXLXLTXLTXLTXLT LariatXLT LariatXLT LariatCustomCustomCustomEddie BauerEddie BauerEddie BauerSpecialSpecialSpecialXLXLXLXLTXLTXLTXLT LariatXLT LariatXLT LariatXLXLXLTXLTBaseBaseCustomCustomCustomEddie BauerEddie BauerEddie BauerSpecialSpecialSpecialXLXLXLXLXLTXLTXLTXLT LariatXLT LariatXLT LariatBaseCustomXLXLT
Engine4.9L L65.0L V85.8L V84.9L L65.0L V85.8L V85.8L V84.9L L65.0L V85.8L V84.9L L65.0L V85.8L V84.9L L65.0L V85.8L V84.9L L65.0L V85.8L V84.9L L65.8L V87.5L V84.9L L65.8L V87.5L V84.9L L65.8L V87.5L V84.9L L65.8L V87.5L V84.9L L65.8L V87.5L V84.9L L65.8L V87.5L V85.8L V87.5L V85.8L V87.5L V85.8L V87.5L V84.9L L65.8L V87.5L V84.9L L65.8L V87.5L V84.9L L65.8L V87.5L V84.9L L64.9L L65.8L V87.5L V84.9L L65.8L V87.5L V84.9L L65.8L V87.5L V87.5L V87.5L V87.5L V87.5L V8
Note
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank
with 18 Gallon Steel Aft Axle Tank

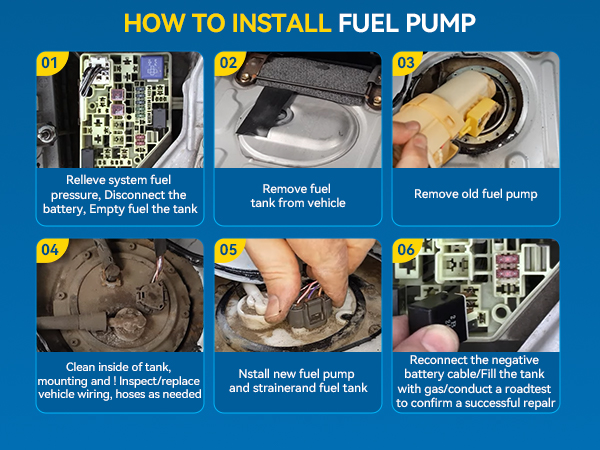

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.

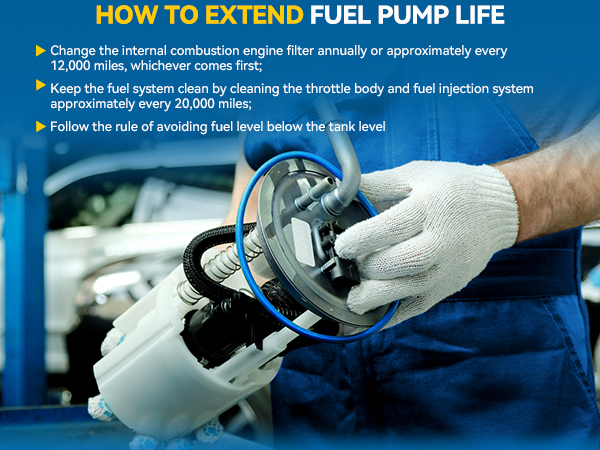

  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

Electric Fuel PumpElectric Fuel Pump

Reviews

5.0/5

Based on 2 reviews

5100%
40%
30%
20%
10%

Ford Guy W

07/05/2024

Verified buyer

Pump fits and works perfectly

Ford Guy W

07/05/2024

Verified buyer

Pump fits and works perfectly
