1996 Jeep Grand Cherokee 4.0L L6/5.2L V8 | Fuel Pump Assembly | OE#5003867AC/FG0225 - PHILTOP

1996 Jeep Grand Cherokee 4.0L L6/5.2L V8 | Fuel Pump Assembly | OE#5003867AC/FG0225 - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

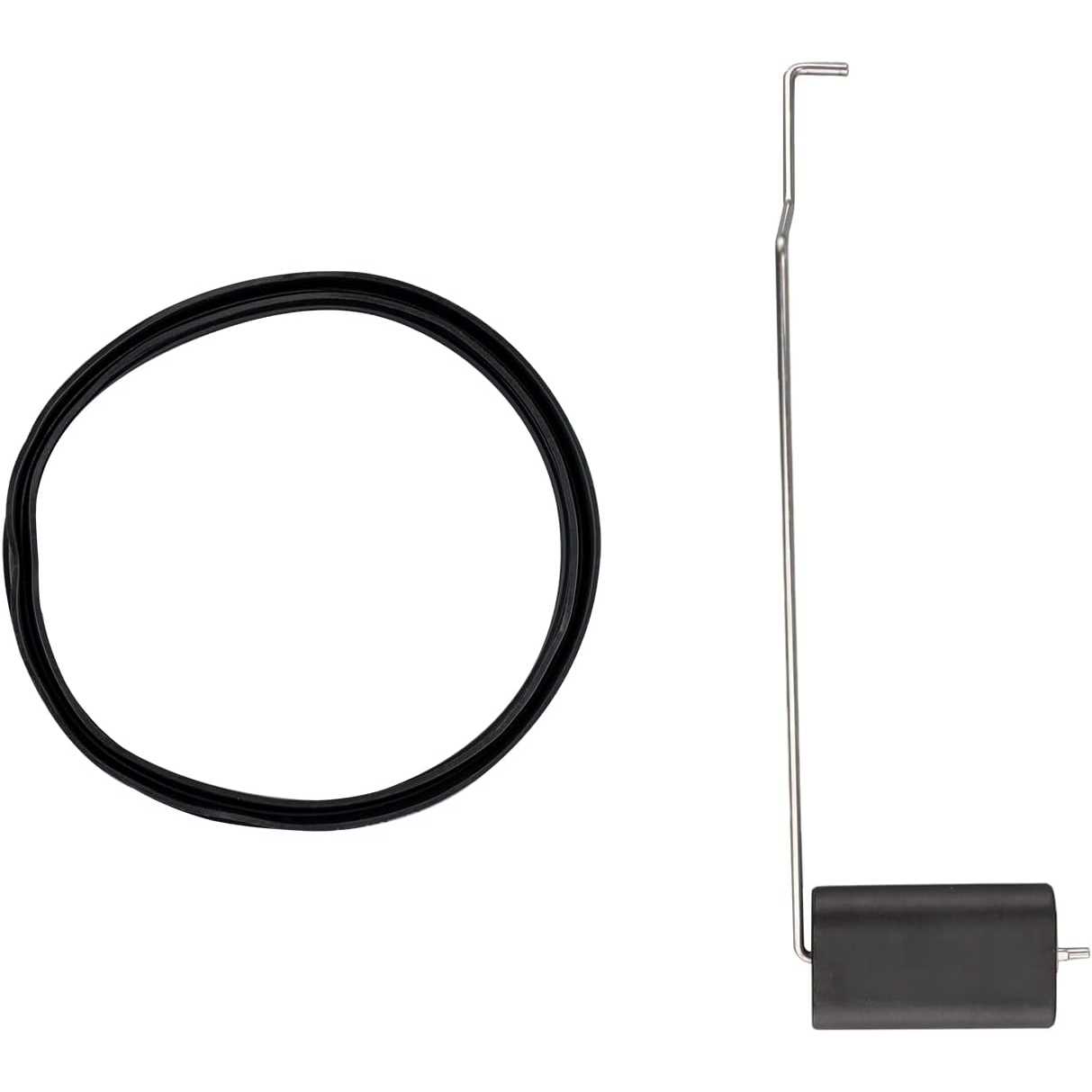

Seal Included

4.3

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
33ISFUP1237US

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
No
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
223.0 Ω
Resistance Ohms Full
20.0 Ω
Average Flow Rating
29 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
80.0 PSI
Outlet Outside Diameter
0.375 in
Outlet Quantity
2
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller
Items Included

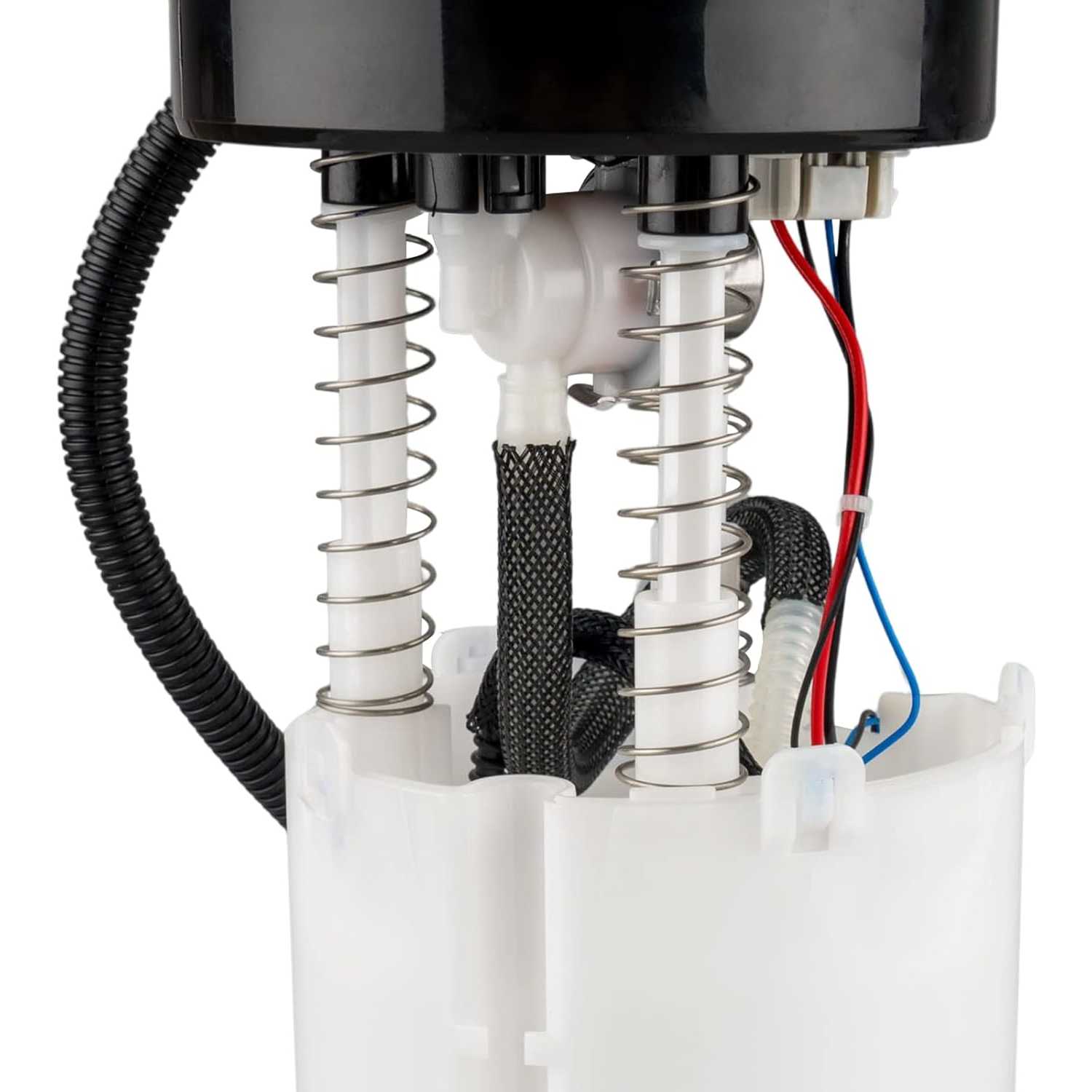

1x Fuel Pump Assembly - FG0225
Warranty Period
2-Year
OE Number
5003867AC,4883261,5003857AA,25320299,4857260,P833M,4856260,5003867AA,5003867AD,5003867AB
Part Number
FG0225,P74708M,SP7099M,9533048,TU131,5202150,USEP7099M,E7099M,402P7099M,PN3082,2630102,EG099M,150183,4010077,MO284,DFG0225,237952,M2246786,C0428M,D13113575TG,TNKSP7099M,FP5162,2920133

Highlights

  • [Purchase Verification Reminder] : This complete fuel pump assembly contains a fuel pump, pressure sensor, float and tank seal for direct replacement. Please confirm the year/make/model of the vehicle you are purchasing before purchasing. Please refer to the adaptation description on the Product Details page, or use "Philtopconfirmedfit" in the upper left corner of the link to confirm.
  • [Adaptation] : This product is suitable for Grand Cherokee 1996-1996 L6 4.0L, V8 5.2L. OE:FG0225, 023GE, 25320299, 4010077, 4856 260, 5003 867AA, 5003857AA, 5003867AC, 520-2150, 67646, 953-3048, A30096, AFS0495S, DFG0225, E7099M, MU198, P74708M, QPFS-126, RE0495S, SP7099M, TU131
  • [Quality Materials Manufacturing] : All components are manufactured in strict accordance with requirements and meet or exceed OEM performance requirements in terms of manufacturing and materials. All plastic parts are made of imported high-performance POM raw materials, modules using the most mature fuel pump structure, ethanol resistance, higher efficiency, longer service life.
  • [More efficient filtration] : fuel pump assembly filter element is generally made of non-woven fabric and nylon, filter out impurities and moisture in the oil, improve the working efficiency of the vehicle.
  • [worry-free purchase] : one year after purchase unlimited mileage package return. If you have any problems with the product during use, please feel free to let us know.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1996199619961996
MakeJeepJeepJeepJeep
ModelGrand CherokeeGrand CherokeeGrand CherokeeGrand Cherokee
TrimLaredoLaredoLimitedLimited
Engine4.0L L65.2L V84.0L L65.2L V8
Note----

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.

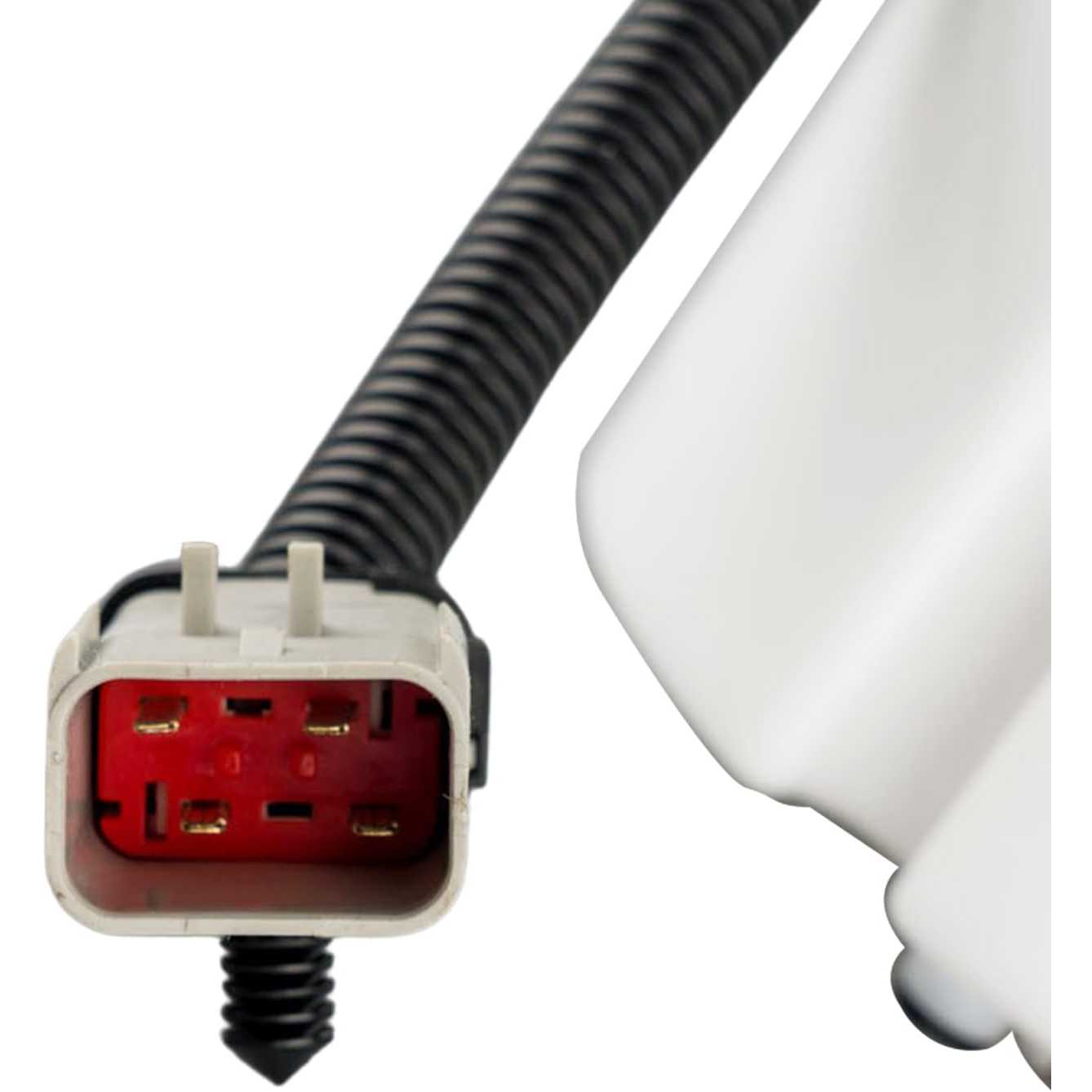

  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

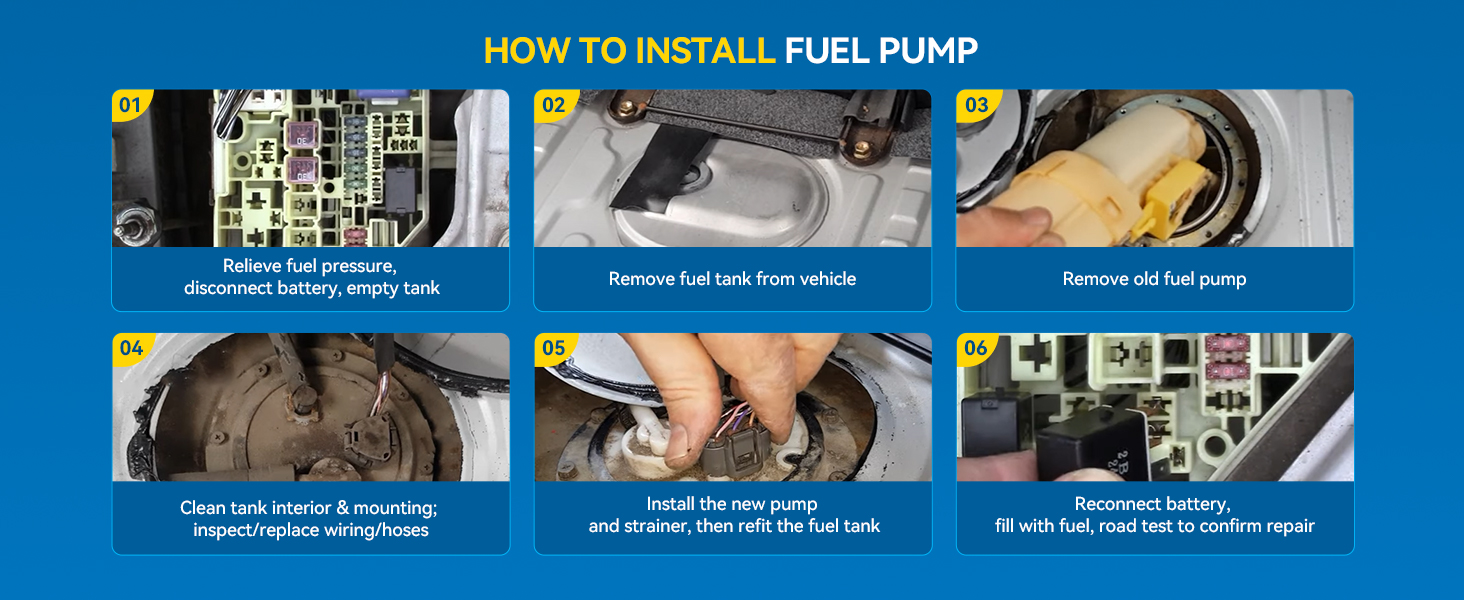

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

1fuel pump

Reviews

4.3/5

Based on 4 reviews

550%
425%
325%
20%
10%

Jason_Trucks_191

12/19/2025

Came in the mail quicker than I expected, and it was packaged really securely. Had to call with a question and the rep was super knowledgeable and friendly.

RickFixIt_664

06/03/2026

Installation was straightforward, no major headaches. It's a direct replacement, so it fit right in where the old one came out. Better than paying a fortune at the dealership.
