2001-2004 Ford Escape 2.0L L4 | Fuel Pump Assembly | OE#YF091335XC/P74963M - PHILTOP

2001-2004 Ford Escape 2.0L L4 | Fuel Pump Assembly | OE#YF091335XC/P74963M - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Seal Included

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
49ISFUP1187US

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
No
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
15.0 Ω
Resistance Ohms Full
160.0 Ω
Average Flow Rating
21 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
68.0 PSI
Outlet Outside Diameter
0.375 in
Outlet Quantity
2
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller
Items Included
1x Fuel Pump Assembly - FG0969
Warranty Period
2-Year
OE Number
YF091335XC,AJ031335XB,YFTT1335X,YL8Z9H307A,YL8Z9H307AE,YL8Z9H307BC,YL8Z9H307BA,ZZC31335X,YFTT1335XA,AJ031335XC,ZZTT1335X,YF091335XB,AJTT1335X,AJTW1335X,YL8Z9H307BF,P2017S,P2032S,YL8Z9H307AG,YL8Z9H307AA,YL8Z9H307AF,YL8Z9H307AH,YL8Z9H307BB,PFS399,PFS127
Part Number
P74963M,FG0969,SP2291M,USEP2291M,5252350,102GE

Highlights

  • #4,971,680 in Automotive (See Top 100 in Automotive)
  • #36,500 in Automotive Replacement Electric Fuel Pumps
  • [Purchase Verification Reminder] : This complete fuel pump assembly contains a fuel pump, pressure sensor, float and tank seal for direct replacement. Please confirm the year/make/model of the vehicle you are purchasing before purchasing. Please refer to the adaptation description on the Product Details page, or use "Philtopconfirmedfit" in the upper left corner of the link to confirm.
  • [Adaptation] : This product is suitable for Escape 2001-2004 L4 2.0L, V6 3.0L, Tribute 2001-2004 L4 2.0L, V6 3.0L. OE:FG0969, 4010296, 525-2350, A30061, AFS0744S, AJ03-13-35XB, AJTT-13-35X, AJTW-13-35X, C5341012, DFG0969, E2291M, M2425967, MU2073, P74963M, PFS-1035, PFS-399, SP2291M, YF09-13-35XC, YFTT-13-35X, YFTT-13-35XA, YL8Z 9H307-A, YL8Z 9H307-AA, YL8Z 9H307-AE, YL8Z 9H307-AF, YL8Z 9H307-AG, YL8Z 9H307-AH, YL8Z 9H307-BA, YL8Z 9H307-BF, ZZC3-13-35X, ZZTT-13-35X
  • [Quality Materials Manufacturing] : All components are manufactured in strict accordance with requirements and meet or exceed OEM performance requirements in terms of manufacturing and materials. All plastic parts are made of imported high-performance POM raw materials, modules using the most mature fuel pump structure, ethanol resistance, higher efficiency, longer service life.
  • [More efficient filtration] : fuel pump assembly filter element is generally made of non-woven fabric and nylon, filter out impurities and moisture in the oil, improve the working efficiency of the vehicle.
  • [worry-free purchase] : one year after purchase unlimited mileage package return. If you have any problems with the product during use, please feel free to let us know.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20042003 - 20042001 - 20042001 - 20042001 - 20042001 - 20042001 - 20042001 - 20022001 - 20042001 - 2004
MakeFordFordFordFordFordFordMazdaMazdaMazdaMazda
ModelEscapeEscapeEscapeEscapeEscapeEscapeTributeTributeTributeTribute
TrimLimitedLimitedXLSXLSXLTXLTDXDXESLX
Engine2.0L L43.0L V62.0L L43.0L V62.0L L43.0L V62.0L L43.0L V63.0L V63.0L V6
Note
Left Hand Drive;To 12/14/2003
Left Hand Drive;To 12/14/2003
Left Hand Drive;To 12/14/2003
Left Hand Drive;To 12/14/2003
Left Hand Drive;To 12/14/2003
Left Hand Drive;To 12/14/2003
To 12/14/2003
To 12/14/2003
To 12/14/2003
To 12/14/2003

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

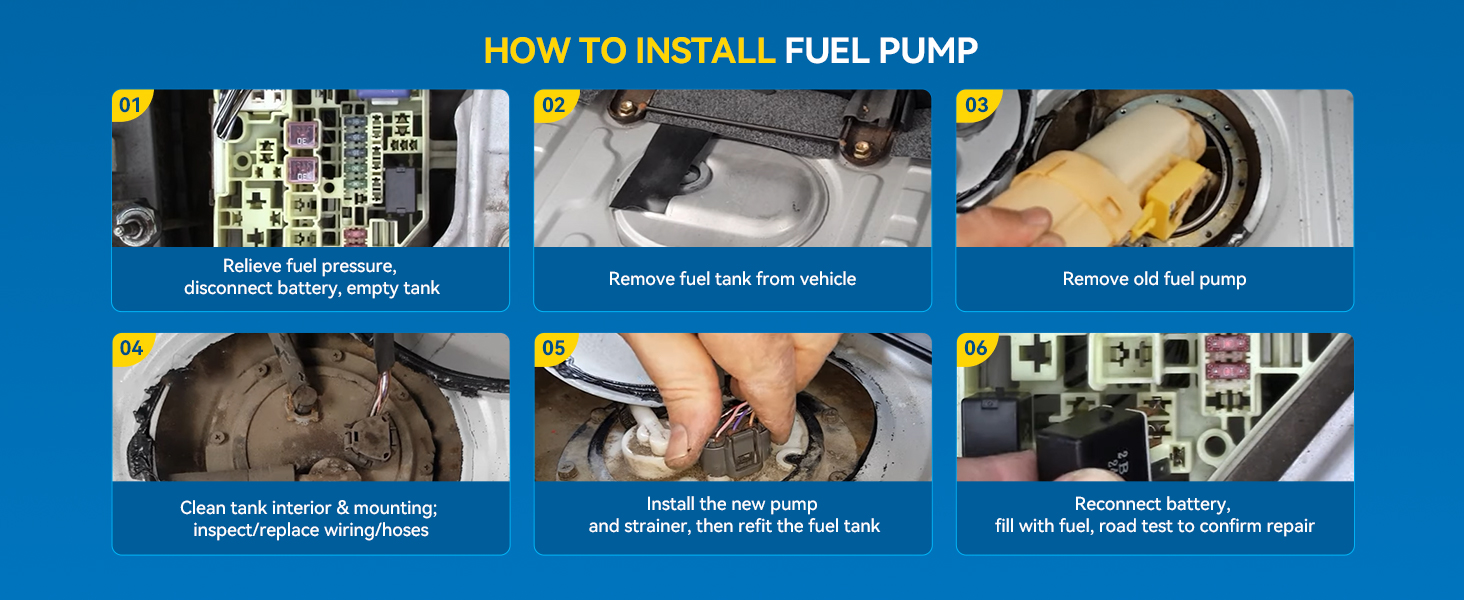

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

1fuel pump

Reviews

4.7/5

Based on 7 reviews

571%
429%
30%
20%
10%

Mike from Texas_884

06/10/2026

Wasn't difficult to install at all. Fit my Escape like a champ. Much easier than I anticipated, and a good quality part.

Amanda_MomOfThree_218

11/06/2025

Looks identical to the original part. Great price for what you get, a real steal. Highly recommend this for the value.

FAQS

No FAQs have been added for this product yet.
