2013-2019 Ford Explorer 3.5L V6 | Front/Rear Shock Absorbers Struts w/Sway Bar link, w/Spring | OE#DB5Z18125F/272730 - PHILTOP

2013-2019 Ford Explorer 3.5L V6 | Front/Rear Shock Absorbers Struts w/Sway Bar link, w/Spring | OE#DB5Z18125F/272730 - PHILTOP

Front/Rear

Complete Strut Assembly & Shock Absorber Kit

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
20ISCSH0147US

Specifications

Brand
PHILTOP
Items Included

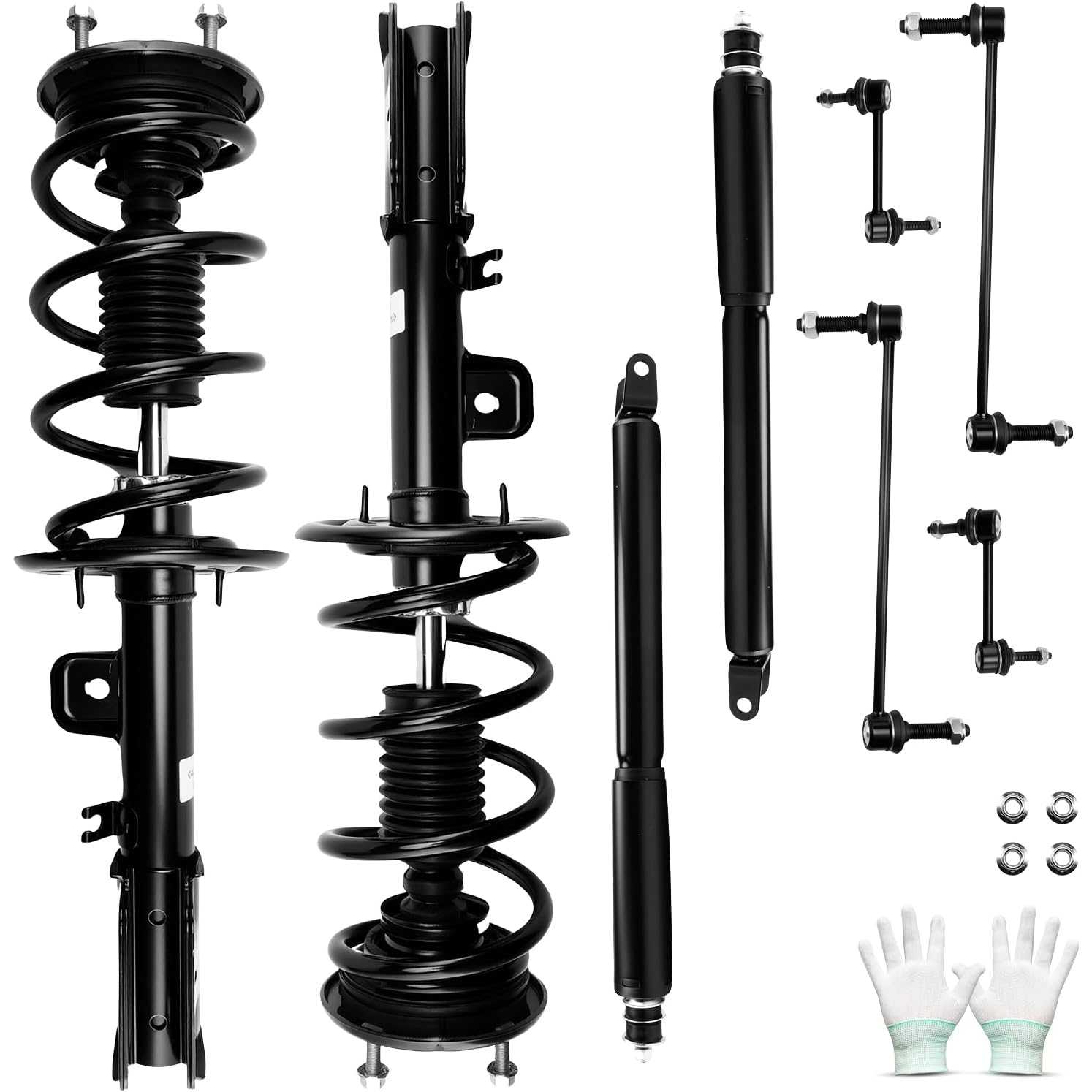

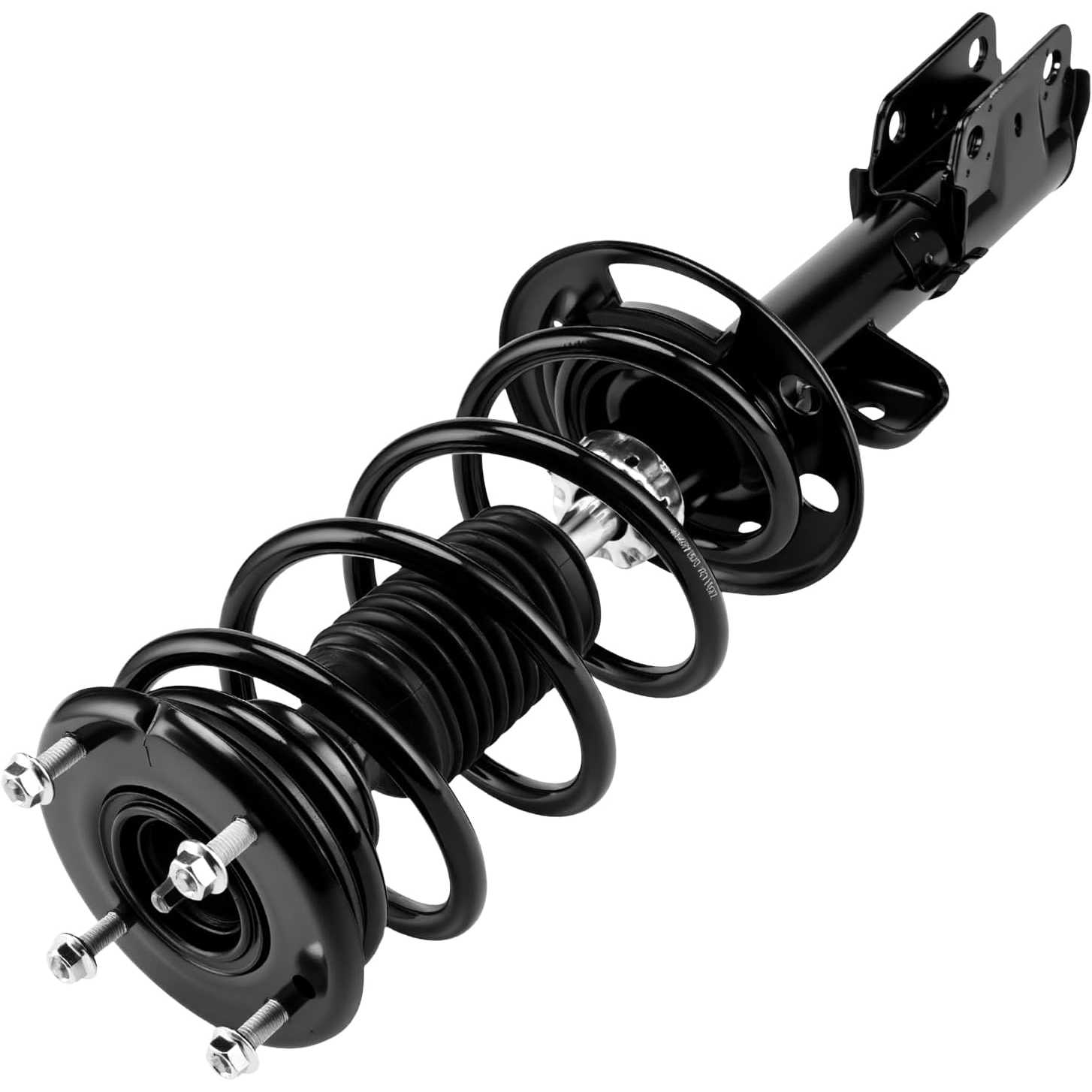

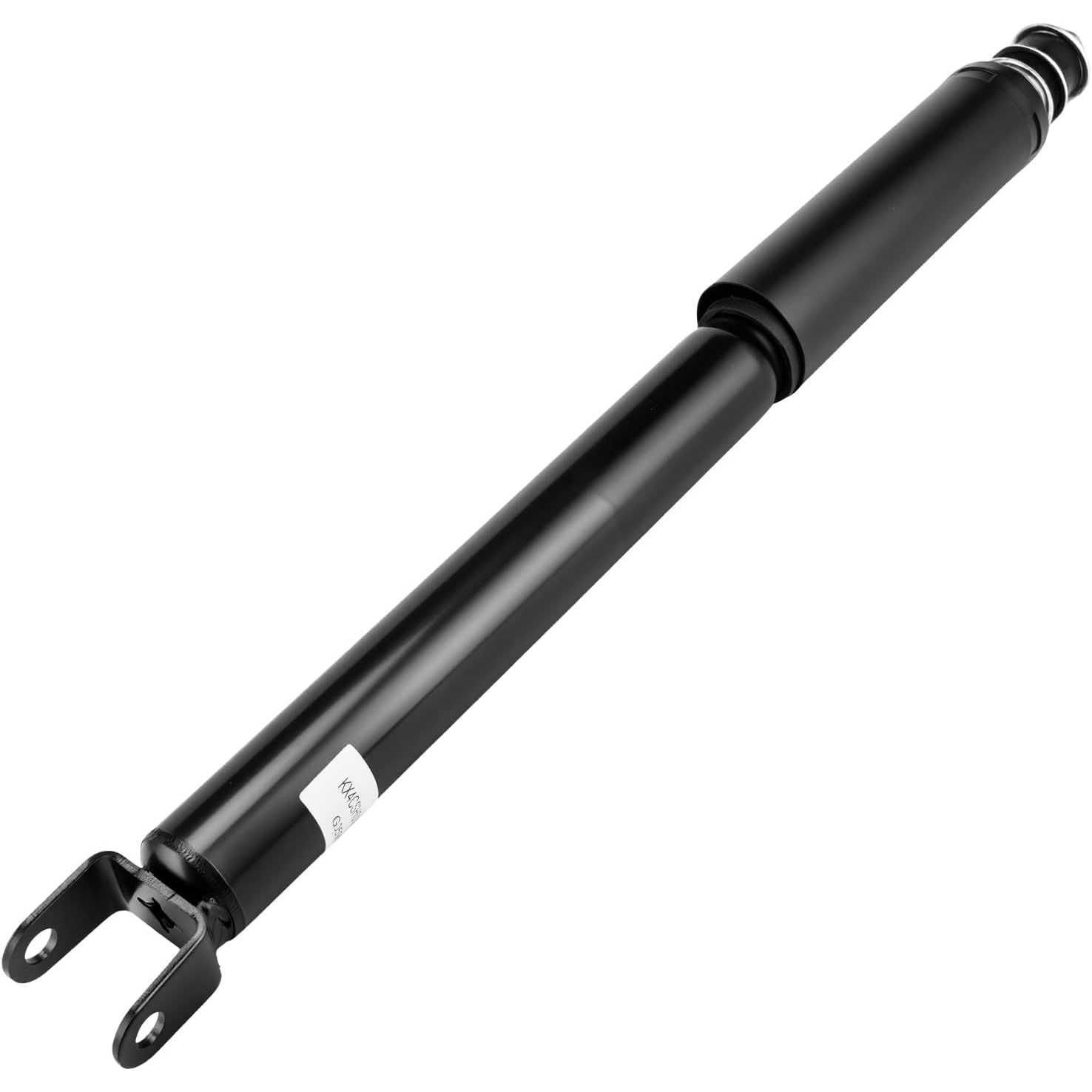

1x Front Strut & Coil Spring Assembly - Driver Side - 272730 1x Front Strut & Coil Spring Assembly - Passenger Side - 272729 2x Rear Shock Absorbers - Driver & Passenger Side - 911330 1x Front Sway Bar End Link - Passenger Side - K750616 1x Front Sway Bar End Link - Driver Side - K750617 1x Rear Sway Bar End Link - Driver Side - K750393 1x Rear Sway Bar End Link - Passenger Side - K750394
Color
Black
Steel Tube Material
Mild Steel(ST37 Equivalent)
Bump Stop Included
Polyurethane
Piston Rod Material
SAE 1045 Steel
Type
Complete Strut Assembly & Shock Absorber Kit
Quantity
8
Position
Front/Rear
Oil Seal Material
Nitrile Rubber
Warranty Period
2-Year
OE Number
DB5Z18125F,DB5Z18125G,DB5Z18125E,BB5Z18125E,BB5Z18125D,FB5Z18125A,FB5Z18125B,FB5Z18125C,FB5Z18125D,FB5Z18125H,FB5Z18125J
Part Number
272730,272729,911330,282730

Highlights

  • [Fitment]: This PHILTOP Struts and Shocks Complete Assembly with Sway Bar Link Stabilizer compatible with 2013-2019 3.5L/3.5T Ford Explorer V 6.
  • [OE Replace Number]: This PHILTOP Struts and Shocks Complete Assembly with Sway Bar Link Stabilizer replaces OE#: 272729, 272730, 282730, 911330, DB5Z18125F, DB5Z18125G, DB5Z18125E, BB5Z18125E, BB5Z18125D, FB5Z18125A, FB5Z18125B, FB5Z18125C, FB5Z18125D, FB5Z18125H, FB5Z18125J.
  • [Kit Includes]: 1x Front Strut & Coil Spring Assembly(Driver Side) - 272730, 1x Front Strut & Coil Spring Assembly(Passenger Side) - 272729, 2x Rear Shock Absorbers(Driver & Passenger Side) - 911330, 1x Front Sway Bar End Link(Passenger Side) - K750616, 1x Front Sway Bar End Link(Driver Side) - K750617, 1x Rear Sway Bar End Link(Driver Side) - K750393, 1x Rear Sway Bar End Link(Passenger Side) - K750394.
  • [All-Weather Durability & Perfect Fit]: Built for extreme conditions. Features cold-temperature resistant fluid that remains functional down to -40°C, ensuring immediate performance in freezing winters. Combined with a 8-layer anti-corrosion coating, it guarantees a perfect OEM fit and long-term reliability for your vehicle.
  • [Superior Safety & Stability]: Engineered for confidence. Improve tire-to-road contact by over 25% compared to worn shocks, leading to a significant reduction in braking distance on wet surfaces. Enjoy minimized body roll during cornering for a secure, planted feel at all speeds.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2013 - 20192013 - 20192016 - 20192013 - 20192013 - 2019
MakeFordFordFordFordFord
ModelExplorerExplorerExplorerExplorerExplorer
TrimBaseLimitedPlatinumSportXLT
Engine3.5L V63.5L V63.5L V63.5L V63.5L V6
Note
From 09/04/2012
From 09/04/2012
From 09/04/2012
From 09/04/2012
From 09/04/2012

How to Install?

Installation Manual Download

User manual (PDF)
Download

Purchase & Installation Notice

  • Confirm the vehicle year, model, suspension type, installation position and part number before ordering.
  • For a complete strut assembly, replacing only individual accessories is not recommended. Mixing worn and new springs, mounts, bearings, dust boots or bump stops may cause noise, uneven ride height and repeated labor costs. Replace the complete assembly when these components are worn or damaged.
  • For balanced damping and handling, inspect both sides of the same axle and replace them as a pair when necessary.

Installation Steps

  • Step-1: Secure the Vehicle: Park on level ground, raise and support the vehicle with approved jack stands, then remove the wheel.
  • Step-2: Disconnect Related Components: Detach the stabilizer link, brake-hose bracket and ABS wiring as required. Support the steering knuckle to prevent pulling on hoses or wires.
  • Step-3: Remove the Old Unit: Remove the lower and upper mounting hardware, support the assembly and carefully remove it.
  • Step-4: Install the New Unit: Confirm the correct side and orientation, position the new assembly and hand-start all fasteners. If spring transfer is required, use a professional spring compressor. Never loosen the center nut with the spring under tension.
  • Step-5: Reconnect and Torque: Reinstall all brackets, links, hoses and wiring. Ensure nothing is twisted or stretched, then tighten all fasteners to the vehicle manufacturer’s specified torque. Do not grip or damage the polished piston rod.
  • Step-6: Reinstall and Align: Reinstall the wheel, lower the vehicle, complete the final torque check and perform a professional wheel alignment.

Product Description

1

Reviews

4.8/5

Based on 6 reviews

583%
417%
30%
20%
10%

AutoMom_2019_98

01/29/2026

Wow, these showed up faster than I could believe! Everything was packed up tight and secure. The support team was super helpful too, really impressed.

Mike from Texas_747

12/30/2025

Shipping was incredibly fast, got them the next day! Packaging was excellent, everything was protected. Customer service was super friendly and helpful when I called.

FAQS

No FAQs have been added for this product yet.
