Front Left or Right

Built to Last

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
63ISSHA5277US

Specifications

Brand
PHILTOP
Position
Front Left or Right
ABS Ring Included
No
Quantity
1
Input Shaft Spline Count
29
Material
SAE 1055 Steel and Chloroprene Rubber
Output Shaft Spline Count
33
Items Included

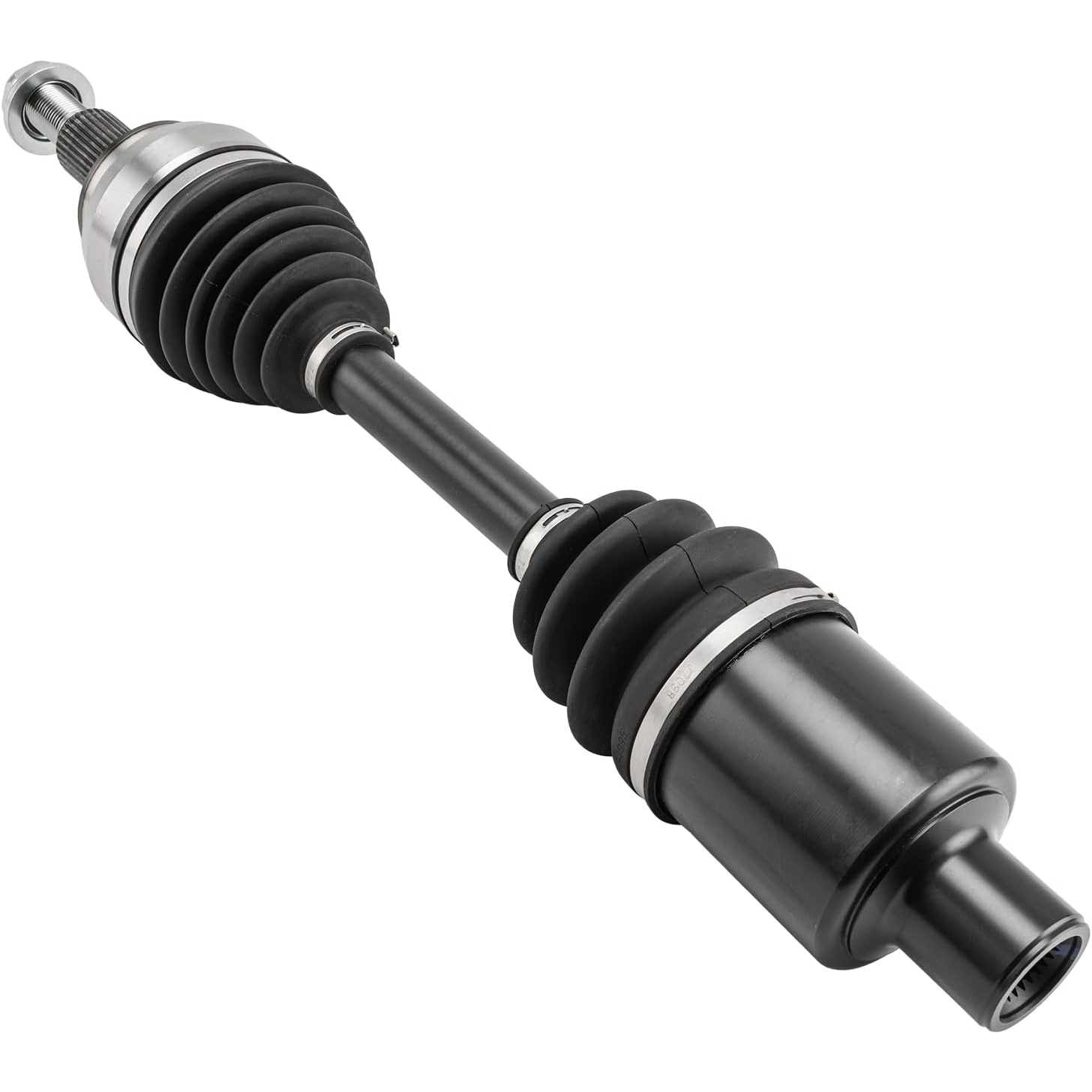

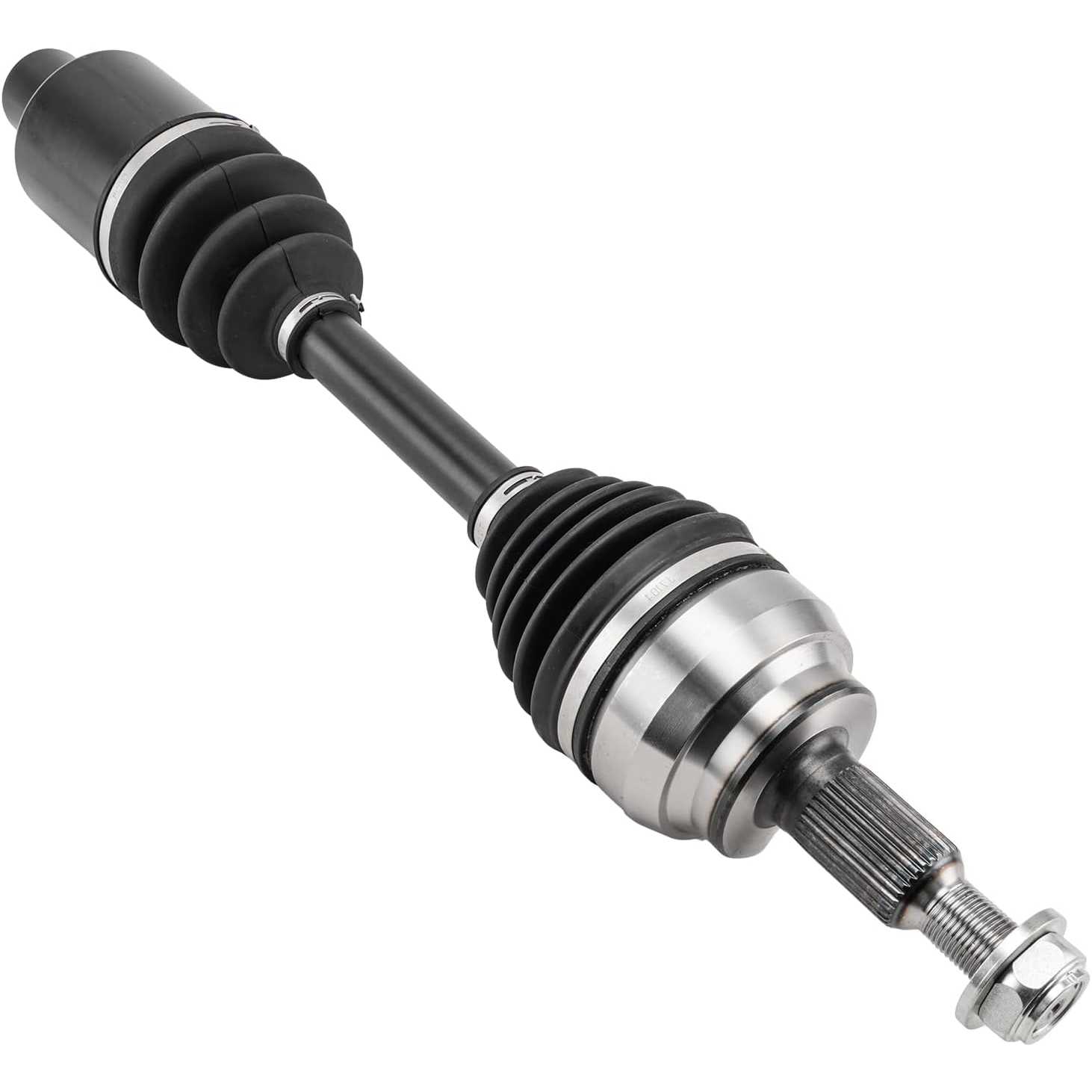

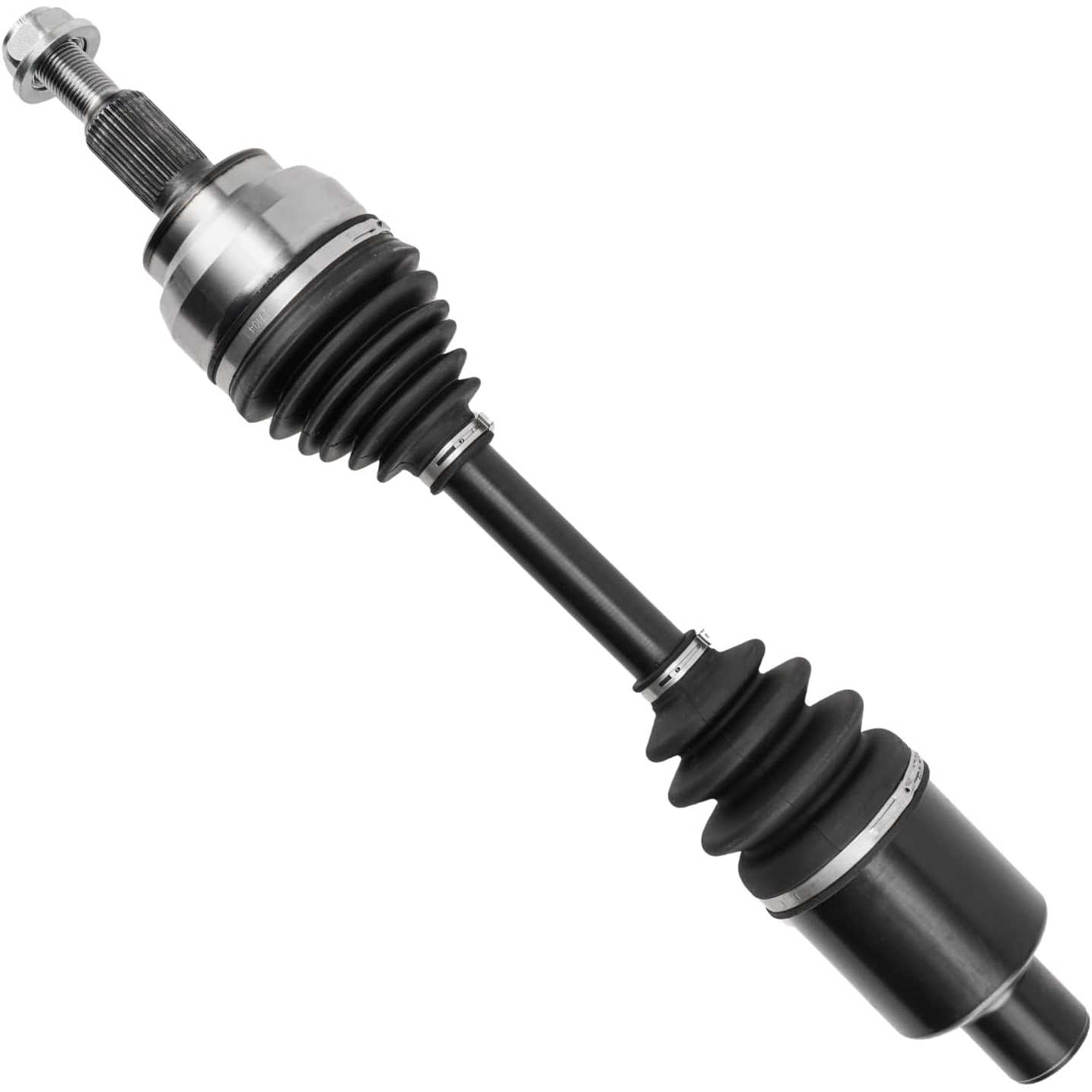

1x Front Left or Right Cv Axle Shaft - 66-3404
Axle Nut Included
Yes
Warranty Period
2-Year
Part Number
663404

Highlights

  • Cv Axle Fitment: Front CV Joint for 2002-2011 Ram 1500 4WD.
  • Reference Number: NCV12184, 66-3404,Compatible with Dodge/Ram,5072389AA, 5170822AA, 60-3316, 5072389AB,APCVA403, 663404
  • Drive Shaft Details: 1x Front cv axle shaft - 66-3404. Compressed Length: 23.75 inch. Output Shaft Spline Count: 33. Iutput Shaft Spline Count: 29.
  • Compatibility Verification: Please check the compatibility list on the listing page for more submodel details to make sure your exact model is included.
  • High Quality: CV shafts are made of high-quality chloroprene rubber for greater durability and longevity. High-quality grease can withstand high temperatures and high torque requirements, ensuring long-term reliable performance.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20032003 - 20042006 - 20072003 - 201020032002 - 20032002 - 20102003 - 20102002 - 20032002 - 20102002 - 20102003 - 20102002 - 20032008200820082006 - 20072009 - 20102006 - 20072009 - 20102006 - 20072009 - 20102011201120112011201120112011201120112011201120112011
MakeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeRamRamRamRamRamRamRamRamRamRamRamRamRam
ModelRam 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 1500Ram 15001500150015001500150015001500150015001500150015001500
TrimLaramieLaramieLaramieLaramieLaramieSLTSLTSLTSLTSTSTSTSTSXTSXTSXTSportSportTRX4TRX4TRX4TRX4Big HornBig HornLaramieLaramie LonghornOutdoorsmanOutdoorsmanSLTSLTSTSTSTSportTradesman
Engine3.7L V64.7L V84.7L V85.7L V85.9L V83.7L V64.7L V85.7L V85.9L V83.7L V64.7L V85.7L V85.9L V83.7L V64.7L V85.7L V85.7L V85.7L V84.7L V84.7L V85.7L V85.7L V84.7L V85.7L V85.7L V85.7L V84.7L V85.7L V84.7L V85.7L V83.7L V64.7L V85.7L V85.7L V85.7L V8
Note-----------------------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, installation position, spline counts, mounting points and ABS components match.
  • Inspect the hub bearing, suspension parts, transmission mount and axle seal. Repair looseness, damage or leakage first.
  • Compare the new and original axles in a fully compressed position. Confirm the compressed length and key dimensions match.
    Verify that the new and original CV axles have the same compressed length
  • Check that the boots, clamps, splines and supplied axle nut are complete and undamaged.
  • Support both CV joints when handling. Do not pull, sharply bend or carry the axle by its rubber boot.
    The correct way to hold a CV axle

Installation Steps

  • Step-1: Secure the Vehicle: Loosen the axle nut with the wheels on the ground. Raise the vehicle on a level surface and support it securely with jack stands.
  • Step-2: Remove the Old Axle: Remove the wheel and necessary suspension components. Separate the outer spline from the hub with the proper puller.
  • Step-3: Release the Inner Joint: Use a CV joint puller or slide hammer. Never strike the axle directly or pull it out with bolts. Be prepared for possible transmission-fluid loss.
  • Step-4: Install the New Axle: Clean the splines and seal-contact surface. Insert the inner joint straight into the transmission until the retaining ring fully locks, then install the outer spline into the hub.
  • Step-5: Reassemble and Torque: Reinstall all suspension components and use a new axle nut. Hand-start the fasteners and tighten everything to the vehicle manufacturer’s specified torque.
  • Step-6: Final Assembly: Reinstall the wheel, torque the lug nuts in a crisscross pattern and check or refill the specified transmission fluid if required.

After Installation

  • Confirm the inner joint is fully seated and all fasteners are secure.
  • Check the CV boots, clamps and axle seal for damage or leakage.
  • Rotate the wheel by hand and verify the axle moves smoothly without binding or contacting nearby components.
  • Perform a low-speed road test. Check for clicking while turning, clunking during acceleration, vibration and fluid leakage.
  • If suspension geometry was disturbed, have the wheel alignment checked.

Product Video

Product Description

12

Reviews

4.8/5

Based on 8 reviews

588%
40%
313%
20%
10%

Michael cooley

04/01/2026

Verified buyer

Fit my truck perfectly, got me back on the road. Not all that hard to install.

Justin

10/26/2025

Verified buyer

This drive shaft continues their tradition of quality and reliability
