2006-2011 Cadillac DTS 4.6L | Front Driver Side & Passenger Side CV Axle Shaft | 661327 - PHILTOP

2006-2011 Cadillac DTS 4.6L | Front Driver Side & Passenger Side CV Axle Shaft | 661327 - PHILTOP

Front Left or Right

Built to Last

4.5

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
25ISSHA8447US

Specifications

Brand
PHILTOP
Position
Front Left or Right
ABS Ring Included
Yes
Quantity
1
Input Shaft Spline Count
41
Material
SAE 1055 Steel and Chloroprene Rubber
Output Shaft Spline Count
33
Items Included
1x Front Left or Right Cv Axle Shaft - 661327
Axle Nut Included
Yes
Warranty Period
2-Year
Part Number
661327

Highlights

  • Fitment: Front Axle Shaft for 2006-2011 DTS, 2000-2005 DeVille, 1998-2004 Seville, 2006-2011 Lucerne 4.6L, 1995-1999,2001-2003 Aurora 4.0L, 2004-2005 Bonneville 4.6L.
  • Reference Number: 26054532, 15869612, 26075603, 26063204, 26063201, 26075598, 661327.
  • Reliably: Enjoy a smoother, more reliable ride with our high-quality CV axles. The high quality materials and excellent performance of our half shafts provide reliable support for your vehicle!
  • High Quality: Half shafts are 100% ground to improve ball path and surface finish and extend product life.CV shafts are normalised to ensure stability in subsequent machining.
  • Function: Half shafts for equal speed power transmission and wheel steering through pendulum angle.CV axles are designed in strict accordance with OE standards, with 100% inspection of key mating dimensions.

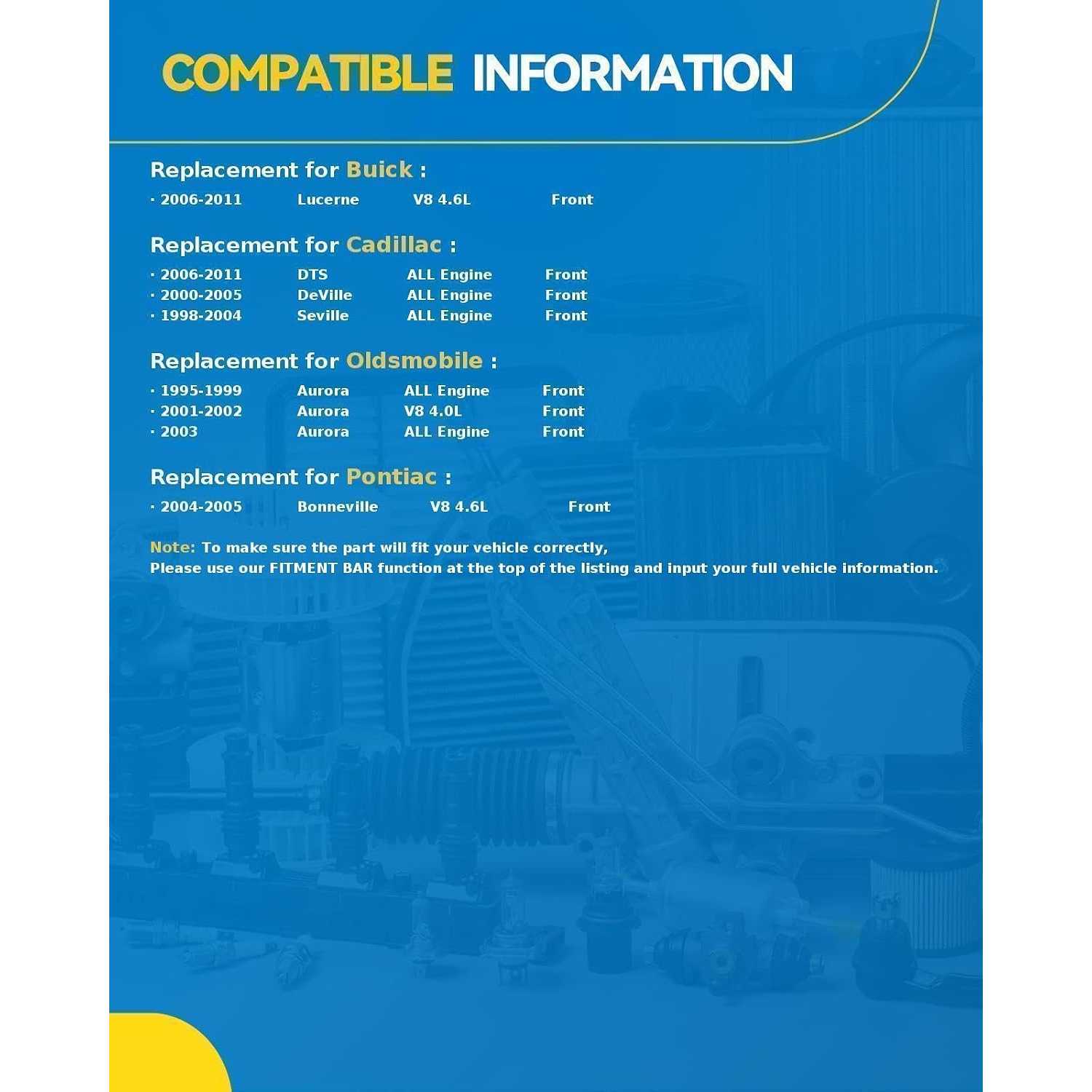

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2006 - 20082006 - 20082008 - 20112006 - 20112010 - 20112007 - 20112008 - 20112010 - 20112000 - 20052000 - 20052000 - 20052004 - 20051998 - 20041998 - 20031995 - 19992001 - 20032004 - 2005
MakeBuickBuickBuickCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacOldsmobileOldsmobilePontiac
ModelLucerneLucerneLucerneDTSDTSDTSDTSDTSDeVilleDeVilleDeVilleDeVilleSevilleSevilleAuroraAuroraBonneville
TrimCXLCXSSuperBaseLiveryLuxuryPlatinumPremiumBaseDHSDTSProtection SeriesSLSSTSBaseBaseGXP
Engine4.6L V84.6L V84.6L V84.6L V84.6L V84.6L V84.6L V84.6L V84.6L V84.6L V84.6L V84.6L V84.6L V84.6L V84.0L V84.0L V84.6L V8
Note---
w/o Heavy Duty Suspension (FE7)
w/o Heavy Duty Suspension (FE7)
w/o Heavy Duty Suspension (FE7)
w/o Heavy Duty Suspension (FE7)
w/o Heavy Duty Suspension (FE7)
w/o Heavy Duty Suspension (FE7)
w/o Heavy Duty Suspension (FE7)
w/o Heavy Duty Suspension (FE7)
w/o Heavy Duty Suspension (FE7)
-----

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, installation position, spline counts, mounting points and ABS components match.
  • Inspect the hub bearing, suspension parts, transmission mount and axle seal. Repair looseness, damage or leakage first.
  • Compare the new and original axles in a fully compressed position. Confirm the compressed length and key dimensions match.
    Verify that the new and original CV axles have the same compressed length
  • Check that the boots, clamps, splines and supplied axle nut are complete and undamaged.
  • Support both CV joints when handling. Do not pull, sharply bend or carry the axle by its rubber boot.
    The correct way to hold a CV axle

Installation Steps

  • Step-1: Secure the Vehicle: Loosen the axle nut with the wheels on the ground. Raise the vehicle on a level surface and support it securely with jack stands.
  • Step-2: Remove the Old Axle: Remove the wheel and necessary suspension components. Separate the outer spline from the hub with the proper puller.
  • Step-3: Release the Inner Joint: Use a CV joint puller or slide hammer. Never strike the axle directly or pull it out with bolts. Be prepared for possible transmission-fluid loss.
  • Step-4: Install the New Axle: Clean the splines and seal-contact surface. Insert the inner joint straight into the transmission until the retaining ring fully locks, then install the outer spline into the hub.
  • Step-5: Reassemble and Torque: Reinstall all suspension components and use a new axle nut. Hand-start the fasteners and tighten everything to the vehicle manufacturer’s specified torque.
  • Step-6: Final Assembly: Reinstall the wheel, torque the lug nuts in a crisscross pattern and check or refill the specified transmission fluid if required.

After Installation

  • Confirm the inner joint is fully seated and all fasteners are secure.
  • Check the CV boots, clamps and axle seal for damage or leakage.
  • Rotate the wheel by hand and verify the axle moves smoothly without binding or contacting nearby components.
  • Perform a low-speed road test. Check for clicking while turning, clunking during acceleration, vibration and fluid leakage.
  • If suspension geometry was disturbed, have the wheel alignment checked.

Product Video

Product Description

12

Reviews

4.5/5

Based on 8 reviews

563%
425%
313%
20%
10%

Emma_DailyCommute_95

11/12/2025

Putting this in was no problem at all. It lined up perfectly and bolted right in. Way better than the last aftermarket axle I had to replace on my old car.

CarGuy_John_6

04/07/2026

Super impressed with how fast this shipped out. The packaging was secure and protected the part well. Customer service was also very responsive to my questions. Great buying experience.
