Front Left or Right

Built to Last

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
91ISSHA9747US

Specifications

Brand
PHILTOP
Position
Front Left or Right
ABS Ring Included
No
Quantity
1
Material
SAE 1055 Steel and Chloroprene Rubber
Output Shaft Spline Count
42
Items Included
1x Front Left or Right Cv Axle Shaft - NCV23039
Axle Nut Included
Yes
Warranty Period
2-Year
Part Number
NCV23039

Highlights

  • Fitment: Front Axle Shaft for 2015-2016 Macan (3.6L Models To 03/20/2016), 2017-2021 Macan 2.0/3.0L.
  • Reference Number: 95B407271, 95B407271B, 95B407271D, 95B407271A, NCV23039, 95B407271F, 95B407271H.
  • Reliably: Enjoy a smoother, more reliable ride with our high-quality CV axles. The high quality materials and excellent performance of our half shafts provide reliable support for your vehicle!
  • High Quality: Half shafts are 100% ground to improve ball path and surface finish and extend product life.CV shafts are normalised to ensure stability in subsequent machining.
  • Function: Half shafts for equal speed power transmission and wheel steering through pendulum angle.CV axles are designed in strict accordance with OE standards, with 100% inspection of key mating dimensions.

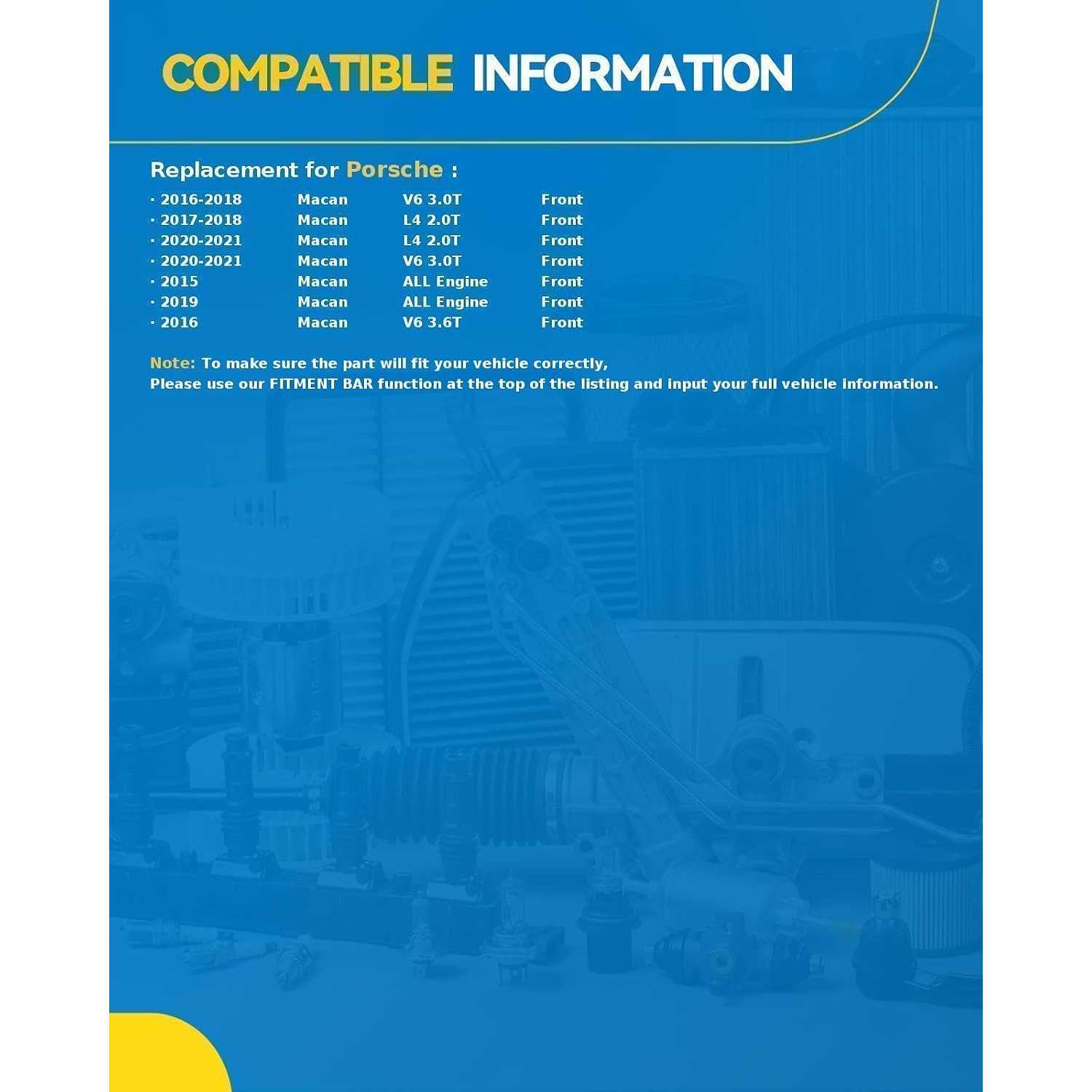

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2017 - 20212017 - 20182015 - 20162017 - 20212015 - 2016
MakePorschePorschePorschePorschePorsche
ModelMacanMacanMacanMacanMacan
TrimBaseGTSSSTurbo
Engine2.0L L43.0L V63.0L V63.0L V63.6L V6
Note--
3.6L Models To 03/20/2016
-
3.6L Models To 03/20/2016

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, installation position, spline counts, mounting points and ABS components match.
  • Inspect the hub bearing, suspension parts, transmission mount and axle seal. Repair looseness, damage or leakage first.
  • Compare the new and original axles in a fully compressed position. Confirm the compressed length and key dimensions match.
    Verify that the new and original CV axles have the same compressed length
  • Check that the boots, clamps, splines and supplied axle nut are complete and undamaged.
  • Support both CV joints when handling. Do not pull, sharply bend or carry the axle by its rubber boot.
    The correct way to hold a CV axle

Installation Steps

  • Step-1: Secure the Vehicle: Loosen the axle nut with the wheels on the ground. Raise the vehicle on a level surface and support it securely with jack stands.
  • Step-2: Remove the Old Axle: Remove the wheel and necessary suspension components. Separate the outer spline from the hub with the proper puller.
  • Step-3: Release the Inner Joint: Use a CV joint puller or slide hammer. Never strike the axle directly or pull it out with bolts. Be prepared for possible transmission-fluid loss.
  • Step-4: Install the New Axle: Clean the splines and seal-contact surface. Insert the inner joint straight into the transmission until the retaining ring fully locks, then install the outer spline into the hub.
  • Step-5: Reassemble and Torque: Reinstall all suspension components and use a new axle nut. Hand-start the fasteners and tighten everything to the vehicle manufacturer’s specified torque.
  • Step-6: Final Assembly: Reinstall the wheel, torque the lug nuts in a crisscross pattern and check or refill the specified transmission fluid if required.

After Installation

  • Confirm the inner joint is fully seated and all fasteners are secure.
  • Check the CV boots, clamps and axle seal for damage or leakage.
  • Rotate the wheel by hand and verify the axle moves smoothly without binding or contacting nearby components.
  • Perform a low-speed road test. Check for clicking while turning, clunking during acceleration, vibration and fluid leakage.
  • If suspension geometry was disturbed, have the wheel alignment checked.

Product Video

Product Description

12

Reviews

4.7/5

Based on 3 reviews

567%
433%
30%
20%
10%

Mike from Texas_923

05/16/2026

Installation was smoother than I expected. It fits perfectly and feels very secure. Much better than some other aftermarket parts I've dealt with in the past.

Ashley_RoadTrip_639

02/14/2026

Looks fantastic, very high quality for the price. I was really impressed with the finish and how solid it feels. Great value for a performance part like this.
