1997-2002 Ford Expedition Front Driver Side & Passenger Side CV Axle Shaft | 662112 - PHILTOP

1997-2002 Ford Expedition Front Driver Side & Passenger Side CV Axle Shaft | 662112 - PHILTOP

Front

Built to Last

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
54ISSHA7667US

Specifications

Brand
PHILTOP
Position
Front
ABS Ring Included
Yes
Quantity
2
Material
SAE 1055 Steel and Chloroprene Rubber
Output Shaft Spline Count
33
Items Included
2x Front Cv Axle Shaft - 662112
Axle Nut Included
Yes
Warranty Period
2-Year
Part Number
662112

Highlights

  • Fitment: Front Axle Shaft for 1997-2003 F-150 4WD, 1997-2002 Expedition 4WD, 2004-2004 F-150 Heritage, 1997-1999 F-250 4WD(Under 8500 (lb) GVW), 1998-2002 Navigator 4WD.
  • Reference Number: 3L3Z3B436AA, F65Z3B436AA, 662112.
  • Reliably: Enjoy a smoother, more reliable ride with our high-quality CV axles. The high quality materials and excellent performance of our half shafts provide reliable support for your vehicle!
  • High Quality: Half shafts are 100% ground to improve ball path and surface finish and extend product life.CV shafts are normalised to ensure stability in subsequent machining.
  • Function: Half shafts for equal speed power transmission and wheel steering through pendulum angle.CV axles are designed in strict accordance with OE standards, with 100% inspection of key mating dimensions.

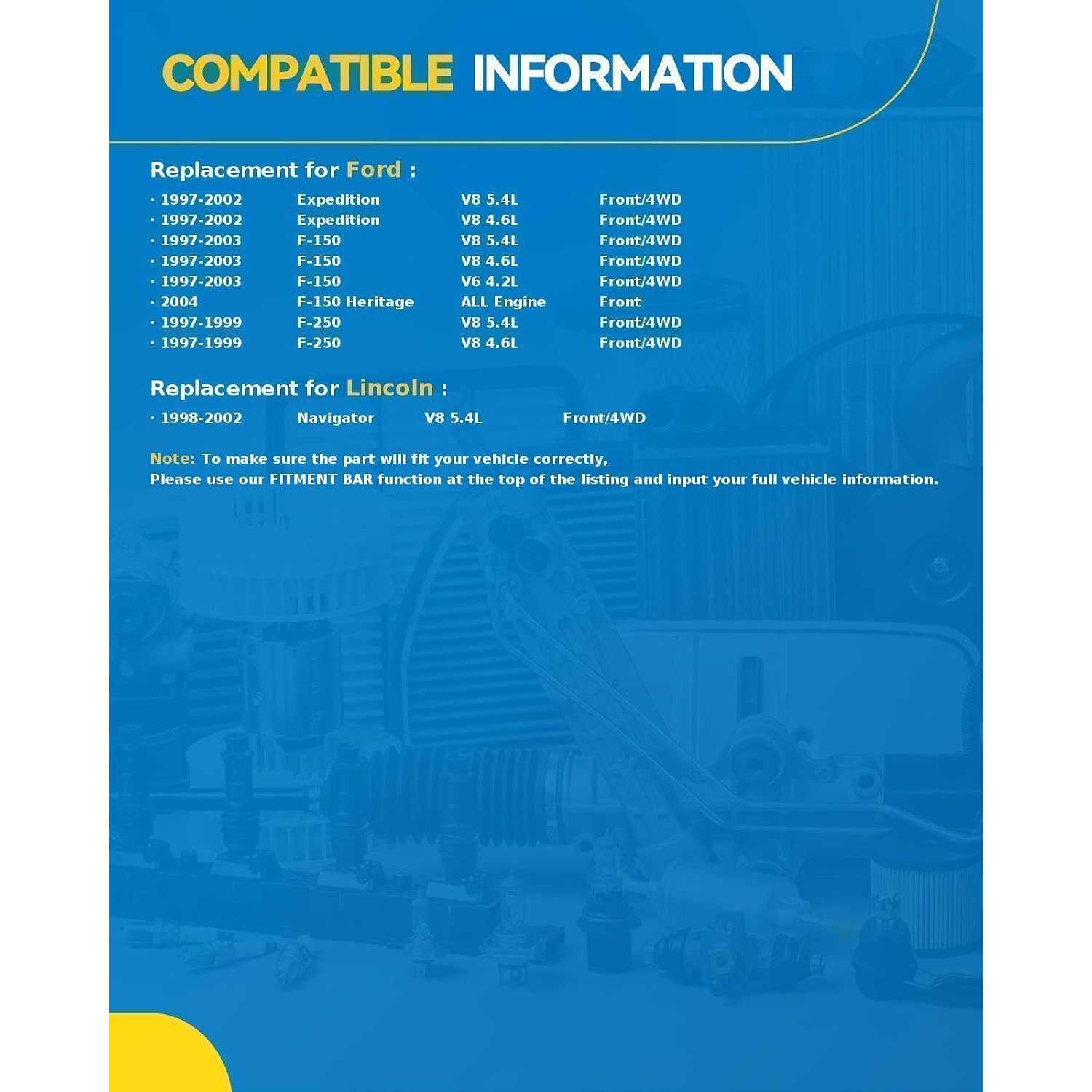

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1997 - 20021997 - 20021997 - 20021997 - 20021997 - 20001997 - 20001997 - 20002001 - 20032001 - 20031997 - 20031997 - 20031997 - 20031997 - 20031997 - 20031997 - 20031997 - 20031997 - 200320042004200420042004200420041997 - 19991997 - 19991997 - 19991997 - 19991997 - 19991997 - 19991997 - 19991997 - 19991998 - 2002
MakeFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordLincoln
ModelExpeditionExpeditionExpeditionExpeditionF-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150 HeritageF-150 HeritageF-150 HeritageF-150 HeritageF-150 HeritageF-150 HeritageF-150 HeritageF-250F-250F-250F-250F-250F-250F-250F-250Navigator
TrimEddie BauerEddie BauerXLTXLTBaseBaseBaseKing RanchKing RanchLariatLariatXLXLXLXLTXLTXLTSVT LightningXLXLXLXLTXLTXLTBaseBaseLariatLariatXLXLXLTXLTBase
Engine4.6L V85.4L V84.6L V85.4L V84.2L V64.6L V85.4L V84.6L V85.4L V84.6L V85.4L V84.2L V64.6L V85.4L V84.2L V64.6L V85.4L V85.4L V84.2L V64.6L V85.4L V84.2L V64.6L V85.4L V84.6L V85.4L V84.6L V85.4L V84.6L V85.4L V84.6L V85.4L V85.4L V8
Note------------------------
Under 8500 (lb) GVW
Under 8500 (lb) GVW
Under 8500 (lb) GVW
Under 8500 (lb) GVW
Under 8500 (lb) GVW
Under 8500 (lb) GVW
Under 8500 (lb) GVW
Under 8500 (lb) GVW
-

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, installation position, spline counts, mounting points and ABS components match.
  • Inspect the hub bearing, suspension parts, transmission mount and axle seal. Repair looseness, damage or leakage first.
  • Compare the new and original axles in a fully compressed position. Confirm the compressed length and key dimensions match.
    Verify that the new and original CV axles have the same compressed length
  • Check that the boots, clamps, splines and supplied axle nut are complete and undamaged.
  • Support both CV joints when handling. Do not pull, sharply bend or carry the axle by its rubber boot.
    The correct way to hold a CV axle

Installation Steps

  • Step-1: Secure the Vehicle: Loosen the axle nut with the wheels on the ground. Raise the vehicle on a level surface and support it securely with jack stands.
  • Step-2: Remove the Old Axle: Remove the wheel and necessary suspension components. Separate the outer spline from the hub with the proper puller.
  • Step-3: Release the Inner Joint: Use a CV joint puller or slide hammer. Never strike the axle directly or pull it out with bolts. Be prepared for possible transmission-fluid loss.
  • Step-4: Install the New Axle: Clean the splines and seal-contact surface. Insert the inner joint straight into the transmission until the retaining ring fully locks, then install the outer spline into the hub.
  • Step-5: Reassemble and Torque: Reinstall all suspension components and use a new axle nut. Hand-start the fasteners and tighten everything to the vehicle manufacturer’s specified torque.
  • Step-6: Final Assembly: Reinstall the wheel, torque the lug nuts in a crisscross pattern and check or refill the specified transmission fluid if required.

After Installation

  • Confirm the inner joint is fully seated and all fasteners are secure.
  • Check the CV boots, clamps and axle seal for damage or leakage.
  • Rotate the wheel by hand and verify the axle moves smoothly without binding or contacting nearby components.
  • Perform a low-speed road test. Check for clicking while turning, clunking during acceleration, vibration and fluid leakage.
  • If suspension geometry was disturbed, have the wheel alignment checked.

Product Video

Product Description

12

Reviews

4.8/5

Based on 4 reviews

575%
425%
30%
20%
10%

RickFixIt_639

03/19/2026

Installation was a breeze, fit like a glove. Didn't have any trouble getting it bolted up. Way easier than some other axles I've had to install on my truck.

SarahDrives_515

04/16/2026

This shaft looks great, really solid construction. For the price, it's an unbelievable value. Definitely a great replacement part that doesn't break the bank.

FAQS

No FAQs have been added for this product yet.
