Front Left or Right

Built to Last

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
89ISSHA9207US

Specifications

Brand
PHILTOP
Position
Front Left or Right
ABS Ring Included
No
Quantity
1
Input Shaft Spline Count
25
Material
SAE 1055 Steel and Chloroprene Rubber
Output Shaft Spline Count
27
Items Included
1x Front Left or Right Cv Axle Shaft - NCV66080
Axle Nut Included
Yes
Warranty Period
2-Year
Part Number
NCV66080

Highlights

  • Fitment: Drive shaft for 2018-2023 Crosstrek. Before purchasing, please use Philtop’s fitment checker to confirm that the driveshaft is compatible with your vehicle
  • Reference Number: 28321FL030,NCV66080

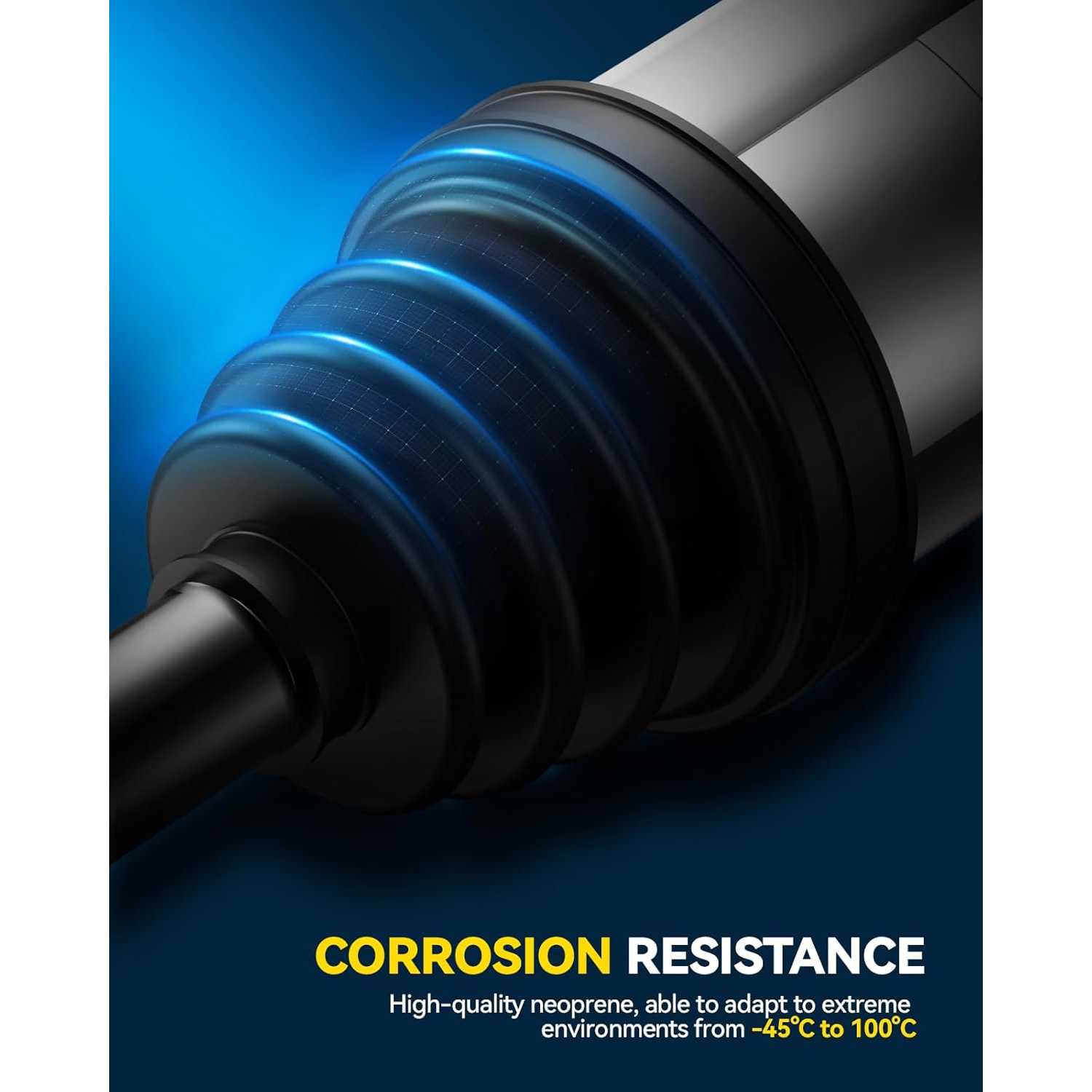

  • Corrosion Resistance: The CV joint boot is made of high-quality neoprene and remains leak-free under extreme conditions ranging from -45°C to 100°C.Maintains excellent performance in a variety of environments

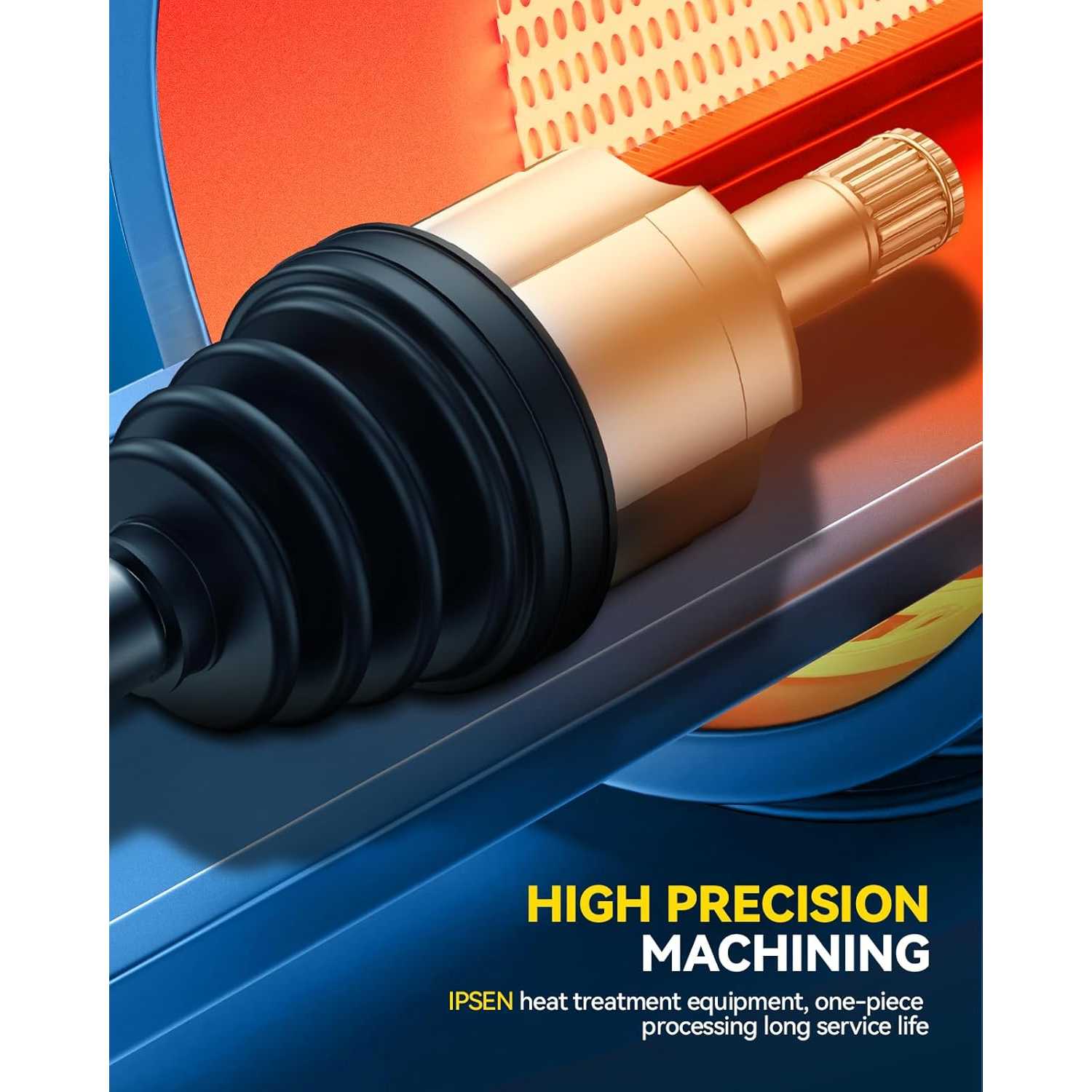

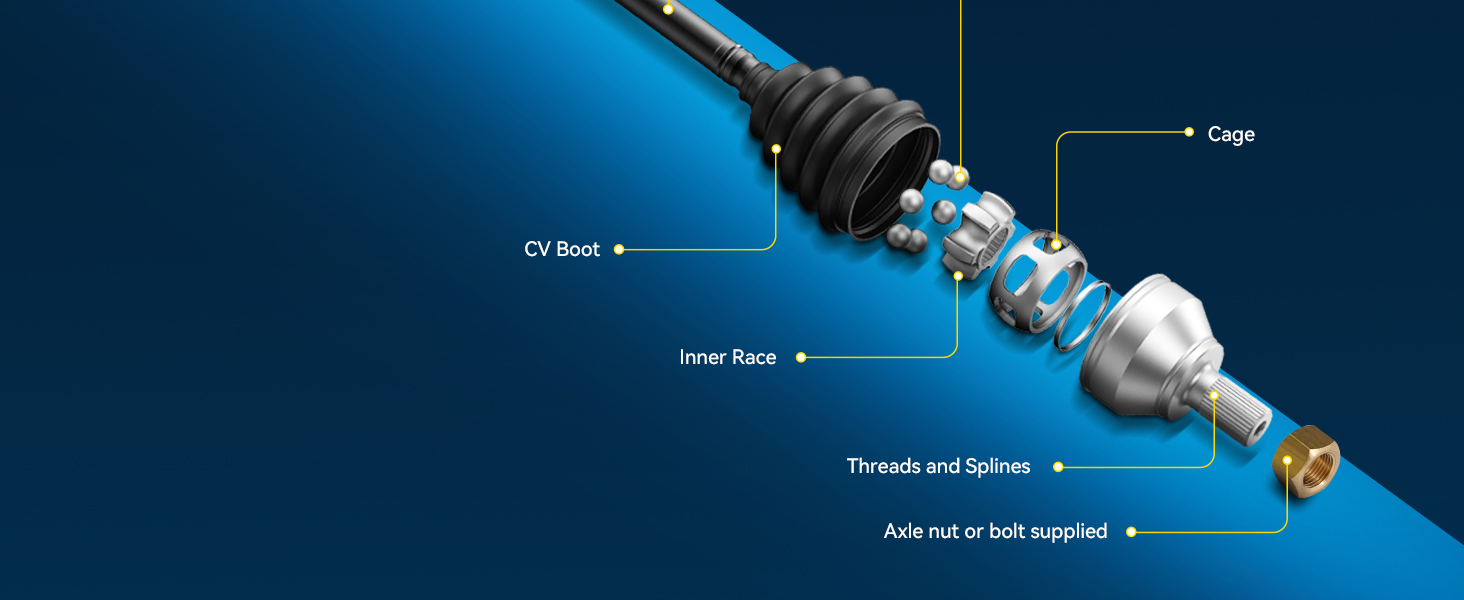

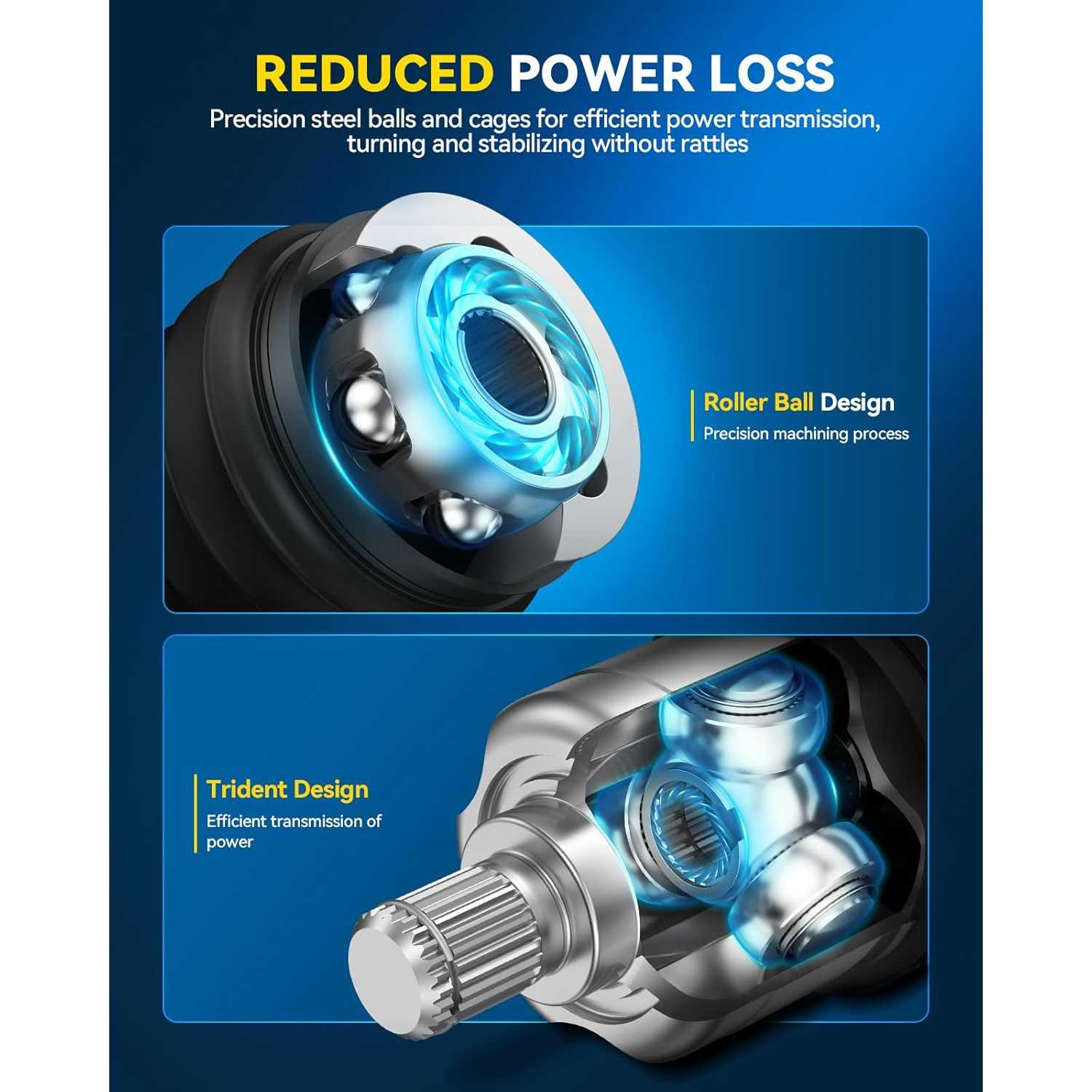

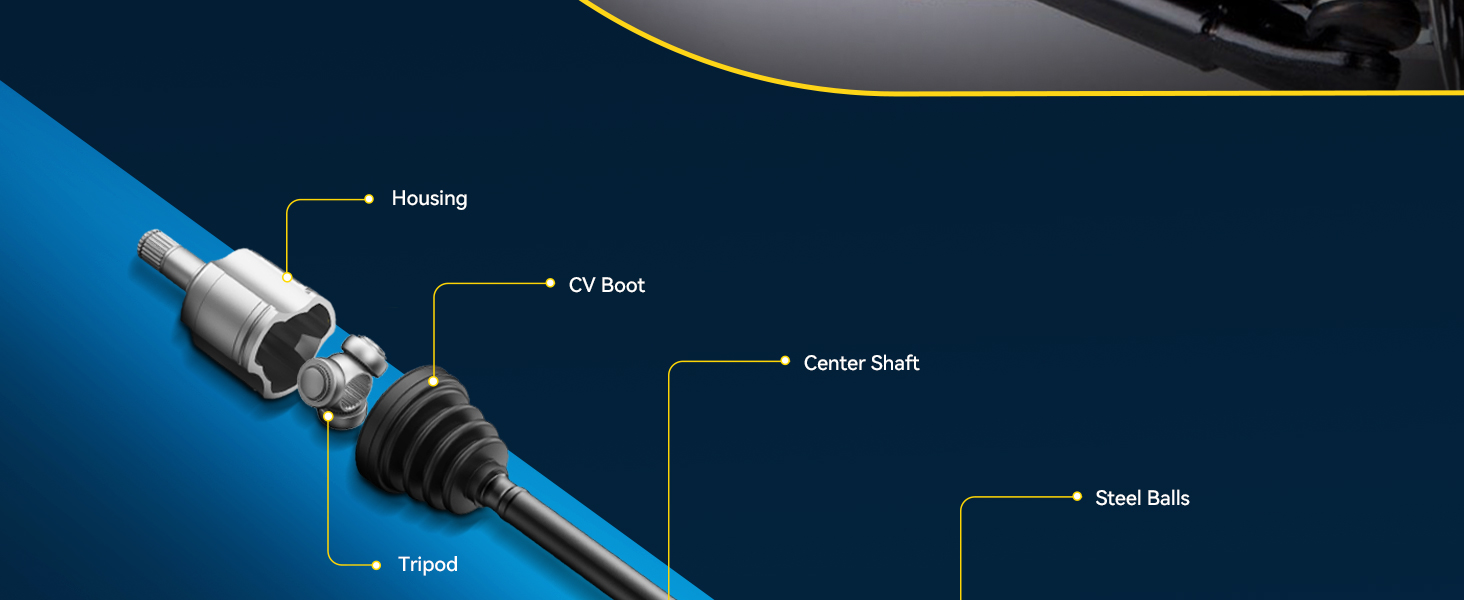

  • Precision Manufacturing: The high-precision steel balls and retainer in the half-shaft ball joint help ensure more precise directional control and smoother steering.The CV joint shaft has been heat-treated to prevent bending and deformation
  • Installation Recommendations: Please compare the new half-shaft with the original one to verify that the drive shaft length and mounting hole positions match. There may be slight differences in appearance, but this will not affect installation compatibility.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2018 - 20232019 - 20232018 - 20202021 - 20232018 - 20232021 - 2023
MakeSubaruSubaruSubaruSubaruSubaruSubaru
ModelCrosstrekCrosstrekCrosstrekCrosstrekCrosstrekCrosstrek
TrimBaseHybridLimitedLimitedPremiumSport
Engine2.0L H42.0L H42.0L H42.5L H42.0L H42.5L H4
Note------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, installation position, spline counts, mounting points and ABS components match.
  • Inspect the hub bearing, suspension parts, transmission mount and axle seal. Repair looseness, damage or leakage first.
  • Compare the new and original axles in a fully compressed position. Confirm the compressed length and key dimensions match.
    Verify that the new and original CV axles have the same compressed length
  • Check that the boots, clamps, splines and supplied axle nut are complete and undamaged.
  • Support both CV joints when handling. Do not pull, sharply bend or carry the axle by its rubber boot.
    The correct way to hold a CV axle

Installation Steps

  • Step-1: Secure the Vehicle: Loosen the axle nut with the wheels on the ground. Raise the vehicle on a level surface and support it securely with jack stands.
  • Step-2: Remove the Old Axle: Remove the wheel and necessary suspension components. Separate the outer spline from the hub with the proper puller.
  • Step-3: Release the Inner Joint: Use a CV joint puller or slide hammer. Never strike the axle directly or pull it out with bolts. Be prepared for possible transmission-fluid loss.
  • Step-4: Install the New Axle: Clean the splines and seal-contact surface. Insert the inner joint straight into the transmission until the retaining ring fully locks, then install the outer spline into the hub.
  • Step-5: Reassemble and Torque: Reinstall all suspension components and use a new axle nut. Hand-start the fasteners and tighten everything to the vehicle manufacturer’s specified torque.
  • Step-6: Final Assembly: Reinstall the wheel, torque the lug nuts in a crisscross pattern and check or refill the specified transmission fluid if required.

After Installation

  • Confirm the inner joint is fully seated and all fasteners are secure.
  • Check the CV boots, clamps and axle seal for damage or leakage.
  • Rotate the wheel by hand and verify the axle moves smoothly without binding or contacting nearby components.
  • Perform a low-speed road test. Check for clicking while turning, clunking during acceleration, vibration and fluid leakage.
  • If suspension geometry was disturbed, have the wheel alignment checked.

Product Video

Product Description

13

Reviews

4.8/5

Based on 6 reviews

583%
417%
30%
20%
10%

Mike from Texas_286

02/05/2026

Looks just like the original, maybe even a bit cleaner. The price is fantastic for a single axle. My Crosstrek feels solid again.

Nancy_FirstCar_454

04/20/2026

Looks just like the original, maybe even a bit cleaner. The price is fantastic for a single axle. My Crosstrek feels solid again.
