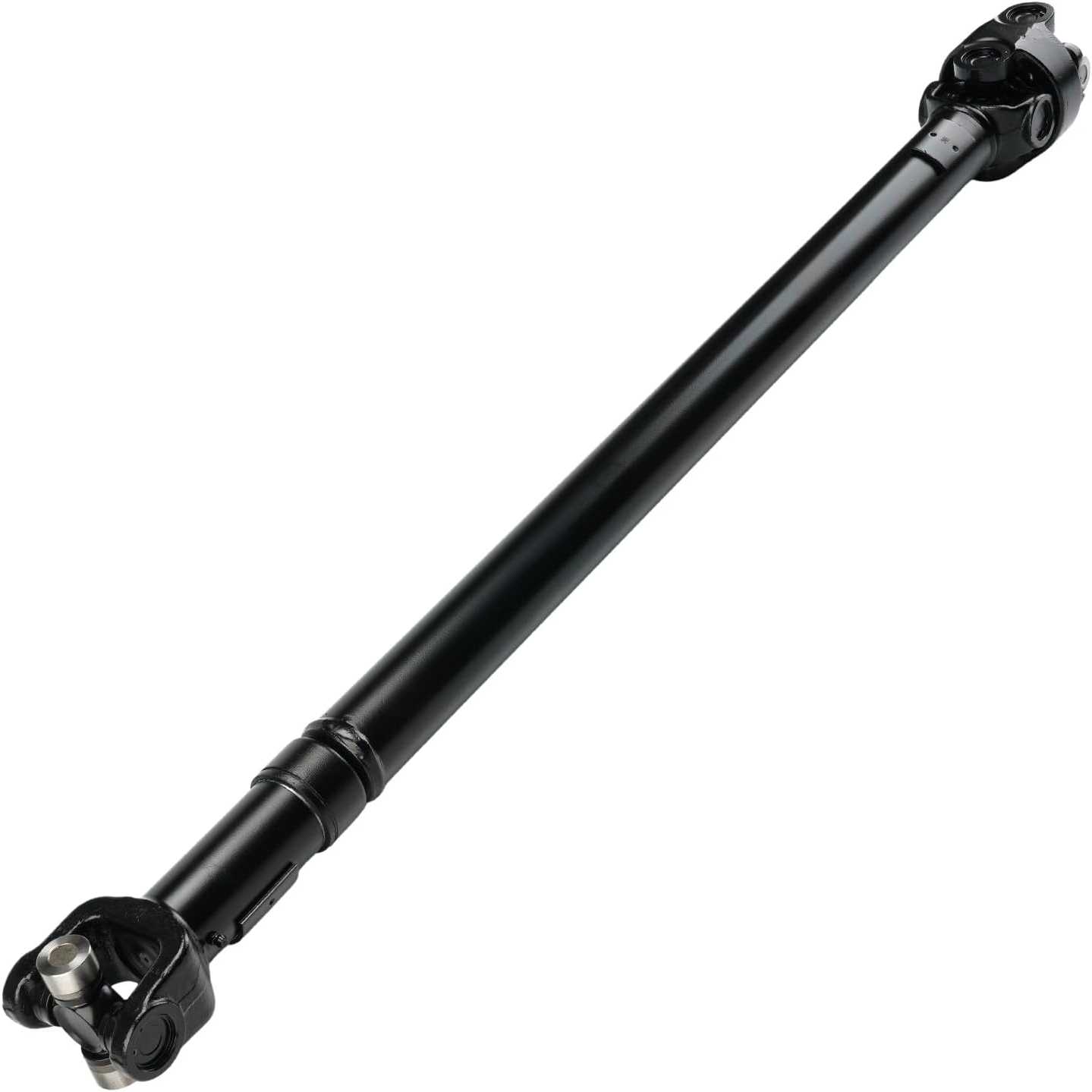

1997-2002 Jeep Wrangler 4.0L L6 | Front Drive Shaft | 938079 - PHILTOP

1997-2002 Jeep Wrangler 4.0L L6 | Front Drive Shaft | 938079 - PHILTOP

Front

Factory-Balanced

Corrosion-Resistant

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
65ISDSA0937US

Specifications

Brand
PHILTOP
Mounting Type
Double Cardan Joint
Position
Front
Fully Extended Length
42.24 in/1073 mm
Fully Compressed Length
39.49 in/1003 mm
Shaft Diameter
Φ51
Items Included
1x Drive Shaft - 938079
Surface Finish
Painted
Two-Piece Design
No
Universal Joint Size
φ27*81.79
Adjustable Length
Yes
Tube Wall Thickness
0.12 in/3 mm
Shaft Material
Steel
Warranty Period
2-Year
Part Number
938079

Highlights

  • (Vehicle Fitments)Fits for Jeep 1997-2002 Wrangler 4.0L with Manual
  • (Specifications)①Installation Position: Front Side; ②Extended Shaft Length: 42.24 inch; ③Compressed Shaft Length: 39.48 inch; ④Shaft Material: Steel; ⑤Shaft Diameter: Φ51; ⑥Shaft Wall Thickness: 0.118 inch; ⑦U-Joint Size: φ27*81.79; ⑧Length is measured end to end across the entire driveshaft
  • (Reference Number)938079,52098377AB,52098377,52098377AD
  • (Attention)①Mounting Type: Double Link Joint; ②Adjustable Length for Custom Fit; ③Please verify vehicle compatibility via Philtop’s Confirmed Fit Tool and thoroughly read the product description prior to purchase
  • (End-to-End Quality Control) A full-chain quality control process covers everything from raw material selection to product delivery. Each drive shaft is checked against OEM specifications at multiple points along the way

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1997 - 20021997 - 20022002
MakeJeepJeepJeep
ModelWranglerWranglerWrangler
TrimSaharaSportX
Engine4.0L L64.0L L64.0L L6
Note
TJ Series
TJ Series
TJ Series

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the driveshaft length, spline count, flange type, mounting pattern and number of sections.
  • Inspect the shaft tube, U-joints, splines, center support bearing and rubber cushions for damage or excessive play.
  • Measure driveshaft length with the vehicle at normal ride height, not with the suspension hanging freely.
  • Support the vehicle securely and keep the transmission and rear axle at approximately the same height.
  • Before removal, clearly mark the front and rear orientation, flange positions and section alignment. The driveshaft must not be installed backward.

Installation Steps

  • Step-1: Place the transmission in Neutral when rotation is required, secure the wheels and support the driveshaft.
  • Step-2: Loosen the rear flange bolts gradually in a diagonal sequence.
  • Step-3: Disconnect the rear flange, center support bearing and front connection. Keep the driveshaft supported horizontally.
  • Step-4: Cap the transmission and differential openings immediately to prevent fluid leakage and contamination.
  • Step-5: Install the front end in the correct direction and align all previously made orientation and phase marks.
  • Step-6: Install the center support bearing without twisting or preloading its rubber cushion.
  • Step-7: Connect the rear flange and hand-start all bolts.
  • Step-8: Use a torque wrench to tighten all flange and support-bearing bolts to the vehicle manufacturer's specified torque. Do not use an impact wrench.

After Installation

  • Confirm all phase marks remain aligned and the driveshaft has not been installed front-to-rear.
  • Rotate the shaft by hand and check for binding, interference or abnormal joint movement.
  • Perform a low-speed road test, then gradually increase speed while checking for noise or vibration.
  • Reinspect all fasteners, support bearings and transmission or differential seals after the test drive.

Product Description

Drive Shaft AssemblyDrive Shaft Assembly

Reviews

5.0/5

Based on 3 reviews

5100%
40%
30%
20%
10%

DIY_Karen_34

02/23/2026

Looks great and feels solid. For the price, this is a fantastic deal. I'm really happy with the value I got.

Ashley_RoadTrip_837

02/08/2026

Arrived incredibly fast and was packaged very well. Had a quick question for customer service and they were super responsive and helpful. Really smooth transaction.
