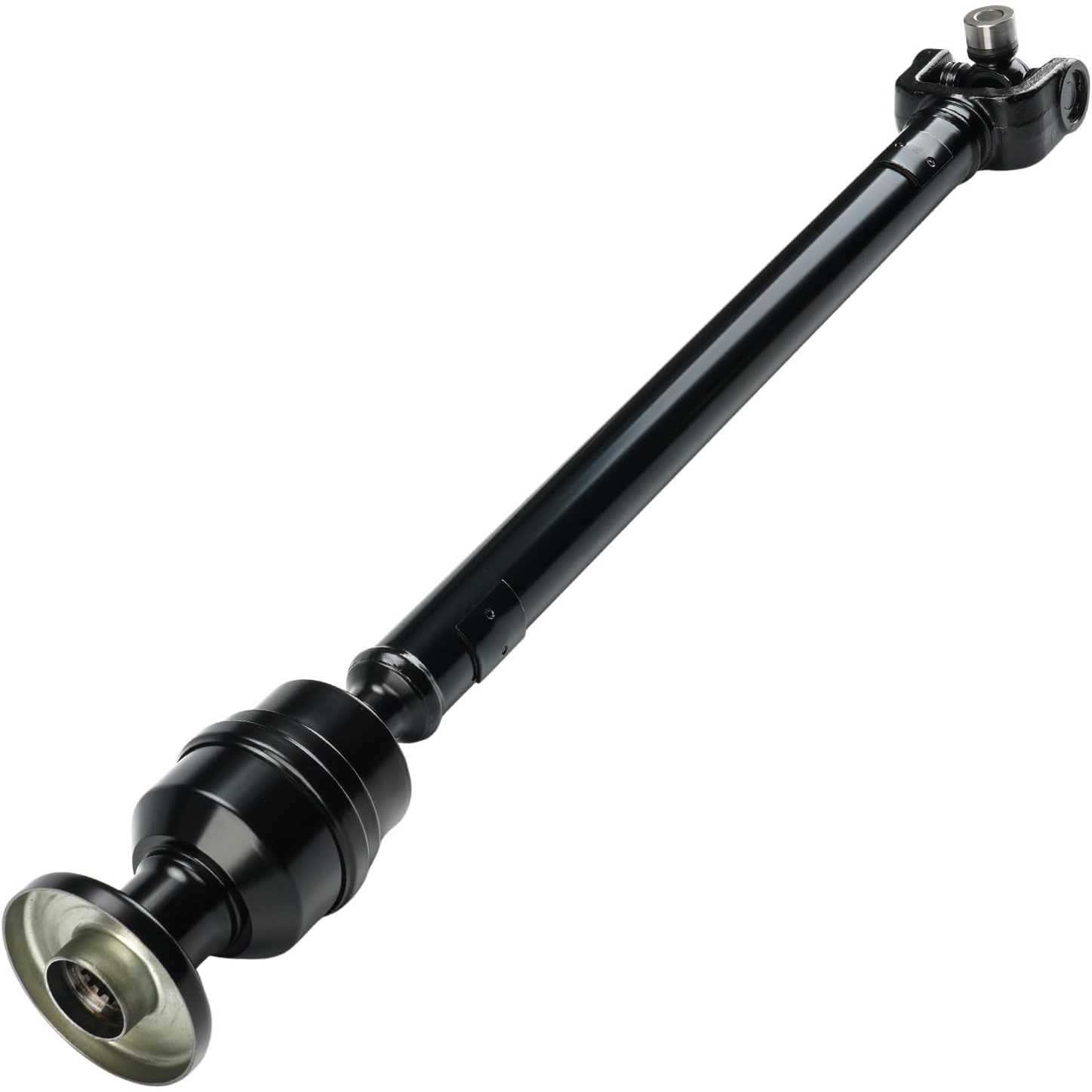

1999-2001 GMC Jimmy 4.3L V6 | Front Drive Shaft | 938083 - PHILTOP

1999-2001 GMC Jimmy 4.3L V6 | Front Drive Shaft | 938083 - PHILTOP

Front

Factory-Balanced

Corrosion-Resistant

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
49ISDSA0957US

Specifications

Brand
PHILTOP
Mounting Type
Double Cardan Joint
Position
Front
Fully Extended Length
30.51 in/775 mm
Fully Compressed Length
29.33 in/745 mm
Shaft Diameter
Φ40
Items Included
1x Drive Shaft - 938083
Surface Finish
Painted
Two-Piece Design
No
Universal Joint Size
φ27*81.72
Adjustable Length
Yes
Tube Wall Thickness
0.12 in/3 mm
Shaft Material
Steel
Warranty Period
2-Year
Part Number
938083

Highlights

  • (Vehicle Fitments)Fits for Chevrolet 1999-2001 Blazer AWD, 1999-2005 Blazer 4WD, 1998-1998 S10 4WD, 1999-2004 S10 4WD.for GMC, 1998-1998 Sonoma 4WD, 1999-2004 Sonoma 4WD, 1999-2000 Jimmy AWD, 1999-2005 Jimmy 4WD,for Oldsmobile 1998 Bravada, 1999-2001 Bravada
  • (OE Number)OE Number: 938083, 15062957, 15188058, 15762968, 15762969, 15036981, 15006566, 15114530, 15062956. These reference numbers support part identification when comparing the existing drive shaft assembly. Confirm the applicable vehicle, drivetrain configuration, and listed reference number before purchase to help select the correct PHILTOP SKU.
  • (Specifications)①Installation Position: Front Side; ②Extended Shaft Length: 30.51 inch; ③Compressed Shaft Length: 29.33 inch; ④Shaft Material: Steel; ⑤Shaft Diameter: Φ40; ⑥Shaft Wall Thickness: 0.118 inch; ⑦U-Joint Size: φ27*81.72; ⑧Length is measured end to end across the entire driveshaft
  • (High Quality)You get a pre-greased shaft that never needs maintenance. You get a safety-verified component that meets performance standards. You get a precision-engineered fit that runs quieter with less vibration
  • (Buy with Confidence)PHILTOP puts comfort at the center of everything we do. Our OEM-replacement drive shaft combines quality, safety, and smooth performance to give you a driving experience that feels more refined, more controlled, and genuinely enjoyable

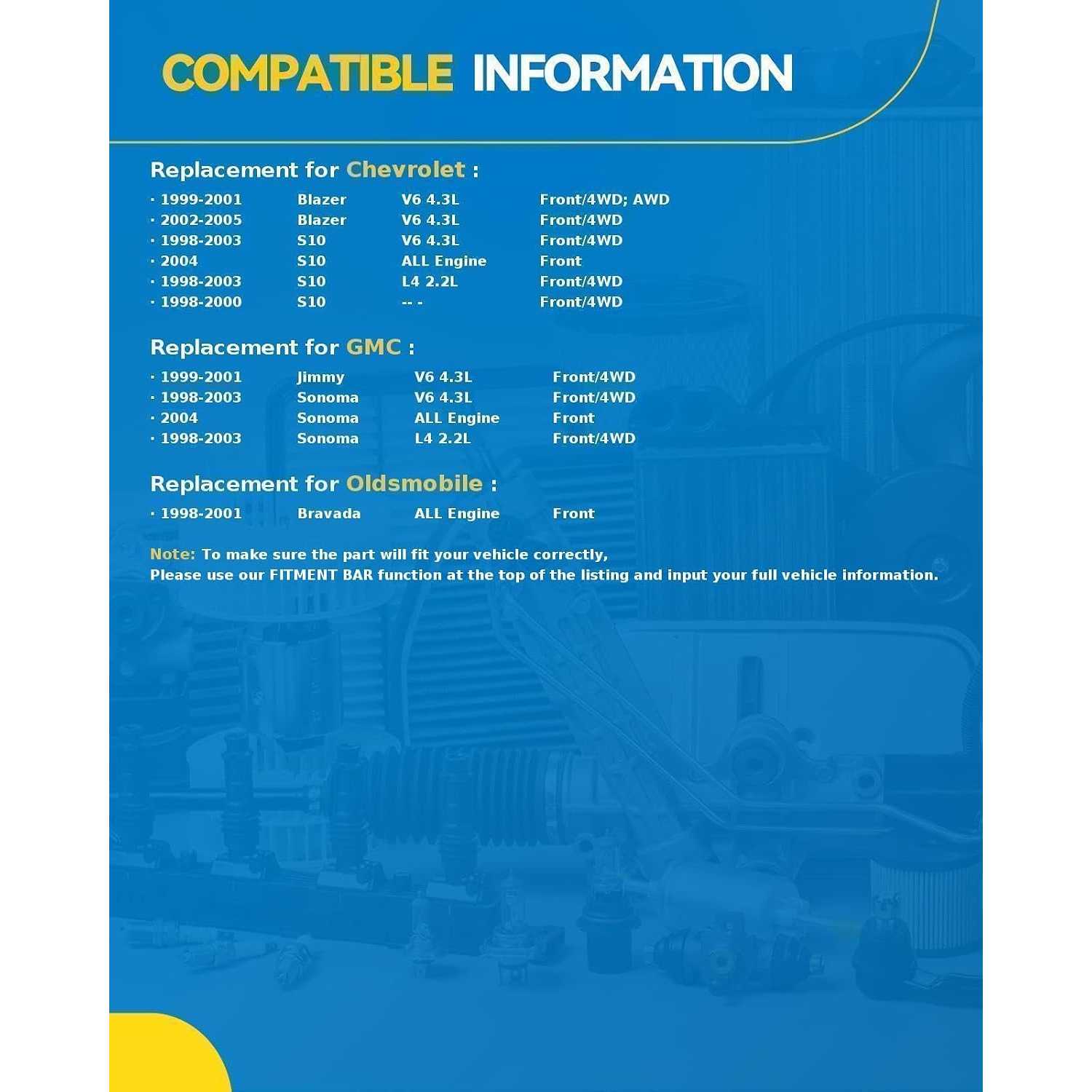

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year199920051999 - 20012002 - 20041999 - 20011999 - 20012003 - 200519981999 - 200019981999 - 200319981999 - 200319981999 - 200319981999 - 200419981999 - 20032002 - 2004200020011999 - 2000199920011999 - 200020011999 - 200020011999 - 2000200119981999 - 200319981999 - 200419981999 - 200119981999 - 200119981999 - 200319981999 - 200419981999 - 2001
MakeChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCOldsmobileOldsmobile
ModelBlazerBlazerBlazerBlazerBlazerBlazerBlazerS10S10S10S10S10S10S10S10S10S10S10S10S10JimmyJimmyJimmyJimmyJimmyJimmyJimmyJimmyJimmyJimmyJimmySonomaSonomaSonomaSonomaSonomaSonomaSonomaSonomaSonomaSonomaSonomaSonomaBravadaBravada
TrimBaseBaseLSLSLTTrailblazerZR2BaseBaseBaseBaseBaseBaseLSLSLSLSZR2ZR2ZR5Diamond EditionDiamond EditionEnvoySLSLSLESLESLSSLSSLTSLTSLSLSLSLSLESLESLESLESLSSLSSLSSLSBaseBase
Engine4.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V6--2.2L L42.2L L44.3L V64.3L V62.2L L42.2L L44.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V62.2L L42.2L L44.3L V64.3L V62.2L L42.2L L44.3L V64.3L V62.2L L42.2L L44.3L V64.3L V64.3L V64.3L V6
Note
w/ RPO Code NP4 (All Wheel Drive Transfer Case)
w/ RPO Code NP8 (2 Speed, Push Button Shift, Transfer Case)
w/ RPO Code NP4 (All Wheel Drive Transfer Case)
w/ RPO Code NP8 (2 Speed, Push Button Shift, Transfer Case)
w/ RPO Code NP4 (All Wheel Drive Transfer Case)
w/ RPO Code NP4 (All Wheel Drive Transfer Case)
w/ RPO Code NP8 (2 Speed, Push Button Shift, Transfer Case)
w/ RPO Code ZN4 (Extended Build)
w/ RPO Code NP8 (2 Speed, Push Button Shift, Transfer Case)
w/ RPO Code ZN4 (Extended Build)
w/ RPO Code NP8 (2 Speed, Push Button Shift, Transfer Case)
w/ RPO Code ZN4 (Extended Build)
w/ RPO Code NP8 (2 Speed, Push Button Shift, Transfer Case)
w/ RPO Code ZN4 (Extended Build)
w/ RPO Code NP8 (2 Speed, Push Button Shift, Transfer Case)
w/ RPO Code ZN4 (Extended Build)
w/ RPO Code NP8 (2 Speed, Push Button Shift, Transfer Case)
w/ RPO Code ZN4 (Extended Build)
w/ RPO Code NP8 (2 Speed, Push Button Shift, Transfer Case)
w/ RPO Code NP8 (2 Speed, Push Button Shift, Transfer Case)
w/ RPO Code NP4 (All Wheel Drive Transfer Case)
w/ RPO Code NP4 (All Wheel Drive Transfer Case);w/ RPO Code NP8 (2 Speed, Push Button Shift, Transfer Case)
w/ RPO Code NP4 (All Wheel Drive Transfer Case)
w/ RPO Code NP4 (All Wheel Drive Transfer Case)
w/ RPO Code NP4 (All Wheel Drive Transfer Case);w/ RPO Code NP8 (2 Speed, Push Button Shift, Transfer Case)
w/ RPO Code NP4 (All Wheel Drive Transfer Case)
w/ RPO Code NP4 (All Wheel Drive Transfer Case);w/ RPO Code NP8 (2 Speed, Push Button Shift, Transfer Case)
w/ RPO Code NP4 (All Wheel Drive Transfer Case)
w/ RPO Code NP4 (All Wheel Drive Transfer Case);w/ RPO Code NP8 (2 Speed, Push Button Shift, Transfer Case)
w/ RPO Code NP4 (All Wheel Drive Transfer Case)
w/ RPO Code NP4 (All Wheel Drive Transfer Case);w/ RPO Code NP8 (2 Speed, Push Button Shift, Transfer Case)
w/ RPO Code ZN4 (Extended Build)
w/ RPO Code NP8 (2 Speed, Push Button Shift, Transfer Case)
w/ RPO Code ZN4 (Extended Build)
w/ RPO Code NP8 (2 Speed, Push Button Shift, Transfer Case)
w/ RPO Code ZN4 (Extended Build)
w/ RPO Code NP8 (2 Speed, Push Button Shift, Transfer Case)
w/ RPO Code ZN4 (Extended Build)
w/ RPO Code NP8 (2 Speed, Push Button Shift, Transfer Case)
w/ RPO Code ZN4 (Extended Build)
w/ RPO Code NP8 (2 Speed, Push Button Shift, Transfer Case)
w/ RPO Code ZN4 (Extended Build)
w/ RPO Code NP8 (2 Speed, Push Button Shift, Transfer Case)
w/ RPO Code F46 (All Wheel Drive Transfer Case)
w/ RPO Code NP4 (All Wheel Drive Transfer Case)

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the driveshaft length, spline count, flange type, mounting pattern and number of sections.
  • Inspect the shaft tube, U-joints, splines, center support bearing and rubber cushions for damage or excessive play.
  • Measure driveshaft length with the vehicle at normal ride height, not with the suspension hanging freely.
  • Support the vehicle securely and keep the transmission and rear axle at approximately the same height.
  • Before removal, clearly mark the front and rear orientation, flange positions and section alignment. The driveshaft must not be installed backward.

Installation Steps

  • Step-1: Place the transmission in Neutral when rotation is required, secure the wheels and support the driveshaft.
  • Step-2: Loosen the rear flange bolts gradually in a diagonal sequence.
  • Step-3: Disconnect the rear flange, center support bearing and front connection. Keep the driveshaft supported horizontally.
  • Step-4: Cap the transmission and differential openings immediately to prevent fluid leakage and contamination.
  • Step-5: Install the front end in the correct direction and align all previously made orientation and phase marks.
  • Step-6: Install the center support bearing without twisting or preloading its rubber cushion.
  • Step-7: Connect the rear flange and hand-start all bolts.
  • Step-8: Use a torque wrench to tighten all flange and support-bearing bolts to the vehicle manufacturer's specified torque. Do not use an impact wrench.

After Installation

  • Confirm all phase marks remain aligned and the driveshaft has not been installed front-to-rear.
  • Rotate the shaft by hand and check for binding, interference or abnormal joint movement.
  • Perform a low-speed road test, then gradually increase speed while checking for noise or vibration.
  • Reinspect all fasteners, support bearings and transmission or differential seals after the test drive.

Product Description

Drive Shaft AssemblyDrive Shaft Assembly
