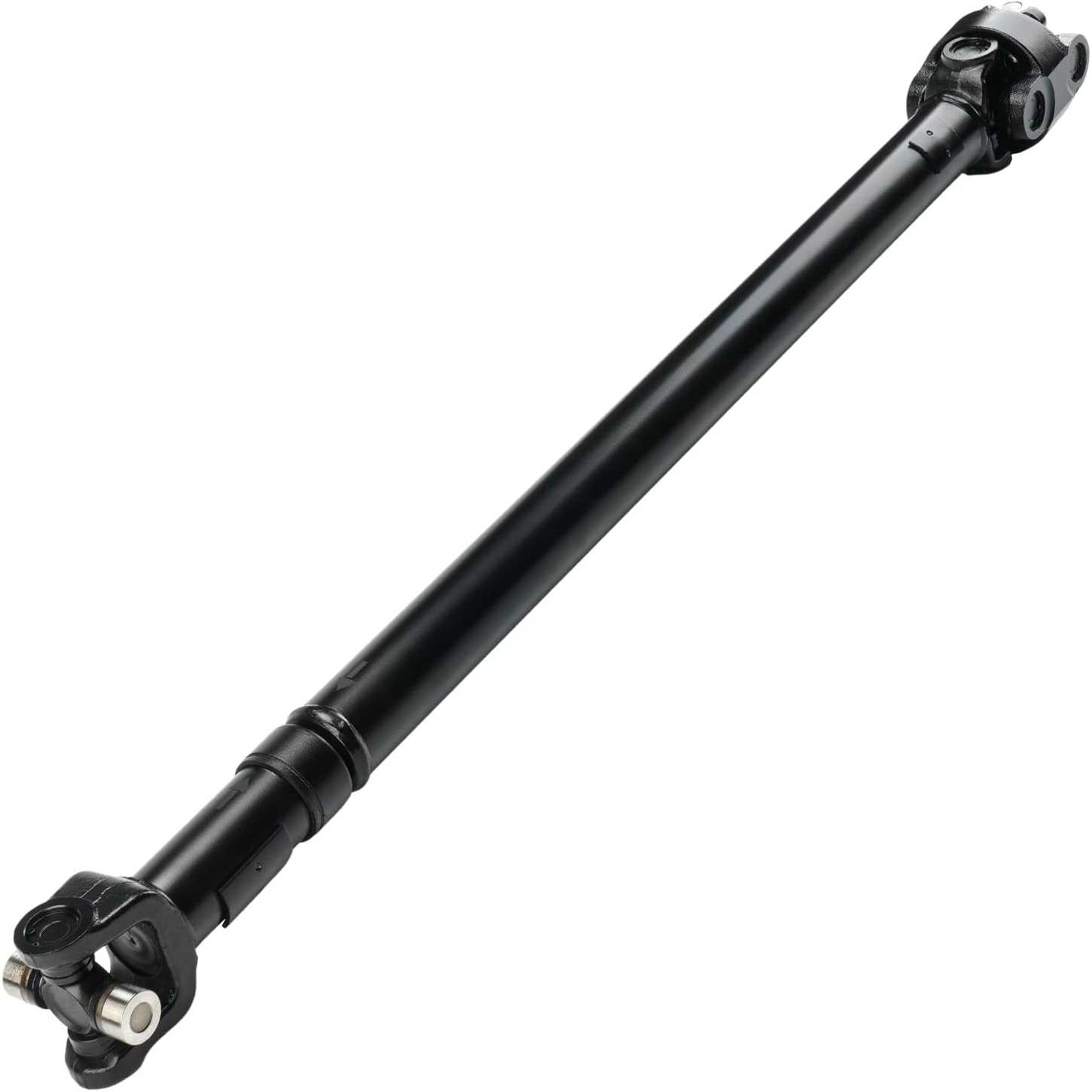

2003-2006 Jeep Wrangler 4.0L L6 | Front Drive Shaft | 938134 - PHILTOP

2003-2006 Jeep Wrangler 4.0L L6 | Front Drive Shaft | 938134 - PHILTOP

Front

Factory-Balanced

Corrosion-Resistant

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
50ISDSA1057US

Specifications

Brand
PHILTOP
Mounting Type
Double Cardan Joint
Position
Front
Fully Extended Length
42.24 in/1073 mm
Fully Compressed Length
39.49 in/1003 mm
Shaft Diameter
Φ51
Items Included
1x Drive Shaft - 938134
Surface Finish
Painted
Two-Piece Design
No
Universal Joint Size
φ27*81.79
Adjustable Length
Yes
Tube Wall Thickness
0.12 in/3 mm
Shaft Material
Steel
Warranty Period
2-Year
Part Number
938134

Highlights

  • (Compatible Vehicles): Fits 2004 Jeep Wrangler TJ 2.4L 4.0L; direct OE replacement match for listed application.
  • (OE Numbers) Uses OE Numbers 938134 and 52098377AE for 2007-2018 Jeep Wrangler JK; direct-fit replacement with premium rubber construction.
  • (Specifications)①Installation Position: Front Side; ②Extended Shaft Length: 42.24 inch; ③Compressed Shaft Length: 39.48 inch; ④Shaft Material: Steel; ⑤Shaft Diameter: Φ51; ⑥Shaft Wall Thickness: 0.118 inch; ⑦U-Joint Size: φ27*81.79; ⑧Length is measured end to end across the entire driveshaft
  • (Easy Installation)Crafted for seamless compatibility with your specific model, this shaft requires minimal setup and no extra modifications. Spend less time under the hood and more time behind the wheel. A smart, confidence-building design that simplifies every step
  • (Quality Assurance) PHILTOP drive shaft assembly is built for dependable use and backed by manufacturer warranty.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20062003 - 20062005 - 20062003 - 20042003 - 20062004 - 20062005 - 20062003 - 2006
MakeJeepJeepJeepJeepJeepJeepJeepJeep
ModelWranglerWranglerWranglerWranglerWranglerWranglerWranglerWrangler
Trim65th Anniversary EditionRubiconSESaharaSportUnlimitedUnlimited RubiconX
Engine4.0L L64.0L L64.0L L64.0L L64.0L L64.0L L64.0L L64.0L L6
Note
w/Sales Code DHN (Command-Trac Part Time 4WD System)
w/Sales Code DHN (Command-Trac Part Time 4WD System)
w/Sales Code DHN (Command-Trac Part Time 4WD System)
w/Sales Code DHN (Command-Trac Part Time 4WD System)
w/Sales Code DHN (Command-Trac Part Time 4WD System)
w/Sales Code DHN (Command-Trac Part Time 4WD System)
w/Sales Code DHN (Command-Trac Part Time 4WD System)
w/Sales Code DHN (Command-Trac Part Time 4WD System)

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the driveshaft length, spline count, flange type, mounting pattern and number of sections.
  • Inspect the shaft tube, U-joints, splines, center support bearing and rubber cushions for damage or excessive play.
  • Measure driveshaft length with the vehicle at normal ride height, not with the suspension hanging freely.
  • Support the vehicle securely and keep the transmission and rear axle at approximately the same height.
  • Before removal, clearly mark the front and rear orientation, flange positions and section alignment. The driveshaft must not be installed backward.

Installation Steps

  • Step-1: Place the transmission in Neutral when rotation is required, secure the wheels and support the driveshaft.
  • Step-2: Loosen the rear flange bolts gradually in a diagonal sequence.
  • Step-3: Disconnect the rear flange, center support bearing and front connection. Keep the driveshaft supported horizontally.
  • Step-4: Cap the transmission and differential openings immediately to prevent fluid leakage and contamination.
  • Step-5: Install the front end in the correct direction and align all previously made orientation and phase marks.
  • Step-6: Install the center support bearing without twisting or preloading its rubber cushion.
  • Step-7: Connect the rear flange and hand-start all bolts.
  • Step-8: Use a torque wrench to tighten all flange and support-bearing bolts to the vehicle manufacturer's specified torque. Do not use an impact wrench.

After Installation

  • Confirm all phase marks remain aligned and the driveshaft has not been installed front-to-rear.
  • Rotate the shaft by hand and check for binding, interference or abnormal joint movement.
  • Perform a low-speed road test, then gradually increase speed while checking for noise or vibration.
  • Reinspect all fasteners, support bearings and transmission or differential seals after the test drive.

Product Description

Drive Shaft AssemblyDrive Shaft Assembly

Reviews

5.0/5

Based on 3 reviews

5100%
40%
30%
20%
10%

AutoMom_2019_372

04/06/2026

Nice and shiny, looks exactly like the factory part. Feels really solid and well-made. Great price for such an important component.

Emma_DailyCommute_91

05/08/2026

Came faster than expected, and the packaging was really secure. Customer service was super responsive when I emailed them a question. Top notch.

FAQS

No FAQs have been added for this product yet.
