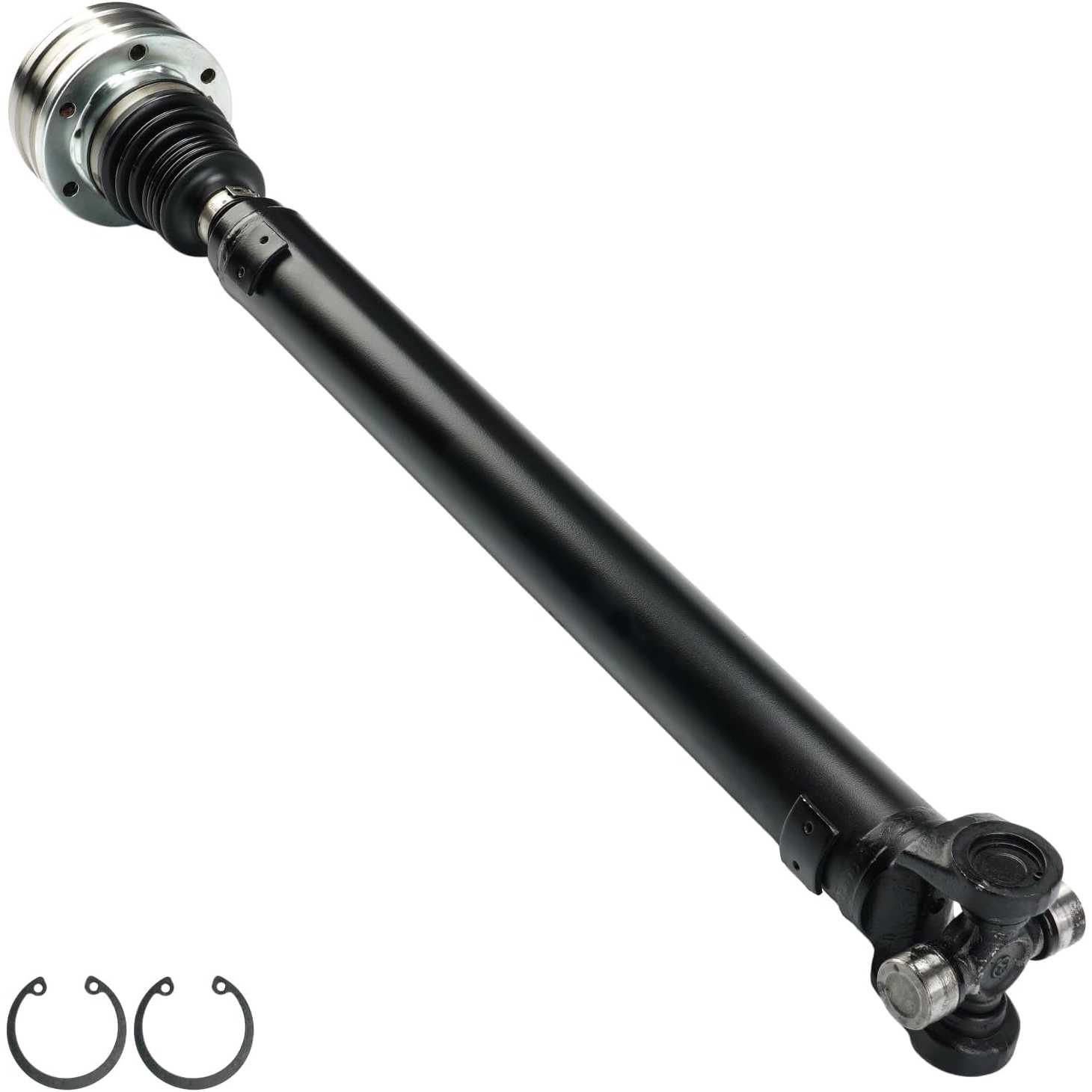

2006-2010 Ford Explorer 4.0L V6 | Front Drive Shaft | 938800 - PHILTOP

2006-2010 Ford Explorer 4.0L V6 | Front Drive Shaft | 938800 - PHILTOP

Front

Factory-Balanced

Corrosion-Resistant

4.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
95ISDSA1367US

Specifications

Brand
PHILTOP
Mounting Type
Cv Joint to Cv Joint
Position
Front
Fully Extended Length
29.72 in/755 mm
Fully Compressed Length
27.68 in/703 mm
Shaft Diameter
Φ51
Items Included
1x Drive Shaft - 938800
Surface Finish
Painted
Two-Piece Design
No
Universal Joint Size
Φ27*81.8
Adjustable Length
Yes
Tube Wall Thickness
0.12 in/3 mm
Shaft Material
Steel
Warranty Period
2-Year
Part Number
938800

Highlights

  • (Compatible Vehicles): Fits 2006 Ford Explorer and related Explorer, Sport Trac, and Mountaineer applications listed for this SKU.
  • OE Reference: Matches OE numbers 938800, 6L2Z4A376AA, 6L2Z4A376A, and 6L2Z4A376B for direct part matching.
  • (Specifications)①Installation Position: Front Side; ②Extended Shaft Length: 29.72 inch; ③Compressed Shaft Length: 27.67 inch; ④Shaft Material: Steel; ⑤Shaft Diameter: Φ51; ⑥Shaft Wall Thickness: 0.118 inch; ⑦U-Joint Size: Φ27*81.8; ⑧Length is measured end to end across the entire driveshaft
  • (Easy Installation)Unbox, align, and tighten – that's all it takes. Precision engineering delivers a flawless fit for your specific model, eliminating installation headaches. Quick, simple, and backed by a design that puts your confidence first
  • (Quality Assurance) PHILTOP drive shaft assembly is built for dependable operation and consistent fit in daily use.

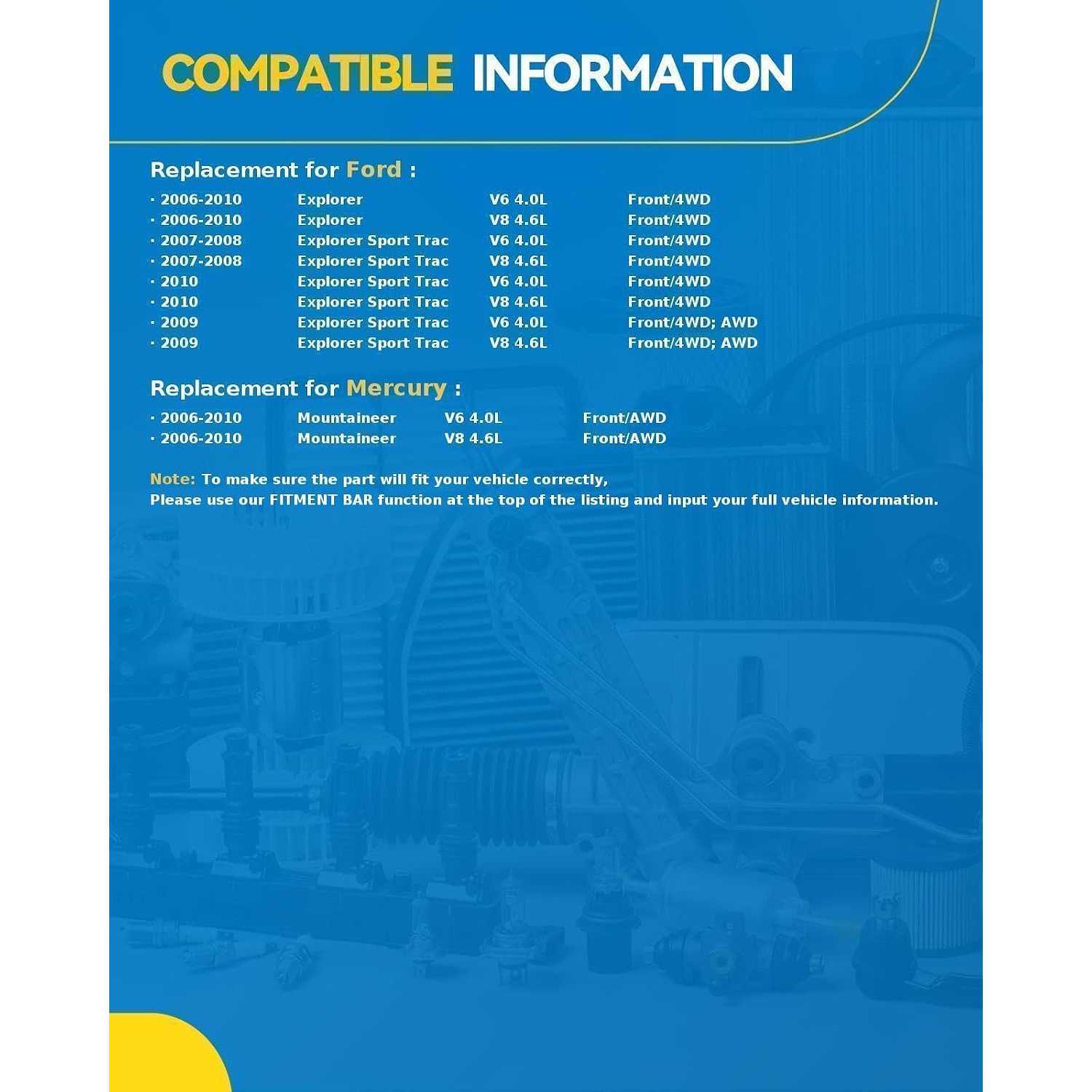

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2006 - 20102006 - 20102006 - 20102006 - 201020062006 - 20102006 - 20102007 - 20102007 - 20102007 - 20102007 - 20102007 - 20102006200620062007 - 20102006 - 2010
MakeFordFordFordFordFordFordFordFordFordFordFordMercuryMercuryMercuryMercuryMercuryMercury
ModelExplorerExplorerExplorerExplorerExplorerExplorerExplorerExplorer Sport TracExplorer Sport TracExplorer Sport TracExplorer Sport TracMountaineerMountaineerMountaineerMountaineerMountaineerMountaineer
TrimEddie BauerEddie BauerLimitedLimitedXLSXLTXLTLimitedLimitedXLTXLTBaseConvenienceLuxuryLuxuryPremierPremier
Engine4.0L V64.6L V84.0L V64.6L V84.0L V64.0L V64.6L V84.0L V64.6L V84.0L V64.6L V84.0L V64.0L V64.0L V64.6L V84.0L V64.6L V8
Note-----------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the driveshaft length, spline count, flange type, mounting pattern and number of sections.
  • Inspect the shaft tube, U-joints, splines, center support bearing and rubber cushions for damage or excessive play.
  • Measure driveshaft length with the vehicle at normal ride height, not with the suspension hanging freely.
  • Support the vehicle securely and keep the transmission and rear axle at approximately the same height.
  • Before removal, clearly mark the front and rear orientation, flange positions and section alignment. The driveshaft must not be installed backward.

Installation Steps

  • Step-1: Place the transmission in Neutral when rotation is required, secure the wheels and support the driveshaft.
  • Step-2: Loosen the rear flange bolts gradually in a diagonal sequence.
  • Step-3: Disconnect the rear flange, center support bearing and front connection. Keep the driveshaft supported horizontally.
  • Step-4: Cap the transmission and differential openings immediately to prevent fluid leakage and contamination.
  • Step-5: Install the front end in the correct direction and align all previously made orientation and phase marks.
  • Step-6: Install the center support bearing without twisting or preloading its rubber cushion.
  • Step-7: Connect the rear flange and hand-start all bolts.
  • Step-8: Use a torque wrench to tighten all flange and support-bearing bolts to the vehicle manufacturer's specified torque. Do not use an impact wrench.

After Installation

  • Confirm all phase marks remain aligned and the driveshaft has not been installed front-to-rear.
  • Rotate the shaft by hand and check for binding, interference or abnormal joint movement.
  • Perform a low-speed road test, then gradually increase speed while checking for noise or vibration.
  • Reinspect all fasteners, support bearings and transmission or differential seals after the test drive.

Product Description

Drive Shaft AssemblyDrive Shaft Assembly

Reviews

4.0/5

Based on 1 review

50%
4100%
30%
20%
10%

AutoMom_2019_918

06/27/2026

Overall, it's a solid replacement part. Installation was a bit tricky, took longer than I expected. It felt a little different compared to the original, but it's working fine so far. Shipping was a day late, which was a minor bummer.
