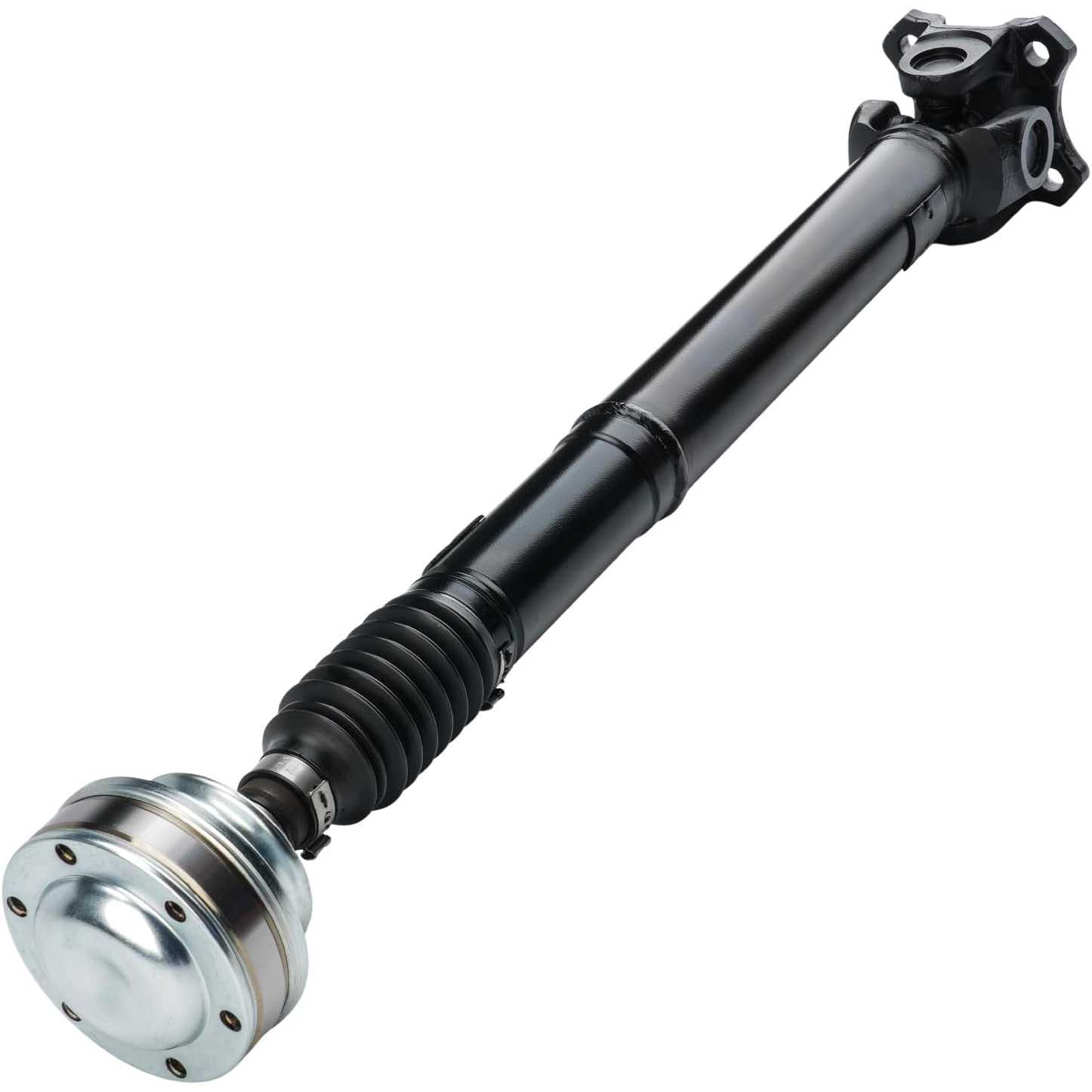

2001-2003 Dodge Durango 4.7L V8 | Front Drive Shaft | 938014 - PHILTOP

2001-2003 Dodge Durango 4.7L V8 | Front Drive Shaft | 938014 - PHILTOP

Front

Factory-Balanced

Corrosion-Resistant

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
49ISDSA0897US

Specifications

Brand
PHILTOP
Mounting Type
Flange Mount
Position
Front
Fully Extended Length
28.46 in/723 mm
Fully Compressed Length
25.91 in/658 mm
Shaft Diameter
Φ51
Items Included
1x Drive Shaft - 938014
Surface Finish
Painted
Flange Shape
Square
Bolt Hole Quantity
4
Two-Piece Design
No
Adjustable Length
Yes
Tube Wall Thickness
0.12 in/3 mm
Shaft Material
Steel
Warranty Period
2-Year
Part Number
938014

Highlights

  • (Vehicle Fitments)Fits for Dodge 2001-2007 Dakota 4WD, 2001-2003 Durango 4WD,for Mitsubishi 2006-2007 Raider 4WD.Please verify vehicle compatibility via Philtop's Confirmed Fit Tool and thoroughly read the product description prior to purchase
  • (Reference Number)938014,52105982AC
  • (Specifications)①Installation Position: Front Side; ②Extended Shaft Length: 28.46 inch; ③Compressed Shaft Length: 25.90 inch; ④Shaft Material: Steel; ⑤Shaft Diameter: Φ51; ⑥Shaft Wall Thickness: 0.118 inch; ⑦Length is measured end to end across the entire driveshaft; ⑧Mounting Type: Flange mounting; ⑨Flange Type: Square Shape; ⑩Adjustable Length for Custom Fit
  • (High Quality)Step one: factory greasing for lifetime maintenance-free operation. Step two: stringent QC for safety and performance. Step three: precision engineering for a perfect fit with less noise and vibration
  • (Buy with Confidence)PHILTOP is driven by one goal – a safer, more comfortable, higher-quality driving experience. Choose our OEM-grade replacement shaft when yours needs changing. It's engineered to significantly improve ride smoothness and make every drive more enjoyable

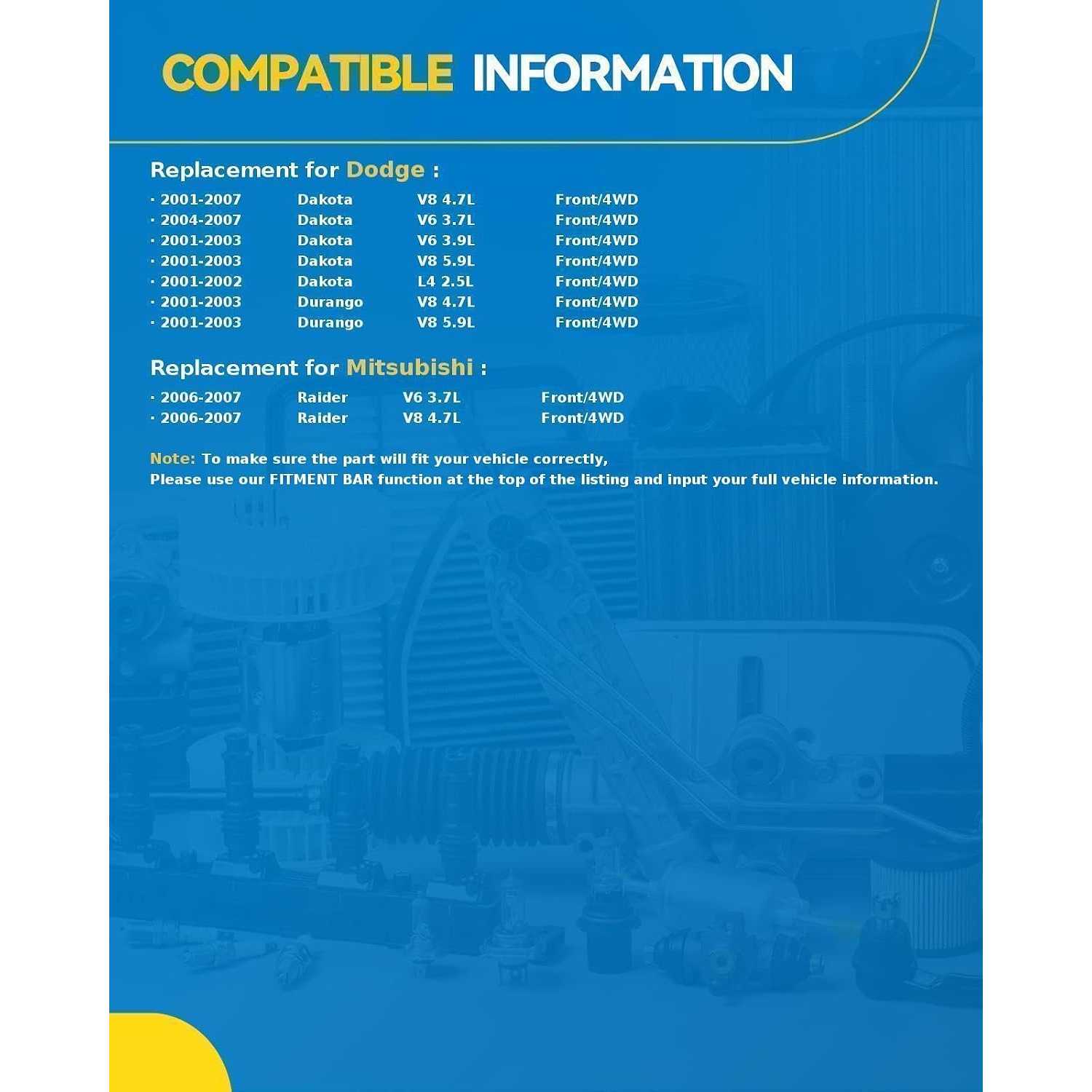

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2001 - 200220042001 - 20032001 - 20032005 - 20072005 - 200720012004 - 20072001 - 20032001 - 20072001 - 2003200420042005 - 20072005 - 2007200420022001 - 20022004 - 20052001 - 20032001 - 20052001 - 200320042004200120012001 - 20032001 - 20032001 - 20032002 - 20032002 - 2003200320032002 - 20032002 - 2003200620062006 - 20072007
MakeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeMitsubishiMitsubishiMitsubishiMitsubishi
ModelDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoRaiderRaiderRaiderRaider
TrimBaseBaseBaseBaseLaramieLaramieSLTSLTSLTSLTSLTSLT PlusSLT PlusSTSTSXTSXTSportSportSportSportSportSport PlusSport PlusBaseBaseR/TSLTSLTSLT PlusSLT PlusSXTSXTSportSportDuroCrossDuroCrossLSLS
Engine2.5L L43.7L V63.9L V64.7L V83.7L V64.7L V82.5L L43.7L V63.9L V64.7L V85.9L V83.7L V64.7L V83.7L V64.7L V83.7L V63.9L V62.5L L43.7L V63.9L V64.7L V85.9L V83.7L V64.7L V84.7L V85.9L V85.9L V84.7L V85.9L V84.7L V85.9L V84.7L V85.9L V84.7L V85.9L V83.7L V64.7L V83.7L V64.7L V8
Note
Original Design
Original Design
Original Design
Original Design
Original Design
Original Design
Original Design
Original Design
Original Design
Original Design
Original Design
Original Design
Original Design
Original Design
Original Design
Original Design
Original Design
Original Design
Original Design
Original Design
Original Design
Original Design
Original Design
Original Design
Original Design
Original Design
Original Design
Original Design
Original Design
Original Design
Original Design
Original Design
Original Design
Original Design
Original Design
Original Design
Original Design
Original Design
Original Design

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the driveshaft length, spline count, flange type, mounting pattern and number of sections.
  • Inspect the shaft tube, U-joints, splines, center support bearing and rubber cushions for damage or excessive play.
  • Measure driveshaft length with the vehicle at normal ride height, not with the suspension hanging freely.
  • Support the vehicle securely and keep the transmission and rear axle at approximately the same height.
  • Before removal, clearly mark the front and rear orientation, flange positions and section alignment. The driveshaft must not be installed backward.

Installation Steps

  • Step-1: Place the transmission in Neutral when rotation is required, secure the wheels and support the driveshaft.
  • Step-2: Loosen the rear flange bolts gradually in a diagonal sequence.
  • Step-3: Disconnect the rear flange, center support bearing and front connection. Keep the driveshaft supported horizontally.
  • Step-4: Cap the transmission and differential openings immediately to prevent fluid leakage and contamination.
  • Step-5: Install the front end in the correct direction and align all previously made orientation and phase marks.
  • Step-6: Install the center support bearing without twisting or preloading its rubber cushion.
  • Step-7: Connect the rear flange and hand-start all bolts.
  • Step-8: Use a torque wrench to tighten all flange and support-bearing bolts to the vehicle manufacturer's specified torque. Do not use an impact wrench.

After Installation

  • Confirm all phase marks remain aligned and the driveshaft has not been installed front-to-rear.
  • Rotate the shaft by hand and check for binding, interference or abnormal joint movement.
  • Perform a low-speed road test, then gradually increase speed while checking for noise or vibration.
  • Reinspect all fasteners, support bearings and transmission or differential seals after the test drive.
