2001-2003 Toyota Highlander 2.4L L4/3.0L V6 | Front/Rear Strut Assembly | 271499 - PHILTOP

2001-2003 Toyota Highlander 2.4L L4/3.0L V6 | Front/Rear Strut Assembly | 271499 - PHILTOP

Front/Rear

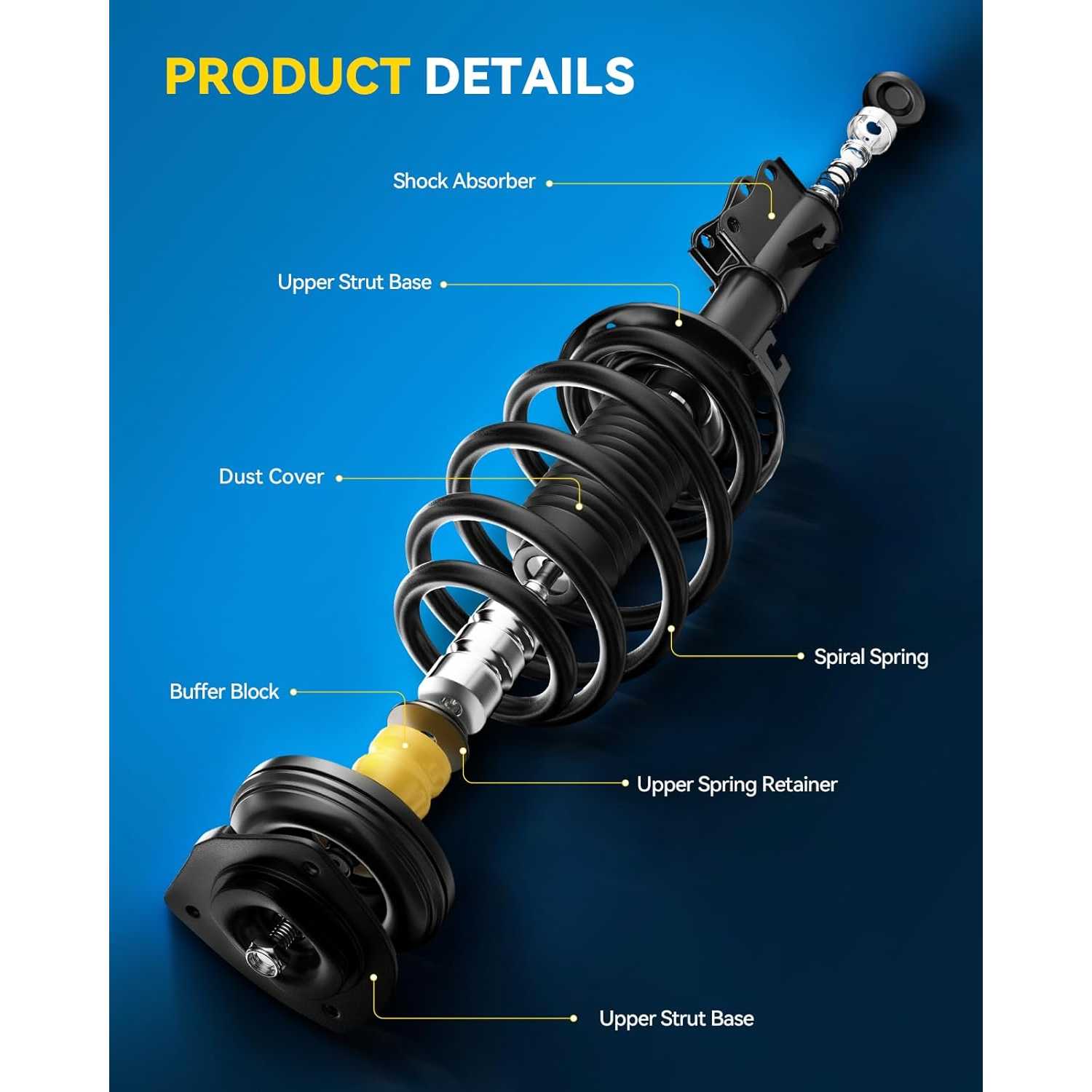

Complete Strut & Coil Spring Assembly

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
53ISSAA20M7US

Specifications

Brand
PHILTOP
Items Included
1x Front Right Complete Strut Assembly - 271494 1x Front Left Complete Strut Assembly - 271495 1x Rear Right Complete Strut Assembly - 271498 1x Rear Left Complete Strut Assembly - 271499
Color
Black
Steel Tube Material
Mild Steel(ST37 Equivalent)
Bump Stop Included
Polyurethane
Piston Rod Material
SAE 1045 Steel
Type
Complete Strut & Coil Spring Assembly
Quantity
4
Position
Front/Rear
Oil Seal Material
Nitrile Rubber
Warranty Period
2-Year
Part Number
271499,271498,271494,271495,281499,281498,281494,281495

Highlights

  • Fitment FOR Toyota Highlander 2001-2003
  • Package Includes: 1x Front Right Complete Strut Assembly - 271494,1x Front Left Complete Strut Assembly - 271495,1x Rear Right Complete Strut Assembly - 271498,1x Rear Left Complete Strut Assembly - 271499
  • OEM Numbers: 271494, 271498, 281498, 281495, 271499, 281499, 281494, 271495, 1331590R, 4331660L, 2331590R, 2331590L, 1331660L, 1331590L, 1331660R, 4331660R, 15907, 15908, LS5494042R, G57651
  • Product passed high and low temp testing , blasting testing and etc ensures the quality of each Struts. Our shock absorbers epitomize a perfect blend of strength and superior damping characteristics for a smooth and comfortable ride.
  • Quality meets or exceeds OEM performance.Install the original car suspension Strut directly without modification.Improve vehicle performance even under the extreme weather with low noise, less friction and long lifespan.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2001 - 20032001 - 20032001 - 2003
MakeToyotaToyotaToyota
ModelHighlanderHighlanderHighlander
TrimBaseBaseLimited
Engine2.4L L43.0L V63.0L V6
Note
Recommended OE Application -Specific Replacement
Recommended OE Application -Specific Replacement
Recommended OE Application -Specific Replacement

How to Install?

Installation Manual Download

User manual (PDF)
Download

Purchase & Installation Notice

  • Confirm the vehicle year, model, suspension type, installation position and part number before ordering.
  • For a complete strut assembly, replacing only individual accessories is not recommended. Mixing worn and new springs, mounts, bearings, dust boots or bump stops may cause noise, uneven ride height and repeated labor costs. Replace the complete assembly when these components are worn or damaged.
  • For balanced damping and handling, inspect both sides of the same axle and replace them as a pair when necessary.

Installation Steps

  • Step-1: Secure the Vehicle: Park on level ground, raise and support the vehicle with approved jack stands, then remove the wheel.
  • Step-2: Disconnect Related Components: Detach the stabilizer link, brake-hose bracket and ABS wiring as required. Support the steering knuckle to prevent pulling on hoses or wires.
  • Step-3: Remove the Old Unit: Remove the lower and upper mounting hardware, support the assembly and carefully remove it.
  • Step-4: Install the New Unit: Confirm the correct side and orientation, position the new assembly and hand-start all fasteners. If spring transfer is required, use a professional spring compressor. Never loosen the center nut with the spring under tension.
  • Step-5: Reconnect and Torque: Reinstall all brackets, links, hoses and wiring. Ensure nothing is twisted or stretched, then tighten all fasteners to the vehicle manufacturer’s specified torque. Do not grip or damage the polished piston rod.
  • Step-6: Reinstall and Align: Reinstall the wheel, lower the vehicle, complete the final torque check and perform a professional wheel alignment.

Product Description

1

Reviews

4.7/5

Based on 9 reviews

578%
411%
311%
20%
10%

RUEL REYNOLDS

09/21/2025

Verified buyer

Ordered on a Sunday morning and were delivered by Tuesday afternoon I haven’t put them in yet but they look just like the originals

Emma_DailyCommute_177

12/17/2025

Super fast shipping, got here in two days! The parts were all well-packaged. Customer service was very helpful when I had a question about fitment.

FAQS

No FAQs have been added for this product yet.
