Front Right

Built to Last

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
38ISSHA9567US

Specifications

Brand
PHILTOP
Position
Front Right
ABS Ring Included
Yes
Quantity
1
Input Shaft Spline Count
27
Material
SAE 1055 Steel and Chloroprene Rubber
Output Shaft Spline Count
28
Items Included
1x Front Right Cv Axle Shaft - 664173
Axle Nut Included
Yes
Warranty Period
2-Year
Part Number
664173

Highlights

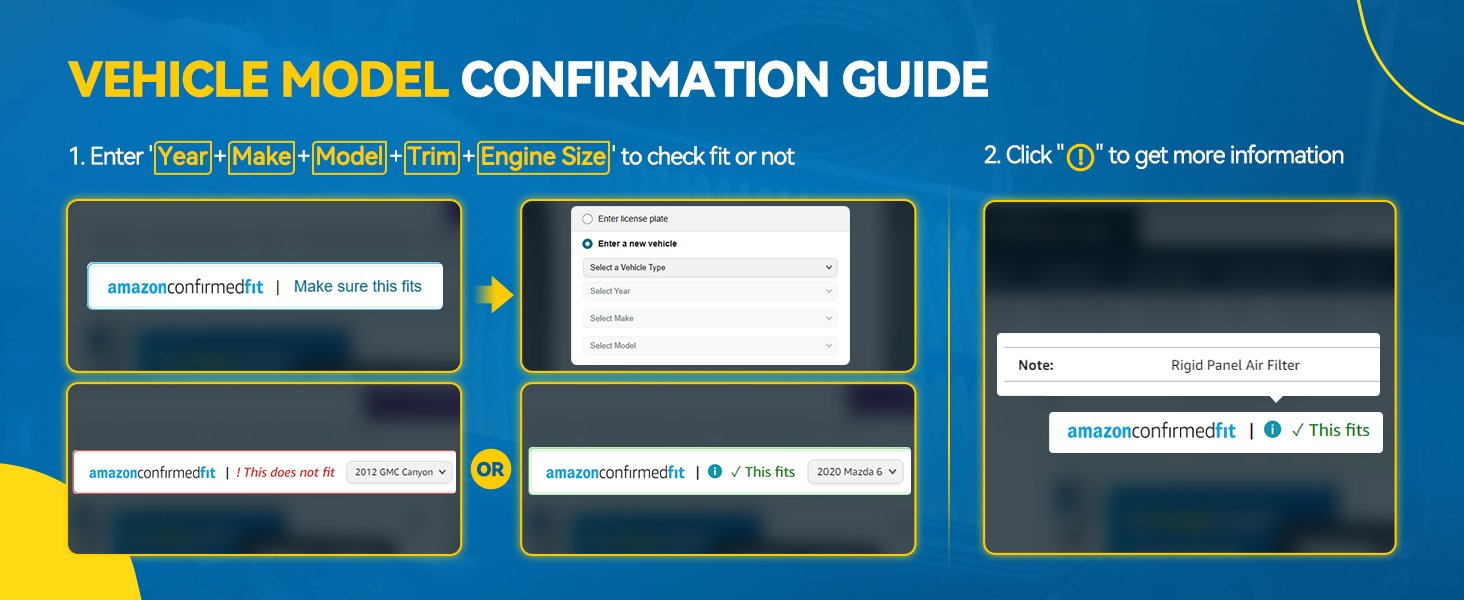

  • Fitment: Front Right Axle Shaft for 1997-2001 CR-V Automatic. Please use the compatibility verification tool provided by Philtop to confirm whether the cv axle shaft is suitable for your vehicle.
  • Reference Number: 44010S10A50, 664173, 44305S10C51, 44010S10A00, 44305S10C00.
  • Reliably: Enjoy a smoother, more reliable ride with our high-quality CV axles. The high quality materials and excellent performance of our half shafts provide reliable support for your vehicle!

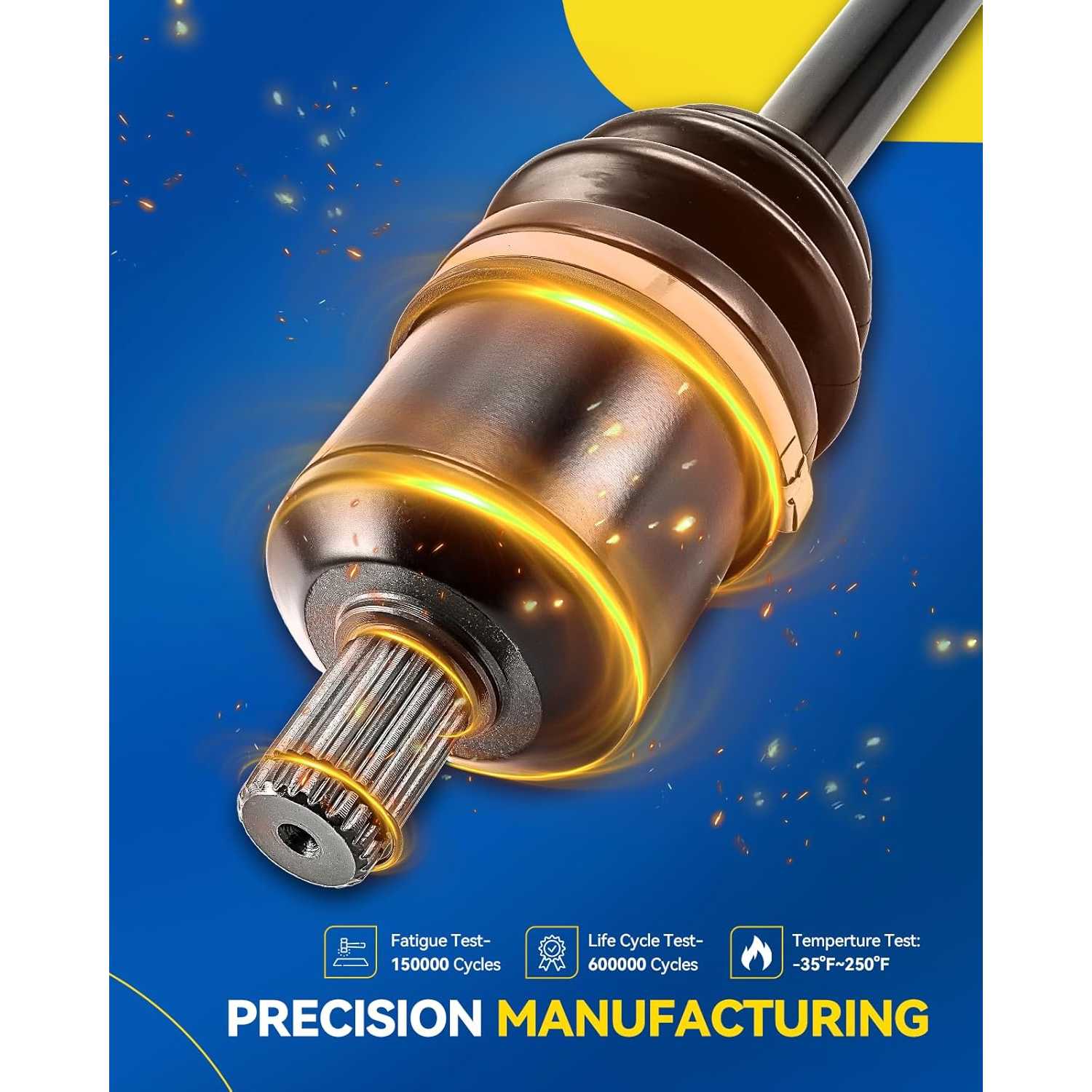

  • High Quality: Half shafts are 100% ground to improve ball path and surface finish and extend product life.CV shafts are normalised to ensure stability in subsequent machining.

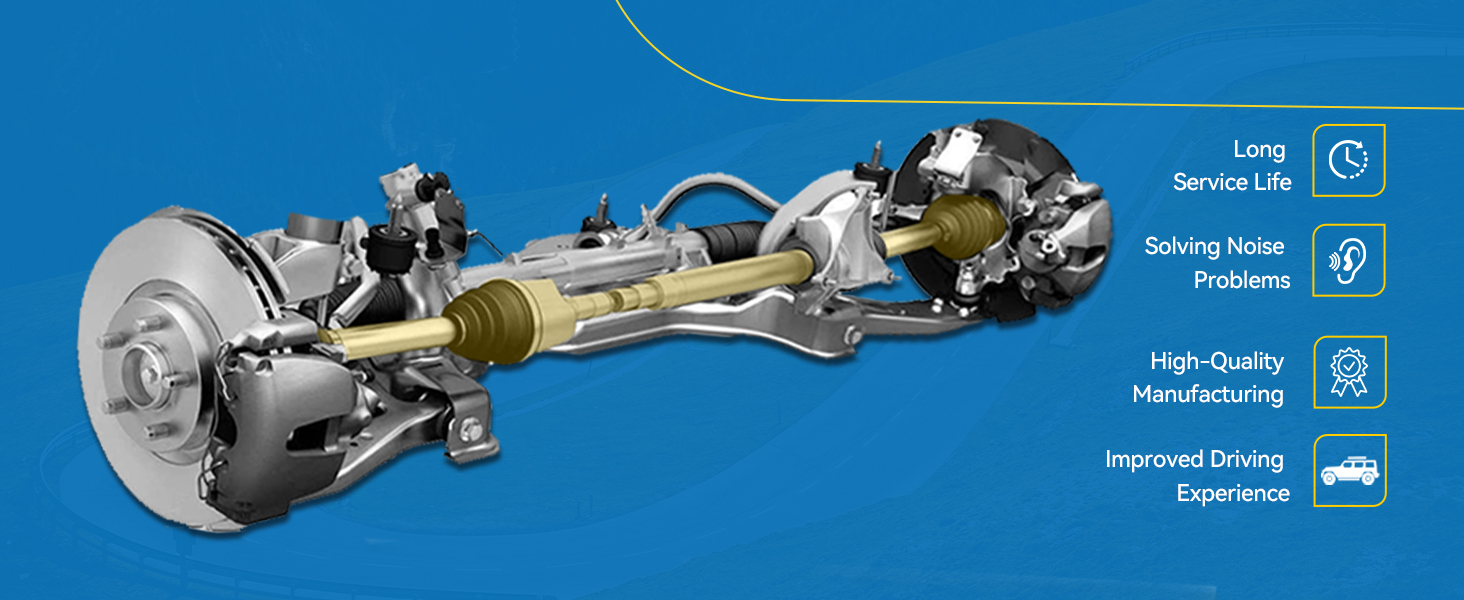

  • Function: Half shafts for equal speed power transmission and wheel steering through pendulum angle.CV axles are designed in strict accordance with OE standards, with 100% inspection of key mating dimensions.

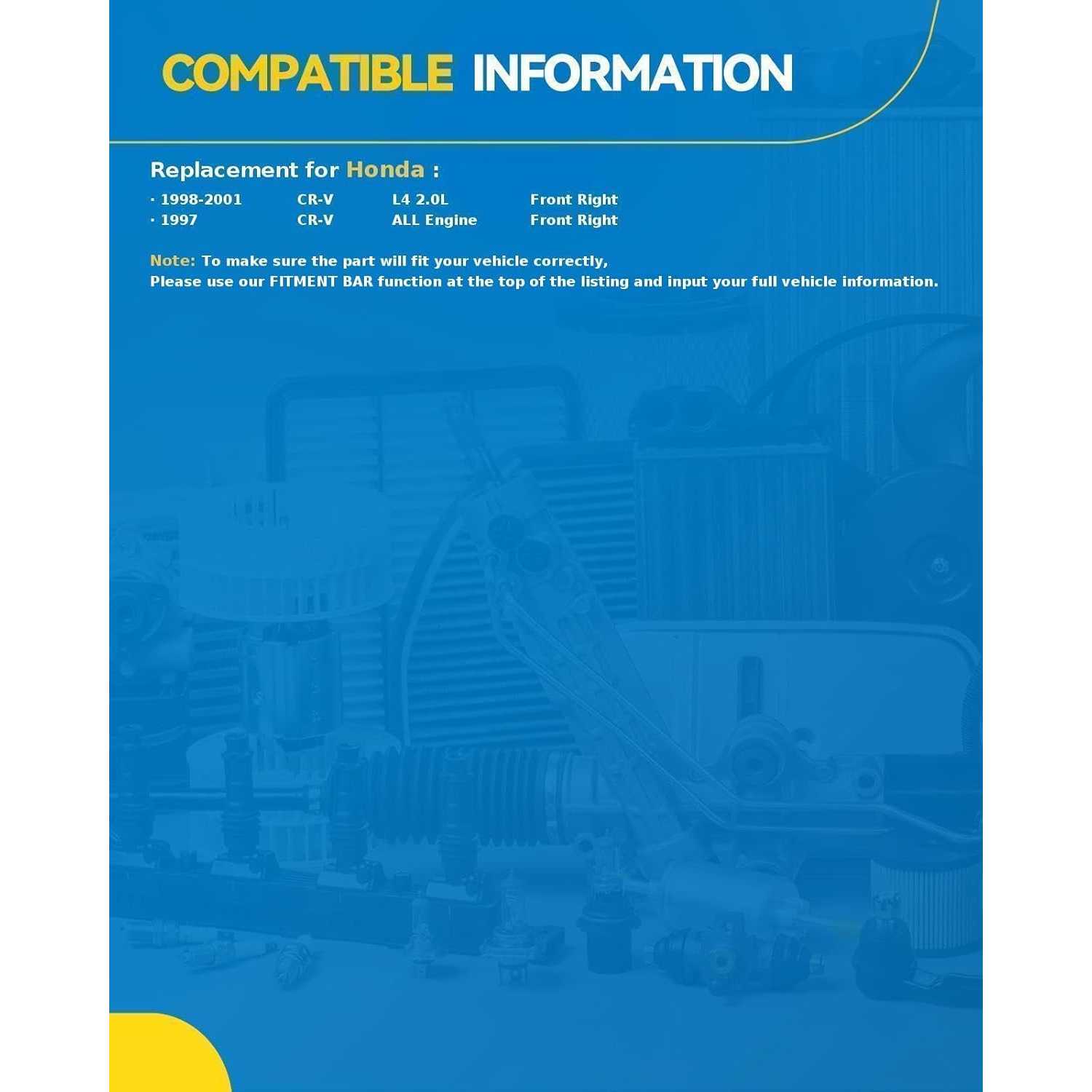

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1998 - 20011997 - 20012000 - 2001
MakeHondaHondaHonda
ModelCR-VCR-VCR-V
TrimEXLXSE
Engine2.0L L42.0L L42.0L L4
Note---

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, installation position, spline counts, mounting points and ABS components match.
  • Inspect the hub bearing, suspension parts, transmission mount and axle seal. Repair looseness, damage or leakage first.
  • Compare the new and original axles in a fully compressed position. Confirm the compressed length and key dimensions match.
    Verify that the new and original CV axles have the same compressed length
  • Check that the boots, clamps, splines and supplied axle nut are complete and undamaged.
  • Support both CV joints when handling. Do not pull, sharply bend or carry the axle by its rubber boot.
    The correct way to hold a CV axle

Installation Steps

  • Step-1: Secure the Vehicle: Loosen the axle nut with the wheels on the ground. Raise the vehicle on a level surface and support it securely with jack stands.
  • Step-2: Remove the Old Axle: Remove the wheel and necessary suspension components. Separate the outer spline from the hub with the proper puller.
  • Step-3: Release the Inner Joint: Use a CV joint puller or slide hammer. Never strike the axle directly or pull it out with bolts. Be prepared for possible transmission-fluid loss.
  • Step-4: Install the New Axle: Clean the splines and seal-contact surface. Insert the inner joint straight into the transmission until the retaining ring fully locks, then install the outer spline into the hub.
  • Step-5: Reassemble and Torque: Reinstall all suspension components and use a new axle nut. Hand-start the fasteners and tighten everything to the vehicle manufacturer’s specified torque.
  • Step-6: Final Assembly: Reinstall the wheel, torque the lug nuts in a crisscross pattern and check or refill the specified transmission fluid if required.

After Installation

  • Confirm the inner joint is fully seated and all fasteners are secure.
  • Check the CV boots, clamps and axle seal for damage or leakage.
  • Rotate the wheel by hand and verify the axle moves smoothly without binding or contacting nearby components.
  • Perform a low-speed road test. Check for clicking while turning, clunking during acceleration, vibration and fluid leakage.
  • If suspension geometry was disturbed, have the wheel alignment checked.

Product Video

Product Description

12

Reviews

4.8/5

Based on 5 reviews

580%
420%
30%
20%
10%

Steve_DIYer_832

02/09/2026

Came well-packaged and got here fast. Customer service was top-notch when I called to confirm shipping. Really impressed with how smooth the whole process was.

DIY_Karen_556

06/13/2026

Bolted right up on my CR-V, no issues at all. Felt really solid compared to the old one. A much better deal than paying dealership prices.
