2000-2005 Dodge Neon 2.0L | Front Passenger Side CV Axle Shaft | 663303 - PHILTOP

2000-2005 Dodge Neon 2.0L | Front Passenger Side CV Axle Shaft | 663303 - PHILTOP

Front Right

Built to Last

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
50ISSHA8997US

Specifications

Brand
PHILTOP
Position
Front Right
ABS Ring Included
Yes
Quantity
1
Input Shaft Spline Count
25
Material
SAE 1055 Steel and Chloroprene Rubber
Output Shaft Spline Count
26
Items Included
1x Front Right Cv Axle Shaft - 663303
Axle Nut Included
Yes
Warranty Period
2-Year
Part Number
663303

Highlights

  • Vehicle Fitment: Front Axle Shaft for 2000-2001 Neon 5-speed, 2001 Neon 4-speed, 2000 Neon High Line 5-speed, 2000-2002 Neon ES 5-speed, 2001-2002 Neon ACR/Base 5-speed, 2001-2002 Neon Base/ES 4-speed, 2001-2004 Neon R/T 5-speed, 2001-2005 Neon SE 4/5-speed, 2002 Neon S 4/5-speed, 2003-2005 Neon SXT 4/5-speed, 2003-2005 SX 2.0, 2001-2010 PT Cruiser Naturally Aspirated.
  • CV Joint OE Number: 4668918AA, 663303, 4668420AB, 4668914AA, 4668420AC, 4668950AD, 4668936AC, 4668936AB, 4668952AE, 4668952AD.
  • High Quality: Half shafts are normalized to ensure product stability.The cv shafts are also ground to improve the ball path and ball surface finish to prolong the product life.
  • Factory Testing: All cv axle shafts undergo a triple factory inspection as a means of confirming product accuracy.Our Axle shafts remain in great condition under extreme conditions.
  • Purchase Verification: Before purchasing, please confirm that the cv axle will fit your vehicle by entering 'Year-Make-Model' through the Philtop adapter.

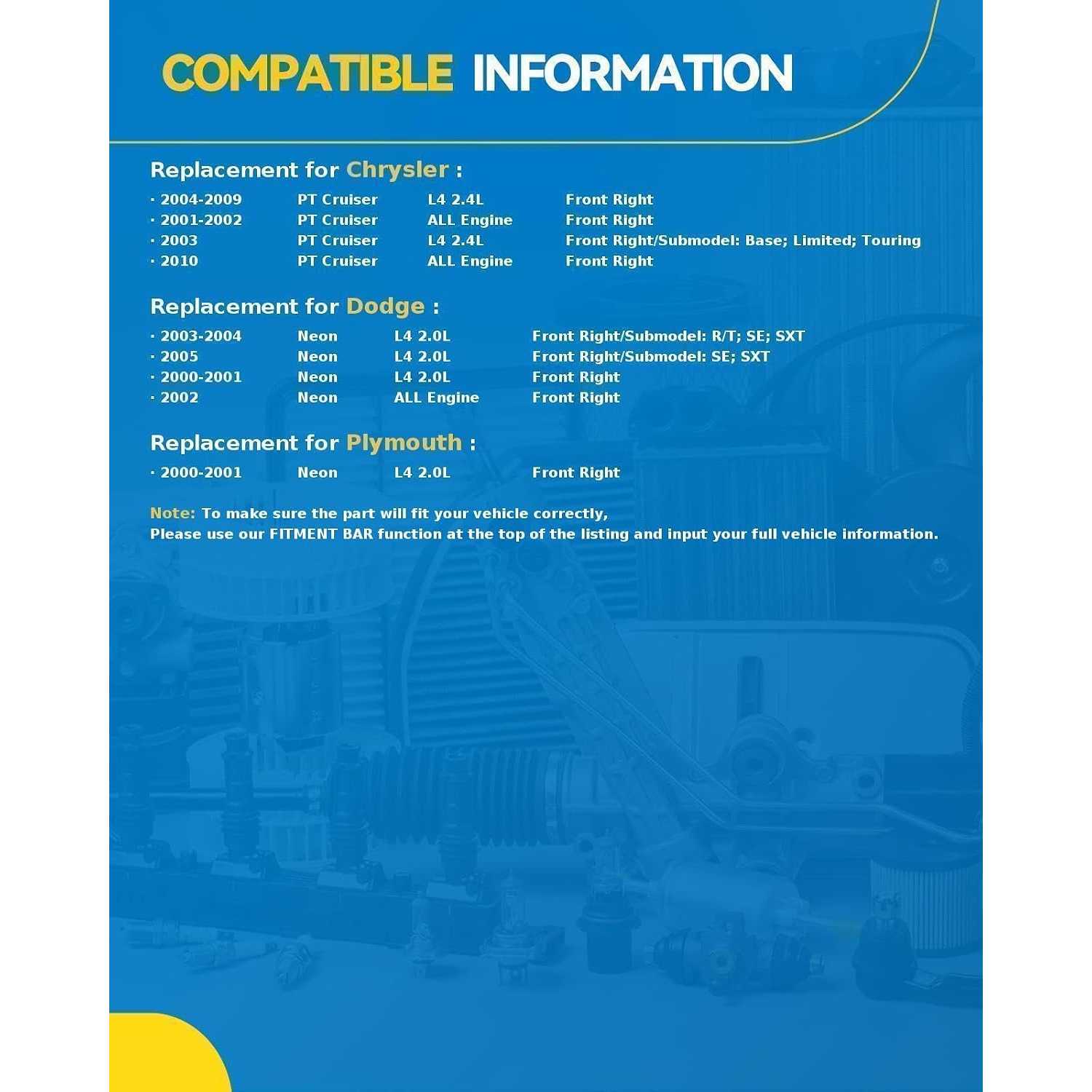

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2001 - 20092010201020022008 - 20092001 - 200820062001 - 20092001 - 20022001 - 20022000 - 200220002001 - 200420022001 - 20052003 - 20052000 - 20012001
MakeChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgePlymouthPlymouth
ModelPT CruiserPT CruiserPT CruiserPT CruiserPT CruiserPT CruiserPT CruiserPT CruiserNeonNeonNeonNeonNeonNeonNeonNeonNeonNeon
TrimBaseClassicCouture EditionDreamLXLimitedStreet CruiserTouringACRBaseESHigh LineR/TSSESXTHigh LineLX
Engine2.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L4
Note------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, installation position, spline counts, mounting points and ABS components match.
  • Inspect the hub bearing, suspension parts, transmission mount and axle seal. Repair looseness, damage or leakage first.
  • Compare the new and original axles in a fully compressed position. Confirm the compressed length and key dimensions match.
    Verify that the new and original CV axles have the same compressed length
  • Check that the boots, clamps, splines and supplied axle nut are complete and undamaged.
  • Support both CV joints when handling. Do not pull, sharply bend or carry the axle by its rubber boot.
    The correct way to hold a CV axle

Installation Steps

  • Step-1: Secure the Vehicle: Loosen the axle nut with the wheels on the ground. Raise the vehicle on a level surface and support it securely with jack stands.
  • Step-2: Remove the Old Axle: Remove the wheel and necessary suspension components. Separate the outer spline from the hub with the proper puller.
  • Step-3: Release the Inner Joint: Use a CV joint puller or slide hammer. Never strike the axle directly or pull it out with bolts. Be prepared for possible transmission-fluid loss.
  • Step-4: Install the New Axle: Clean the splines and seal-contact surface. Insert the inner joint straight into the transmission until the retaining ring fully locks, then install the outer spline into the hub.
  • Step-5: Reassemble and Torque: Reinstall all suspension components and use a new axle nut. Hand-start the fasteners and tighten everything to the vehicle manufacturer’s specified torque.
  • Step-6: Final Assembly: Reinstall the wheel, torque the lug nuts in a crisscross pattern and check or refill the specified transmission fluid if required.

After Installation

  • Confirm the inner joint is fully seated and all fasteners are secure.
  • Check the CV boots, clamps and axle seal for damage or leakage.
  • Rotate the wheel by hand and verify the axle moves smoothly without binding or contacting nearby components.
  • Perform a low-speed road test. Check for clicking while turning, clunking during acceleration, vibration and fluid leakage.
  • If suspension geometry was disturbed, have the wheel alignment checked.

Product Video

Product Description

13

Reviews

4.7/5

Based on 3 reviews

567%
433%
30%
20%
10%

AutoMom_2019_609

03/10/2026

Arrived way ahead of schedule and was packed up tight. Customer service was awesome when I called to confirm shipping. Super impressed with the whole experience.

Chris_GearHead_671

10/20/2025

Installation was a breeze, honestly easier than the last one I replaced. Fit like a glove, no messing around required. Way better than the aftermarket one I got last year.
