2010-2015 Lexus RX350 3.5L | Front Right, 1 PC Steering Knuckle | 698432 - PHILTOP

2010-2015 Lexus RX350 3.5L | Front Right, 1 PC Steering Knuckle | 698432 - PHILTOP

Front Right

Wheel Bearing Included

4.3

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
37ISSKB0917US

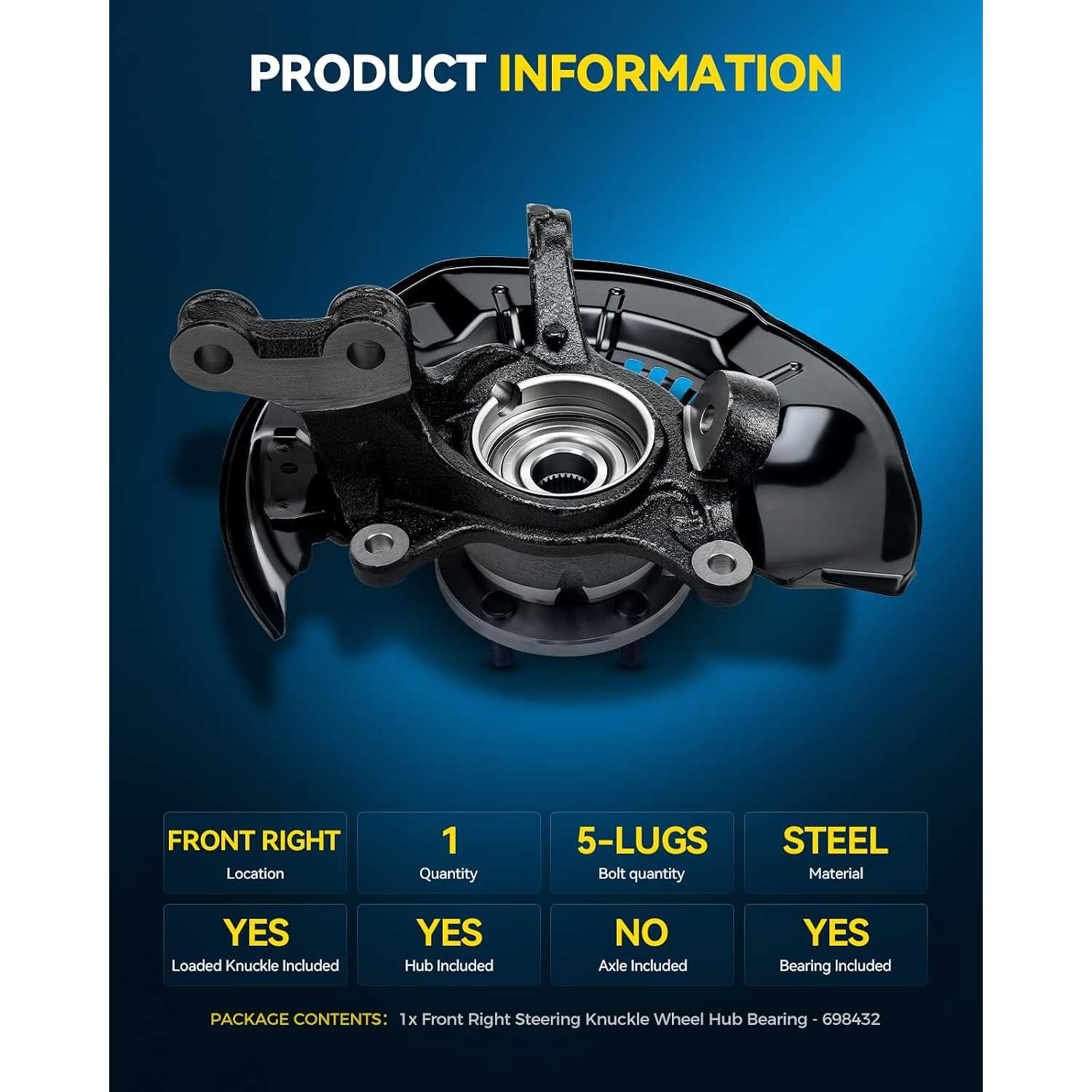

Specifications

Brand
PHILTOP
Position
Front Right
Material
Steel
Items Included
1x Front Right Steering Knuckle Wheel Hub Bearing - 698432
Wheel Bearing Included
Yes
Quantity
1
Warranty Period
2-Year
Part Number
698432

Highlights

  • [Fitment]This steering knuckle & wheel bearing hub assembly compatible with 2008-2017 Toyota Highlander, 2010-2015 RX350, 2010-2015 RX450h Replaces 698432

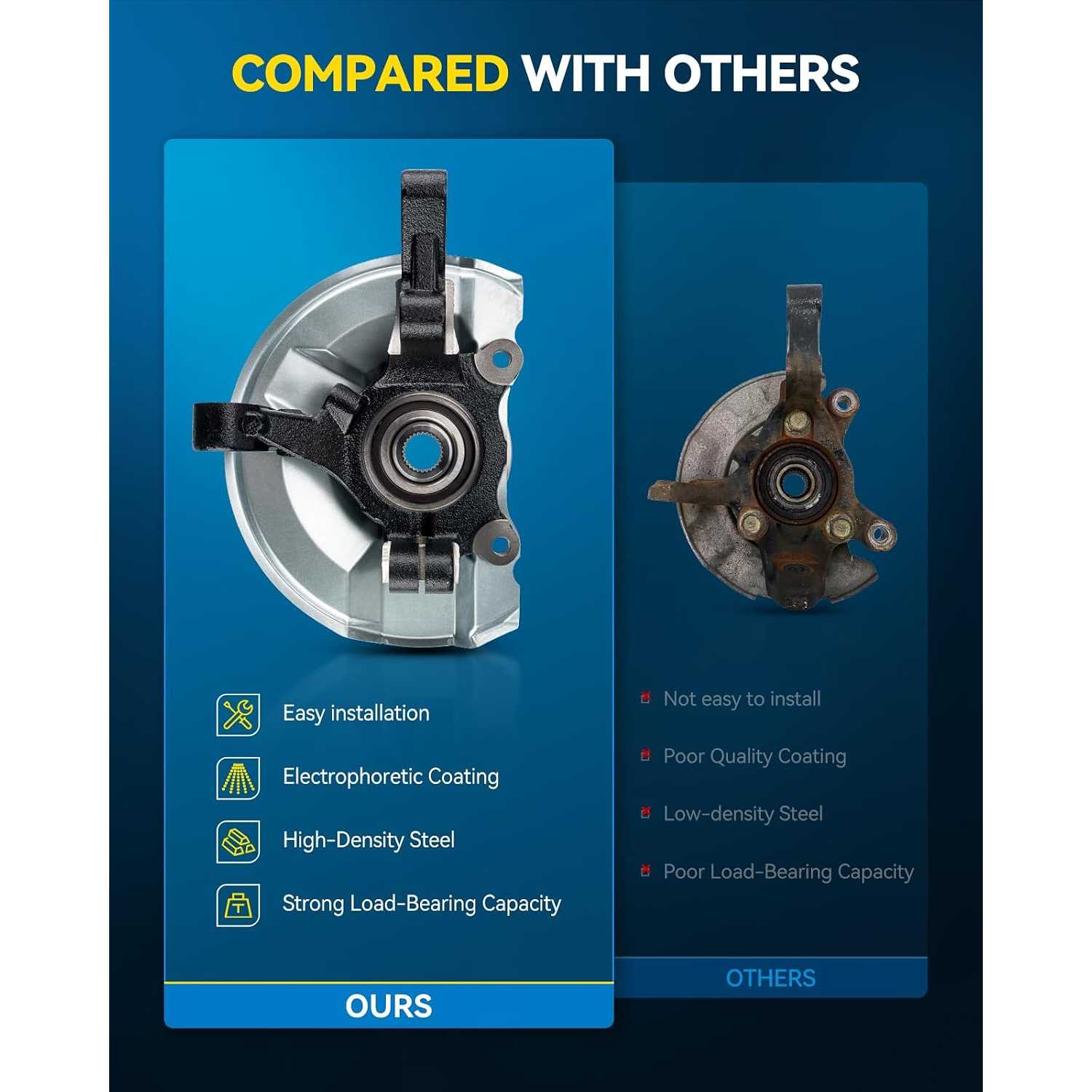

  • [Material & Quanlity]High-standard design, carefully selected high-quality steel, the product is stronger and can better withstand variable impact loads when the car is running.

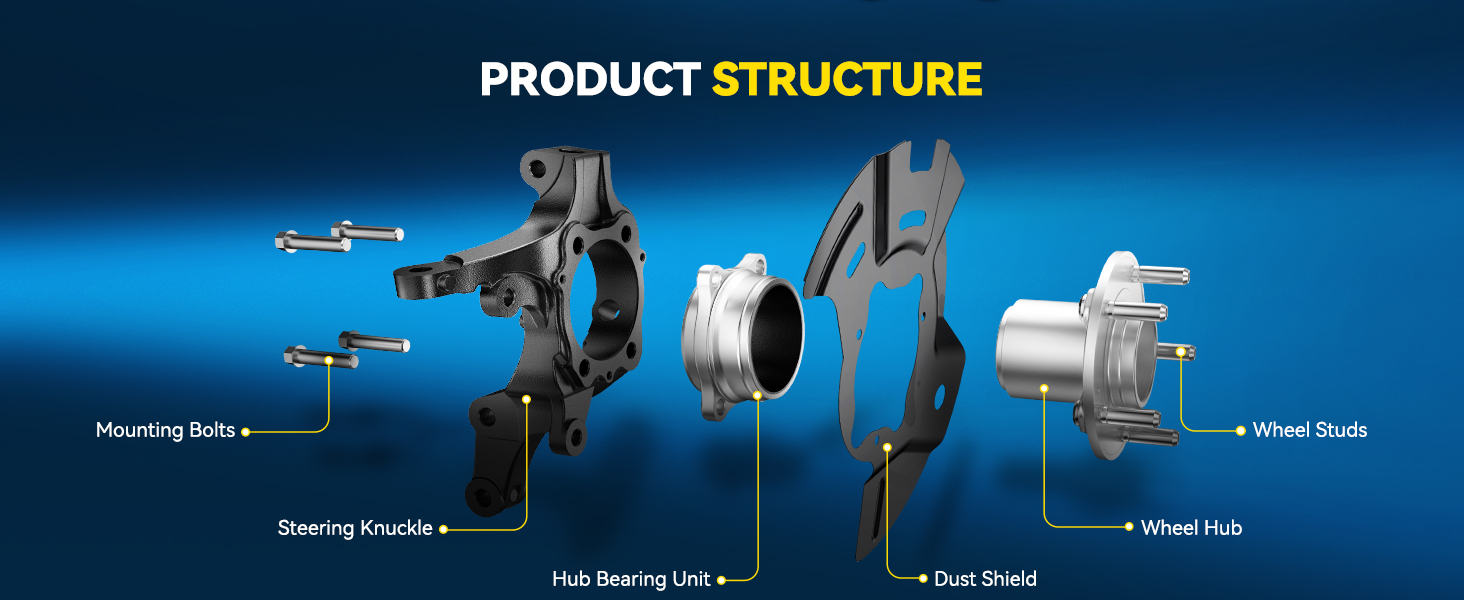

  • [Specification]Installation Position: Front Passenger Side; Condition: Brand New; Material: Steel; Loaded Knuckle Included: Yes; Hub Included: Yes; Bearing Included: Yes; Axle Included: No.
  • [OE Replacement Number]432110E010,435020E030,43502-AA021,4770348010,9036945006,90369A0002
  • [Ideal Replacement]This steering knuckle hub bearing assembly can help you resolve those problems: ① hard braking ② difficult turning of wheels ③ uneven tire wear ④ vehicle pulling ⑤ wheel vibration and wobble.

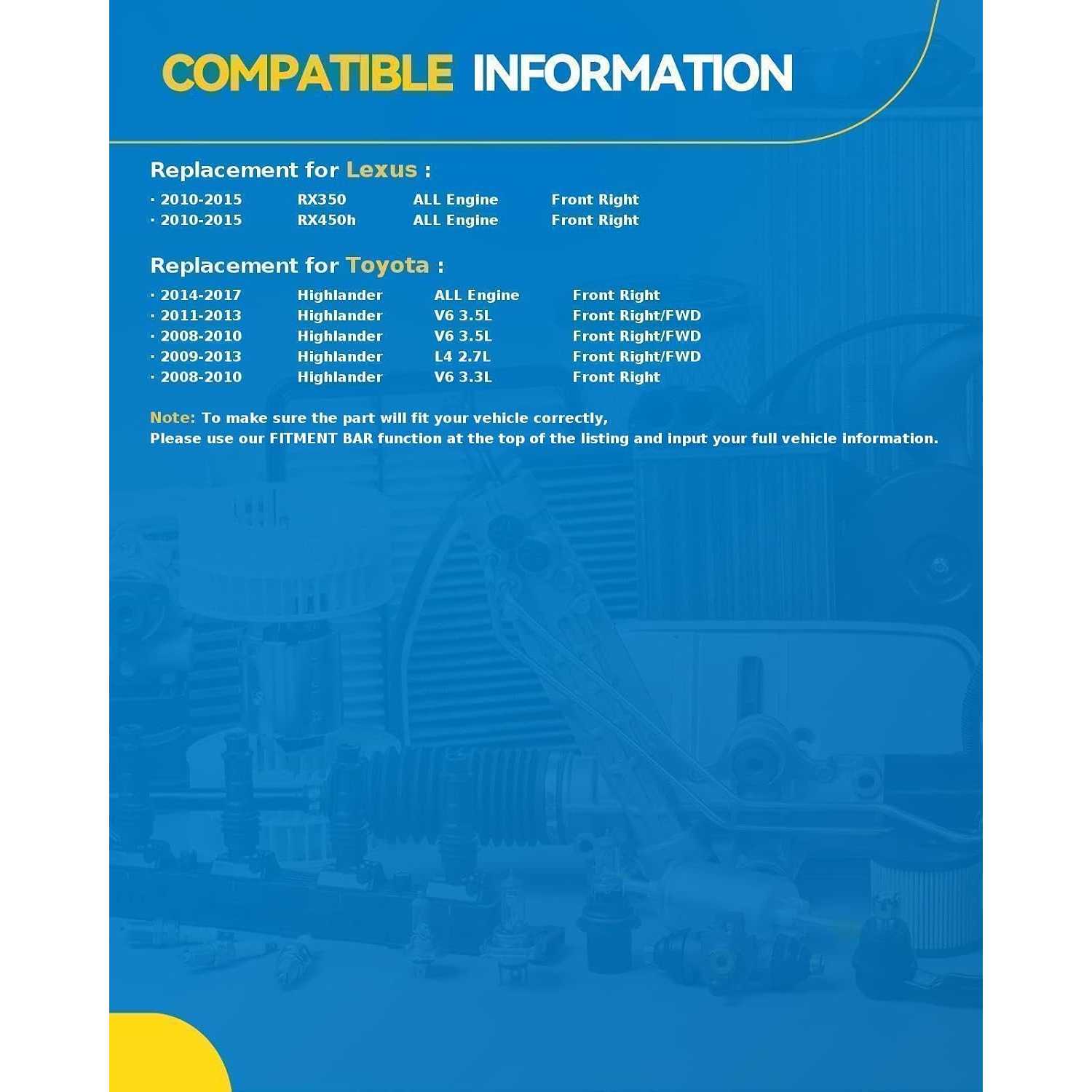

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2010 - 20152013 - 20152010 - 20152009 - 20132008 - 20132008 - 20102011 - 201320172008 - 20102011 - 201720172014 - 20172014 - 20172014 - 20172008 - 2017201320132011 - 20122010 - 201320172008 - 20102014 - 2017
MakeLexusLexusLexusToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyota
ModelRX350RX350RX450hHighlanderHighlanderHighlanderHighlanderHighlanderHighlanderHighlanderHighlanderHighlanderHighlanderHighlanderHighlanderHighlanderHighlanderHighlanderHighlanderHighlanderHighlanderHighlander
TrimBaseF SportBaseBaseBaseHybridHybridHybrid LEHybrid LimitedHybrid LimitedHybrid XLELELELE PlusLimitedPlusPlusSESESESportXLE
Engine3.5L V63.5L V63.5L V62.7L L43.5L V63.3L V63.5L V63.5L V63.3L V63.5L V63.5L V62.7L L43.5L V63.5L V63.5L V62.7L L43.5L V62.7L L43.5L V63.5L V63.5L V63.5L V6
Note----------------------

How to Install?

Checks Before Installation

  • Confirm the steering knuckle matches the vehicle, installation position and related components.
  • Inspect the wheel bearing, hub, ball joint and mounting points for damage or wear.
  • Prepare a professional vehicle lift, safety stands and torque wrench.
  • Do not use an impact wrench or hammer to force components into place.

Installation Steps

  • Step-1: Secure the Vehicle:Raise the vehicle with a professional lift and support it securely with safety stands.
  • Step-2: Remove the Components:Remove the wheel, brake components, ABS sensor, tie-rod end and other connected suspension parts.
  • Step-3: Transfer the Hub and Bearing:Use the correct press and adapters to remove or install the hub and bearing. Never hammer a new bearing or expose it to axial impact.
  • Step-4: Install the Steering Knuckle:Position the steering knuckle and hand-start all mounting bolts to prevent cross-threading.
  • Step-5: Reconnect the Components:Reconnect the ball joint, tie-rod end, strut, ABS sensor and brake components in their original positions.
  • Step-6: Torque All Fasteners:Use a torque wrench and tighten every fastener to the value specified in the vehicle service manual. Do not estimate torque or use an impact wrench for final tightening.

After Installation

  • Confirm all fasteners, brake components and ABS connections are secure.
  • Check for smooth wheel rotation, abnormal play or interference.
  • Perform a low-speed road test and check for noise, vibration or steering pull.
  • A professional four-wheel alignment is required after installation. Use a qualified alignment shop with professional equipment; a basic repair shop may not be able to complete the required calibration.

Product Video

Product Description

12

Reviews

4.3/5

Based on 6 reviews

550%
433%
317%
20%
10%

DIY_Karen_259

05/21/2026

Fit my RX350 like a charm. Installation was straightforward, no issues at all. Much better than the old ones.

Steve_DIYer_287

03/28/2026

Came in really fast, and everything was packed securely. Customer service was top-notch, answered my questions clearly. Happy with this purchase.

FAQS

Please provide your order number, vehicle information, installation date, current mileage and a description of the issue. Photos, videos or inspection information may also help us review the claim.

Warranty coverage and duration may vary by product. For specific warranty period details by product category, please refer to our Warranty & Returns Policy page. Damage related to incorrect fitment, installation or other vehicle problems may require further review.

Installed or modified products may require additional review and may not qualify for a standard return. Please contact Philtop before removing or returning the product.
