2005-2008 Ford F-150 5.4L V8 | 12 PC Front Upper, Lower Control Arm | OE#MEOE155/ES3691 - PHILTOP

2005-2008 Ford F-150 5.4L V8 | 12 PC Front Upper, Lower Control Arm | OE#MEOE155/ES3691 - PHILTOP

Corrosion Resistant

Deformation Resistant

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
36ISOCA0127US

Specifications

Brand
PHILTOP
Items Included

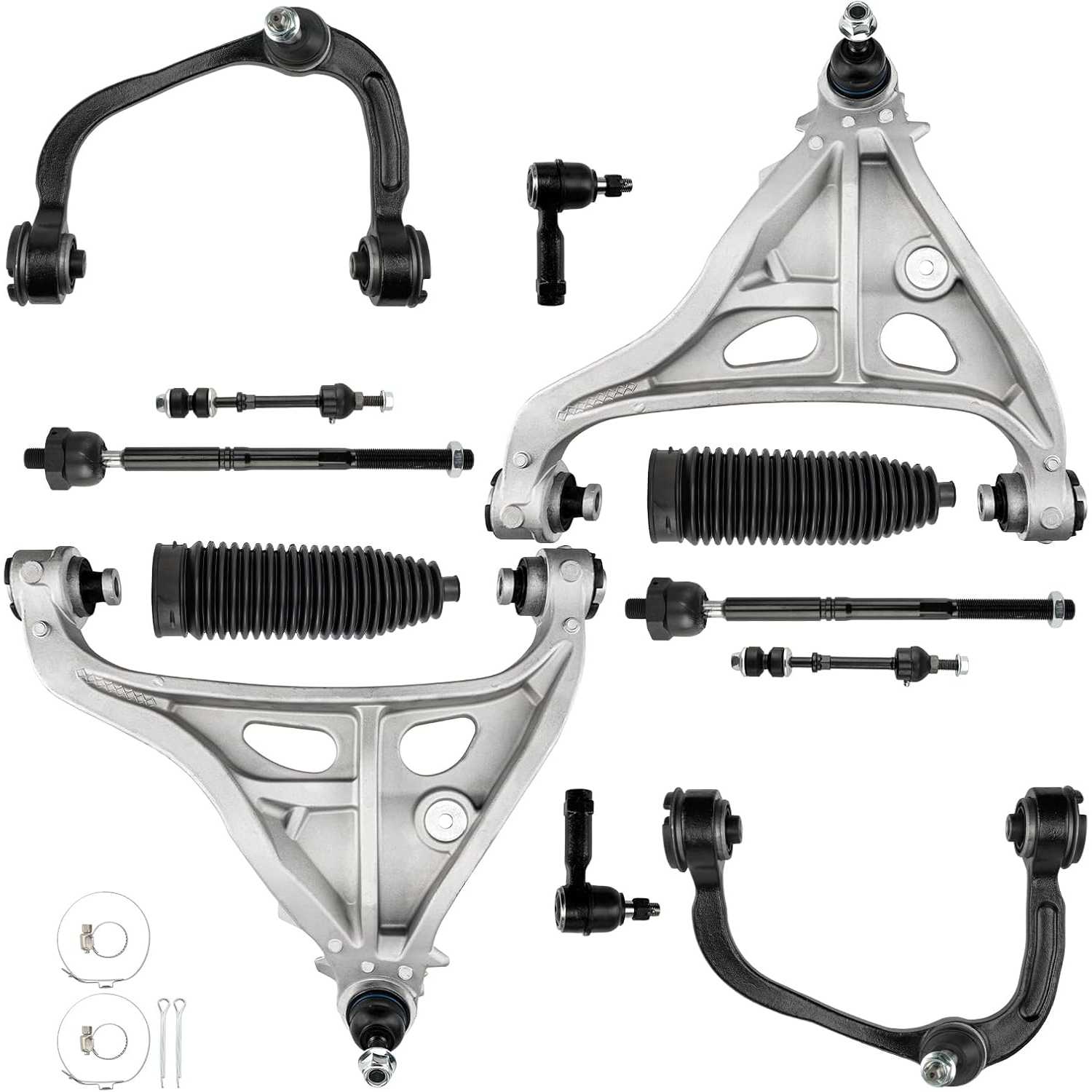

1x Front Upper Control Arm Assembly - Driver Side - K80306 1x Front Upper Control Arm Assembly - Passenger Side - K80308 1x Front Lower Control Arm Assembly - Driver Side - K80403 1x Front Lower Control Arm Assembly - Passenger Side - K80401 2x Front Sway Bar End Link - Driver and Passenger Side - K80338 2x Front Outer Tie Rod End - Driver and Passenger Side - ES3691 2x Front Inner Tie Rod Ends - EV463 2x Rack and Pinion Boots W/Bellows & Locking C-Clamps
Quantity
12
Position
Front Upper、Lower
Surface Finish
Polished
Material
Aluminum
Warranty Period
2-Year
OE Number
MEOE155,7L1Z3084A,9L3Z3085A,6L3Z3085AL,4L3Z3084AB,4L3Z3084AA,6L3Z3084AR,4L3Z3085AB,4L3Z3085AA,7L1Z3085A,9L3Z3084A,7L3Z3079C,7L3Z3078D,7L3Z3079D,BL3Z3084A,EL3Z3084A,BL3Z3085A,EL3Z3085A,4L3Z3078BA,4L3Z3A130CA,EL3Z3084B,4L3Z3079BA,EL3Z3085B,4L3Z3079CA,5L3Z5K483DA,4L3Z3280CA
Part Number
ES3691,EV463,K80338,RK80308,RK80306,RK80403,RK80401,MK80338,MES3691,MEV463,TA2763,TC6320,TC5684,TC6321,TA5068,GK80401,CK80403,GK80403,EV800369,CB85193PR,GK80338,CB85194PR,JAR1205,TO86435XL,TO86435RD,GEV463,TI85460XL

Highlights

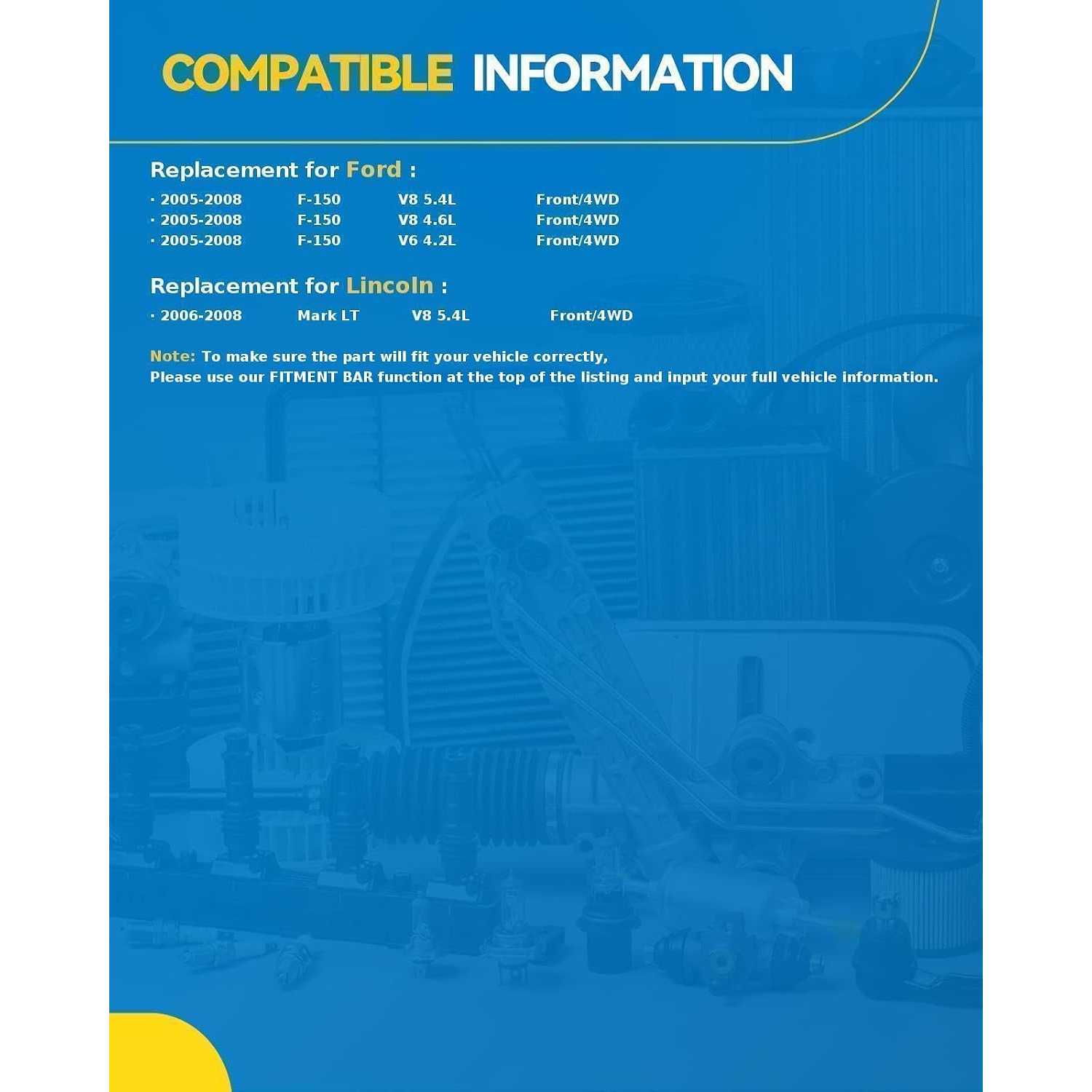

  • Fitment:PHILTOP Control Arms compatible with Ford F-150 2005 2006 2007 2008 4.6L/5.4L/4.2L, compatible with Lincoln Mark LT 2006-2008 5.4L,Please check fitment for accurate information before purchasing
  • Suspension Kit Includes:1x Front Upper Control Arm Assembly - Driver Side - K80306 + 1x Front Upper Control Arm Assembly - Passenger Side - K80308 + 1x Front Lower Control Arm Assembly - Driver Side - K80403 + 1x Front Lower Control Arm Assembly - Passenger Side - K80401 + 2x Front Sway Bar End Link - Driver and Passenger Side - K80338 + 2x Front Outer Tie Rod End - Driver and Passenger Side - ES3691 + 2x Front Inner Tie Rod Ends - EV463 + 2x Rack and Pinion Boots w/Bellows & Locking C-Clamps

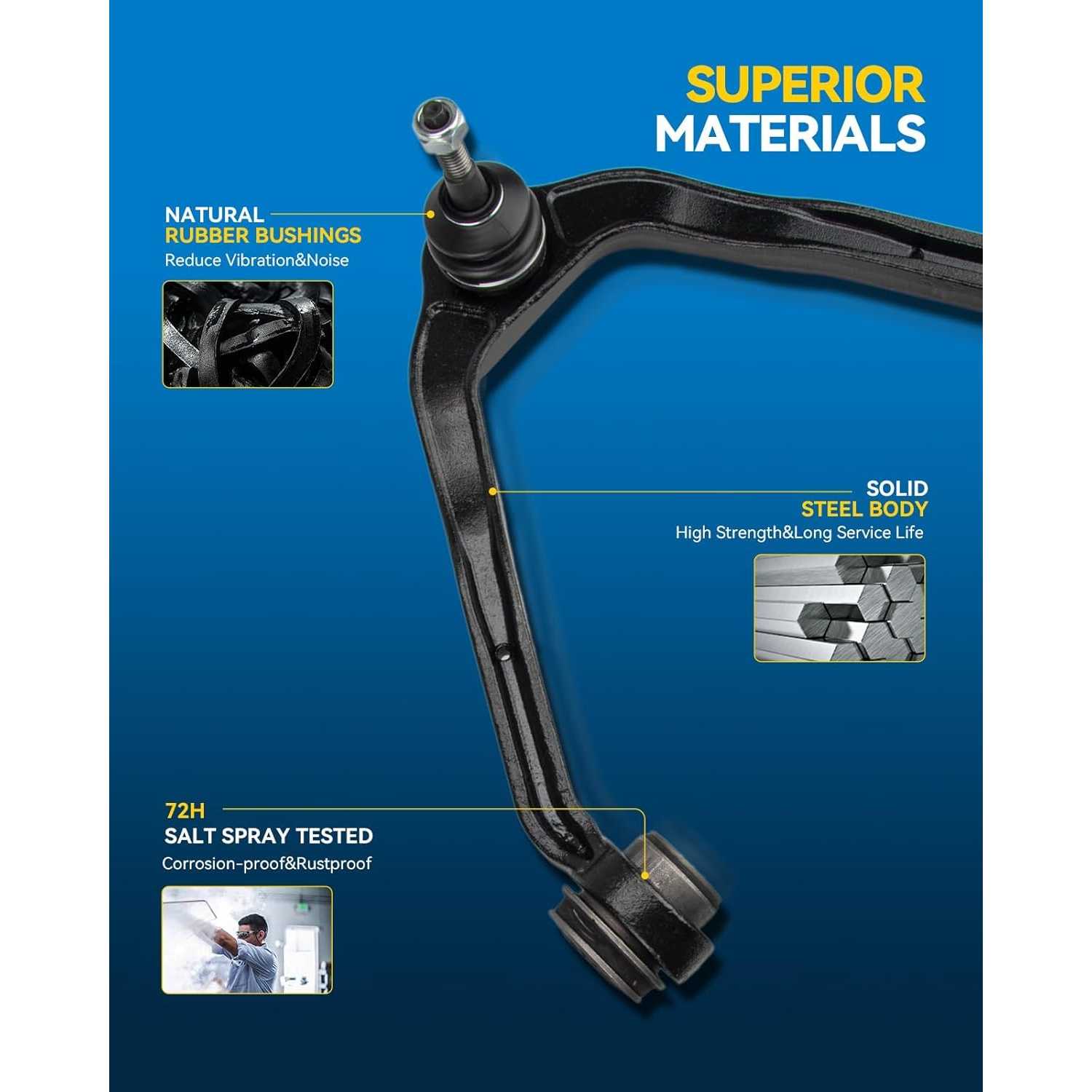

  • High Quality: Control Arms Lower Ball Joints Sway Bars Tie Rods Kit is polished and rust-proof.The anti-corrosion coating on the control arm can prolong the service life
  • Reinforced and Durable: Made of high-strength steel, precision forging and stamping, PHILTOP control arm can withstand the rigors of extreme road conditions. Whether it's rough mountain roads or city congestion, our control arms maintain consistent performance, reduce wear and tear, and extend service life
  • PHILTOP Support: Please recheck your vehicle compatibility (year/make/model) before purchasing the control arms suspension kit. You can use the "confirmedfit" frame above the title to check whether it is suitable for your model

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2005 - 20082006 - 20082005 - 20082005 - 20082005 - 20082005 - 2008200820082005 - 20082005 - 20082005 - 20082005 - 20082005 - 20082005 - 20082006 - 2008
MakeFordFordFordFordFordFordFordFordFordFordFordFordFordFordLincoln
ModelF-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-150Mark LT
TrimFX4Harley-Davidson EditionKing RanchLariatSTXSTXTHE 60TH ANNIVERSARY EDITIONTHE 60TH ANNIVERSARY EDITIONXLXLXLXLTXLTXLTBase
Engine5.4L V85.4L V85.4L V85.4L V84.2L V64.6L V84.6L V85.4L V84.2L V64.6L V85.4L V84.2L V64.6L V85.4L V85.4L V8
Note
Exclude THE 60TH ANNIVERSARY EDITION;Base Payload Models;Exc. 8200lb GVW;From 11/29/2004;w/ 7 Stud Rotor;w/ Straight Shaped Sway Bars
Exclude THE 60TH ANNIVERSARY EDITION;Base Payload Models;Exc. 8200lb GVW;From 11/29/2004;w/ 7 Stud Rotor;w/ Straight Shaped Sway Bars
Exclude THE 60TH ANNIVERSARY EDITION;Base Payload Models;Exc. 8200lb GVW;From 11/29/2004;w/ 7 Stud Rotor;w/ Straight Shaped Sway Bars
Exclude THE 60TH ANNIVERSARY EDITION;Base Payload Models;Exc. 8200lb GVW;From 11/29/2004;w/ 7 Stud Rotor;w/ Straight Shaped Sway Bars
Exclude THE 60TH ANNIVERSARY EDITION;Base Payload Models;Exc. 8200lb GVW;From 11/29/2004;w/ 7 Stud Rotor;w/ Straight Shaped Sway Bars
Exclude THE 60TH ANNIVERSARY EDITION;Base Payload Models;Exc. 8200lb GVW;From 11/29/2004;w/ 7 Stud Rotor;w/ Straight Shaped Sway Bars
Exclude THE 60TH ANNIVERSARY EDITION;Base Payload Models;Exc. 8200lb GVW;From 11/29/2004;w/ 7 Stud Rotor;w/ Straight Shaped Sway Bars
Exclude THE 60TH ANNIVERSARY EDITION;Base Payload Models;Exc. 8200lb GVW;From 11/29/2004;w/ 7 Stud Rotor;w/ Straight Shaped Sway Bars
Exclude THE 60TH ANNIVERSARY EDITION;Base Payload Models;Exc. 8200lb GVW;From 11/29/2004;w/ 7 Stud Rotor;w/ Straight Shaped Sway Bars
Exclude THE 60TH ANNIVERSARY EDITION;Base Payload Models;Exc. 8200lb GVW;From 11/29/2004;w/ 7 Stud Rotor;w/ Straight Shaped Sway Bars
Exclude THE 60TH ANNIVERSARY EDITION;Base Payload Models;Exc. 8200lb GVW;From 11/29/2004;w/ 7 Stud Rotor;w/ Straight Shaped Sway Bars
Exclude THE 60TH ANNIVERSARY EDITION;Base Payload Models;Exc. 8200lb GVW;From 11/29/2004;w/ 7 Stud Rotor;w/ Straight Shaped Sway Bars
Exclude THE 60TH ANNIVERSARY EDITION;Base Payload Models;Exc. 8200lb GVW;From 11/29/2004;w/ 7 Stud Rotor;w/ Straight Shaped Sway Bars
Exclude THE 60TH ANNIVERSARY EDITION;Base Payload Models;Exc. 8200lb GVW;From 11/29/2004;w/ 7 Stud Rotor;w/ Straight Shaped Sway Bars
Base Payload Models;Exc. 8200lb GVW;w/ 7 Stud Rotor;w/ Straight Shaped Sway Bars

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the installation side, mounting points and ball-joint configuration.
  • Inspect the new control arm, bushings, ball joint and dust boot for damage.
  • Check the steering linkage, stabilizer link and related suspension components for looseness or wear.
  • Support the vehicle with approved jack stands and support the steering knuckle to protect the brake hose and ABS wiring.
  • Replacing control arms in left/right pairs is recommended when both sides have similar mileage or wear.

Installation Steps

  • Step-1: Raise and support the vehicle, then remove the wheel.
  • Step-2: Support the steering knuckle and disconnect the stabilizer link or related components as required.
  • Step-3: Separate the ball joint using the correct puller—do not strike or pry it aggressively.
  • Step-4: Remove the mounting bolts and old control arm, then clean the mounting points.
  • Step-5: Position the new arm and hand-start all fasteners.
  • Step-6: Connect the ball joint and stabilizer link, replacing any single-use nuts or bolts.
  • Step-7: Return the suspension to normal ride height before tightening the control-arm pivot bolts to specification.

After Installation

  • Confirm all fasteners and locking components are secure.
  • Check that the wheel rotates freely without interference.
  • Perform a short, low-speed road test and check for noise, pulling or unstable steering.
  • A professional four-wheel alignment is required after installation.
  • Recheck the installation after the first 50–100 km.
