Carbon Commutator

Precision Ceramic Resistor

Pressure Sensor Included

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
6477FUP027RUS

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
Yes

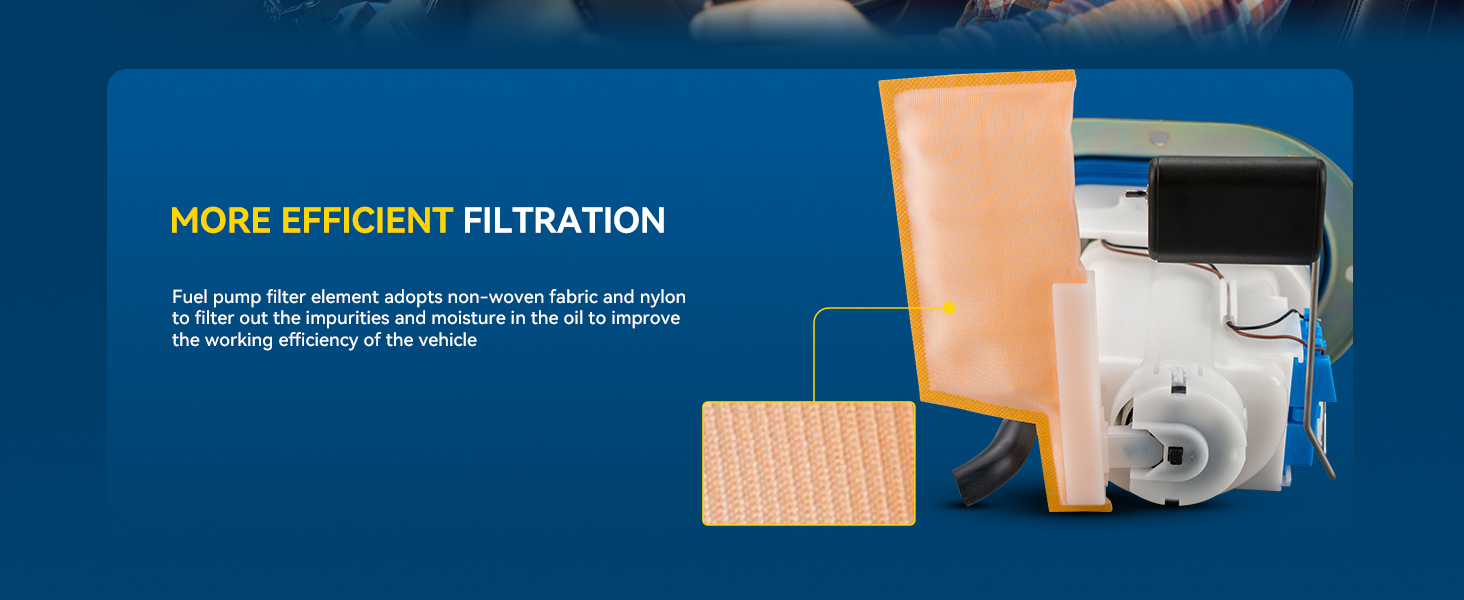

Strainer Included
Yes

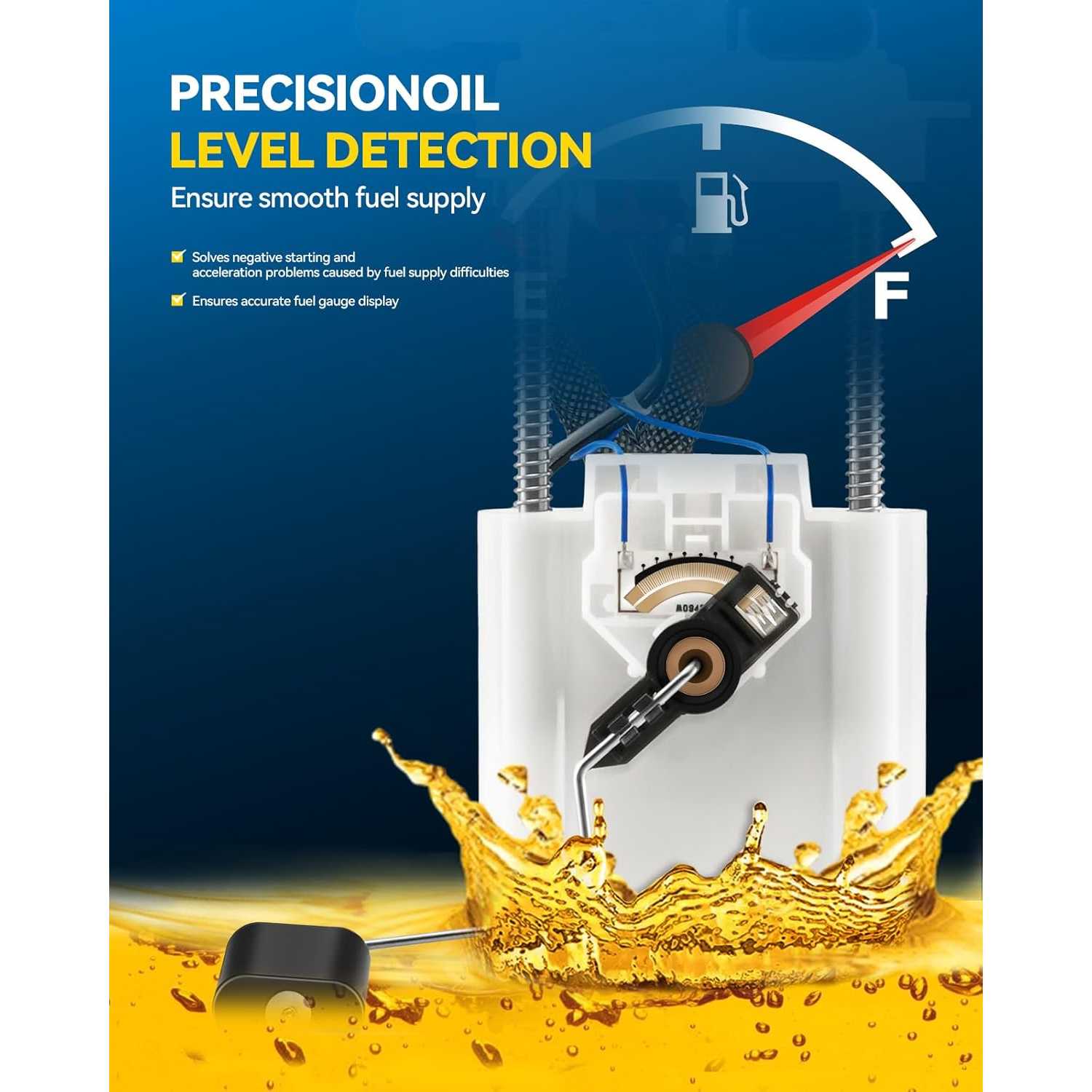

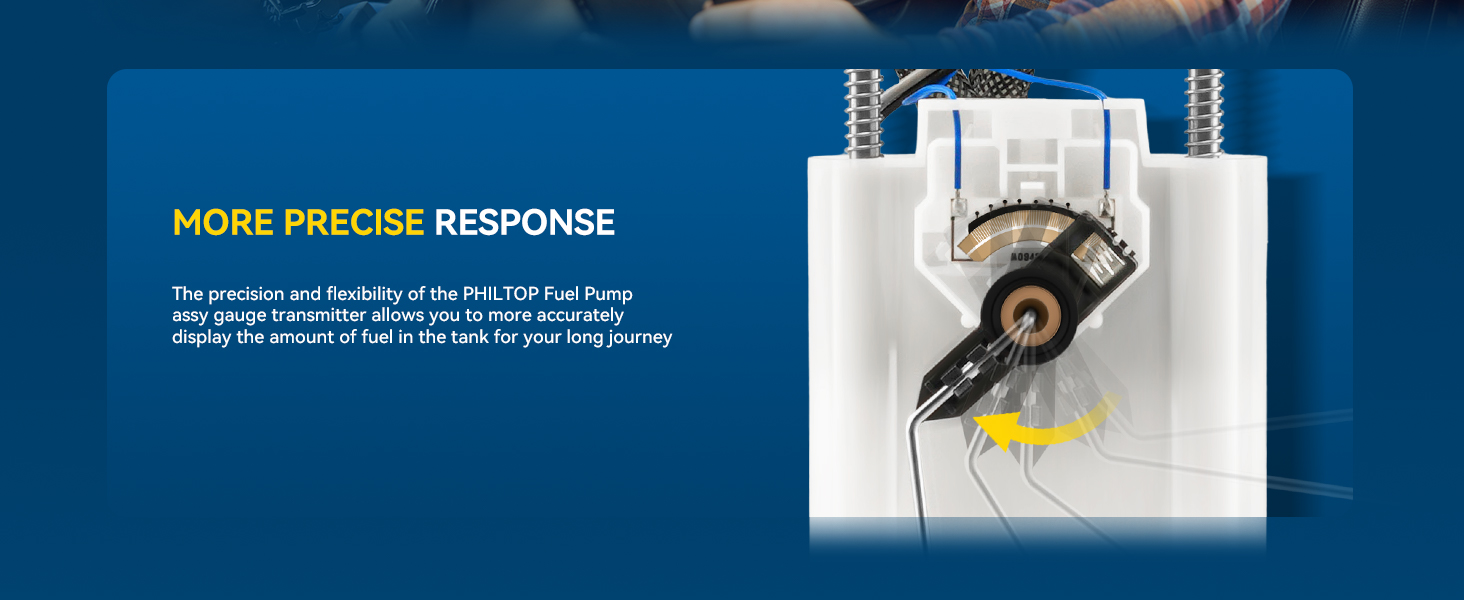

Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
40.0 Ω
Resistance Ohms Full
250.0 Ω
Average Flow Rating
18 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
109.0 PSI
Outlet Outside Diameter
0.375 in
Outlet Quantity
3
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller

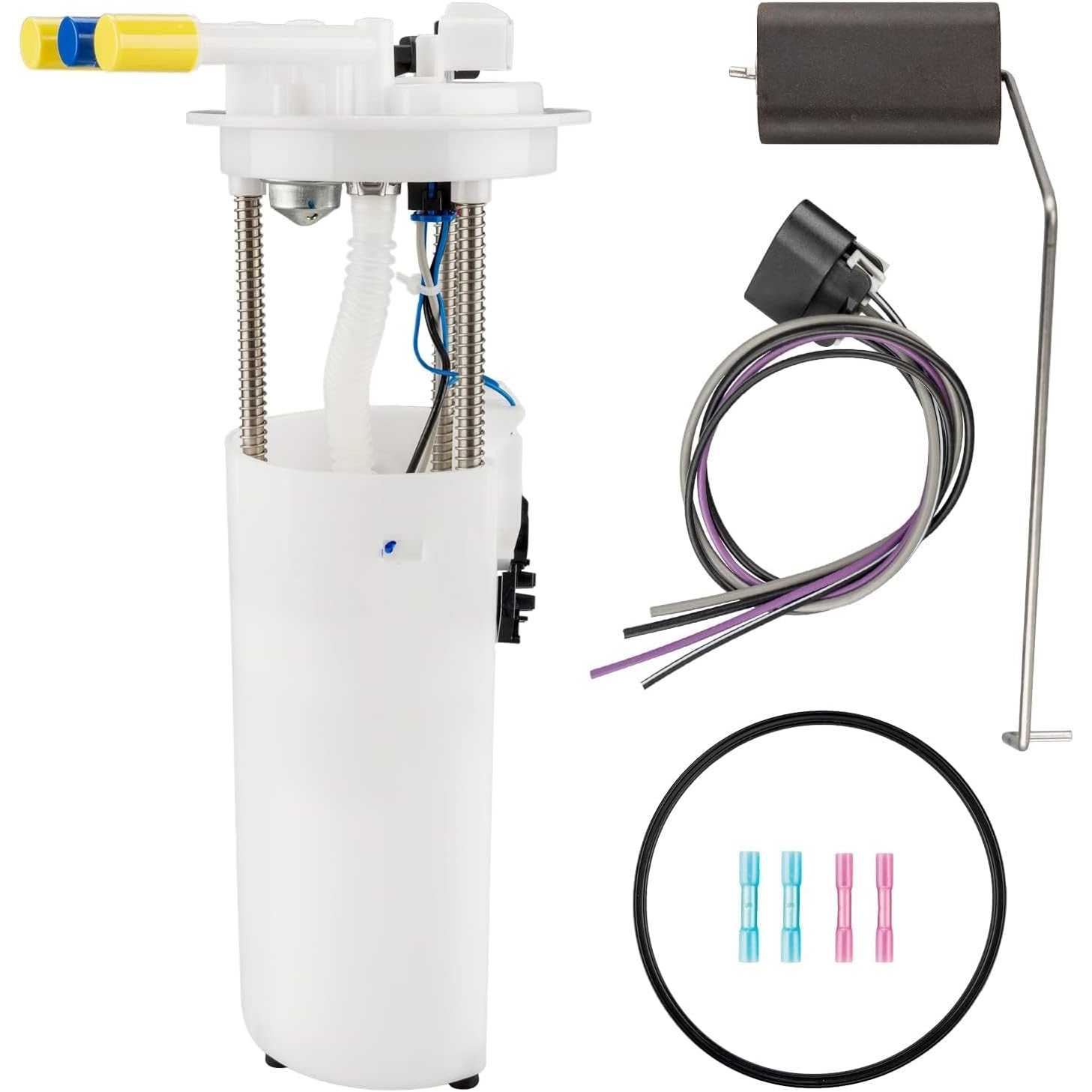

Items Included
1x Fuel Pump Assembly - FG0102
Warranty Period
2-Year
OE Number
P1000M,19331241,19369884,19177237,25316320
Part Number
FG0102,SP3369M,P74920M,9535058,USEP3369M,5302680,E3369M,F2370A,MU167,150189,402P3369M,67301,TU442,2630371,1AMFP00185,AFS0386S,4010213,DFG0102,FP5232,2920219,237756,M2246720,TNKSP3369M,EC369M,D11113501TG,C0165M

Highlights

  • Fitment: Compatible with [Chevrolet] 1999-2002 Camaro 3.8L, [Pontiac] 1999-2002 Firebird 3.8L.
  • Reference Number: 5302680, 1AMFP00185, 67301, AFS0386S, 4010213, DFG0102, FG0102, SP3369M, P74920M, E3369M, 9535058, FP5232, 19331241, 19369884, 19177237, 25316320, F2370A, MU167, 150189, 402P3369M, P1000M, USEP3369M, TU442, 2630371, 2920219, 237756, M2246720, TNKSP3369M, EC369M, D11113501TG, C0165M.
  • Related Parts: ① Fuel Pump, ② Strainer, ③ Seal Ring, ④ Pressure Sensors.
  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1999 - 20021999 - 2002
MakeChevroletPontiac
ModelCamaroFirebird
TrimBaseBase
Engine3.8L V63.8L V6
Note--

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

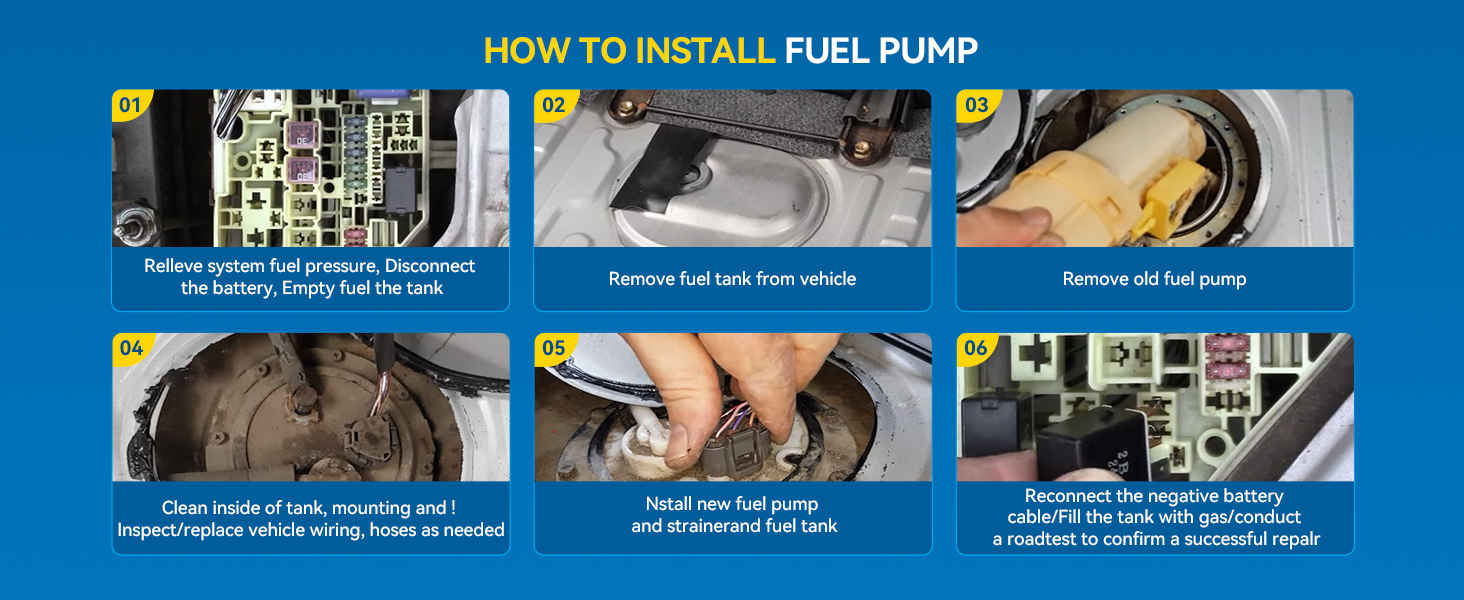

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

Electric Fuel PumpElectric Fuel Pump

Reviews

5.0/5

Based on 3 reviews

5100%
40%
30%
20%
10%

Damon

07/11/2023

Verified buyer

Exact fit. Replaced my 8 year old pump. After priming the car fired right up. Great price. Will see how long this one lasts. So far so good.

Tom_Handy_897

01/10/2026

The quality of this pump is really impressive for the price. It feels sturdy and well-made. A great value overall.
