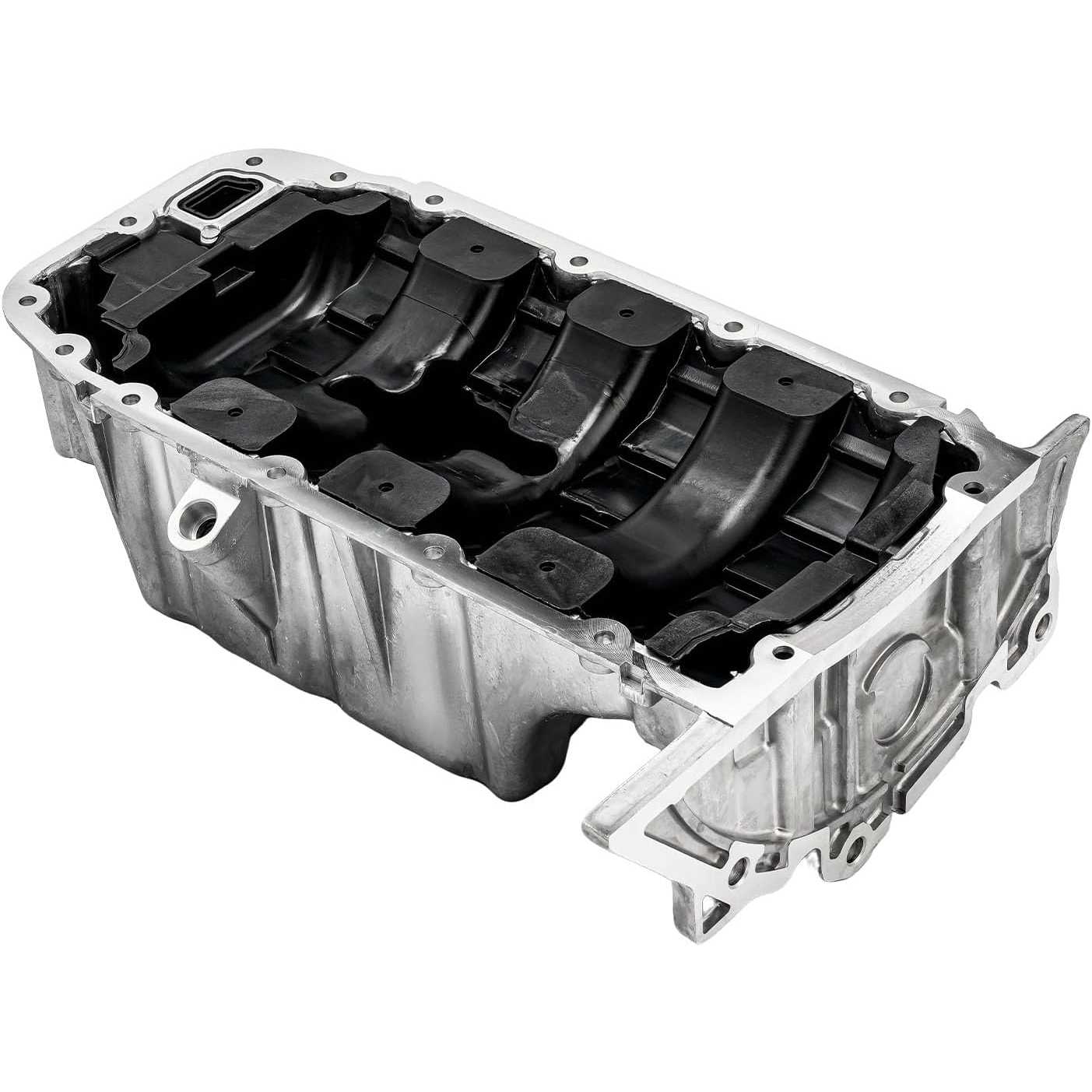

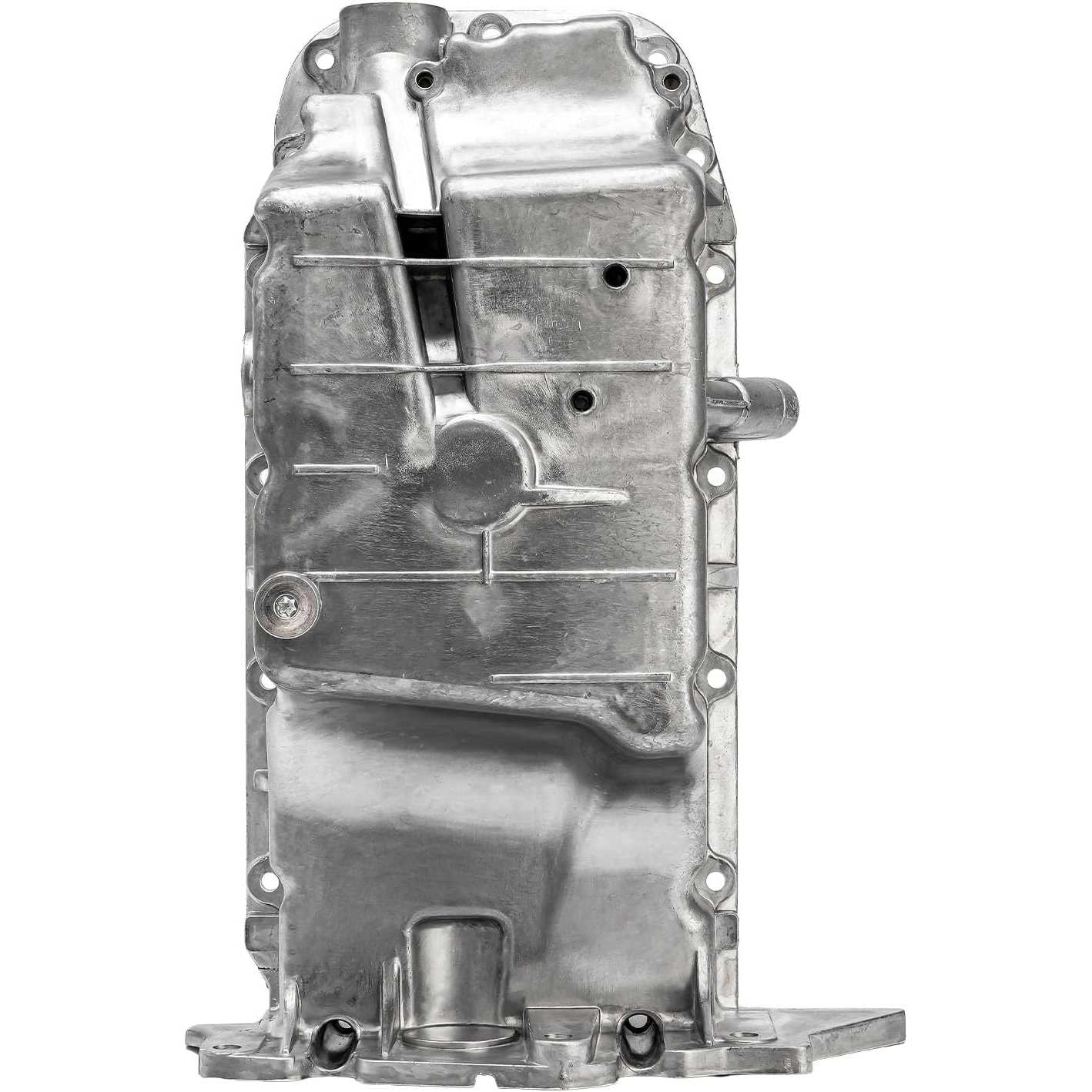

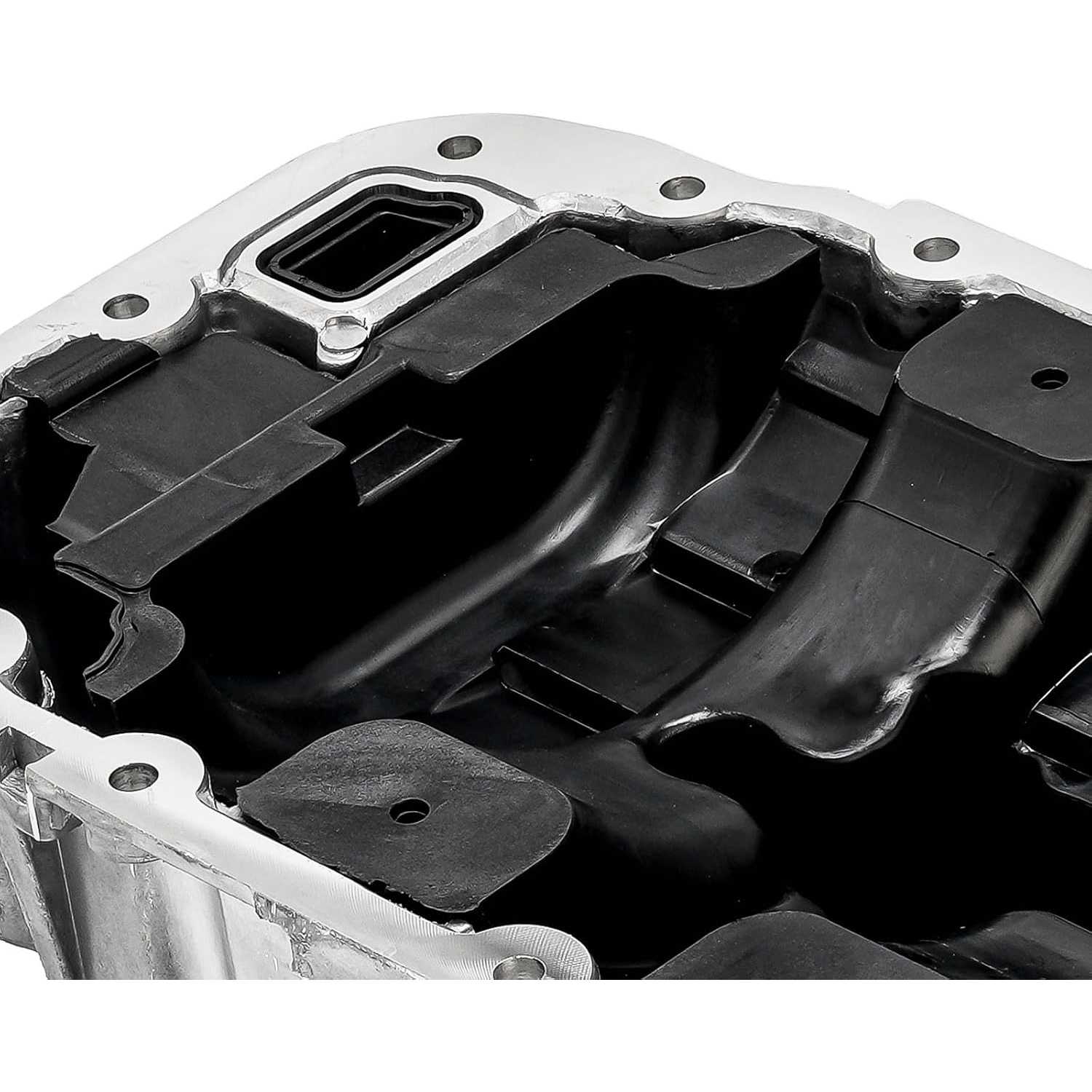

2016 Chevrolet Cruze Limited 1.8L | w/Drain Plug Engine Oil Pan | GMP62A - PHILTOP

2016 Chevrolet Cruze Limited 1.8L | w/Drain Plug Engine Oil Pan | GMP62A - PHILTOP

Machined

With Drain Plug

Aluminum

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
95ISEOP0467US

Specifications

Brand
PHILTOP
Drain Plug Included
Yes
Screws Included
No
Gasket Included
No
Material
Aluminum
Surface Finish
Machined
Items Included
1x Engine Oil Pan With Drain Plug - GMP62A
Color
Silver
Warranty Period
2-Year
Part Number
GMP62A

Highlights

  • [Vehicle Fitment]: 2011-2015 Cruze 1.8L(Automatic), 2012-2018 Sonic 1.8L(Automatic), 2016 Cruze Limited(Trans:Automatic,EngDesign:LUW), 2008 Astra
  • [Reference Part Number]: GMP62A,25194722,55572041,55581970
  • [Package Contents]: 1x Engine Oil Pan With Drain Plug - GMP62A
  • [Premium Aluminum Construction]: Forged from high-grade cast aluminum alloy, this oil pan is lightweight yet durable, delivering outstanding heat dissipation to reduce oil temperatures and minimize engine wear. Its precision CNC-machined surface guarantees a tight seal, preventing oil leakage under thermal fluctuations. It slows oil degradation, making it ideal for heavy-duty and high-speed driving applications.
  • [Enhanced Protection & Fit]: This aluminum oil pan offers greater structural rigidity and superior impact resistance over standard parts, effectively shielding the engine bottom from road gravel and minor impacts. Anti-corrosion surface treatment ensures long service life in humid or salt-spray environments. Featuring universal OE-compatible dimensions, it installs effortlessly and delivers stable, long-lasting protection for daily driving and performance use.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20152011 - 20152016201620162012 - 20182012 - 20182012 - 201420082008
MakeChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletSaturnSaturn
ModelCruzeCruzeCruze LimitedCruze LimitedCruze LimitedSonicSonicSonicAstraAstra
TrimLLSLLSLTLSLTLTZXEXR
Engine1.8L L41.8L L41.8L L41.8L L41.8L L41.8L L41.8L L41.8L L41.8L L41.8L L4
Note----------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the new oil pan’s material, mounting holes and drain-plug position match the original.
  • Prepare the correct gasket or oil-resistant sealant, new drain-plug washer, specified oil and filter.
  • Inspect the new pan and mounting flange for cracks, deformation or damage.
  • Allow the engine or transmission to cool, then support the vehicle securely with jack stands. Never work under a vehicle supported only by a jack.

Installation Steps

  • Step-1: Drain the Oil:Allow the system to cool, then drain the oil completely. Hot oil may cause burns.
  • Step-2: Remove the Old Oil Pan:Disconnect obstructing components, loosen the bolts diagonally, and carefully remove the pan.
  • Step-3: Clean the Mating Surface:Remove all oil, debris, and old sealant. Do not scratch or sand the sealing surface.
  • Step-4: Apply the Gasket or Sealant:Install a new gasket or apply an even bead of approved sealant. Do not reuse the old gasket or apply excessive sealant.
  • Step-5: Install the New Oil Pan:Align the pan, hand-start all bolts, and tighten them diagonally in stages to the specified torque. Allow the sealant to cure as directed.
  • Step-6: Complete the Installation:Install a new drain-plug washer, reconnect all removed components, and replace the oil filter when required.

After Installation

  • Refill with the specified oil before starting the engine.
  • Wait 2–3 minutes, check the oil level and top up as required.
  • Idle the engine for 3–5 minutes and inspect the drain plug and sealing surface for leaks.
  • Confirm that the oil-pressure warning light turns off.
  • Perform a short 5–10 km road test and inspect again after the first heat cycle.
  • If an oil leak or oil-pressure warning appears, shut off the engine immediately.

Product Description

12

Reviews

4.8/5

Based on 4 reviews

575%
425%
30%
20%
10%

SarahDrives_764

06/22/2026

Swapped out the old oil pan on my Astra with this one and it was a pretty simple job. The drain plug makes life so much easier. It's a good quality replacement and fit perfectly.

Mike from Texas_591

06/05/2026

This oil pan looks really solid and well-made for the price. The drain plug is a huge plus for easier oil changes. It's a great value and performs just as well as the original on my Cruze. Highly recommend.

FAQS

A severe dent may reduce clearance around the oil pickup or change capacity. If the pan is damaged, inspect the pickup and lubrication system before continued operation.

Check the gasket or sealant application, flange condition, bolt torque, drain plug seal, and possible leaks from components above the pan. Do not assume the pan is the only source.

Cure time depends on the sealant used. Follow the sealant manufacturer’s instructions and the vehicle service procedure before filling oil or starting the engine.
