2011-2017 Ford F-250 Super Duty | 4x Ignition Coil, 4x Ignition Coil, 16x Spark Plug Ignition Kit | AL3E12029AC/UF631 - PHILTOP

2011-2017 Ford F-250 Super Duty | 4x Ignition Coil, 4x Ignition Coil, 16x Spark Plug Ignition Kit | AL3E12029AC/UF631 - PHILTOP

Torque: 15 N

Quick Ignition Response

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
72ISIGC7367US

Specifications

Brand
PHILTOP
Items Included
4x Ignition Coil - UF639 4x Ignition Coil - UF631 16x Spark Plug - SP526
Quantity
24
Ground Electrode Material
Platinum
Ignition Coil Type
Pencil

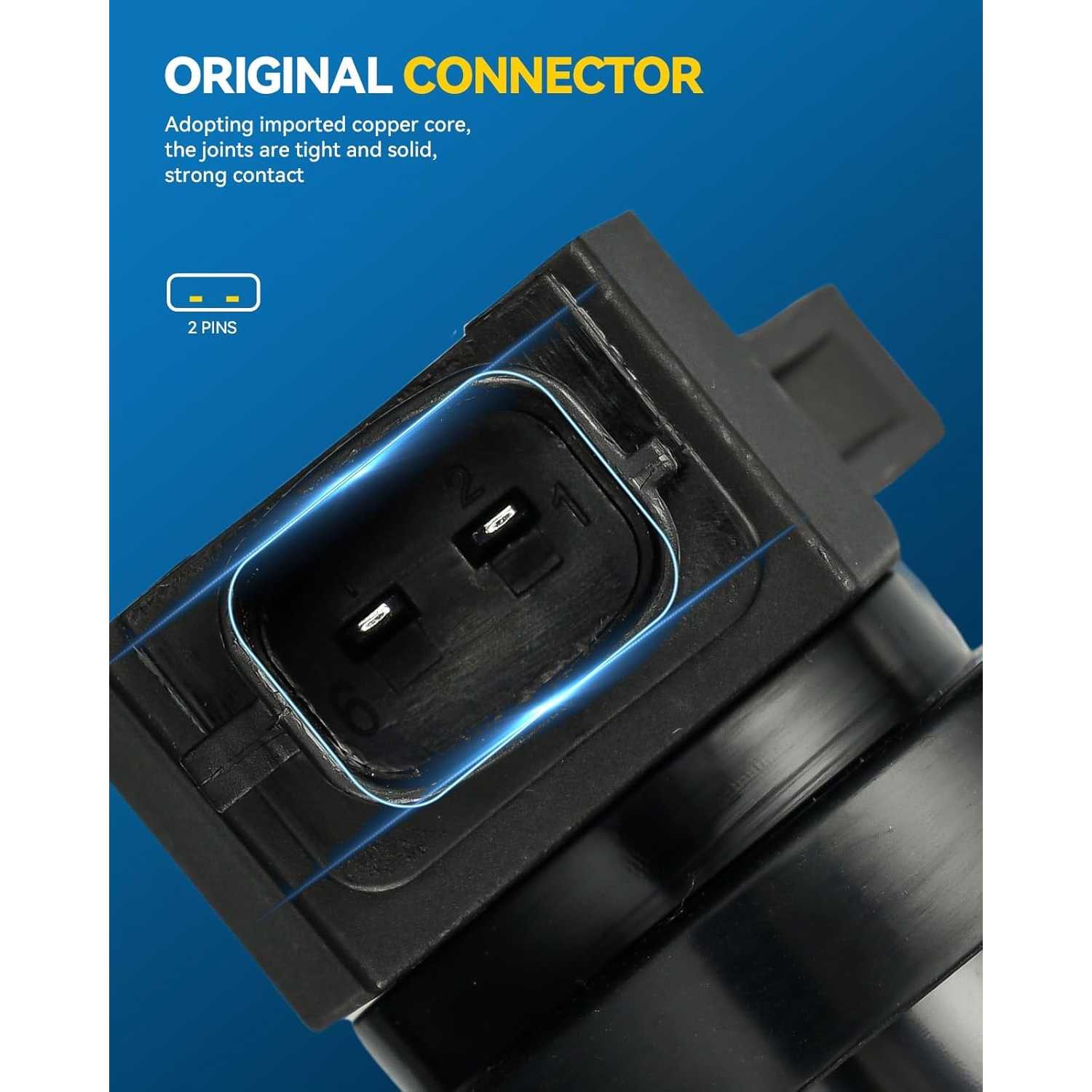

Ignition Coil Pin Count
2
Spark Plug Installation Torque
15 N
Spark Plug Thread Diameter
0.55 in/14 mm
Center Electrode Tip Material
Platinum
Center Electrode Core Material
Nickel Alloy
Spark Plug Insulator Height
2.06 in/52.27 mm
Warranty Period
2-Year
OE Number
AL3E12029AC,AL3E12029BC,HL3Z12029C,AL3Z12029A,AL3Z12029B
Part Number
UF631,UF639,6736301,C823,E1131,6736302,GN10618,GN10619,C824,E1139,SP526X,48761,U4037,48762,U4036,2IGC0441,2IGC0447,C1800,C1801,5C1857,5C1858,SC1857,COP552,CUF639,CUF631,COP549,IC941,IC742SB,IC734SB,5162,5161,CLS1369,MPSMF631,191239,MPSMF639,191238,CLS1375,191243,CF101,1813979,C18014,3312469904732174,3312469904732175,3312469904732233,3312469904732234,E1139P,5C1784,3312469904732173,E1131P,C18004,1813973,CF100

Highlights

  • [Vehicle Fitment]: Compatible with [Ford] 2010-2014 F-150 6.2L, 2011-2017 F-250 Super Duty 6.2L, 2011-2017 F-350 Super Duty 6.2L, 2017-2017 E-350 Super Duty 6.2L, 2017-2017 E-450 Super Duty 6.2L
  • [OEM Spark Plugs and Coil Packs Design]: Meets strict OE specifications for precise fit and performance, matching or exceeding the original factory part. Reference Number: AL3Z12029B, AL3Z12029A
  • [High-Quality Ignition Coils]: OEM replacement ignition coil | Ignites within 0.1–0.2 seconds | Resists corrosion at up to 140 °C | Provides RF interference protection | Offers a lifespan of 6500+ miles | Delivers high voltage output | Ensures smooth engine operation.
  • [High-Quality Spark Plugs]: Equipped with a premium iridium center electrode for exceptional durability (up to 3× longer life), stable engine idle, enhanced performance, improved fuel efficiency, and faster starts.
  • [Easy Installation]: Rigorous testing ensures maximum durability. Backed by 166+ years of expertise for simple, safe installation and reliable performance.
  • [Warm Tips]: Please enter your vehicle’s year, make, and model to verify fitment before purchasing.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year201720172013 - 20142013 - 20142011 - 20122011 - 201420112011 - 20142010 - 20142013 - 20142011 - 20172011 - 20172013 - 20172011 - 20172011 - 20172011 - 20172011 - 20172013 - 20172011 - 20172011 - 2017
MakeFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFord
ModelE-350 Super DutyE-450 Super DutyF-150F-150F-150F-150F-150F-150F-150F-150F-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super Duty
TrimBaseBaseFX2FX4Harley-Davidson EditionLariatLariat LimitedPlatinumSVT RaptorXLTKing RanchLariatPlatinumXLXLTKing RanchLariatPlatinumXLXLT
Engine6.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V86.2L V8
Note--------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Related Diagnostic Codes

  • P0300-Random/multiple-cylinder misfire — inspect the spark plugs, ignition coils, wiring and fuel system.
  • P0301–P0306-Specific-cylinder misfire — inspect the plug, coil and wiring for the indicated cylinder.
  • P0350-Ignition-coil primary/secondary circuit fault — check coil resistance, connectors and wiring.
  • P0351–P0356-Specific ignition-coil circuit fault — inspect the corresponding coil circuit and wiring.

Checks Before Installation

  • Confirm the ignition coils and spark plugs match the vehicle and original parts.
  • Check that the battery voltage meets the vehicle specification; the manual recommends at least 12.4V with the engine off.
  • Inspect the coil housings, connectors and wiring for cracks, corrosion or damage.
  • Check the spark-plug wells for oil, carbon deposits or debris.
  • Allow the engine to cool completely before removing the spark plugs.
  • Confirm the specified spark-plug gap and installation torque in the vehicle service manual.

Installation Steps

  • Step-1: Disconnect the Battery: Switch off the ignition and disconnect the negative battery cable to prevent short circuits or accidental starting.
  • Step-2: Remove the Old Parts: Label the connectors when necessary, unplug and remove the ignition coils, then clean around each spark-plug well before removing the plugs.
  • Step-3: Check the New Spark Plugs: Confirm the correct model and measure the electrode gap with a feeler gauge. Do not install dropped or damaged spark plugs.
  • Step-4: Install and Torque the Spark Plugs: Thread each spark plug fully by hand to prevent cross-threading. Then tighten it with a torque wrench to the vehicle manufacturer’s specified torque. Do not overtighten.
    Gasket seat and tapered seat spark plugs compared

    Gasket Seat Spark Plug: Uses a crush gasket to seal against the cylinder head.

    Tapered Seat Spark Plug – No Gasket: Uses the tapered metal seat to seal directly against the cylinder head.

  • Step-5: Complete the Installation: Install the ignition coils, tighten the mounting bolts to specification, fully seat every connector and reconnect the negative battery cable.

Spark Plug Torque Reference

Spark Plug ThreadRecommended Torque
18 mm (M18)35–40 N·m (25.8–29.5 lb-ft)
14 mm (M14)25–30 N·m (18.4–22.1 lb-ft)
12 mm (M12)15–20 N·m (11.1–14.8 lb-ft)
10 mm (M10)10–12 N·m (7.4–8.9 lb-ft)
8 mm (M8)8–10 N·m (5.9–7.4 lb-ft)
Tapered Seat – No Gasket10–20 N·m (7.4–14.8 lb-ft)

Important: This table is for general reference only. Required torque varies by spark-plug design, seat type and cylinder-head material. Always follow the vehicle service manual or spark-plug manufacturer’s specification when available.

After Installation

  • Clear historical fault codes with an OBD-II scanner.
  • Start the engine and let it idle for several minutes.
  • Confirm smooth idle, normal acceleration and no misfire or unusual vibration.
  • Check that the malfunction indicator light remains off.
  • Perform a short road test, then rescan for returned fault codes.

Product Video

Product Description

coil pack1

Reviews

4.7/5

Based on 7 reviews

586%
40%
314%
20%
10%

Customer photos and videos

MilMil

09/29/2026

Verified buyer

It has good quality and great functionality. It looks gorgeous and works very well with my car. Depending on the model, it can handle high speeds and heavy use without any issues. The silicone material is also high quality and does not appear to burn or overheat during use. Overall, I like it and am very satisfied with its quality and performance.

Lord LeoLord Leo

09/26/2026

Verified buyer

Iridium spark plugs. Twice as many as you need so you have a spare set. The ignition coils, all eight of them. Fits in

FAQS

No FAQs have been added for this product yet.
