2017-2021 Nissan NV2500 5.6L V8 Ignition Coil & Iridium Spark Plug Kit OE#22448EZ31B/UF813 - PHILTOP

2017-2021 Nissan NV2500 5.6L V8 Ignition Coil & Iridium Spark Plug Kit OE#22448EZ31B/UF813 - PHILTOP

Iridium

Torque: 15 N

Quick Ignition Response

4.4

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
76ISIGC4657US

Specifications

Brand
PHILTOP
Items Included
4x Ignition Coil - UF812 4x Ignition Coil - UF813 8x Spark Plug - 93501
Quantity
16
Ground Electrode Material
Iridium
Ignition Coil Type
Pencil

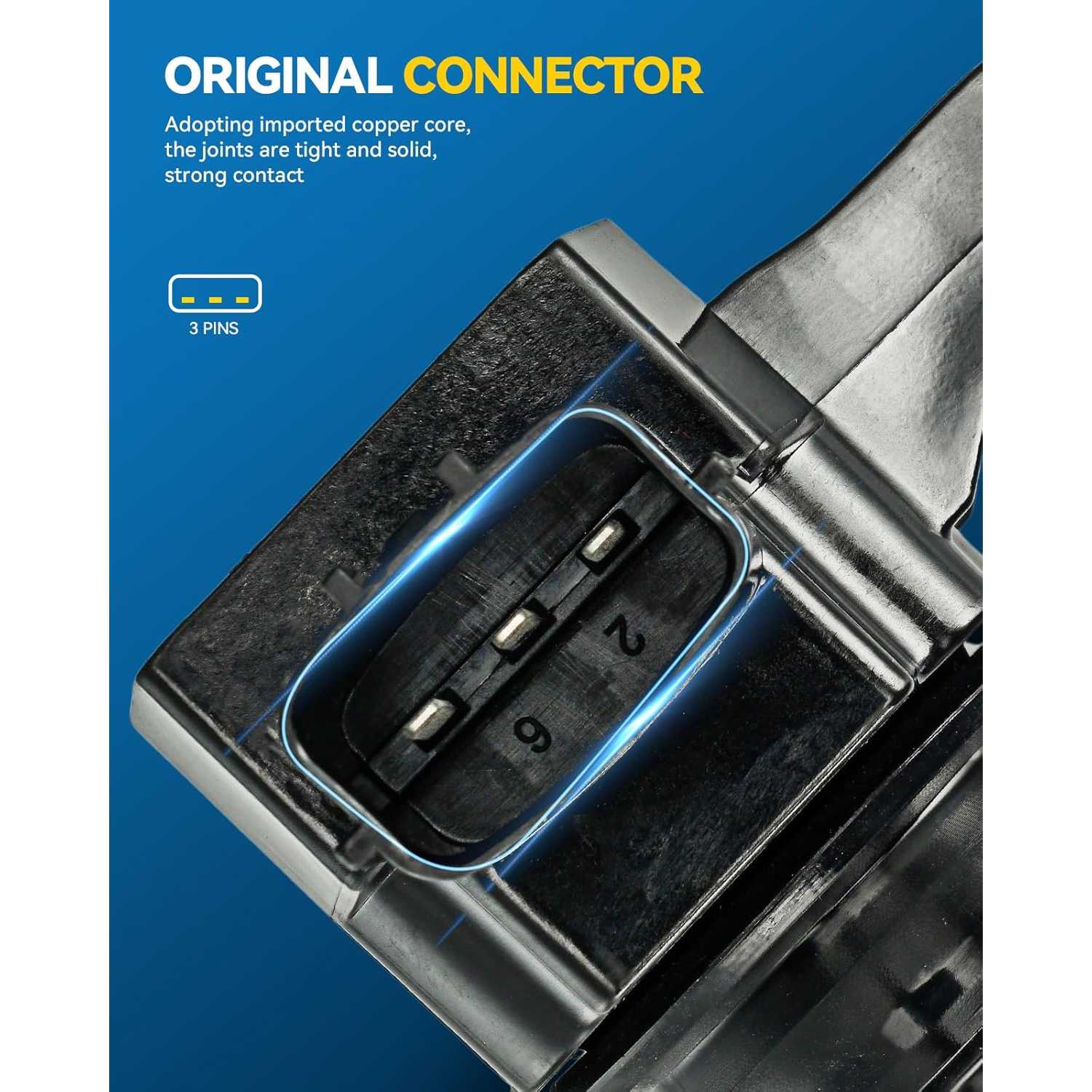

Ignition Coil Pin Count
3
Spark Plug Installation Torque
15 N
Spark Plug Gap
0.04 in
Spark Plug Thread Diameter
0.47 in/12 mm
Center Electrode Tip Material
Iridium
Center Electrode Core Material
Copper
Spark Plug Insulator Height
2.01 in/51.00 mm
Spark Plug Reach
1.04 in
Warranty Period
2-Year
OE Number
22448EZ31B,22448EZ31A
Part Number
UF813,UF812,GN10880,GN10881,C997,49142,49141,U5372,E1313,U5371,E1312,175331,3312469904732231,3312457019830696,3312457019830695

Highlights

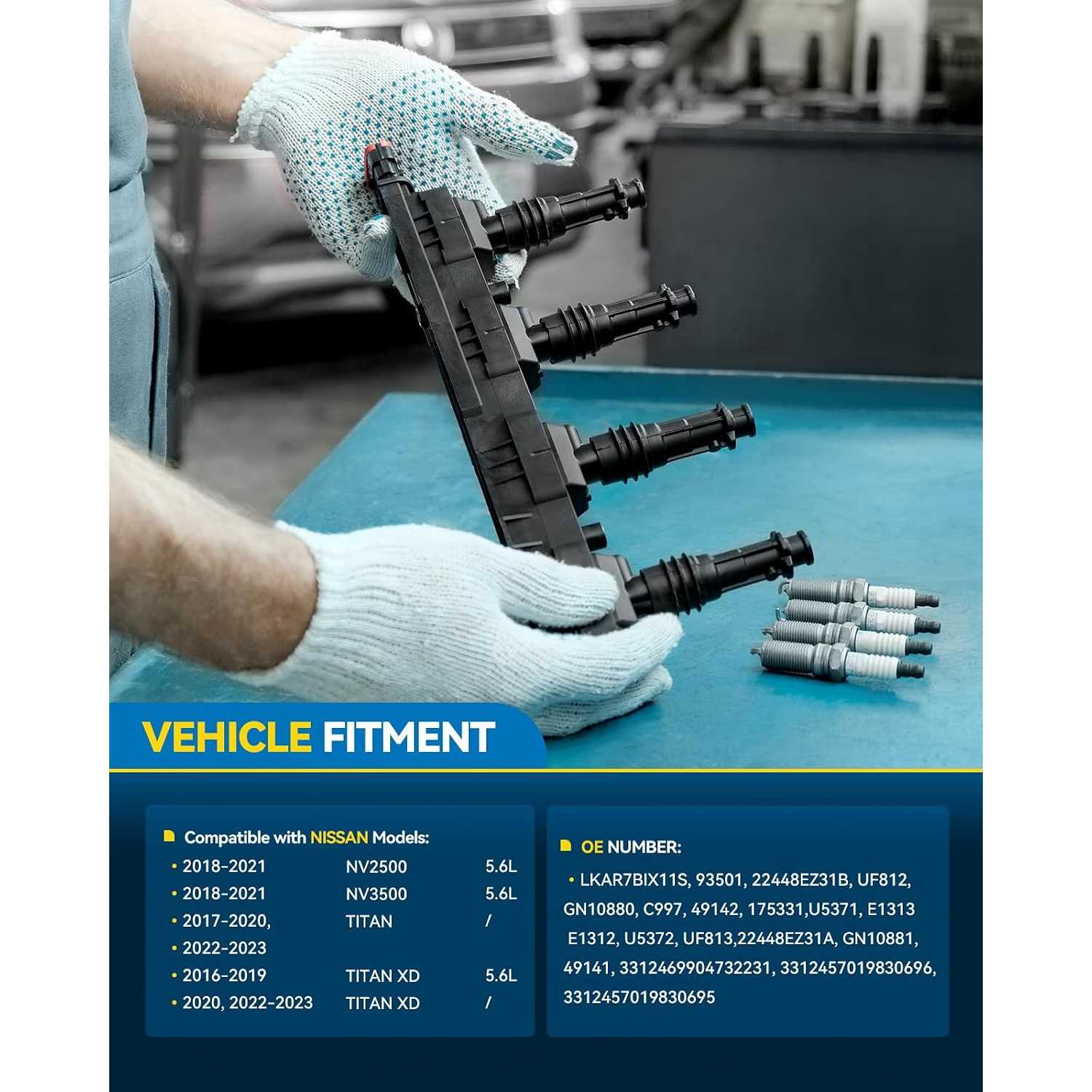

  • [Vehicle Fitment]: Compatible with [Nissan] 2017-2020,2022-2023 TITAN, 2016-2020,2022-2023 TITAN XD 5.6L, 2018-2021 NV2500/NV3500 5.6L
  • [OEM Spark Plugs and Coil Packs Design]: Meets strict OE specifications for precise fit and performance, matching or exceeding the original factory part. Reference Number: LKAR7BIX11S, 93501, 22448EZ31B, UF812, GN10880, C997, 49142, 175331, 3312469904732231, 3312457019830696, 3312457019830695, E1312, U5372, UF813, 22448EZ31A, GN10881, 49141, U5371, E1313

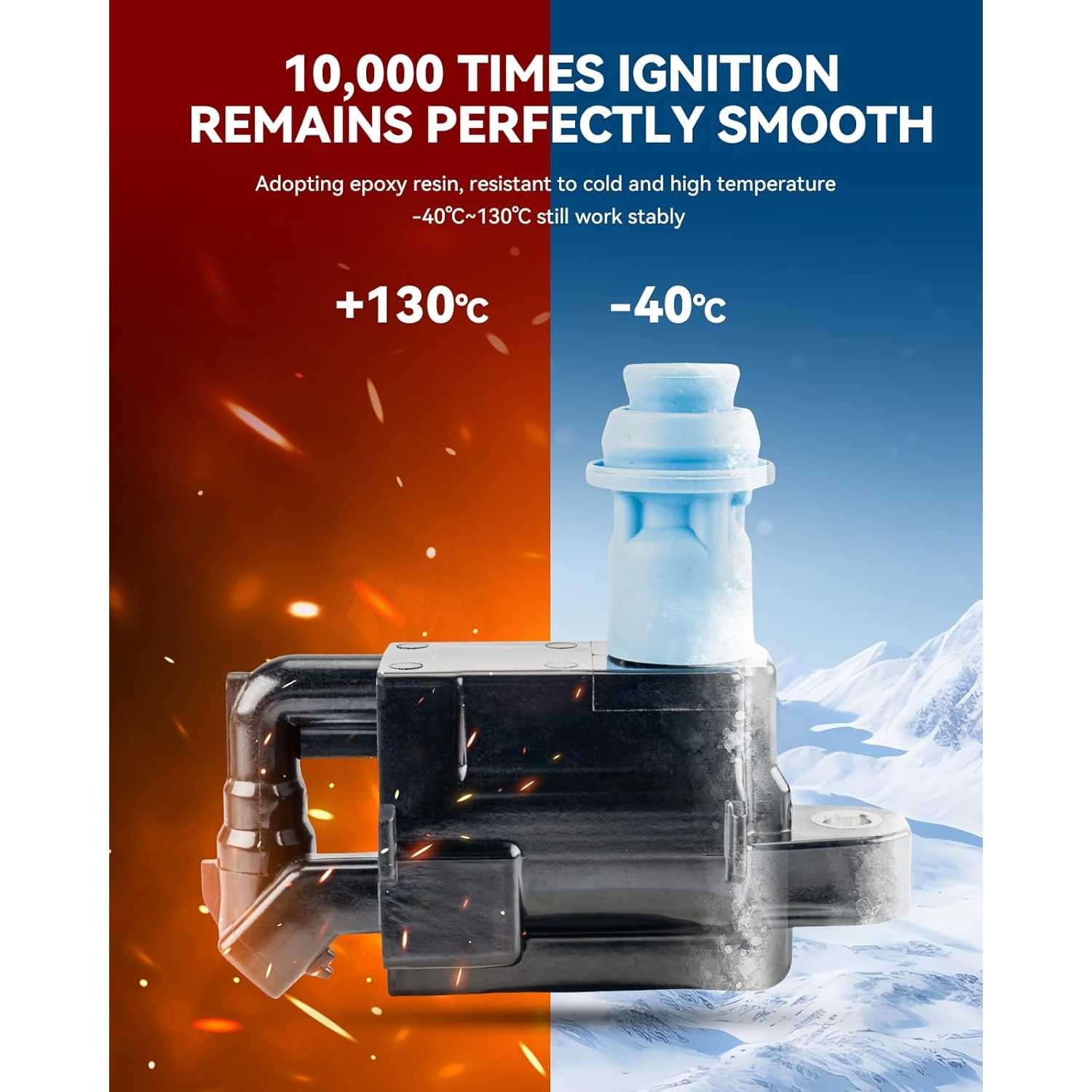

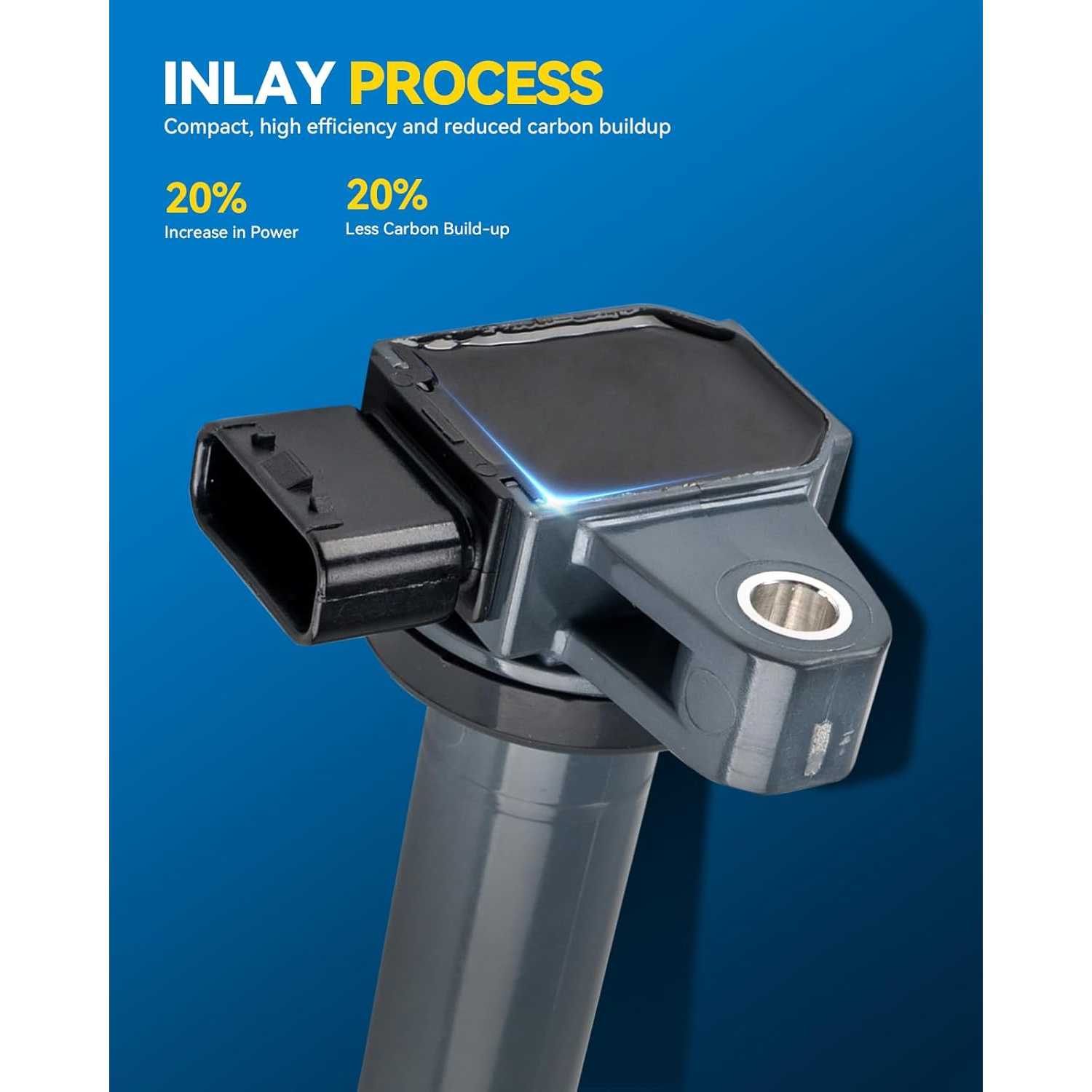

  • [High-Quality Ignition Coils]: OEM replacement ignition coil | Ignites within 0.1–0.2 seconds | Resists corrosion at up to 140 °C | Provides RF interference protection | Offers a lifespan of 6500+ miles | Delivers high voltage output | Ensures smooth engine operation.

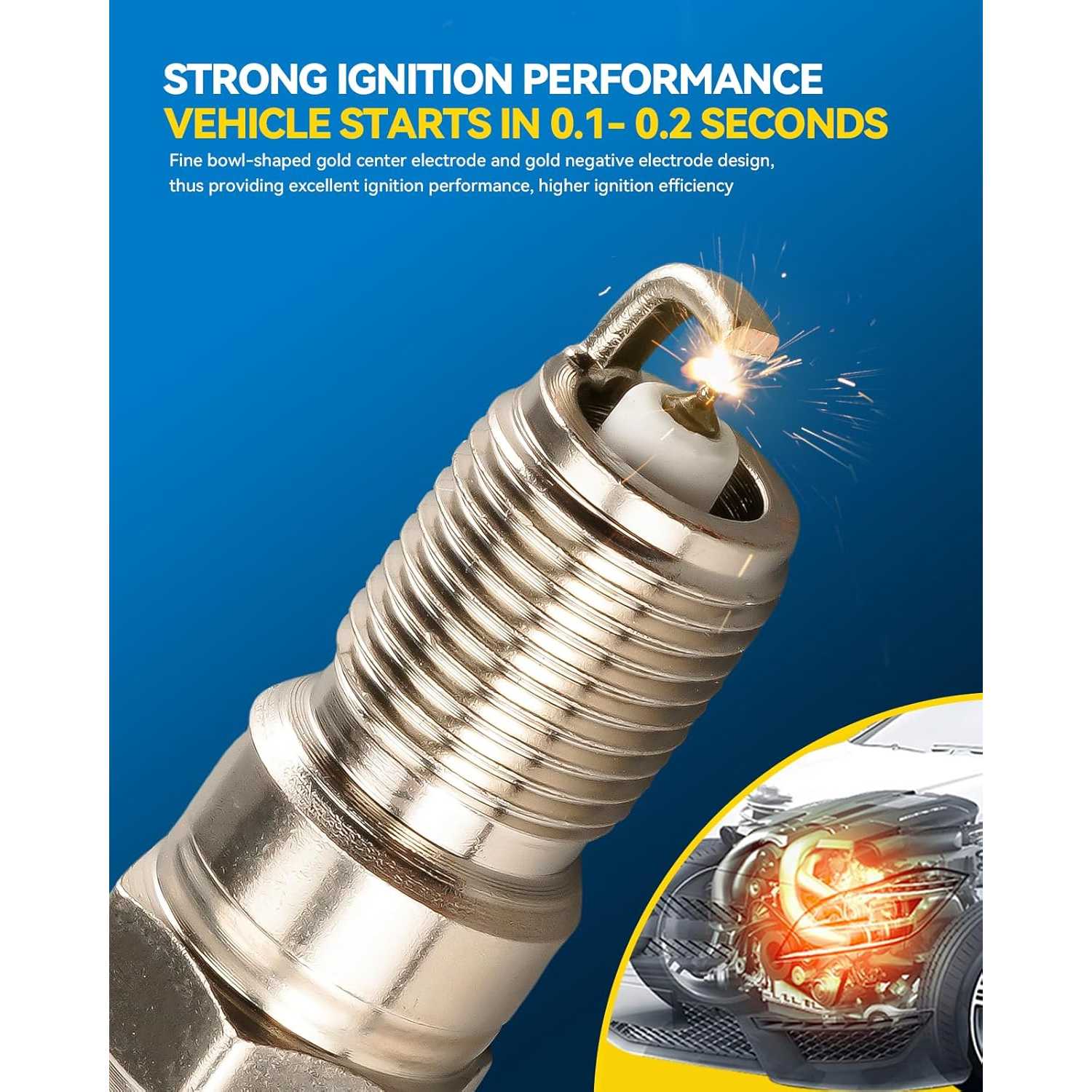

  • [High-Quality Spark Plugs]: Equipped with a premium iridium center electrode for exceptional durability (up to 3× longer life), stable engine idle, enhanced performance, improved fuel efficiency, and faster starts.
  • [Easy Installation]: Rigorous testing ensures maximum durability. Backed by 166+ years of expertise for simple, safe installation and reliable performance.
  • [Warm Tips]: Please enter your vehicle’s year, make, and model to verify fitment before purchasing.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2017 - 202120172017 - 20212017 - 20212017 - 20212017 - 20212017 - 20242017 - 20242017 - 20232017 - 20212017 - 20242016 - 20202022 - 20242016 - 20202022 - 20242016 - 20202022 - 20232016 - 20202016 - 20202022 - 2024
MakeNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissan
ModelNV2500NV2500NV2500NV3500NV3500NV3500TITANTITANTITANTITANTITANTITAN XDTITAN XDTITAN XDTITAN XDTITAN XDTITAN XDTITAN XDTITAN XDTITAN XD
TrimSSLSVSSLSVPRO-4XPlatinum ReserveSSLSVPRO-4XPRO-4XPlatinum ReservePlatinum ReserveSSSLSVSV
Engine5.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V85.6L V8
Note
From 01/2017
From 01/2017
From 01/2017
From 01/2017
From 01/2017
From 01/2017
UF812: Cyl. 5 to 8; UF813: Cyl. 1 to 4
UF812: Cyl. 5 to 8; UF813: Cyl. 1 to 4
UF812: Cyl. 5 to 8; UF813: Cyl. 1 to 4
UF812: Cyl. 5 to 8; UF813: Cyl. 1 to 4
UF812: Cyl. 5 to 8; UF813: Cyl. 1 to 4
---------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Related Diagnostic Codes

  • P0300-Random/multiple-cylinder misfire — inspect the spark plugs, ignition coils, wiring and fuel system.
  • P0301–P0306-Specific-cylinder misfire — inspect the plug, coil and wiring for the indicated cylinder.
  • P0350-Ignition-coil primary/secondary circuit fault — check coil resistance, connectors and wiring.
  • P0351–P0356-Specific ignition-coil circuit fault — inspect the corresponding coil circuit and wiring.

Checks Before Installation

  • Confirm the ignition coils and spark plugs match the vehicle and original parts.
  • Check that the battery voltage meets the vehicle specification; the manual recommends at least 12.4V with the engine off.
  • Inspect the coil housings, connectors and wiring for cracks, corrosion or damage.
  • Check the spark-plug wells for oil, carbon deposits or debris.
  • Allow the engine to cool completely before removing the spark plugs.
  • Confirm the specified spark-plug gap and installation torque in the vehicle service manual.

Installation Steps

  • Step-1: Disconnect the Battery: Switch off the ignition and disconnect the negative battery cable to prevent short circuits or accidental starting.
  • Step-2: Remove the Old Parts: Label the connectors when necessary, unplug and remove the ignition coils, then clean around each spark-plug well before removing the plugs.
  • Step-3: Check the New Spark Plugs: Confirm the correct model and measure the electrode gap with a feeler gauge. Do not install dropped or damaged spark plugs.
  • Step-4: Install and Torque the Spark Plugs: Thread each spark plug fully by hand to prevent cross-threading. Then tighten it with a torque wrench to the vehicle manufacturer’s specified torque. Do not overtighten.
    Gasket seat and tapered seat spark plugs compared

    Gasket Seat Spark Plug: Uses a crush gasket to seal against the cylinder head.

    Tapered Seat Spark Plug – No Gasket: Uses the tapered metal seat to seal directly against the cylinder head.

  • Step-5: Complete the Installation: Install the ignition coils, tighten the mounting bolts to specification, fully seat every connector and reconnect the negative battery cable.

Spark Plug Torque Reference

Spark Plug ThreadRecommended Torque
18 mm (M18)35–40 N·m (25.8–29.5 lb-ft)
14 mm (M14)25–30 N·m (18.4–22.1 lb-ft)
12 mm (M12)15–20 N·m (11.1–14.8 lb-ft)
10 mm (M10)10–12 N·m (7.4–8.9 lb-ft)
8 mm (M8)8–10 N·m (5.9–7.4 lb-ft)
Tapered Seat – No Gasket10–20 N·m (7.4–14.8 lb-ft)

Important: This table is for general reference only. Required torque varies by spark-plug design, seat type and cylinder-head material. Always follow the vehicle service manual or spark-plug manufacturer’s specification when available.

After Installation

  • Clear historical fault codes with an OBD-II scanner.
  • Start the engine and let it idle for several minutes.
  • Confirm smooth idle, normal acceleration and no misfire or unusual vibration.
  • Check that the malfunction indicator light remains off.
  • Perform a short road test, then rescan for returned fault codes.
