2013-2014 Subaru Outback 2.5L H4 | 4x Ignition Coil, 4x Spark Plug Iridium Ignition Kit | OE#22433AA650/UF721 - PHILTOP

2013-2014 Subaru Outback 2.5L H4 | 4x Ignition Coil, 4x Spark Plug Iridium Ignition Kit | OE#22433AA650/UF721 - PHILTOP

Iridium

Torque: 15 N

Quick Ignition Response

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
23ISIGC4987US

Specifications

Brand
PHILTOP
Items Included
4x Ignition Coil - UF710 4x Spark Plug - 93501
Quantity
8
Ground Electrode Material
Iridium
Ignition Coil Type
Pencil

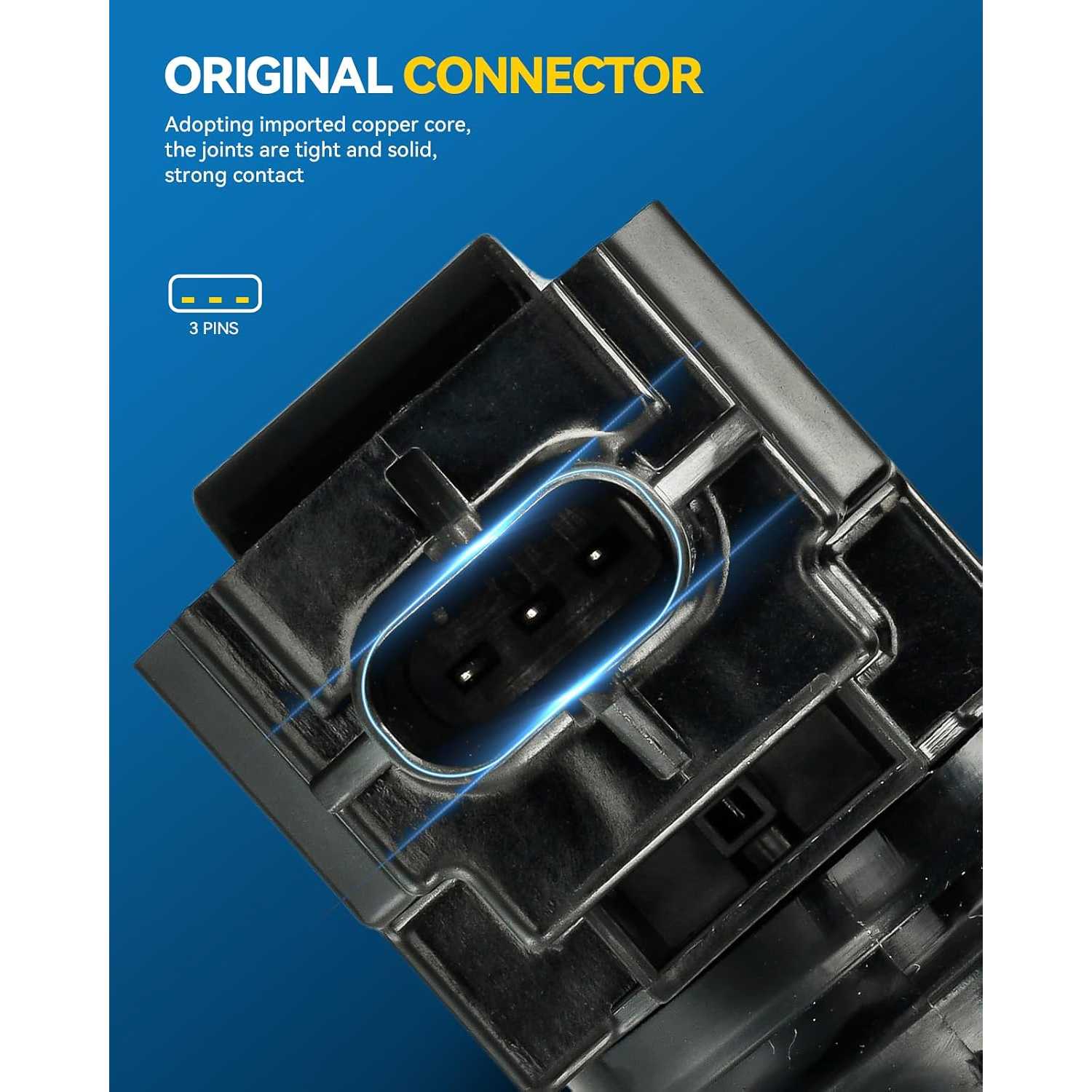

Ignition Coil Pin Count
3
Spark Plug Installation Torque
15 N
Spark Plug Gap
0.04 in
Spark Plug Thread Diameter
0.47 in/12 mm

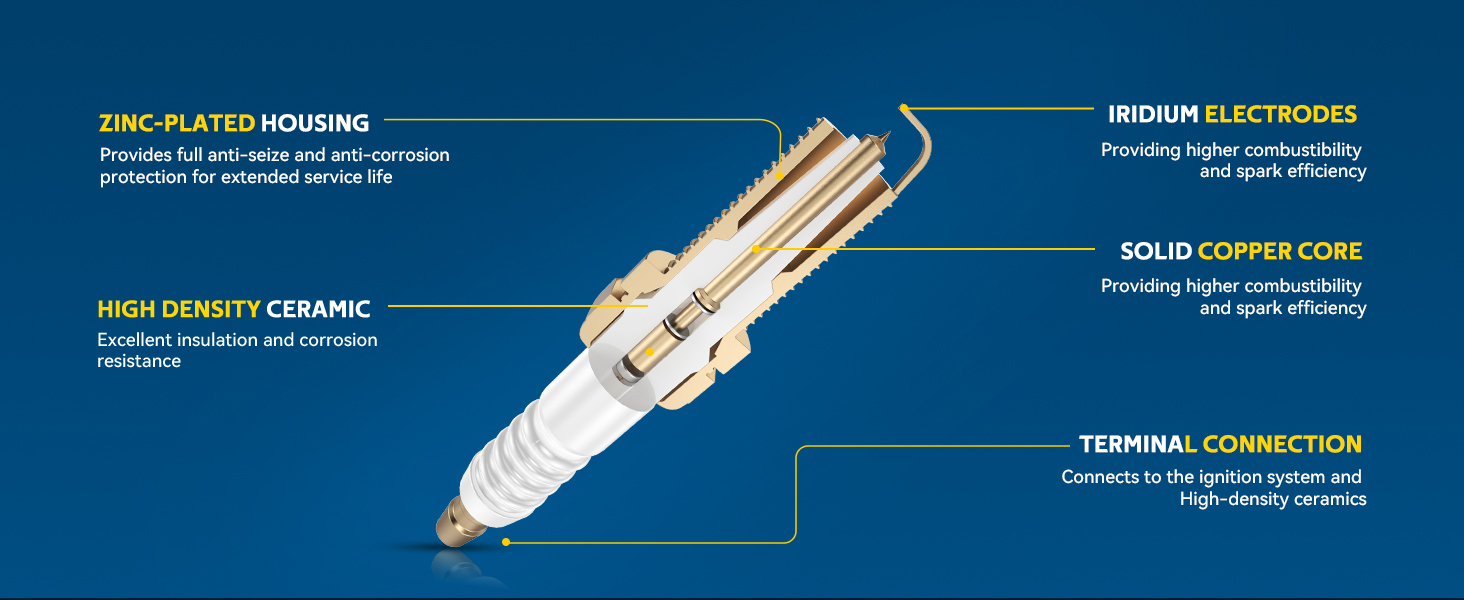

Center Electrode Tip Material
Iridium
Center Electrode Core Material
Copper
Spark Plug Insulator Height
2.01 in/51.00 mm
Spark Plug Reach
1.04 in
Warranty Period
2-Year
OE Number
22433AA650,22433AA652,SU00304713,22433AA651
Part Number
UF721,UF710,UF737,UF723,GN10685,E1210,2IGC0510,C870,E1237,49127,U5359,E1221,E1223,5C1899,C1842,U5282,U5356,E1224,1788569,IC827,IC825,GN10723,GN10727,368295,IC853,2505555870,2505555872,SKUF737,368321,368319,2IGC0350,1814018,IC843

Highlights

  • COMPLETE IGNITION TUNE UP KIT – Includes 4 ignition coil packs UF710 and 4 premium iridium spark plugs 93501.This coil packs and spark plugs set restores ignition performance, improves engine response, reduces misfires, and helps maintain smooth acceleration and fuel efficiency.
  • EXACT OEM REPLACEMENT – Designed to match OE specifications for fit, form, and function. Replaces worn ignition coils and spark plugs for dependable starting, stable idling, and consistent engine performance. Reference Coil Number:LKAR7BIX11S, 93501, UF721, 22433AA652, UF710, UF737, SU00304713, 22433AA651, UF723, GN10685, 5C1899, C1842, 22433AA650, U5282, E1210, C870, U5356, E1237, 49127, U5359, E1221, E1223, E1224, 1788569, IC827, IC825, GN10723, GN10727, 368295, IC85.
  • IMPROVED IGNITION PERFORMANCE – Delivers strong and stable spark energy to help eliminate rough idle, hesitation, engine misfires, hard starts, and loss of power caused by failing ignition components.
  • VEHICLE FITMENT – Compatible with [Subaru] 2014-2016 Forester 2.5L, 2013-2014 Outback/Legacy 2.5L, 2013-2014 XV Crosstrek GAS, 2013-2015 Impreza 2.0L
  • WARIM TIPS - Please enter your vehicle’s year, make, and model to verify fitment before purchasing.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2013 - 20142013 - 20142013 - 2014201520152014 - 20162014 - 20162014 - 20162014 - 20162013 - 20152013 - 20152013 - 20152013 - 20152013 - 20152013 - 20142013 - 20142013 - 201420142013 - 20142013 - 20142013 - 2014201420142013 - 20142013 - 2014
MakeScionSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaruSubaru
ModelFR-SBRZBRZForesterForesterForesterForesterForesterForesterImprezaImprezaImprezaImprezaImprezaLegacyLegacyLegacyLegacyOutbackOutbackOutbackXV CrosstrekXV CrosstrekXV CrosstrekXV Crosstrek
TrimBaseLimitedPremium2.0XT Premium2.0XT Touring2.5i2.5i Limited2.5i Premium2.5i TouringBaseLimitedPremiumSport LimitedSport Premium2.5i2.5i Limited2.5i Premium2.5i Sport2.5i2.5i Limited2.5i PremiumHybridHybrid TouringLimitedPremium
Engine2.0L H42.0L H42.0L H42.0L H42.0L H42.5L H42.5L H42.5L H42.5L H42.0L H42.0L H42.0L H42.0L H42.0L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.5L H42.0L H42.0L H42.0L H42.0L H4
Note
To 04/2014
------------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Related Diagnostic Codes

  • P0300-Random/multiple-cylinder misfire — inspect the spark plugs, ignition coils, wiring and fuel system.
  • P0301–P0306-Specific-cylinder misfire — inspect the plug, coil and wiring for the indicated cylinder.
  • P0350-Ignition-coil primary/secondary circuit fault — check coil resistance, connectors and wiring.
  • P0351–P0356-Specific ignition-coil circuit fault — inspect the corresponding coil circuit and wiring.

Checks Before Installation

  • Confirm the ignition coils and spark plugs match the vehicle and original parts.
  • Check that the battery voltage meets the vehicle specification; the manual recommends at least 12.4V with the engine off.
  • Inspect the coil housings, connectors and wiring for cracks, corrosion or damage.
  • Check the spark-plug wells for oil, carbon deposits or debris.
  • Allow the engine to cool completely before removing the spark plugs.
  • Confirm the specified spark-plug gap and installation torque in the vehicle service manual.

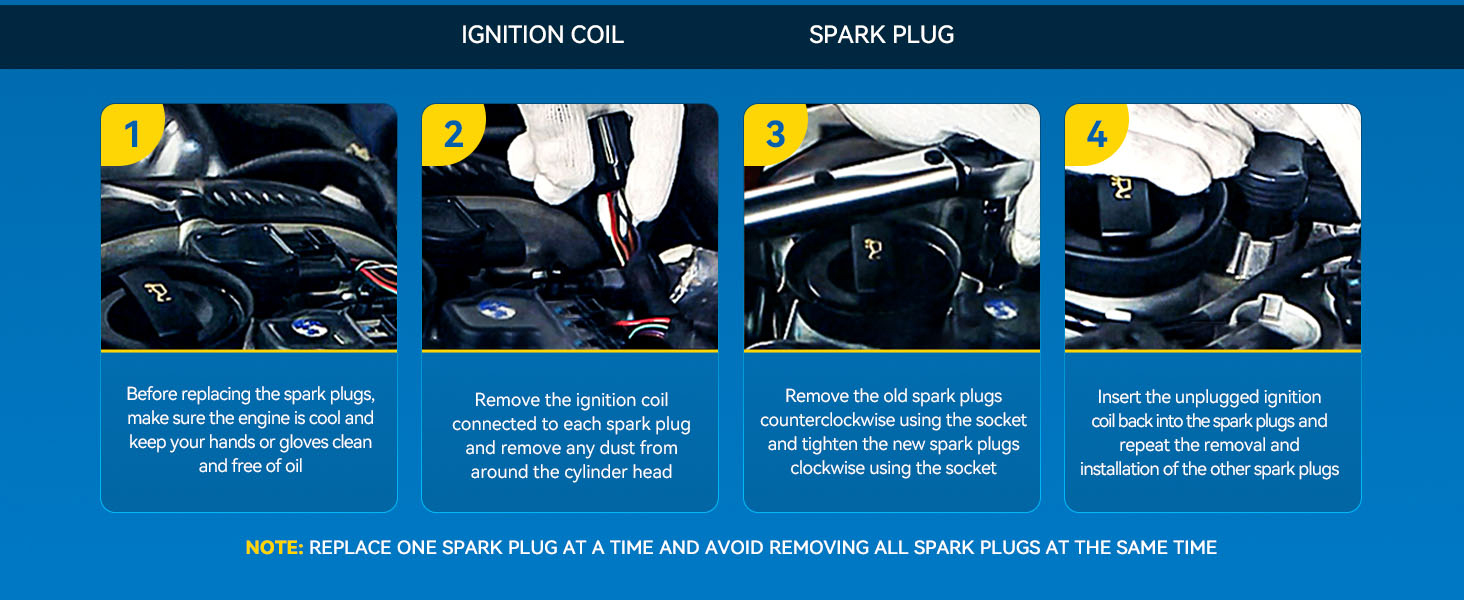

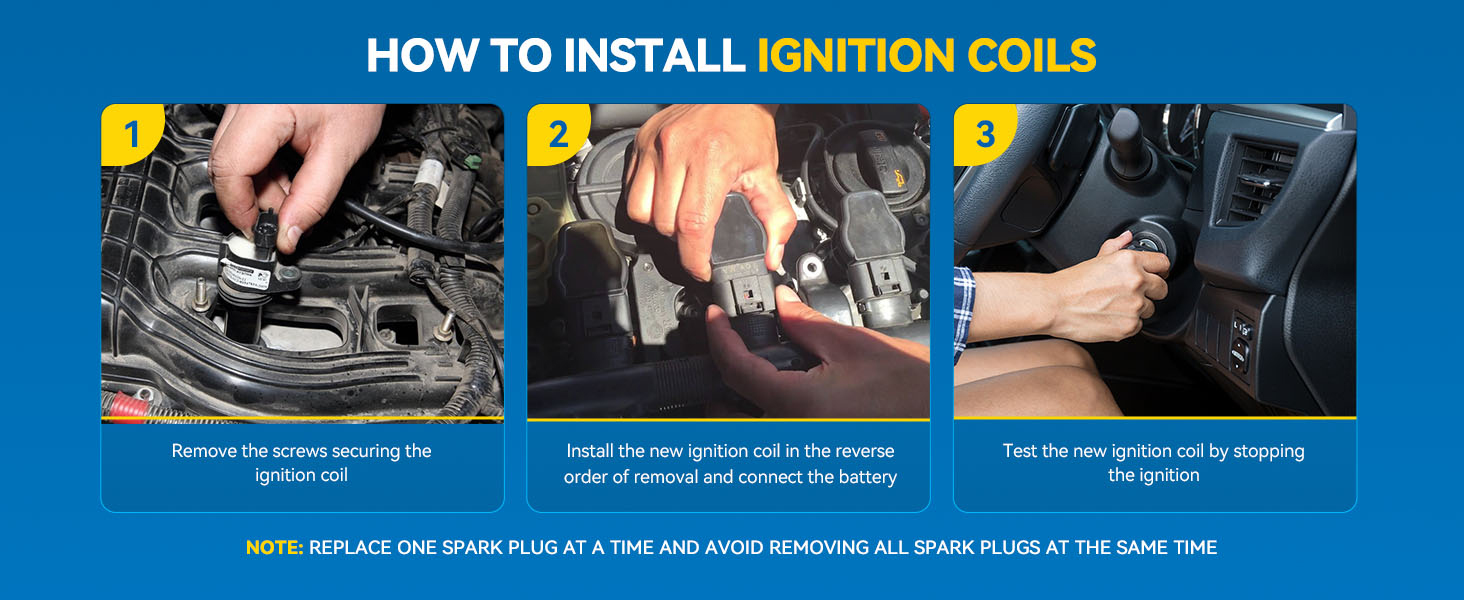

Installation Steps

  • Step-1: Disconnect the Battery: Switch off the ignition and disconnect the negative battery cable to prevent short circuits or accidental starting.
  • Step-2: Remove the Old Parts: Label the connectors when necessary, unplug and remove the ignition coils, then clean around each spark-plug well before removing the plugs.
  • Step-3: Check the New Spark Plugs: Confirm the correct model and measure the electrode gap with a feeler gauge. Do not install dropped or damaged spark plugs.
  • Step-4: Install and Torque the Spark Plugs: Thread each spark plug fully by hand to prevent cross-threading. Then tighten it with a torque wrench to the vehicle manufacturer’s specified torque. Do not overtighten.
    Gasket seat and tapered seat spark plugs compared

    Gasket Seat Spark Plug: Uses a crush gasket to seal against the cylinder head.

    Tapered Seat Spark Plug – No Gasket: Uses the tapered metal seat to seal directly against the cylinder head.

  • Step-5: Complete the Installation: Install the ignition coils, tighten the mounting bolts to specification, fully seat every connector and reconnect the negative battery cable.

Spark Plug Torque Reference

Spark Plug ThreadRecommended Torque
18 mm (M18)35–40 N·m (25.8–29.5 lb-ft)
14 mm (M14)25–30 N·m (18.4–22.1 lb-ft)
12 mm (M12)15–20 N·m (11.1–14.8 lb-ft)
10 mm (M10)10–12 N·m (7.4–8.9 lb-ft)
8 mm (M8)8–10 N·m (5.9–7.4 lb-ft)
Tapered Seat – No Gasket10–20 N·m (7.4–14.8 lb-ft)

Important: This table is for general reference only. Required torque varies by spark-plug design, seat type and cylinder-head material. Always follow the vehicle service manual or spark-plug manufacturer’s specification when available.

After Installation

  • Clear historical fault codes with an OBD-II scanner.
  • Start the engine and let it idle for several minutes.
  • Confirm smooth idle, normal acceleration and no misfire or unusual vibration.
  • Check that the malfunction indicator light remains off.
  • Perform a short road test, then rescan for returned fault codes.

Product Video

Product Description

coil pack1

Reviews

4.8/5

Based on 4 reviews

575%
425%
30%
20%
10%

Amanda_MomOfThree_386

05/03/2026

Installing these on my Forester was a breeze. Everything lined up perfectly. Way better than the last set I tried from another brand.

Nancy_FirstCar_597

02/22/2026

Swapped these out on my Outback and it was surprisingly easy. Everything fit perfectly and it runs like new. So much better than the old ones.

FAQS

No FAQs have been added for this product yet.
