2005-2011 Volvo XC90 4.4L V8 | 8x Ignition Coil, 8x Spark Plug Ignition Kit | OE#8687939/BKR6E - PHILTOP

2005-2011 Volvo XC90 4.4L V8 | 8x Ignition Coil, 8x Spark Plug Ignition Kit | OE#8687939/BKR6E - PHILTOP

Torque: 25 N

Quick Ignition Response

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
50ISIGC6587US

Specifications

Brand
PHILTOP
Items Included
8x Ignition Coil - UF574 8x Spark Plug - 6962
Quantity
16
Ground Electrode Material
Nickel Alloy
Ignition Coil Type
Pencil
Ignition Coil Pin Count
4
Spark Plug Installation Torque
25 N
Spark Plug Gap
0.03 in
Spark Plug Thread Diameter
0.55 in/14 mm
Center Electrode Tip Material
Nickel Alloy
Center Electrode Core Material
Copper
Spark Plug Insulator Height
1.99 in/50.50 mm
Spark Plug Reach
0.75 in
Warranty Period
2-Year
OE Number
8687939,86879390,2240120J06,0948200427,MS851368,9004851152000,1A5018110,8970129280,BP4918110,P0948200427,0046480362,A100E6277S,22401KA080,897012928,EG81567711,1P0718110
Part Number
BKR6E,6962,UF574,E1074,48745,GN10677,C980,U5219,C1722,5C1779,194005,5202,IC654SB,CE217,3312467757248740

Highlights

  • COMPLETE IGNITION TUNE UP KIT – Includes 8 ignition coil packs UF574 and 8 premium iridium spark plugs 6962.This coil packs and spark plugs set restores ignition performance, improves engine response, reduces misfires, and helps maintain smooth acceleration and fuel efficiency.
  • EXACT OEM REPLACEMENT – Designed to match OE specifications for fit, form, and function. Replaces worn ignition coils and spark plugs for dependable starting, stable idling, and consistent engine performance. Reference Coil Number:BKR6E, 6962, 2240120J06, 0948200427, MS851368, 9004851152000, 1A5018110, 8970129280, BP4918110, P0948200427, 0046480362, 46480362, A100E6277S, 22401KA080, 897012928, EG81567711, 1P0718110, UF574, 8687939, E1074, C1722, 48745, 5C1779.
  • IMPROVED IGNITION PERFORMANCE – Delivers strong and stable spark energy to help eliminate rough idle, hesitation, engine misfires, hard starts, and loss of power caused by failing ignition components.
  • VEHICLE FITMENT – Compatible with [Volvo] 2005-2011 XC90 4.4L, 2007-2010 S80 4.4L
  • WARIM TIPS - Please enter your vehicle’s year, make, and model to verify fitment before purchasing.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2007 - 20102005 - 201120062007 - 2008
MakeVolvoVolvoVolvoVolvo
ModelS80XC90XC90XC90
TrimV8V8V8 Ocean RaceV8 Sport
Engine4.4L V84.4L V84.4L V84.4L V8
Note
Gap 0.044"
Gap 0.044"
Gap 0.044"
Gap 0.044"

How to Install?

Installation Manual Download

User manual (PDF)
Download

Related Diagnostic Codes

  • P0300-Random/multiple-cylinder misfire — inspect the spark plugs, ignition coils, wiring and fuel system.
  • P0301–P0306-Specific-cylinder misfire — inspect the plug, coil and wiring for the indicated cylinder.
  • P0350-Ignition-coil primary/secondary circuit fault — check coil resistance, connectors and wiring.
  • P0351–P0356-Specific ignition-coil circuit fault — inspect the corresponding coil circuit and wiring.

Checks Before Installation

  • Confirm the ignition coils and spark plugs match the vehicle and original parts.
  • Check that the battery voltage meets the vehicle specification; the manual recommends at least 12.4V with the engine off.
  • Inspect the coil housings, connectors and wiring for cracks, corrosion or damage.
  • Check the spark-plug wells for oil, carbon deposits or debris.
  • Allow the engine to cool completely before removing the spark plugs.
  • Confirm the specified spark-plug gap and installation torque in the vehicle service manual.

Installation Steps

  • Step-1: Disconnect the Battery: Switch off the ignition and disconnect the negative battery cable to prevent short circuits or accidental starting.
  • Step-2: Remove the Old Parts: Label the connectors when necessary, unplug and remove the ignition coils, then clean around each spark-plug well before removing the plugs.
  • Step-3: Check the New Spark Plugs: Confirm the correct model and measure the electrode gap with a feeler gauge. Do not install dropped or damaged spark plugs.
  • Step-4: Install and Torque the Spark Plugs: Thread each spark plug fully by hand to prevent cross-threading. Then tighten it with a torque wrench to the vehicle manufacturer’s specified torque. Do not overtighten.
    Gasket seat and tapered seat spark plugs compared

    Gasket Seat Spark Plug: Uses a crush gasket to seal against the cylinder head.

    Tapered Seat Spark Plug – No Gasket: Uses the tapered metal seat to seal directly against the cylinder head.

  • Step-5: Complete the Installation: Install the ignition coils, tighten the mounting bolts to specification, fully seat every connector and reconnect the negative battery cable.

Spark Plug Torque Reference

Spark Plug ThreadRecommended Torque
18 mm (M18)35–40 N·m (25.8–29.5 lb-ft)
14 mm (M14)25–30 N·m (18.4–22.1 lb-ft)
12 mm (M12)15–20 N·m (11.1–14.8 lb-ft)
10 mm (M10)10–12 N·m (7.4–8.9 lb-ft)
8 mm (M8)8–10 N·m (5.9–7.4 lb-ft)
Tapered Seat – No Gasket10–20 N·m (7.4–14.8 lb-ft)

Important: This table is for general reference only. Required torque varies by spark-plug design, seat type and cylinder-head material. Always follow the vehicle service manual or spark-plug manufacturer’s specification when available.

After Installation

  • Clear historical fault codes with an OBD-II scanner.
  • Start the engine and let it idle for several minutes.
  • Confirm smooth idle, normal acceleration and no misfire or unusual vibration.
  • Check that the malfunction indicator light remains off.
  • Perform a short road test, then rescan for returned fault codes.

Product Video

Product Description

coil pack1

Reviews

5.0/5

Based on 3 reviews

5100%
40%
30%
20%
10%

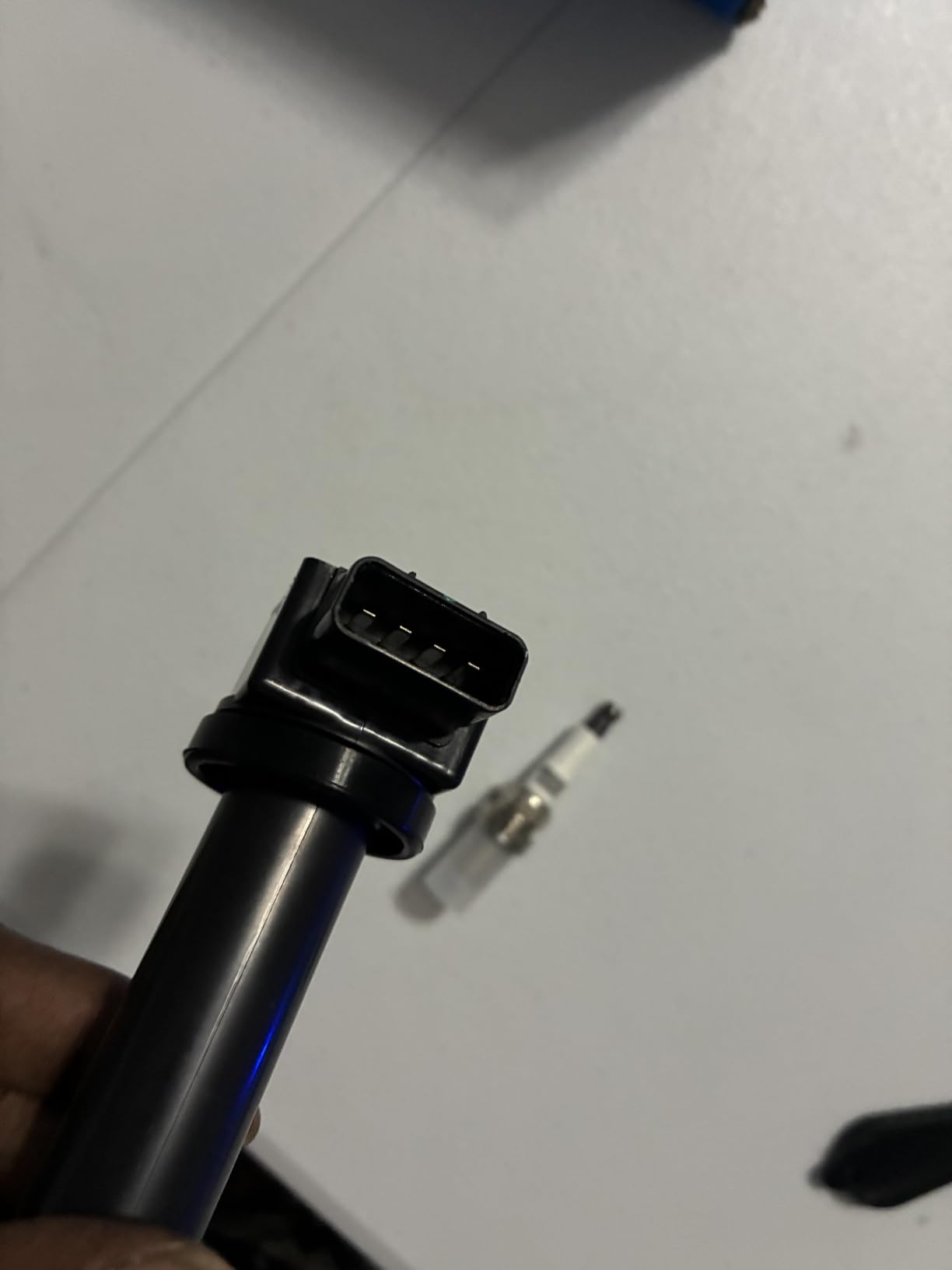

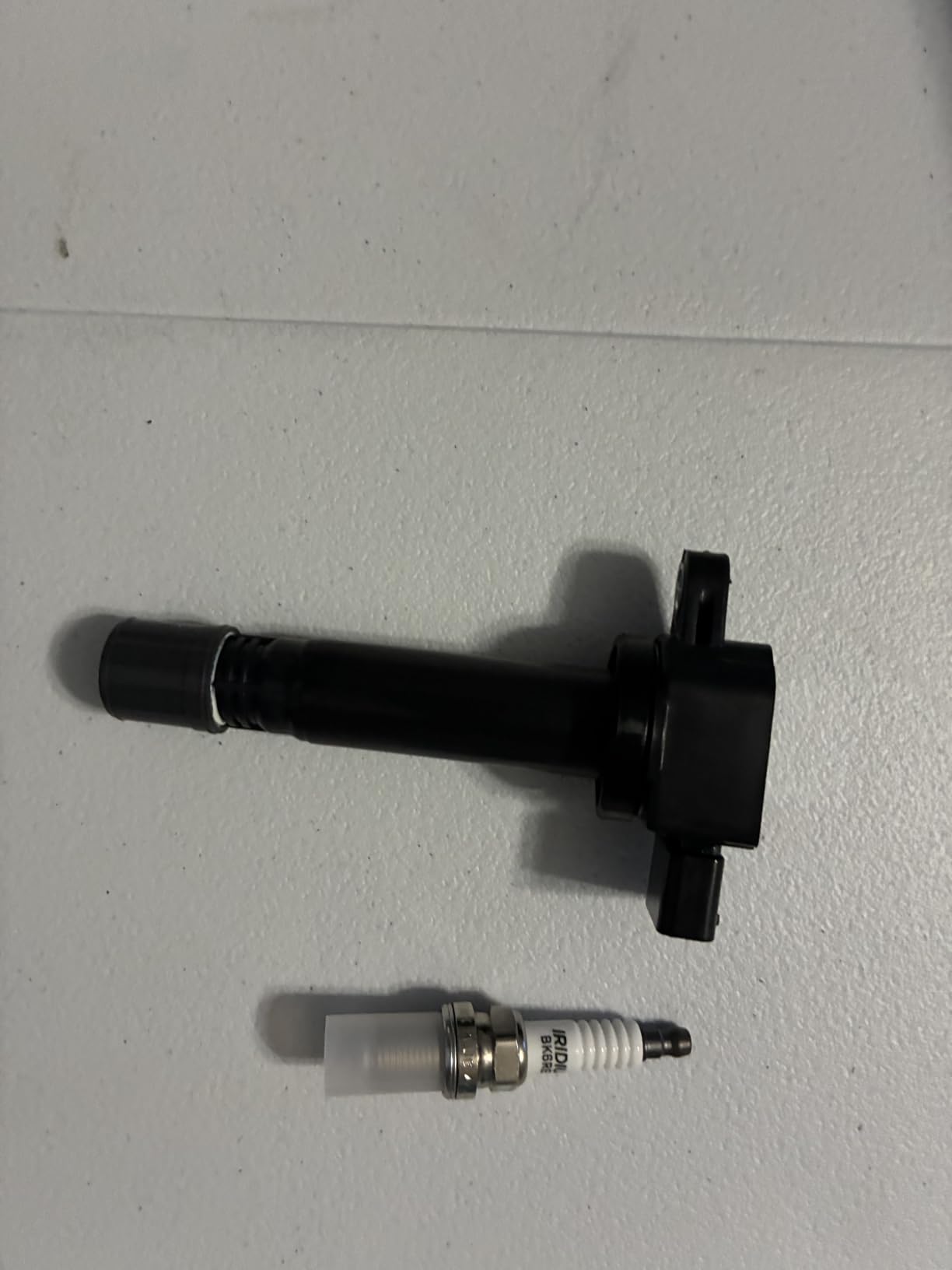

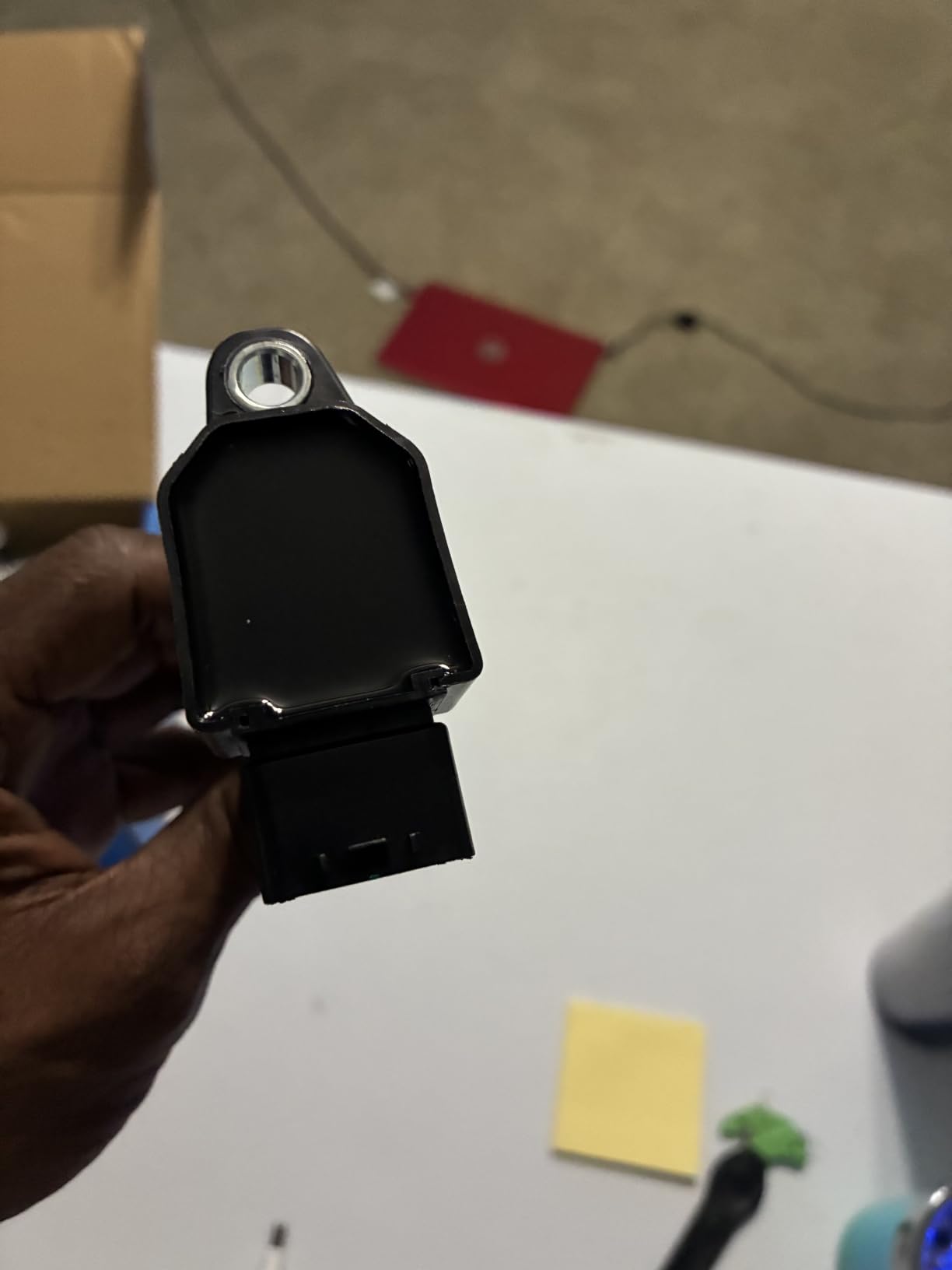

Customer photos and videos

Mary0519

09/10/2026

Verified buyer

Package arrived in good condition great protection for the coils and plugs, which came all in one single box this time, very good quality, easy installation, noticeable increase, and performance and fuel savings, definitely woke. The engine up, price point is very good compared to what you would pay at a mechanic shop or at the dealership. there’s no comparison, great quality product, very satisfied

Mary0519Mary0519

09/11/2026

Verified buyer

Package arrived in good condition great protection for the coils and plugs, which came all in one single box this time, very good quality, easy installation, noticeable increase, and performance and fuel savings, definitely woke. The engine up, price point is very good compared to what you would pay at a mechanic shop or at the dealership. there’s no comparison, great quality product, very satisfied
