1997-2004 Ford Expedition 5.4L V8 | 8x Ignition Coil, 8x Spark Plug Ignition Kit Iridium Spark Plug | FD503 - PHILTOP

1997-2004 Ford Expedition 5.4L V8 | 8x Ignition Coil, 8x Spark Plug Ignition Kit Iridium Spark Plug | FD503 - PHILTOP

Iridium

Torque: 15 N

Quick Ignition Response

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
57ISIGC5247US

Specifications

Brand
PHILTOP
Items Included

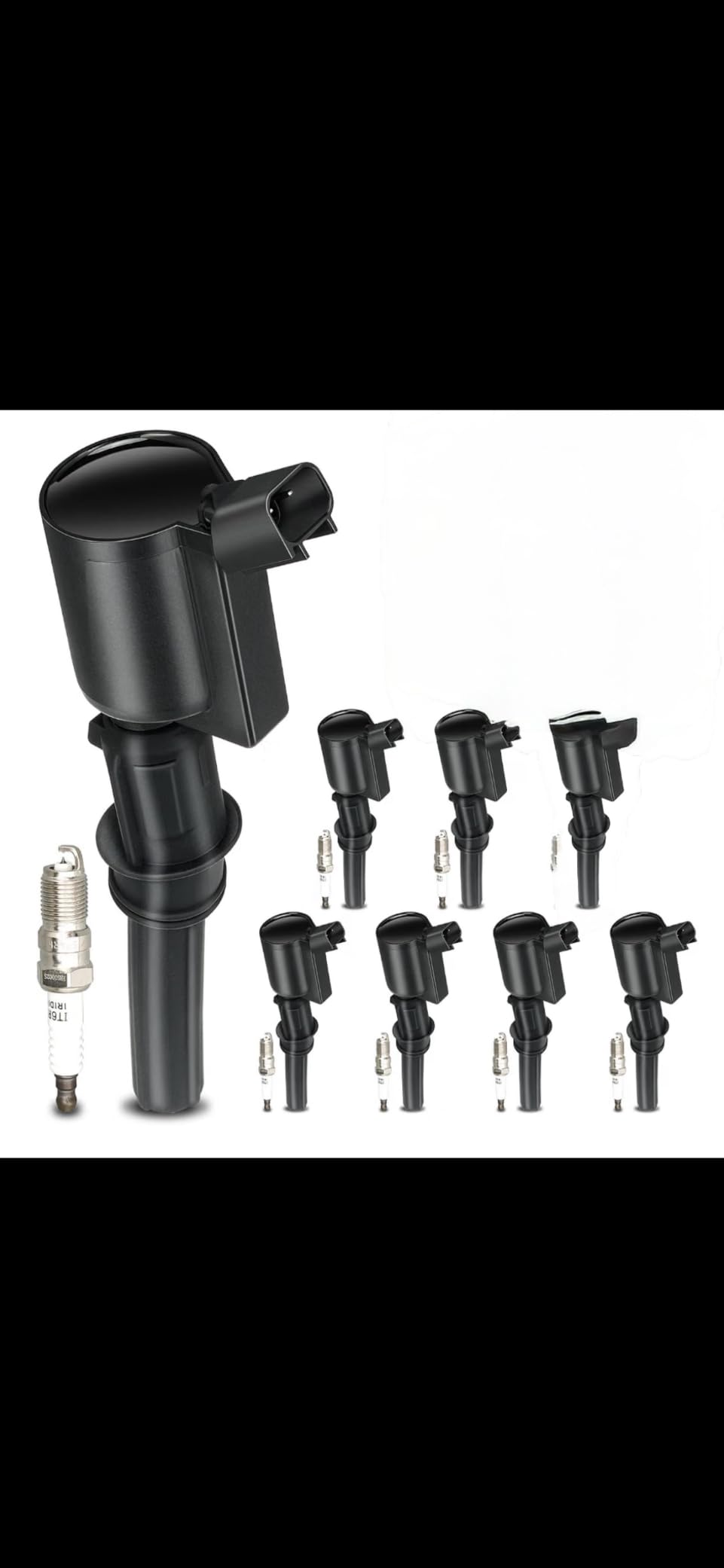

8x Ignition Coil - FD503 8x Spark Plug - SP479
Quantity
16
Ground Electrode Material
Iridium

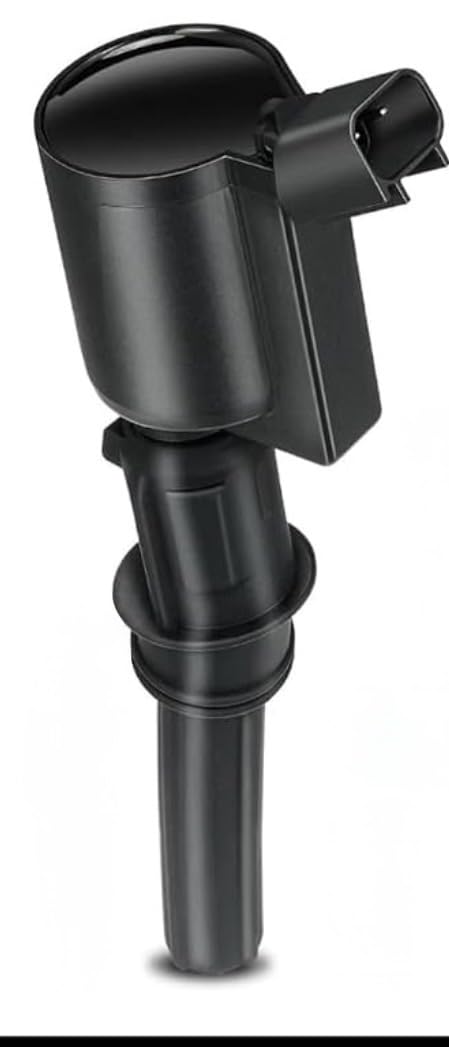

Ignition Coil Type
Pencil

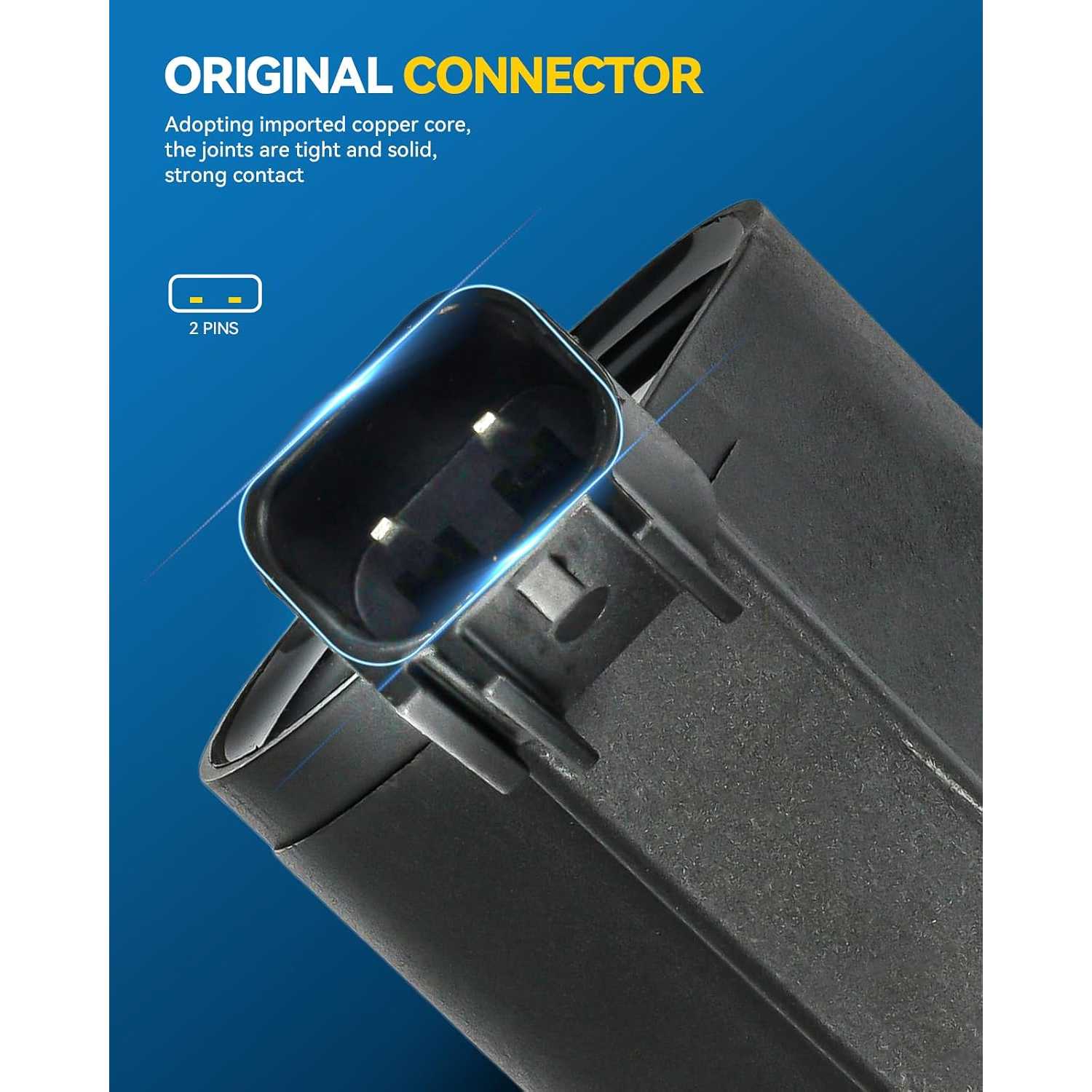

Ignition Coil Pin Count
2
Spark Plug Installation Torque
15 N
Spark Plug Thread Diameter
0.55 in/14 mm
Center Electrode Tip Material
Iridium
Center Electrode Core Material
Copper
Spark Plug Insulator Height
2.03 in/51.46 mm
Warranty Period
2-Year
Part Number
FD503,SP479,AP103

Highlights

  • [Vehicle Fitment]: Compatible with [Ford] 1998-2003 F-150 5.4L, 1999-2004 F-250/F-350 Super Duty 5.4/6.8L, 1999-2004 F-450/F-550 Super Duty 6.8L, 1998-2004 Expedition 5.4L, 1999-2000 E-350 Super Duty 5.4L, 2001-2003 E-350 Super Duty(EngineVIN:L), 2004-2004 E-350 Super Duty GAS, 2005-2008 E-350 Super Duty 6.8L, 2000-2005 Excursion 5.4/6.8L, 2005-2008 E-250 5.4L, 1998-2000,2002 E-250 Econoline(EngineVIN:L/Z), 2001-2001 E-250 Econoline 5.4L,
  • [Vehicle Fitment]: Compatible with [Ford] 1998-2002 E-150 Econoline/E-150 Econoline Club Wagon 5.4L, 2003-2005 E-350 Club Wagon 5.4/6.8L engineVIN: L/S, 2003-2005 E-150 Club Wagon 5.4L, 1998-1998 E-350 Econoline Club Wagon(EngineVIN:L/Z), 1999-2001 E-350 Econoline Club Wagon 6.8L GAS, 2003-2008 E-150 5.4L, E-450 Super Duty 5.4/6.8L, 1998-1999 F-250(EngineVIN:L/Z), 1998-1998 E-350 Econoline(EngineVIN:L/Z),2004-2004 F-150 Heritage 5.4L, [Lincoln] 1998-1999 Navigator SOHC, [VPG] 2011-2012 MV-1
  • [OEM Spark Plugs and Coil Packs Design]: Meets strict OE specifications for precise fit and performance, matching or exceeding the original factory part. Reference Number: FD503, 1L2U12029AA, F523, FD503T, 601000, F7TZ12029BA, F7TZ12029CC, F7TU12A366BA, 6736000, C500, U5182, 0221504704, 8W7Z12029A, V25700028, C14178, 2W7Z12029AA, 1400328, IC369SB, 140032B8, 346S, 92120058, 921200510, SP479, AP103, AGSF22FM, AGSF22F1M, XR842795, AGSF12FM, SP510
  • [High-Quality Ignition Coils]: OEM replacement ignition coil | Ignites within 0.1–0.2 seconds | Resists corrosion at up to 140 °C | Provides RF interference protection | Offers a lifespan of 6500+ miles | Delivers high voltage output | Ensures smooth engine operation.

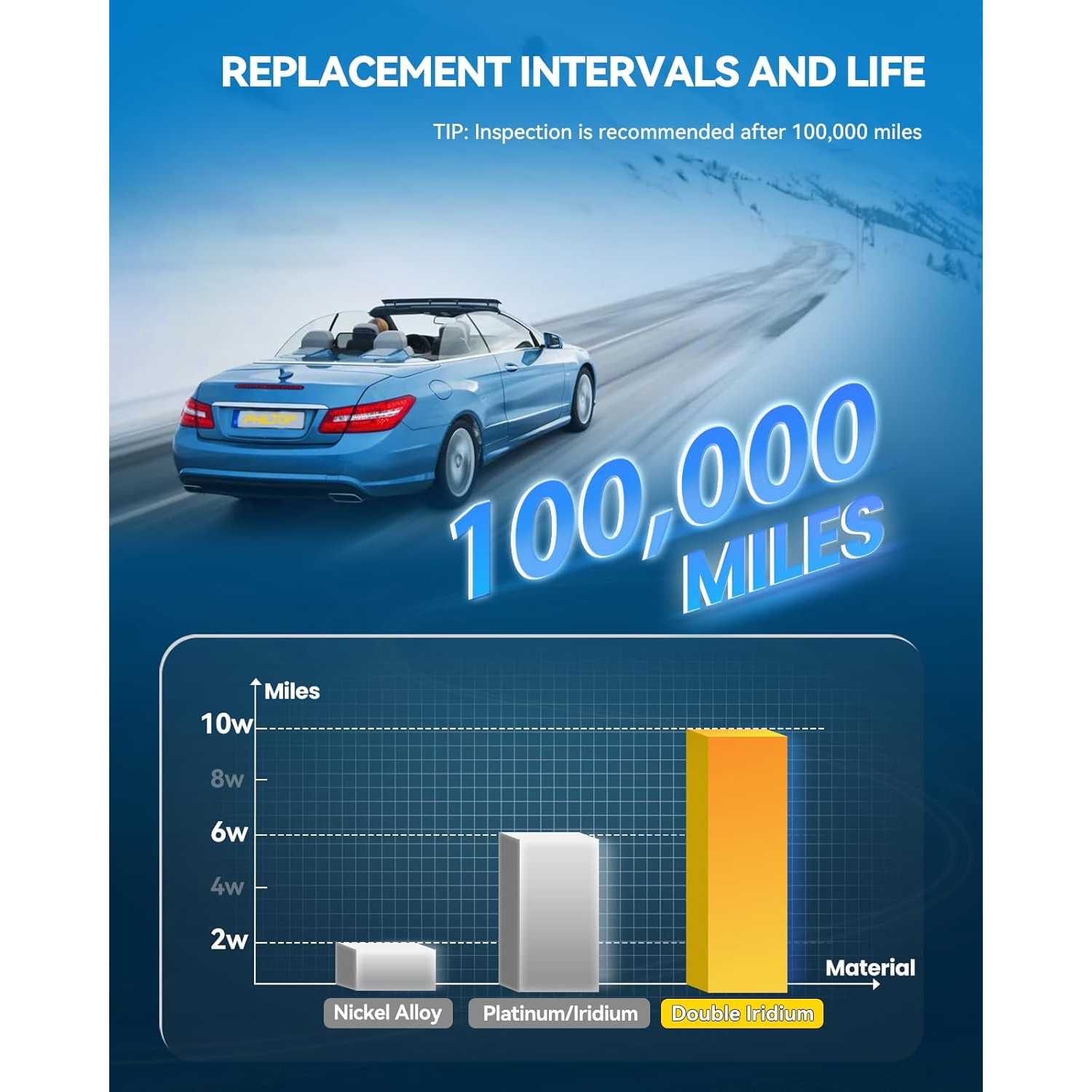

  • [High-Quality Spark Plugs]: Equipped with a premium iridium center electrode for exceptional durability (up to 3× longer life), stable engine idle, enhanced performance, improved fuel efficiency, and faster starts.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2003 - 201420072007 - 20142007 - 20142000 - 200220002001 - 20022000 - 20022003 - 20042007 - 20141997 - 20021997 - 20002003 - 2005200320052003 - 2005200320052003 - 2005200320051997 - 19981997 - 19981997 - 19981997 - 19981997 - 20021997 - 20021997 - 20001997 - 20002001 - 20022001 - 20021997 - 19981997 - 19981997 - 20021997 - 20021997 - 19981997 - 19982004 - 20152004 - 20092007 - 2014200720092007 - 201420072004 - 20052004 - 20052000 - 20022004 - 20052000 - 20022004 - 20052004 - 20052004 - 20052000 - 20022004 - 20052000 - 20022004 - 20051997 - 200420041997 - 200420041997 - 20002000 - 2003200120031997 - 200120031999 - 200120031997 - 20031997 - 20031997 - 19991997 - 19991997 - 19991997 - 19992004200420041999 - 200220041999 - 200220041999 - 200220041999 - 200220041999 - 200220041999 - 200220042004200420041999 - 200220041999 - 200220041999 - 200220041999 - 200220041999 - 200220041999 - 2002200420021998 - 1999
MakeFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordLincolnLincoln
ModelE-150E-150E-150E-150E-150 Econoline Club WagonE-150 Econoline Club WagonE-150 Econoline Club WagonE-150 Econoline Club WagonE-250E-250E-250 EconolineE-250 EconolineE-350 Club WagonE-350 Club WagonE-350 Club WagonE-350 Club WagonE-350 Club WagonE-350 Club WagonE-350 Club WagonE-350 Club WagonE-350 Club WagonE-350 EconolineE-350 EconolineE-350 EconolineE-350 EconolineE-350 Econoline Club WagonE-350 Econoline Club WagonE-350 Econoline Club WagonE-350 Econoline Club WagonE-350 Econoline Club WagonE-350 Econoline Club WagonE-350 Econoline Club WagonE-350 Econoline Club WagonE-350 Econoline Club WagonE-350 Econoline Club WagonE-350 Econoline Club WagonE-350 Econoline Club WagonE-350 Super DutyE-350 Super DutyE-350 Super DutyE-350 Super DutyE-350 Super DutyE-350 Super DutyE-350 Super DutyExcursionExcursionExcursionExcursionExcursionExcursionExcursionExcursionExcursionExcursionExcursionExcursionExpeditionExpeditionExpeditionExpeditionF-150F-150F-150F-150F-150F-150F-150F-150F-150F-150F-250F-250F-250F-250F-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyBlackwoodNavigator
TrimBaseChateauXLXLTChateauCustomXLXLTBaseBaseBaseXLChateauChateauChateauXLXLXLXLTXLTXLTBaseBaseXLXLChateauChateauCustomCustomXLXLXL HDXL HDXLTXLTXLT HDXLT HDBaseBaseXLXLXLXLTXLTEddie BauerEddie BauerLimitedLimitedLimitedLimitedXLSXLSXLTXLTXLTXLTEddie BauerNBXXLTXLT SportBaseHarley-Davidson EditionKing RanchKing RanchLariatLariatLightningLightningXLXLTBaseLariatXLXLTHarley-Davidson EditionKing RanchKing RanchLariatLariatLariatLariatXLXLXLXLXLTXLTXLTXLTHarley-Davidson EditionKing RanchKing RanchLariatLariatLariatLariatXLXLXLXLXLTXLTXLTXLTBaseBase
Engine5.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V86.8L V106.8L V105.4L V86.8L V106.8L V105.4L V86.8L V106.8L V105.4L V86.8L V105.4L V86.8L V105.4L V86.8L V105.4L V86.8L V105.4L V86.8L V105.4L V86.8L V105.4L V86.8L V105.4L V86.8L V105.4L V86.8L V105.4L V86.8L V106.8L V105.4L V86.8L V105.4L V86.8L V105.4L V85.4L V86.8L V106.8L V105.4L V86.8L V105.4L V85.4L V86.8L V106.8L V105.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V86.8L V105.4L V86.8L V105.4L V85.4L V86.8L V106.8L V105.4L V85.4L V86.8L V106.8L V105.4L V85.4L V86.8L V106.8L V106.8L V105.4L V86.8L V105.4L V85.4L V86.8L V106.8L V105.4L V85.4L V86.8L V106.8L V105.4L V85.4L V86.8L V106.8L V105.4L V85.4L V8
Note----------------------------------------------------------------------------------------------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Related Diagnostic Codes

  • P0300-Random/multiple-cylinder misfire — inspect the spark plugs, ignition coils, wiring and fuel system.
  • P0301–P0306-Specific-cylinder misfire — inspect the plug, coil and wiring for the indicated cylinder.
  • P0350-Ignition-coil primary/secondary circuit fault — check coil resistance, connectors and wiring.
  • P0351–P0356-Specific ignition-coil circuit fault — inspect the corresponding coil circuit and wiring.

Checks Before Installation

  • Confirm the ignition coils and spark plugs match the vehicle and original parts.
  • Check that the battery voltage meets the vehicle specification; the manual recommends at least 12.4V with the engine off.
  • Inspect the coil housings, connectors and wiring for cracks, corrosion or damage.
  • Check the spark-plug wells for oil, carbon deposits or debris.
  • Allow the engine to cool completely before removing the spark plugs.
  • Confirm the specified spark-plug gap and installation torque in the vehicle service manual.

Installation Steps

  • Step-1: Disconnect the Battery: Switch off the ignition and disconnect the negative battery cable to prevent short circuits or accidental starting.
  • Step-2: Remove the Old Parts: Label the connectors when necessary, unplug and remove the ignition coils, then clean around each spark-plug well before removing the plugs.
  • Step-3: Check the New Spark Plugs: Confirm the correct model and measure the electrode gap with a feeler gauge. Do not install dropped or damaged spark plugs.
  • Step-4: Install and Torque the Spark Plugs: Thread each spark plug fully by hand to prevent cross-threading. Then tighten it with a torque wrench to the vehicle manufacturer’s specified torque. Do not overtighten.
    Gasket seat and tapered seat spark plugs compared

    Gasket Seat Spark Plug: Uses a crush gasket to seal against the cylinder head.

    Tapered Seat Spark Plug – No Gasket: Uses the tapered metal seat to seal directly against the cylinder head.

  • Step-5: Complete the Installation: Install the ignition coils, tighten the mounting bolts to specification, fully seat every connector and reconnect the negative battery cable.

Spark Plug Torque Reference

Spark Plug ThreadRecommended Torque
18 mm (M18)35–40 N·m (25.8–29.5 lb-ft)
14 mm (M14)25–30 N·m (18.4–22.1 lb-ft)
12 mm (M12)15–20 N·m (11.1–14.8 lb-ft)
10 mm (M10)10–12 N·m (7.4–8.9 lb-ft)
8 mm (M8)8–10 N·m (5.9–7.4 lb-ft)
Tapered Seat – No Gasket10–20 N·m (7.4–14.8 lb-ft)

Important: This table is for general reference only. Required torque varies by spark-plug design, seat type and cylinder-head material. Always follow the vehicle service manual or spark-plug manufacturer’s specification when available.

After Installation

  • Clear historical fault codes with an OBD-II scanner.
  • Start the engine and let it idle for several minutes.
  • Confirm smooth idle, normal acceleration and no misfire or unusual vibration.
  • Check that the malfunction indicator light remains off.
  • Perform a short road test, then rescan for returned fault codes.

Product Video

Product Description

coil pack1

Reviews

4.8/5

Based on 22 reviews

582%
418%
30%
20%
10%

Customer photos and videos

SoulreeperSoulreeper

08/07/2026

Verified buyer

This was definitely a problem solver for our misfire. Good quality and perfect fit. Easy to install and built to last. Would purchase again. Very pleased with results.

jason morrisjason morris

08/05/2026

Verified buyer

Great product, built very well and seem very durable. I installed this set into a customer's car and with these parts there truck fired over on the first shot. Great product for the price, everything came very well packaged, and the spark plus were well packed and afyer checking each gap, they didnt even need to be regaped.
