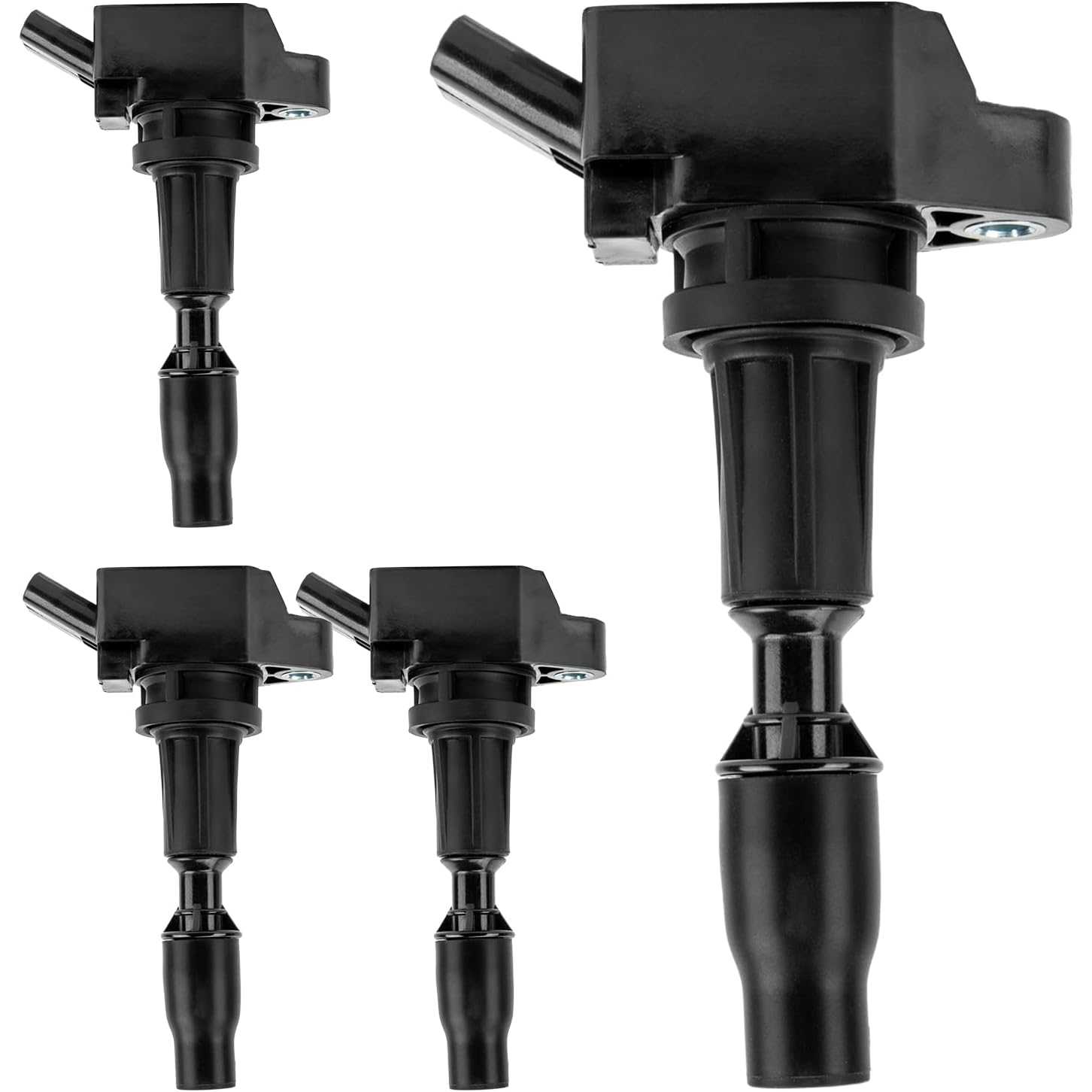

2015-2019 Hyundai Sonata 2.4L/2.0L | 4 PC Ignition Coil | OE#273002GGA0/UF764 - PHILTOP

2015-2019 Hyundai Sonata 2.4L/2.0L | 4 PC Ignition Coil | OE#273002GGA0/UF764 - PHILTOP

Quick Ignition Response

High-Grade Insulation

Built to Last

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
49ISIGC1817US

Specifications

Brand
PHILTOP
Items Included
4x Ignition Coil - UF764
Type
Pen-Type
Quantity
4
Color
Black
Pin Count
4
Warranty Period
2-Year
OE Number
273002GGA0
Part Number
UF764,GN10730,C988,E1264,2IGC0553,49138,U5369,5C2091,COP657,358057711,176104,5207,CK61,1814051,3312467757248513,3312457019830728

Highlights

  • [Long Life] The coil pack with premium quality provide high corrosion and temperature resistance, design for high energy output and fast ignition, expanding service life and no worry for misfire.
  • [What You Get] Fast ignition within 0.1-0.2 seconds | 140°C high temperature and corrosion resistance | RF Interference Protection | 6500Mi Longer lifespan | High voltage output | Smoothly Engine runs. Automotive replacement ignition coils in time can protect spark plugs and engine from damage.
  • [Compatible Vehicle] Ignition coils compatible with Hyundai Sonata 2015-2019, Santa Fe Sport 2016-2018, Tucson 2018-2020 & Kia Optima 2016-2020, Sorento, Sportage, Rondo, please check fitment!
  • [Reference Number] Ignition coils undergone strict quality control testing, providing excellent performance and reliability. OE Interchange Number: E1264, GN10730,49138, U5369, C-988, 921-2303
  • [Easy Installation] OE design ensure fast and easy installation with perfect fit. Ignition coil pack set of 4 is included. Please check the compatibility at the top of the page to confirm the part number to match your vehicle and make sure you get the correct coils.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20192020 - 202320192019 - 20212019 - 20232019 - 20202017 - 20202017 - 20222022 - 20242022 - 20232019 - 20202019 - 20202019 - 202020202019 - 20202019201920192016 - 20182017 - 20182016 - 20182016 - 20172015 - 20192015 - 20192015 - 20192018 - 20192015 - 20192015 - 20182019 - 20212019 - 20212018 - 20212019 - 20212019 - 20222016 - 2018201720172016 - 202020172018 - 20202016 - 20202016 - 201720202016 - 20182016 - 20202016 - 202020162017 - 20222017 - 202220222020 - 20212017 - 20222018 - 20192020 - 20212018 - 2019
MakeGenesisGenesisGenesisGenesisGenesisGenesisGenesisGenesisHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKiaKia
ModelG70G70G70G70G70G70G80G90Elantra NKona NSanta FeSanta FeSanta FeSanta FeSanta FeSanta FeSanta FeSanta FeSanta Fe SportSanta Fe SportSanta Fe SportSonataSonataSonataSonataSonataSonataSonataTucsonTucsonTucsonTucsonVeloster NOptimaOptimaOptimaOptimaOptimaOptimaOptimaOptimaOptimaSorentoSorentoSorentoSorentoSportageSportageSportageSportageSportageStingerStingerStinger
TrimAdvancedBaseDynamicElitePrestigeSport5.0UltimateBaseBaseLimitedLimitedSESELSELSEL PlusUltimateUltimate2.0T2.0T UltimateBaseBaseLimitedLimited 2.0TSESELSportSport 2.0TLimitedSELSportUltimateBaseEXHybrid EXHybrid PremiumLXPlug-In Hybrid EXSSXSX LimitedSpecial EditionEXLLXSX LimitedEXLXNightfall EditionSSX TurboBaseGT-LinePremium
Engine2.0L L42.0L L42.0L L42.0L L42.0L L42.0L L45.0L V85.0L V82.0L L42.0L L42.0L L42.4L L42.4L L42.0L L42.4L L42.4L L42.0L L42.4L L42.0L L42.0L L42.4L L42.4L L42.4L L42.0L L42.4L L42.4L L42.4L L42.0L L42.4L L42.4L L42.4L L42.4L L42.0L L42.4L L42.0L L42.0L L42.4L L42.0L L42.4L L42.0L L42.0L L42.4L L42.0L L42.4L L42.4L L42.0L L42.4L L42.4L L42.4L L42.4L L42.0L L42.0L L42.0L L42.0L L4
Note------------------------------------------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Related Diagnostic Codes

  • P0300-Random/multiple-cylinder misfire — inspect the spark plugs, ignition coils, wiring and fuel system.
  • P0301–P0306-Specific-cylinder misfire — inspect the plug, coil and wiring for the indicated cylinder.
  • P0350-Ignition-coil primary/secondary circuit fault — check coil resistance, connectors and wiring.
  • P0351–P0356-Specific ignition-coil circuit fault — inspect the corresponding coil circuit and wiring.

Checks Before Installation

  • Confirm the ignition coils and spark plugs match the vehicle and original parts.
  • Check that the battery voltage meets the vehicle specification; the manual recommends at least 12.4V with the engine off.
  • Inspect the coil housings, connectors and wiring for cracks, corrosion or damage.
  • Check the spark-plug wells for oil, carbon deposits or debris.
  • Allow the engine to cool completely before removing the spark plugs.
  • Confirm the specified spark-plug gap and installation torque in the vehicle service manual.

Installation Steps

  • Step-1: Disconnect the Battery: Switch off the ignition and disconnect the negative battery cable to prevent short circuits or accidental starting.
  • Step-2: Remove the Old Parts: Label the connectors when necessary, unplug and remove the ignition coils, then clean around each spark-plug well before removing the plugs.
  • Step-3: Check the New Spark Plugs: Confirm the correct model and measure the electrode gap with a feeler gauge. Do not install dropped or damaged spark plugs.
  • Step-4: Install and Torque the Spark Plugs: Thread each spark plug fully by hand to prevent cross-threading. Then tighten it with a torque wrench to the vehicle manufacturer’s specified torque. Do not overtighten.
    Gasket seat and tapered seat spark plugs compared

    Gasket Seat Spark Plug: Uses a crush gasket to seal against the cylinder head.

    Tapered Seat Spark Plug – No Gasket: Uses the tapered metal seat to seal directly against the cylinder head.

  • Step-5: Complete the Installation: Install the ignition coils, tighten the mounting bolts to specification, fully seat every connector and reconnect the negative battery cable.

Spark Plug Torque Reference

Spark Plug ThreadRecommended Torque
18 mm (M18)35–40 N·m (25.8–29.5 lb-ft)
14 mm (M14)25–30 N·m (18.4–22.1 lb-ft)
12 mm (M12)15–20 N·m (11.1–14.8 lb-ft)
10 mm (M10)10–12 N·m (7.4–8.9 lb-ft)
8 mm (M8)8–10 N·m (5.9–7.4 lb-ft)
Tapered Seat – No Gasket10–20 N·m (7.4–14.8 lb-ft)

Important: This table is for general reference only. Required torque varies by spark-plug design, seat type and cylinder-head material. Always follow the vehicle service manual or spark-plug manufacturer’s specification when available.

After Installation

  • Clear historical fault codes with an OBD-II scanner.
  • Start the engine and let it idle for several minutes.
  • Confirm smooth idle, normal acceleration and no misfire or unusual vibration.
  • Check that the malfunction indicator light remains off.
  • Perform a short road test, then rescan for returned fault codes.

Product Video

Product Description

1coil pack

Reviews

4.7/5

Based on 7 reviews

571%
429%
30%
20%
10%

Brad_AutoParts_63

06/09/2026

Arrived quicker than I expected, and the box was perfectly protected. Customer service was awesome when I called with a quick question. Great experience overall.

Mike from Texas_370

05/07/2026

Installation was straightforward, no issues at all. My old coils were a real pain, but these slid right in. Big improvement.

FAQS

No FAQs have been added for this product yet.

2015-2019 Hyundai Sonata Ignition Coil 4 PC 273002GGA0 | PHILTOP
