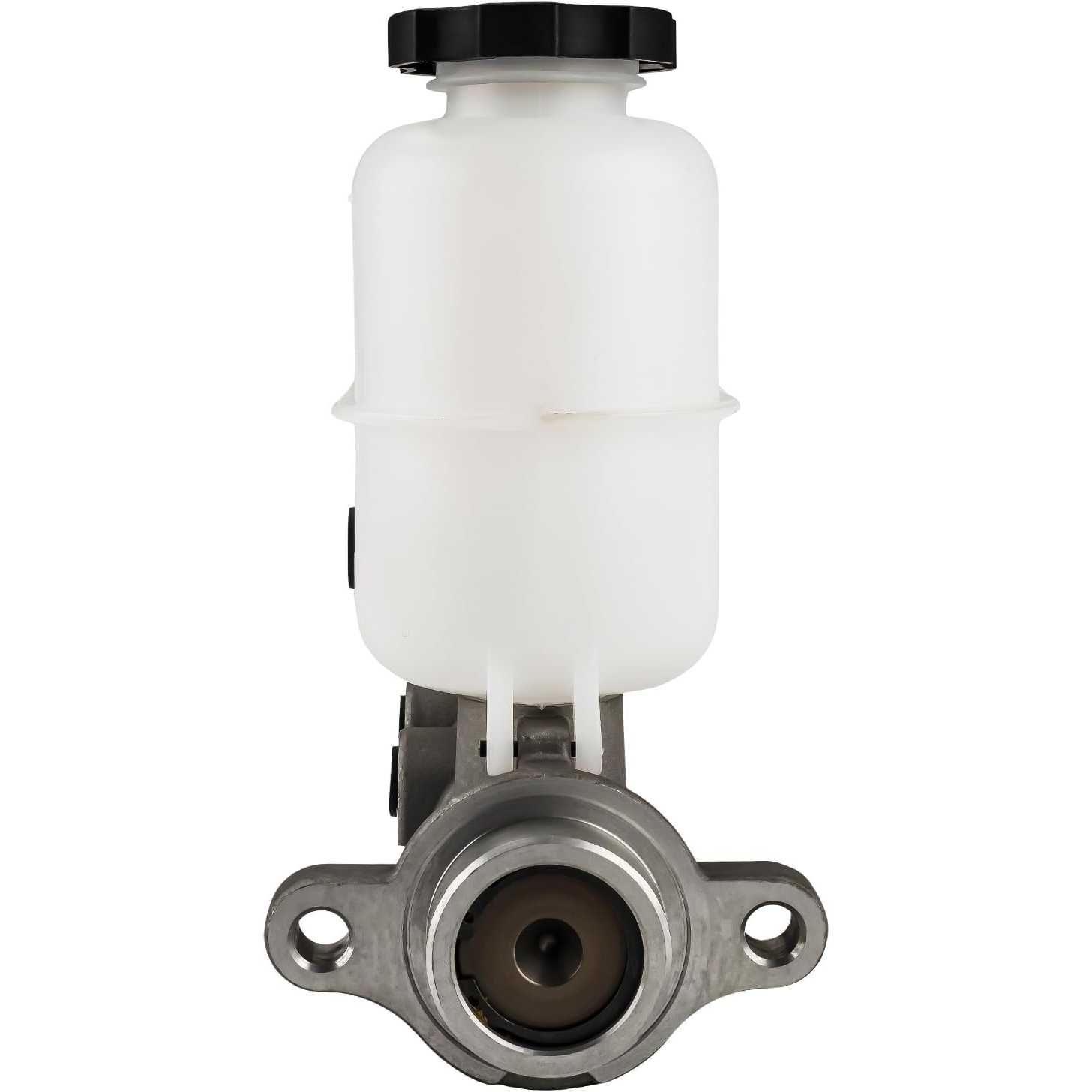

2002 Chevrolet Avalanche 1500 5.3L | 1.34 in Brake Master Cylinder w/Reservoir w/Sensor | M630031 - PHILTOP

2002 Chevrolet Avalanche 1500 5.3L | 1.34 in Brake Master Cylinder w/Reservoir w/Sensor | M630031 - PHILTOP

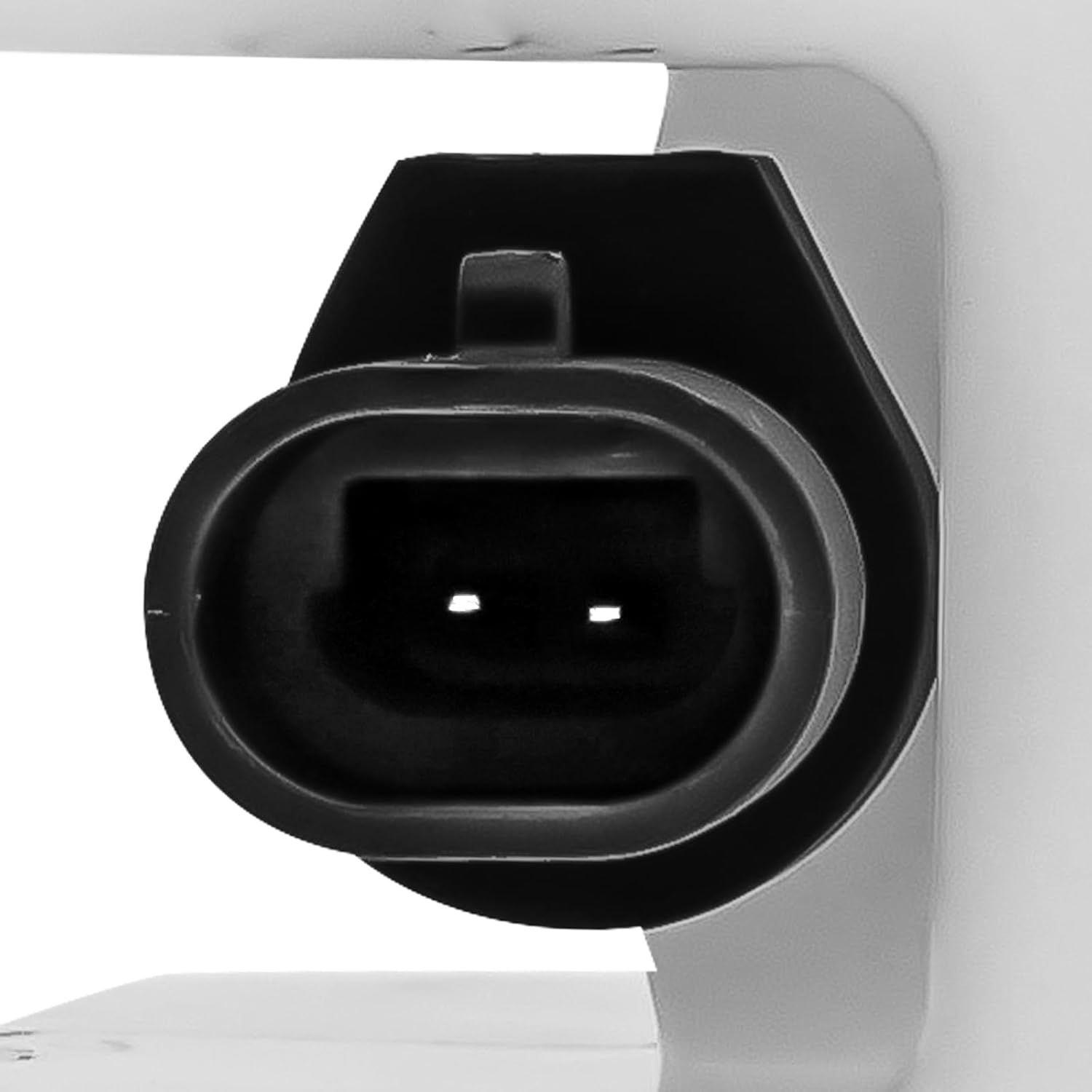

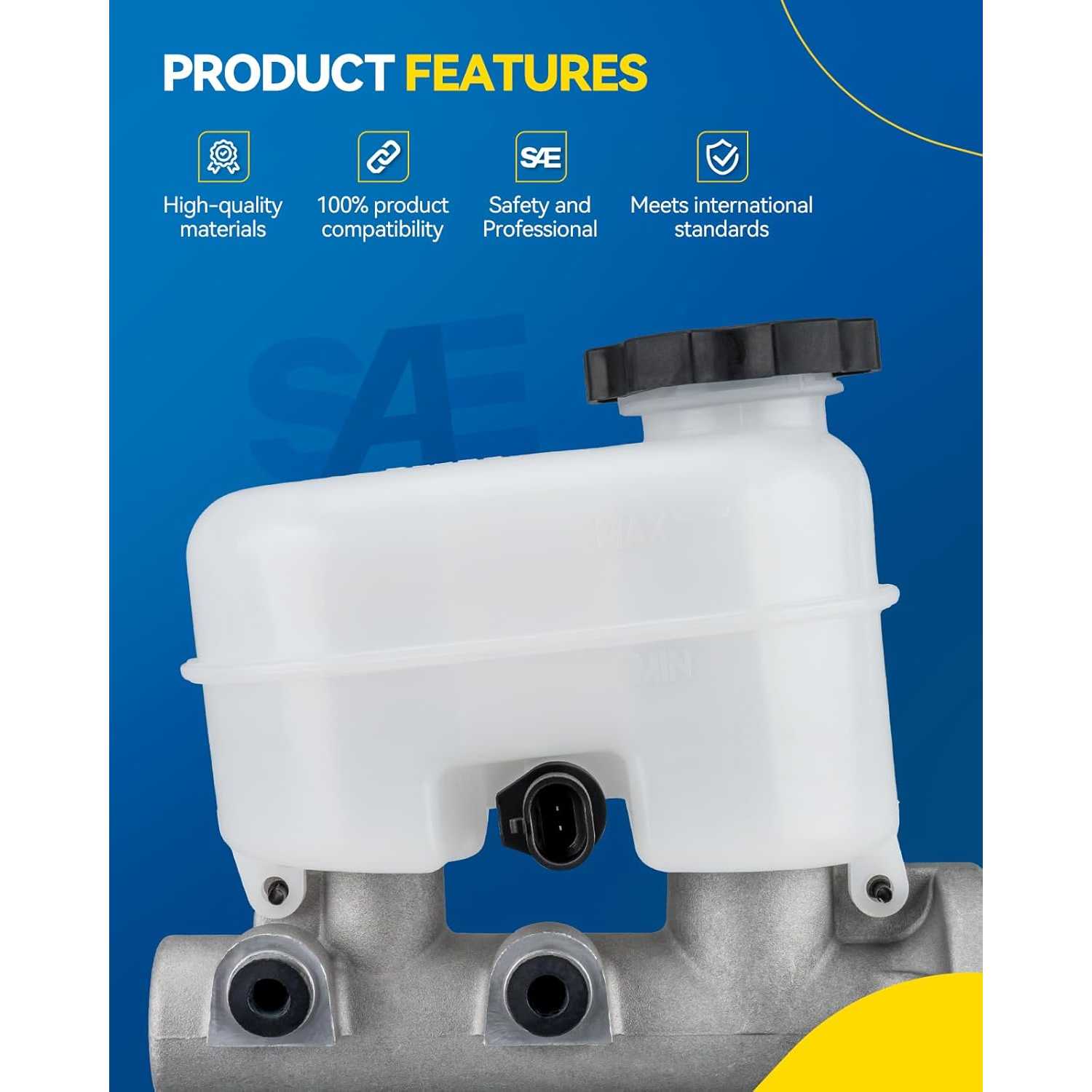

Sensor Included

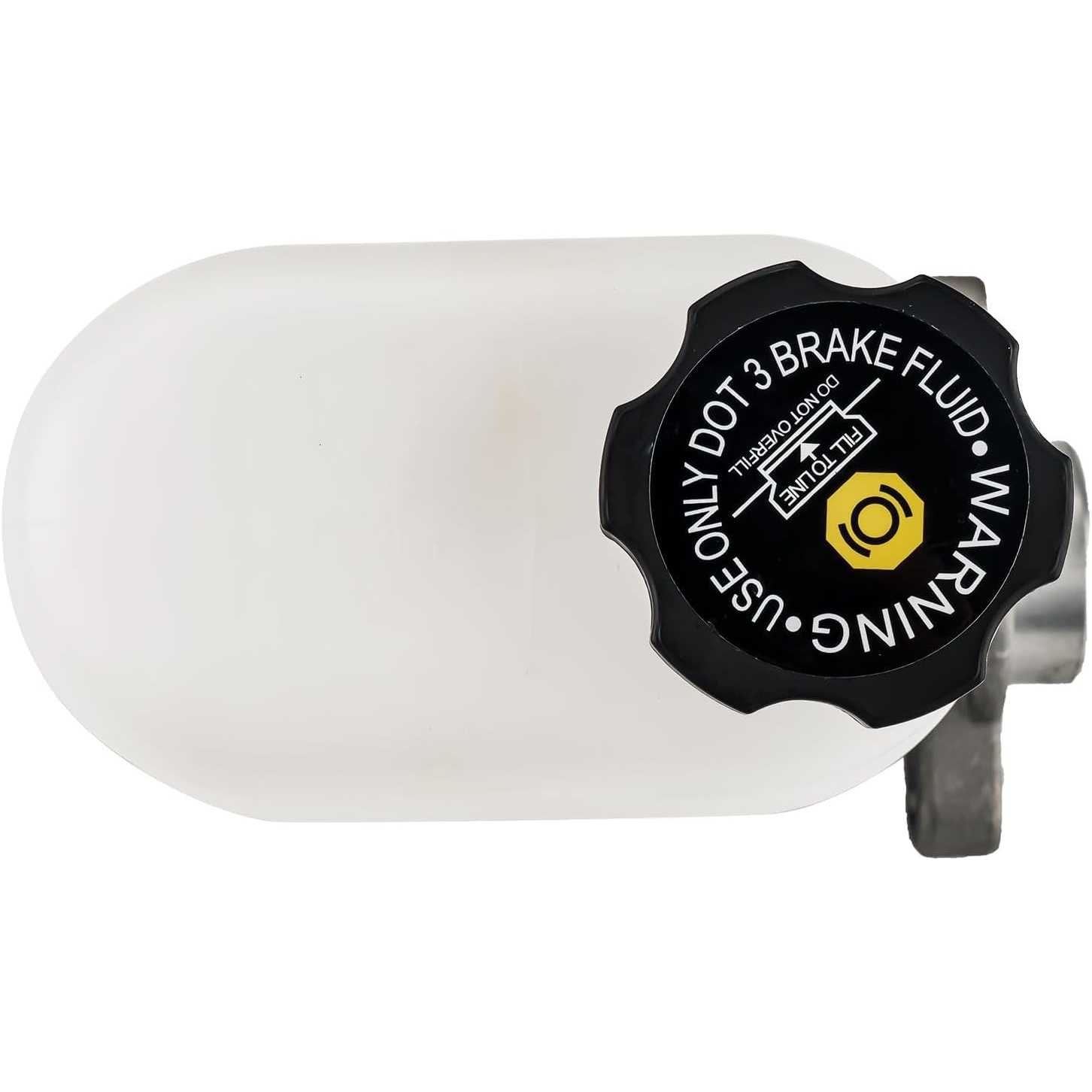

Reservoir Included

Leak-Resistant Seal

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
4101BMC003DUS

Specifications

Brand
PHILTOP
Bore Diameter
1.34 in
Outlet Count
2
Rearward Outlet Size
1/2-20
Reservoir Included
Yes
Secondary Outlet Thread Size
1/2-20
Sensor Included
Yes
Items Included
1x Master Cylinder - M630031
Material
Aluminum
Quantity
1
Warranty Period
2-Year
Part Number
M630031

Highlights

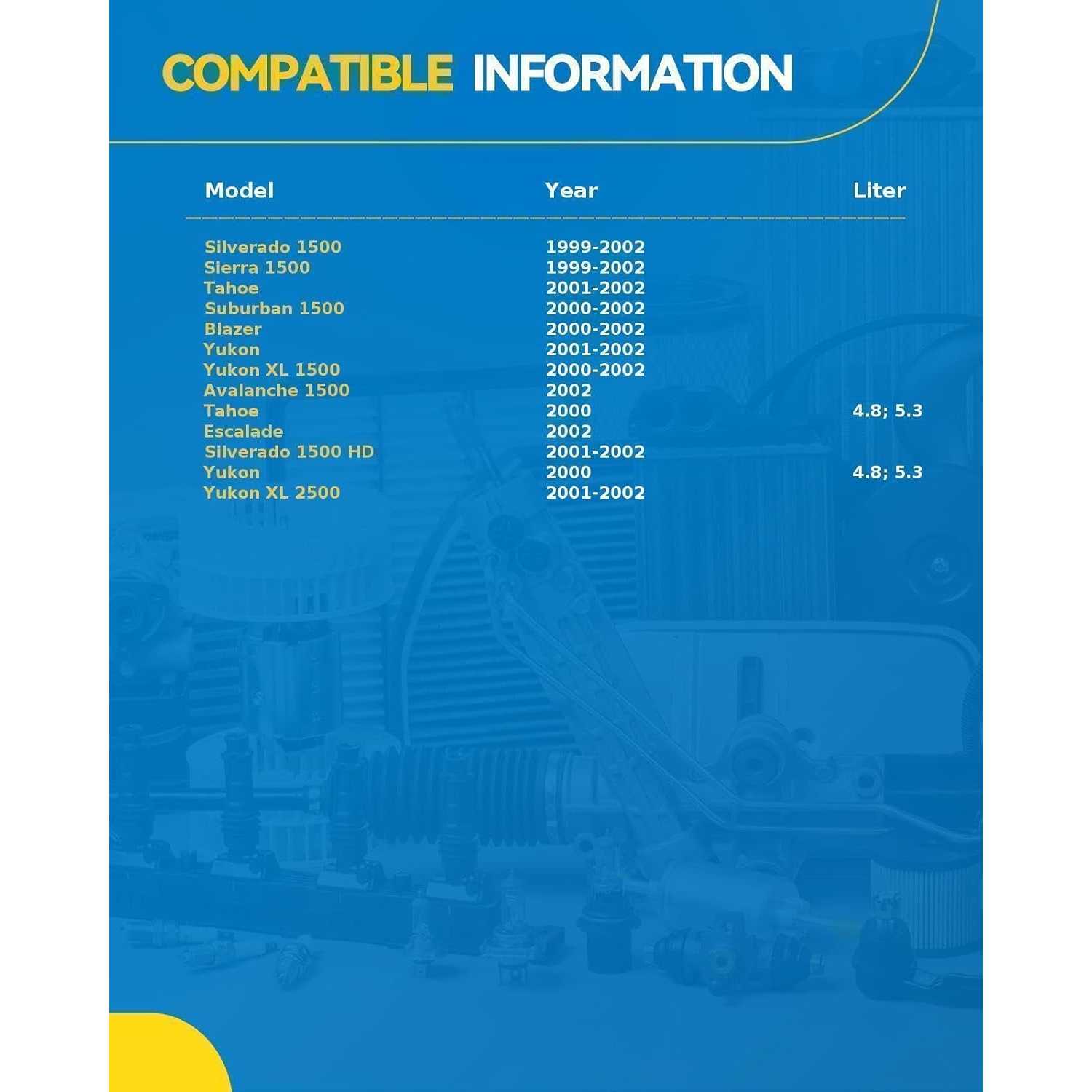

  • (FITMENT)This brake master cylinder compatible with Silverado 1500 1999-2002, Sierra 1500 1999-2002, Tahoe 2000-2002, Suburban 1500 2000-2002, Blazer 2000-2002, Yukon 2000-2002, Yukon XL 1500 2000-2002, Avalanche 1500 2002, Escalade 2002, Silverado 1500 HD 2001-2002, Yukon XL 2500 2001-2002.
  • (OE REPLACEMENT NUMBER)This brake master cylinder OE part number#: 10-2881; 13-2881; 130.66041; 131.66041; 13570; 174-1003; F131468; F140673; M-86038; M3089; M901215; M901239; MC140673; MC390541; MC500150; MC500320; NM3089; 18040252; 18048538; 18060789; 19209249.
  • (Specifications) Material: Aluminum; Master Cylinder Bore Diameter: 1.33858267716535 inch/34 mm; Number of Outlets: 2; Rearward Outlet Size: 1/2-20; Reservoir Included: Yes; Sensor Included: No; Mounting Hardware Included: NO.
  • (100% NEW AND PRECISE REPLACEMENT)This brake master cylinder is made from brand new materials and is not a remanufactured product to ensure high quality and safety; the cylinder housing is constructed to match the casting material of the original part to ensure fitment to your car.
  • (SAE INTERNATIONAL STANDARDS)All rubber parts of this brake master cylinder are made of high-quality EPDM composite material, which is resistant to glycol brake fluid corrosion and meets stringent SAE International standards.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year200220022002200220022002200220002001 - 200220002001200020012001 - 20021999 - 20002001 - 20021999 - 20002001 - 20021999 - 20002001 - 20021999 - 20002001 - 20021999 - 20002001 - 20021999 - 20002001 - 20021999 - 20002001 - 20021999 - 20002001 - 20021999 - 20002001 - 20022002200220022001 - 20022001 - 20022000200120002001 - 200220002001 - 20022002200020012000200120002001 - 200220002001 - 200220002001 - 200220002001 - 20022002200220022002200120022002200220021999 - 20002001 - 20021999 - 20002001 - 20021999 - 20002001 - 20021999 - 20002001 - 20021999 - 20002001 - 20021999 - 20002001 - 20021999 - 20002001 - 20021999 - 20002001 - 20021999 - 20002001 - 20022002200220022001 - 20022001 - 20022001 - 200220002001 - 200220002001 - 200220002001 - 200220002001 - 20022001 - 200220002001 - 200220002001 - 20022001 - 20022001 - 20022001 - 20022001 - 2002
MakeCadillacCadillacCadillacChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMC
ModelEscaladeEscaladeEscalade EXTAvalanche 1500Avalanche 1500Avalanche 1500Avalanche 1500BlazerBlazerBlazerBlazerBlazerBlazerBlazerSilverado 1500Silverado 1500Silverado 1500Silverado 1500Silverado 1500Silverado 1500Silverado 1500Silverado 1500Silverado 1500Silverado 1500Silverado 1500Silverado 1500Silverado 1500Silverado 1500Silverado 1500Silverado 1500Silverado 1500Silverado 1500Silverado 1500Silverado 1500Silverado 1500Silverado 1500 HDSilverado 1500 HDSuburban 1500Suburban 1500Suburban 1500Suburban 1500Suburban 1500Suburban 1500Suburban 1500TahoeTahoeTahoeTahoeTahoeTahoeTahoeTahoeTahoeTahoeTahoeTahoeTahoeSierra 1500Sierra 1500Sierra 1500Sierra 1500Sierra 1500Sierra 1500Sierra 1500Sierra 1500Sierra 1500Sierra 1500Sierra 1500Sierra 1500Sierra 1500Sierra 1500Sierra 1500Sierra 1500Sierra 1500Sierra 1500Sierra 1500Sierra 1500Sierra 1500Sierra 1500Sierra 1500Sierra 1500Sierra 1500Sierra 1500Sierra 1500Sierra 1500Sierra 1500Sierra 1500 HDSierra 1500 HDYukonYukonYukonYukonYukonYukonYukonYukonYukonYukon XL 1500Yukon XL 1500Yukon XL 1500Yukon XL 1500Yukon XL 1500Yukon XL 2500Yukon XL 2500Yukon XL 2500Yukon XL 2500
TrimBaseBaseBaseBaseNorth FaceOn Road EditionZ71LSLSLTLTTrailblazerTrailblazerXtremeBaseBaseBaseBaseBaseBaseLSLSLSLSLSLSLTLTLTLTLTLTWTWTWTLSLTBaseBaseLSLSLTLTZ71BaseBaseBaseBaseLSLSLSLSLTLTLTLTZ71BaseBaseBaseC3DenaliHTHTHTSLSLSLSLSLSLSLESLESLESLESLESLESLTSLTSLTSLTSLTSLTWTWTWTSLESLTDenaliSLESLESLESLESLTSLTSLTSLTDenaliSLESLESLTSLTSLESLESLTSLT
Engine5.3L V86.0L V86.0L V85.3L V85.3L V85.3L V85.3L V84.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.8L V84.8L V85.3L V85.3L V84.3L V64.3L V64.8L V84.8L V85.3L V85.3L V84.3L V64.3L V64.8L V84.8L V85.3L V85.3L V84.3L V64.8L V85.3L V86.0L V86.0L V85.3L V85.3L V85.3L V85.3L V85.3L V85.3L V85.3L V84.8L V84.8L V85.3L V85.3L V84.8L V84.8L V85.3L V85.3L V84.8L V84.8L V85.3L V85.3L V85.3L V84.3L V64.8L V85.3L V86.0L V86.0L V84.3L V64.8L V85.3L V84.3L V64.3L V64.8L V84.8L V85.3L V85.3L V84.3L V64.3L V64.8L V84.8L V85.3L V85.3L V84.3L V64.3L V64.8L V84.8L V85.3L V85.3L V84.3L V64.8L V85.3L V86.0L V86.0L V86.0L V84.8L V84.8L V85.3L V85.3L V84.8L V84.8L V85.3L V85.3L V86.0L V85.3L V85.3L V85.3L V85.3L V86.0L V88.1L V86.0L V88.1L V8
Note
Bore: 34 mm;w/Vacuum Booster
Bore: 34 mm;w/Vacuum Booster
Bore: 34 mm;w/Vacuum Booster
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm;w/Vacuum Booster
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm;w/Vacuum Booster
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm;w/Vacuum Booster
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
New Style
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
New Style
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster
Bore: 34 mm;w/Power Brakes;w/Vacuum Booster

How to Install?

Installation Manual Download

User manual (PDF)
Download

Installation Steps

  • Step-1: Remove the Old Unit: Extract the brake fluid, disconnect the brake lines and cap all openings immediately to prevent air and contamination from entering.
  • Step-2: Inspect the Booster: Remove the old master cylinder. Inspect the booster push rod, seal and mounting surface for wear, deformation or fluid leakage.
  • Step-3: Bench-Bleed the New Master Cylinder: Bench-bleed the new master cylinder with fresh, vehicle-approved brake fluid until no air bubbles remain. Follow the product instructions or vehicle service manual.
  • Step-4: Install the New Unit: Align the master cylinder with the booster push rod. Hand-start the mounting nuts, then tighten them evenly to the specified torque. Do not force the master cylinder into position.
  • Step-5: Reconnect the Brake Lines: Hand-start each brake-line fitting to prevent cross-threading, then tighten it to the vehicle manufacturer’s specification.
  • Step-6: Fill and Bleed the Brake System: Fill the reservoir with fresh brake fluid to the MAX line. Bleed the complete brake system in the sequence specified by the vehicle service manual. Keep the fluid level above MIN throughout the process. ABS/ESP systems may require a scan tool.

After Installation

  • Bleed the complete brake system after installation, following the sequence specified in the vehicle service manual. Keep the reservoir above MIN throughout the process.
  • Refill the brake fluid to the MAX line after bleeding.
  • With the engine off, pump the brake pedal until it feels firm with normal travel.
  • Check the brake-line fittings and master-cylinder-to-booster surface for leaks.
  • Confirm that the brake and ABS warning lights are off.
  • Perform a low-speed road test and confirm effective, straight braking.
  • Recheck the fluid level and all connections after the road test.

Product Video

Product Description

11

Reviews

4.7/5

Based on 6 reviews

567%
433%
30%
20%
10%

Lester Cordova

06/27/2026

Verified buyer

Excellent product easy to install and great price

AutoMom_2019_440

11/19/2025

This master cylinder is built solid. It feels like a quality OEM part but at a fraction of the cost. Installation was smooth, and it's performing perfectly. Great bang for your buck.

FAQS

Unused products may be eligible for return according to the Philtop return policy. Please keep the product and packaging in their original condition and contact us before sending it back.

Included components vary by part number. Check the package list and product images to confirm whether the reservoir or Sensor are supplied.

Yes. Bore size and internal design affect hydraulic operation and pedal feel. Use the specification intended for the exact vehicle and brake system.
