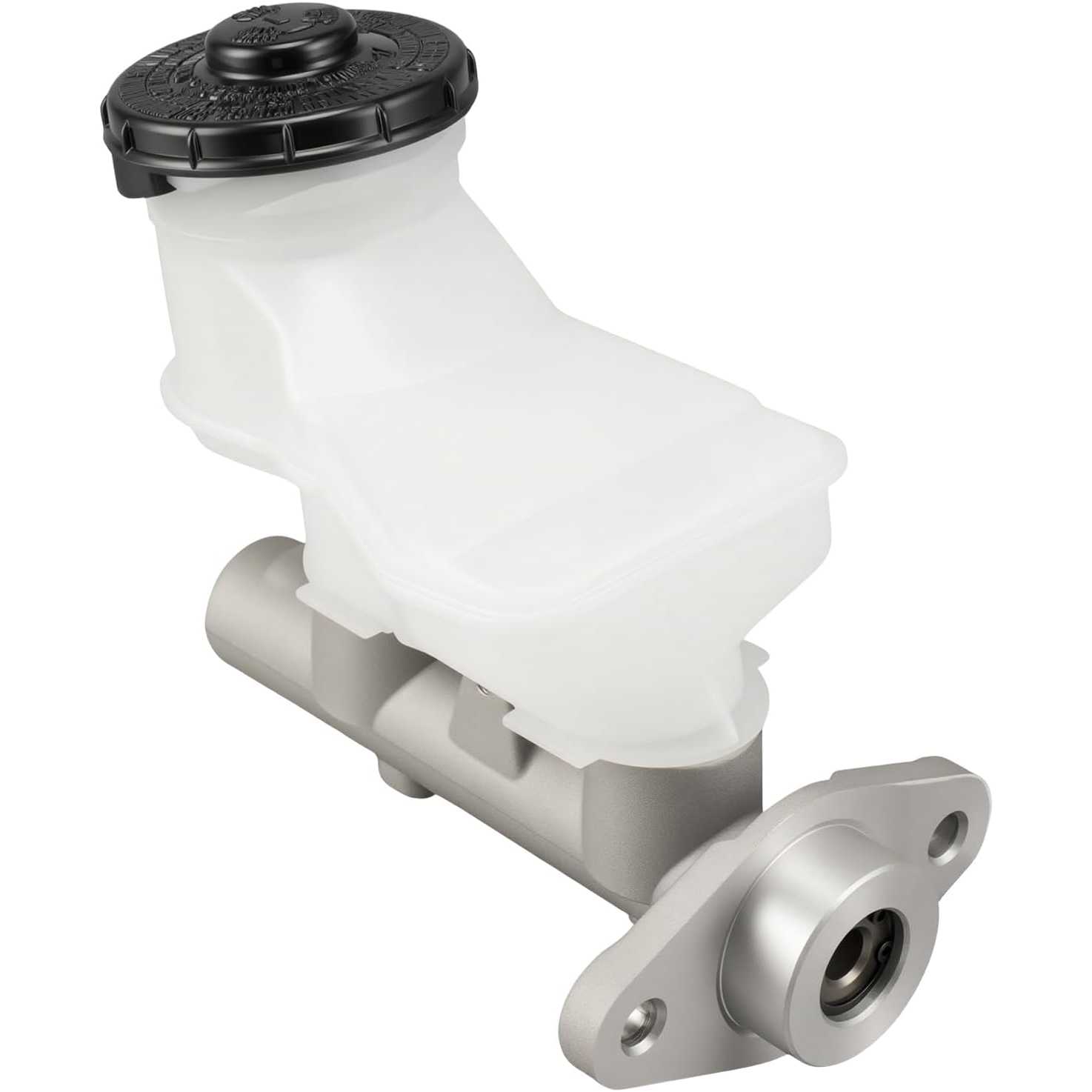

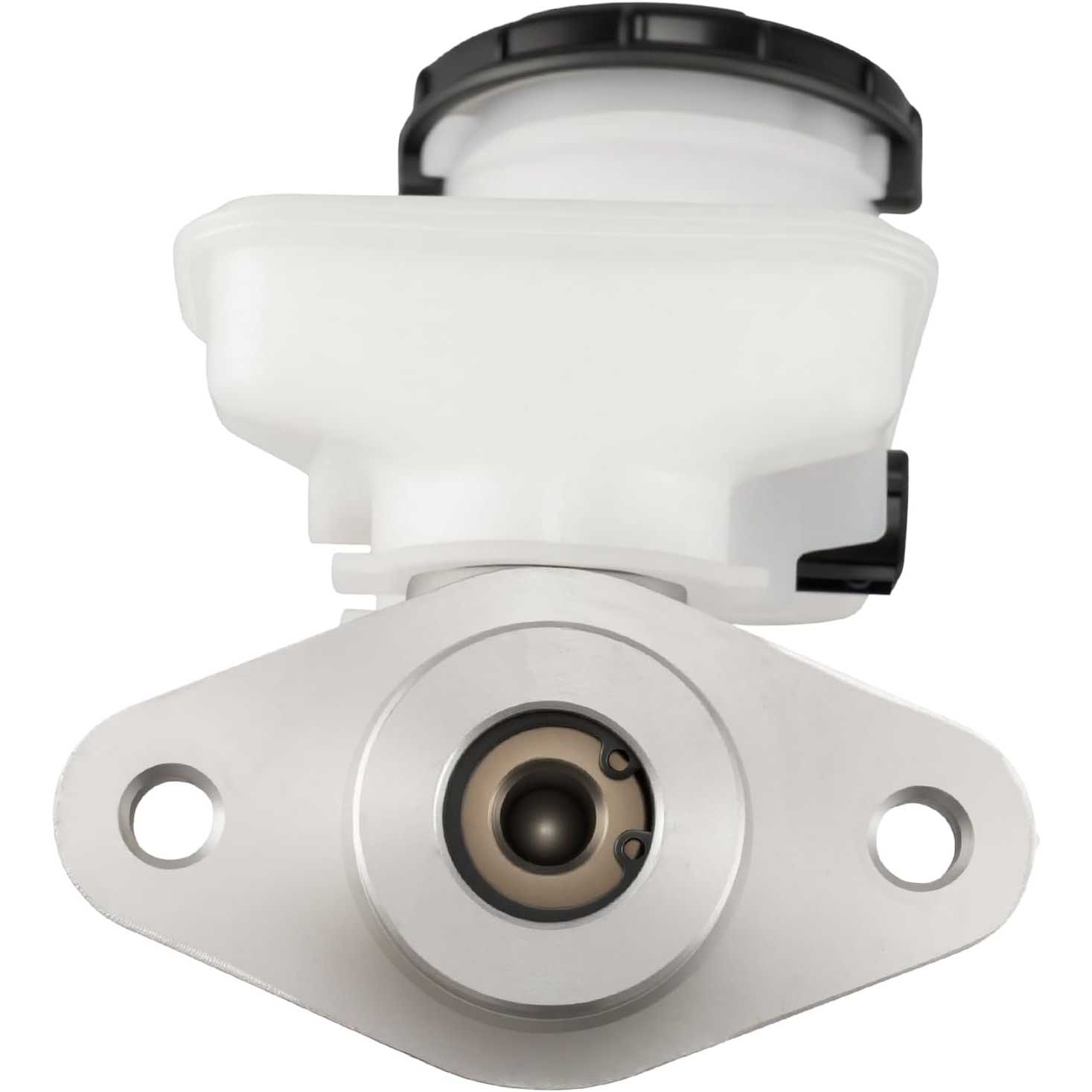

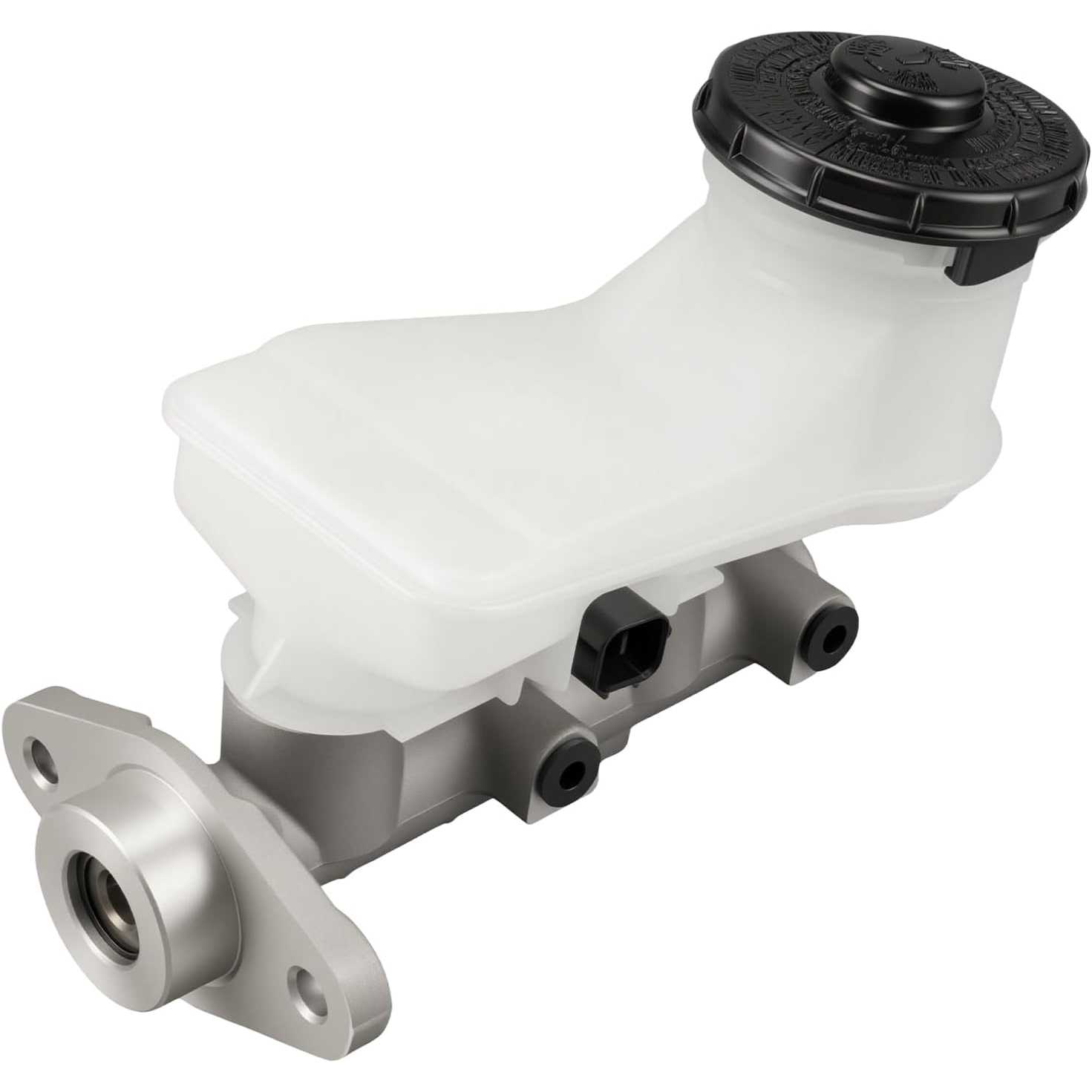

2001-2005 Honda Civic 1.7L L4 | Brake Master Cylinder | M630112 - PHILTOP

2001-2005 Honda Civic 1.7L L4 | Brake Master Cylinder | M630112 - PHILTOP

Sensor Included

Reservoir Included

Leak-Resistant Seal

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
42ISBMC3727US

Specifications

Brand
PHILTOP
Bore Diameter
0.813 in
Outlet Count
2
Rearward Outlet Size
M10 X 1.0
Reservoir Included
Yes
Secondary Outlet Thread Size
M10 X 1.0

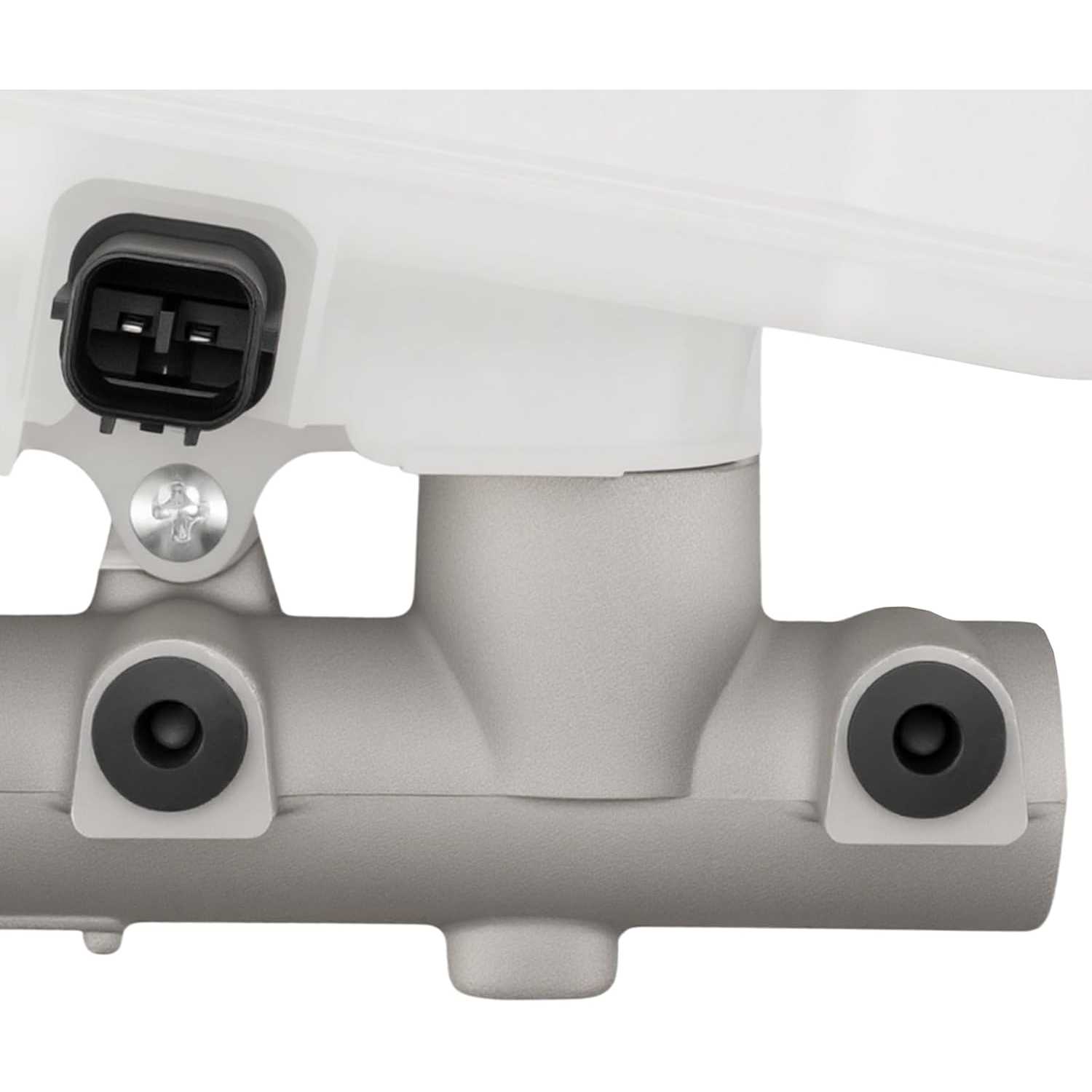

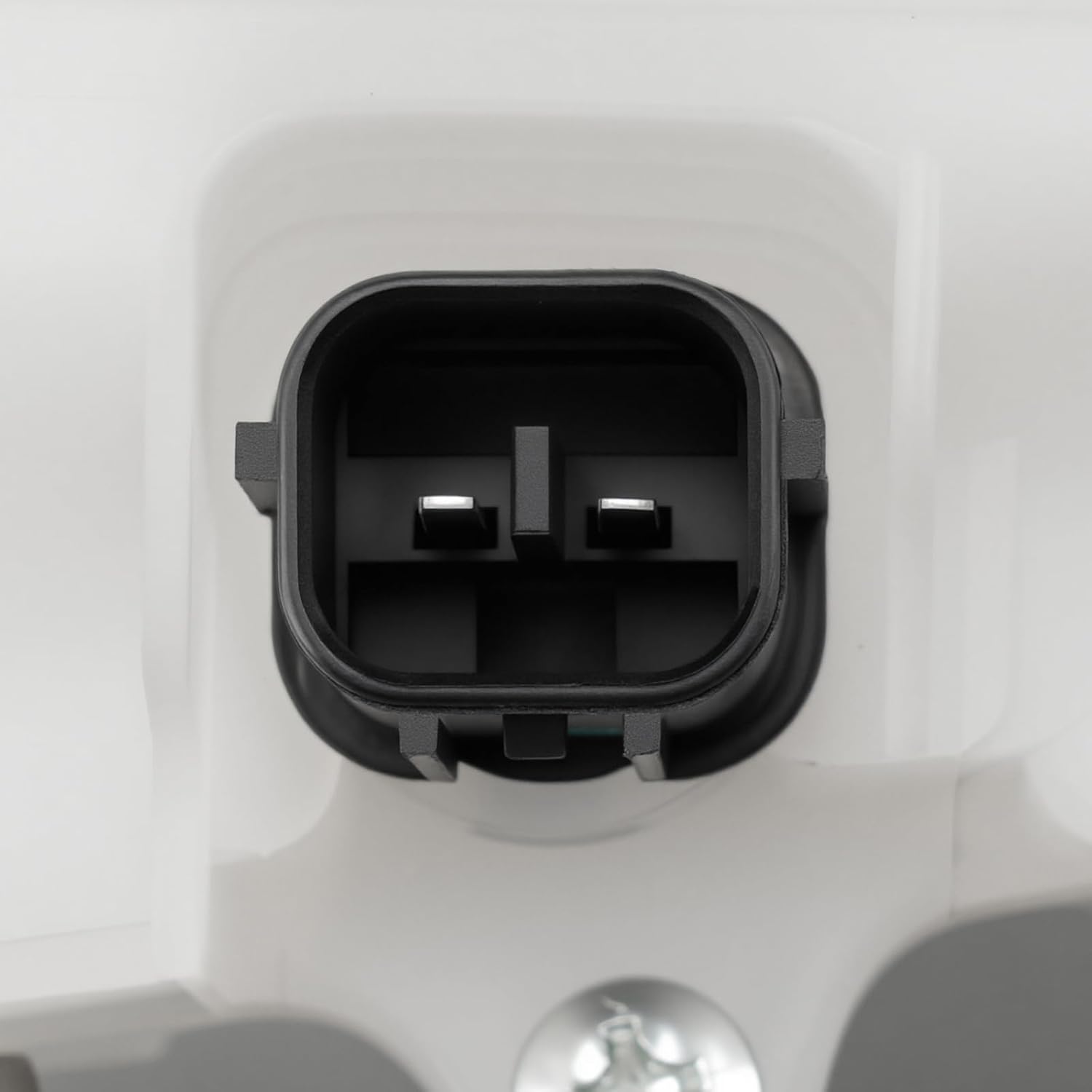

Sensor Included
Yes
Items Included
1x Master Cylinder - M630112
Material
Aluminum
Quantity
1
Warranty Period
2-Year
Part Number
M630112

Highlights

  • [Fitment]: This PHILTOP brake master cylinder fit for 2001-2005 Honda Civic 1.7L.
  • [OE Replace Number]: This PHILTOP brake master cylinder replaces OE#: M630112.
  • [Specifications]: ①Condition: New; ②Reservoir Included: No; ③Material: Aluminum; ④Master Cylinder Bore Diameter: 1.063(IN); ⑤Number of Outlets: 2; ⑥Rearward Outlet Size: M12 X 1.0; ⑦Sensor Included: No.
  • [Safty&Durability]: This PHILTOP brake master cylinder is builted with high-grade materials and precision engineering. Features a corrosion-resistant bore, durable seals, and undergoes rigorous pressure and leak testing. DOT compliant to deliver the firm pedal feel and dependable stopping power your vehicle requires.
  • [Risk-free Purchase]: Buy with confidence! Backed by a 2 year warranty and dedicated customer service. If any issue arises, we provide hassle-free returns and replacements.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2001 - 20042001 - 20052001 - 20032005
MakeHondaHondaHondaHonda
ModelCivicCivicCivicCivic
TrimDXHXLXValue Package
Engine1.7L L41.7L L41.7L L41.7L L4
Note
Bore: 13/16 Inch
Bore: 13/16 Inch
Bore: 13/16 Inch
Bore: 13/16 Inch

How to Install?

Installation Manual Download

User manual (PDF)
Download

Installation Steps

  • Step-1: Remove the Old Unit: Extract the brake fluid, disconnect the brake lines and cap all openings immediately to prevent air and contamination from entering.
  • Step-2: Inspect the Booster: Remove the old master cylinder. Inspect the booster push rod, seal and mounting surface for wear, deformation or fluid leakage.
  • Step-3: Bench-Bleed the New Master Cylinder: Bench-bleed the new master cylinder with fresh, vehicle-approved brake fluid until no air bubbles remain. Follow the product instructions or vehicle service manual.
  • Step-4: Install the New Unit: Align the master cylinder with the booster push rod. Hand-start the mounting nuts, then tighten them evenly to the specified torque. Do not force the master cylinder into position.
  • Step-5: Reconnect the Brake Lines: Hand-start each brake-line fitting to prevent cross-threading, then tighten it to the vehicle manufacturer’s specification.
  • Step-6: Fill and Bleed the Brake System: Fill the reservoir with fresh brake fluid to the MAX line. Bleed the complete brake system in the sequence specified by the vehicle service manual. Keep the fluid level above MIN throughout the process. ABS/ESP systems may require a scan tool.

After Installation

  • Bleed the complete brake system after installation, following the sequence specified in the vehicle service manual. Keep the reservoir above MIN throughout the process.
  • Refill the brake fluid to the MAX line after bleeding.
  • With the engine off, pump the brake pedal until it feels firm with normal travel.
  • Check the brake-line fittings and master-cylinder-to-booster surface for leaks.
  • Confirm that the brake and ABS warning lights are off.
  • Perform a low-speed road test and confirm effective, straight braking.
  • Recheck the fluid level and all connections after the road test.

Product Video

Product Description

Reviews

4.8/5

Based on 9 reviews

578%
422%
30%
20%
10%

Dustin Ellis

10/11/2026

Verified buyer

Works great, fit was great

Amanda_MomOfThree_880

10/19/2025

Great looking part, feels very solid. Definitely a good bang for your buck. My brakes feel much more responsive now.

FAQS

Installed or modified products may require additional review and may not qualify for a standard return. Please contact Philtop before removing or returning the product.

Unused products may be eligible for return according to the Philtop return policy. Please keep the product and packaging in their original condition and contact us before sending it back.

Stop the installation and contact Philtop customer support. Please provide your vehicle information, order number and photos of the original and received parts so we can help review the fitment.
