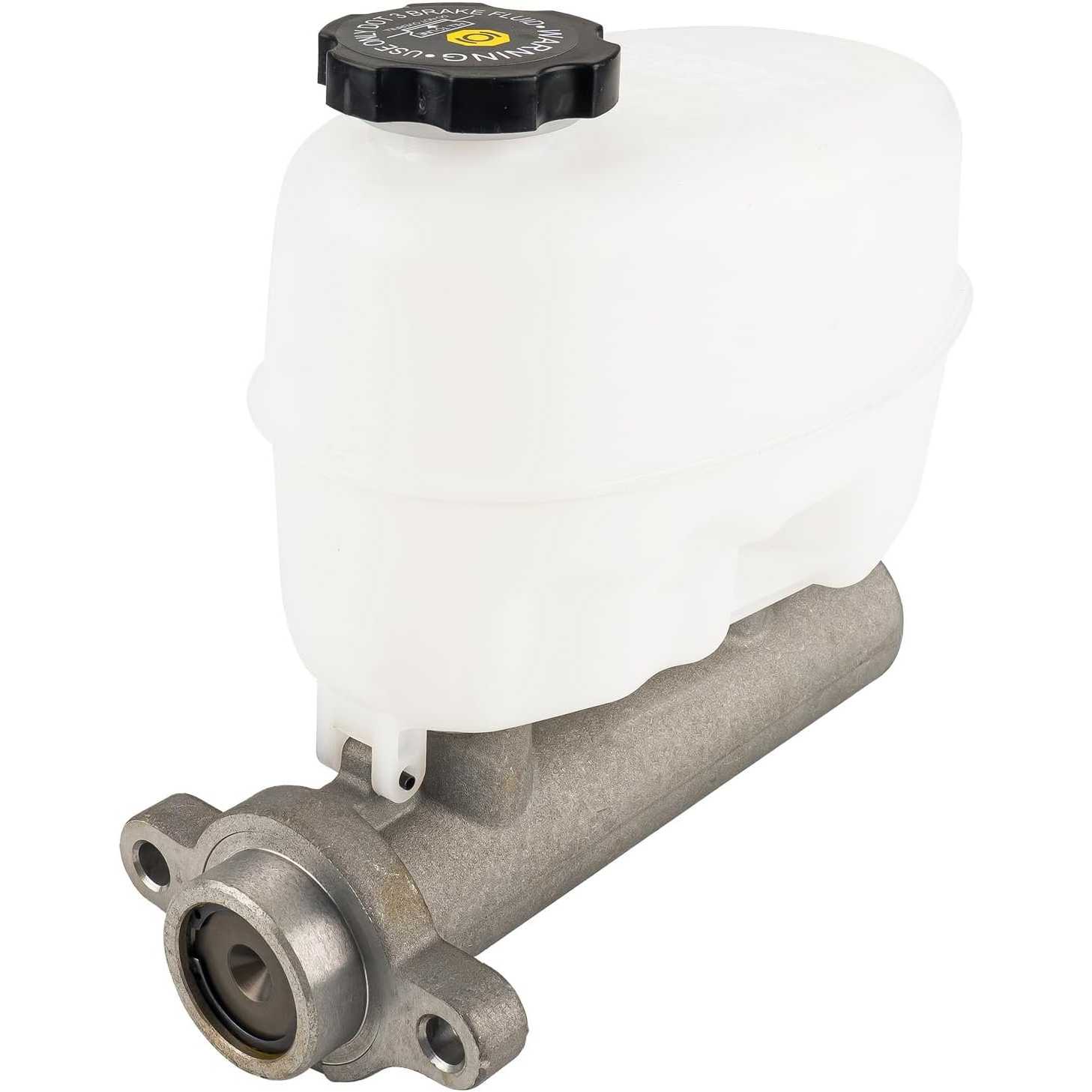

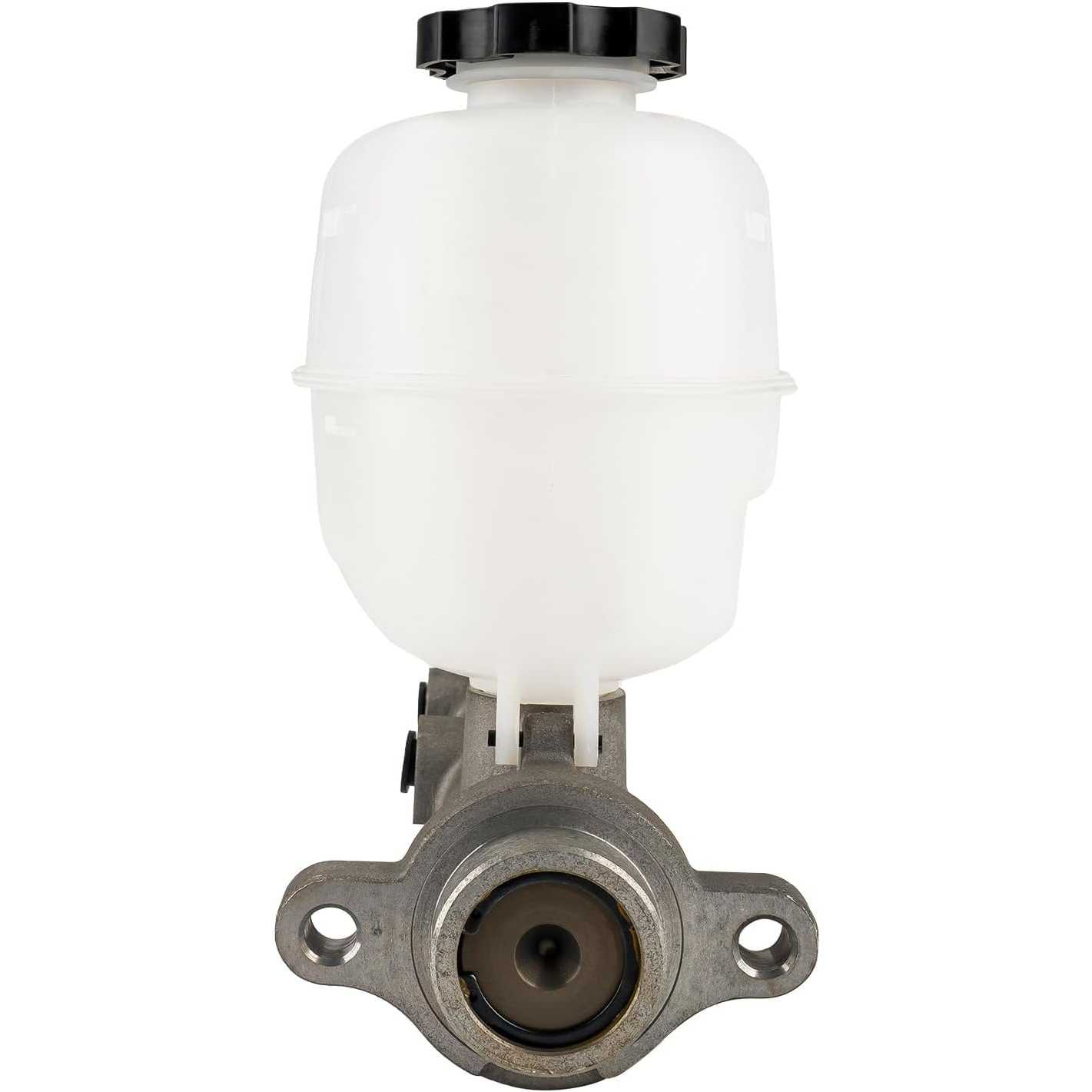

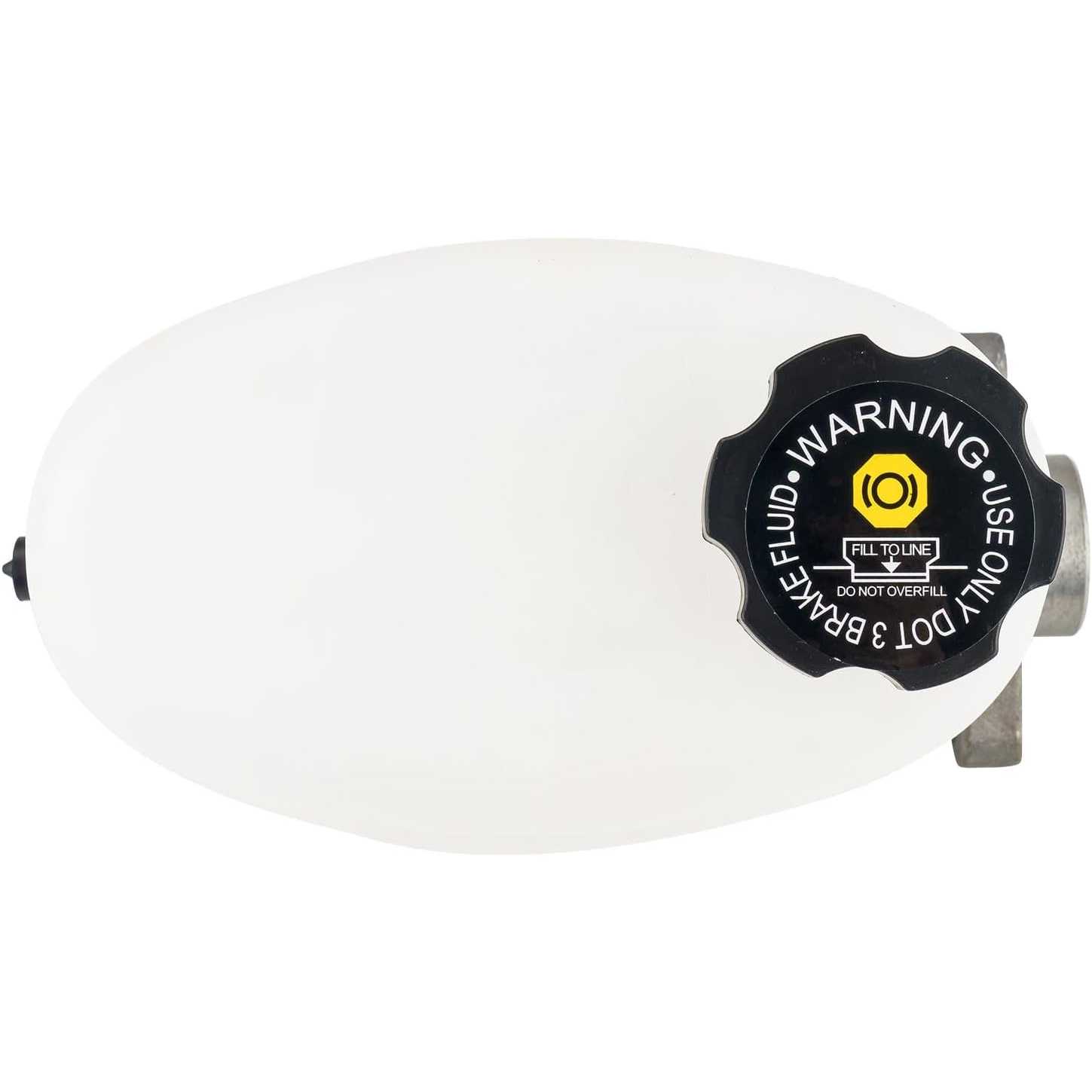

2003-2006 GMC Yukon 6.0L V8 | Brake Master Cylinder | M630284 - PHILTOP

2003-2006 GMC Yukon 6.0L V8 | Brake Master Cylinder | M630284 - PHILTOP

Sensor Included

Reservoir Included

Leak-Resistant Seal

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
96ISBMC0367US

Specifications

Brand
PHILTOP
Bore Diameter
1.34 in
Outlet Count
2
Rearward Outlet Size
1/2-20
Reservoir Included
Yes
Secondary Outlet Thread Size
1/2-20
Sensor Included
Yes
Items Included
1x Master Cylinder - M630284
Material
Aluminum
Quantity
1
Warranty Period
2-Year
Part Number
M630284

Highlights

  • (FITMENT)This brake master cylinder compatible with Tahoe 2003-2006, Suburban 1500 2003-2006, Yukon 2003-2006, Yukon XL 1500 2003-2006, Avalanche 1500 2003 2005-2006, Escalade 2003-2006, Blazer 2003-2005.
  • (OE REPLACEMENT NUMBER)This brake master cylinder OE part number#: ‎10-3100; 13-3100B; 130.66049; 131.66049; 13914; 174-798; F140377; M4074; MC140377; MC390804; MC512610; NM4074A; 15269947; 18047540; 19209199.
  • (Specifications) Material: Aluminum; Master Cylinder Bore Diameter: 1.33858267716535 inch/34 mm; Number of Outlets: 2; Rearward Outlet Size: 1/2-20; Reservoir Included: Yes; Sensor Included: No; Mounting Hardware Included: NO.
  • (100% NEW AND PRECISE REPLACEMENT)This brake master cylinder is made from brand new materials and is not a remanufactured product to ensure high quality and safety; the cylinder housing is constructed to match the casting material of the original part to ensure fitment to your car.
  • (SAE INTERNATIONAL STANDARDS)All rubber parts of this brake master cylinder are made of high-quality EPDM composite material, which is resistant to glycol brake fluid corrosion and meets stringent SAE International standards.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2003 - 200420052003 - 20042005 - 20062003 - 20042005 - 20062003 - 20042005 - 2006200320052005 - 20062005 - 20062003200320032005 - 200620032005 - 200620052003 - 20042003 - 200420052003 - 20042005200620032004 - 200620032004 - 2006200620032004 - 2006200620062003 - 20042005 - 20062003 - 20042005 - 20062003 - 20042003 - 20042005 - 20062003 - 20042003 - 20042005 - 20062003 - 20042005 - 2006200620062003 - 20042005 - 20062003 - 20042005 - 20062003 - 200420052003 - 20042005 - 200620032004 - 2006200620032004 - 200620032004 - 2006
MakeCadillacCadillacCadillacCadillacCadillacCadillacCadillacCadillacChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMCGMC
ModelEscaladeEscaladeEscaladeEscaladeEscalade ESVEscalade ESVEscalade EXTEscalade EXTAvalanche 1500Avalanche 1500Avalanche 1500Avalanche 1500Avalanche 1500Avalanche 1500Avalanche 1500Avalanche 1500Avalanche 1500Avalanche 1500BlazerBlazerBlazerBlazerBlazerBlazerSuburban 1500Suburban 1500Suburban 1500Suburban 1500Suburban 1500Suburban 1500Suburban 1500Suburban 1500TahoeTahoeTahoeTahoeTahoeTahoeTahoeTahoeTahoeTahoeTahoeTahoeYukonYukonYukonYukonYukonYukonYukonYukonYukonYukonYukonYukonYukon XL 1500Yukon XL 1500Yukon XL 1500Yukon XL 1500Yukon XL 1500Yukon XL 1500Yukon XL 1500
TrimBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseLSLTNorth FaceOn Road EditionWBHZ66Z71Z71BaseLSXtremeXtremeZR2ZR2BaseLSLSLTLTLTZZ71Z71BaseBaseLSLSLSLSLTLTLTZ71Z71Z71DenaliDenaliSLSLSLESLESLESLESLTSLTSLTSLTDenaliDenaliSLSLESLESLTSLT
Engine5.3L V85.3L V86.0L V86.0L V86.0L V86.0L V86.0L V86.0L V85.3L V85.3L V85.3L V85.3L V85.3L V85.3L V85.3L V85.3L V85.3L V85.3L V84.3L V64.3L V64.3L V64.3L V64.3L V64.3L V65.3L V85.3L V85.3L V85.3L V85.3L V86.0L V85.3L V85.3L V84.8L V85.3L V84.8L V84.8L V85.3L V85.3L V84.8L V85.3L V85.3L V84.8L V85.3L V85.3L V86.0L V86.0L V84.8L V85.3L V84.8L V84.8L V85.3L V85.3L V84.8L V84.8L V85.3L V85.3L V86.0L V86.0L V85.3L V85.3L V85.3L V85.3L V85.3L V8
Note
Bore: 34 mm;w/Hydraulic Booster
Bore: 34 mm;w/RPO Code JL4 (Active Brake Control)
Bore: 34 mm;w/Hydraulic Booster
Bore: 34 mm;w/RPO Code JL4 (Active Brake Control)
Bore: 34 mm;w/Hydraulic Booster
Bore: 34 mm;w/RPO Code JL4 (Active Brake Control)
Bore: 34 mm;w/Hydraulic Booster
Bore: 34 mm;w/RPO Code JL4 (Active Brake Control)
w/RPO Code JH2 (7,200 Lb. GVW, Power Brakes, Hydraulically Boosted, 4 Wheel Disc);w/RPO Code JL4 (Active Brake Control)
Bore: 34 mm;w/Active Brake Control
Bore: 34 mm;w/Active Brake Control
Bore: 34 mm;w/Active Brake Control
w/RPO Code JH2 (7,200 Lb. GVW, Power Brakes, Hydraulically Boosted, 4 Wheel Disc);w/RPO Code JL4 (Active Brake Control)
w/RPO Code JH2 (7,200 Lb. GVW, Power Brakes, Hydraulically Boosted, 4 Wheel Disc);w/RPO Code JL4 (Active Brake Control)
w/RPO Code JH2 (7,200 Lb. GVW, Power Brakes, Hydraulically Boosted, 4 Wheel Disc);w/RPO Code JL4 (Active Brake Control)
Bore: 34 mm;w/Active Brake Control
w/RPO Code JH2 (7,200 Lb. GVW, Power Brakes, Hydraulically Boosted, 4 Wheel Disc);w/RPO Code JL4 (Active Brake Control)
Bore: 34 mm;w/Active Brake Control
Bore: 34 mm;w/Active Brake Control
Bore: 34 mm;w/Hydraulic Booster
Bore: 34 mm;w/Hydraulic Booster
Bore: 34 mm;w/Active Brake Control
Bore: 34 mm;w/Hydraulic Booster
Bore: 34 mm;w/Active Brake Control
Bore: 34 mm;w/Active Brake Control;w/Hydraulic Booster
Bore: 34 mm;w/Hydraulic Booster
Bore: 34 mm;w/Active Brake Control;w/Hydraulic Booster
Bore: 34 mm;w/Hydraulic Booster
Bore: 34 mm;w/Active Brake Control;w/Hydraulic Booster
Bore: 34 mm;w/Active Brake Control;w/Hydraulic Booster
Bore: 34 mm;w/Hydraulic Booster
Bore: 34 mm;w/Active Brake Control;w/Hydraulic Booster
Bore: 34 mm;w/Active Brake Control
Bore: 34 mm;w/Active Brake Control
Bore: 34 mm;w/Hydraulic Booster
Bore: 34 mm;w/Active Brake Control
Bore: 34 mm;w/Hydraulic Booster
Bore: 34 mm;w/Active Brake Control
Bore: 34 mm;w/Hydraulic Booster
Bore: 34 mm;w/Hydraulic Booster
Bore: 34 mm;w/Active Brake Control
Bore: 34 mm;w/Hydraulic Booster
Bore: 34 mm;w/Hydraulic Booster
Bore: 34 mm;w/Active Brake Control
Bore: 34 mm;w/Hydraulic Booster
Bore: 34 mm;w/Active Brake Control
Bore: 34 mm;w/Active Brake Control
Bore: 34 mm;w/Active Brake Control
Bore: 34 mm;w/Hydraulic Booster
Bore: 34 mm;w/Active Brake Control
Bore: 34 mm;w/Hydraulic Booster
Bore: 34 mm;w/Active Brake Control
Bore: 34 mm;w/Hydraulic Booster
Bore: 34 mm;w/Active Brake Control
Bore: 34 mm;w/Hydraulic Booster
Bore: 34 mm;w/Active Brake Control
Bore: 34 mm;w/Hydraulic Booster
Bore: 34 mm;w/Active Brake Control;w/Hydraulic Booster
Bore: 34 mm;w/Active Brake Control;w/Hydraulic Booster
Bore: 34 mm;w/Hydraulic Booster
Bore: 34 mm;w/Active Brake Control;w/Hydraulic Booster
Bore: 34 mm;w/Hydraulic Booster
Bore: 34 mm;w/Active Brake Control;w/Hydraulic Booster

How to Install?

Installation Manual Download

User manual (PDF)
Download

Installation Steps

  • Step-1: Remove the Old Unit: Extract the brake fluid, disconnect the brake lines and cap all openings immediately to prevent air and contamination from entering.
  • Step-2: Inspect the Booster: Remove the old master cylinder. Inspect the booster push rod, seal and mounting surface for wear, deformation or fluid leakage.
  • Step-3: Bench-Bleed the New Master Cylinder: Bench-bleed the new master cylinder with fresh, vehicle-approved brake fluid until no air bubbles remain. Follow the product instructions or vehicle service manual.
  • Step-4: Install the New Unit: Align the master cylinder with the booster push rod. Hand-start the mounting nuts, then tighten them evenly to the specified torque. Do not force the master cylinder into position.
  • Step-5: Reconnect the Brake Lines: Hand-start each brake-line fitting to prevent cross-threading, then tighten it to the vehicle manufacturer’s specification.
  • Step-6: Fill and Bleed the Brake System: Fill the reservoir with fresh brake fluid to the MAX line. Bleed the complete brake system in the sequence specified by the vehicle service manual. Keep the fluid level above MIN throughout the process. ABS/ESP systems may require a scan tool.

After Installation

  • Bleed the complete brake system after installation, following the sequence specified in the vehicle service manual. Keep the reservoir above MIN throughout the process.
  • Refill the brake fluid to the MAX line after bleeding.
  • With the engine off, pump the brake pedal until it feels firm with normal travel.
  • Check the brake-line fittings and master-cylinder-to-booster surface for leaks.
  • Confirm that the brake and ABS warning lights are off.
  • Perform a low-speed road test and confirm effective, straight braking.
  • Recheck the fluid level and all connections after the road test.
