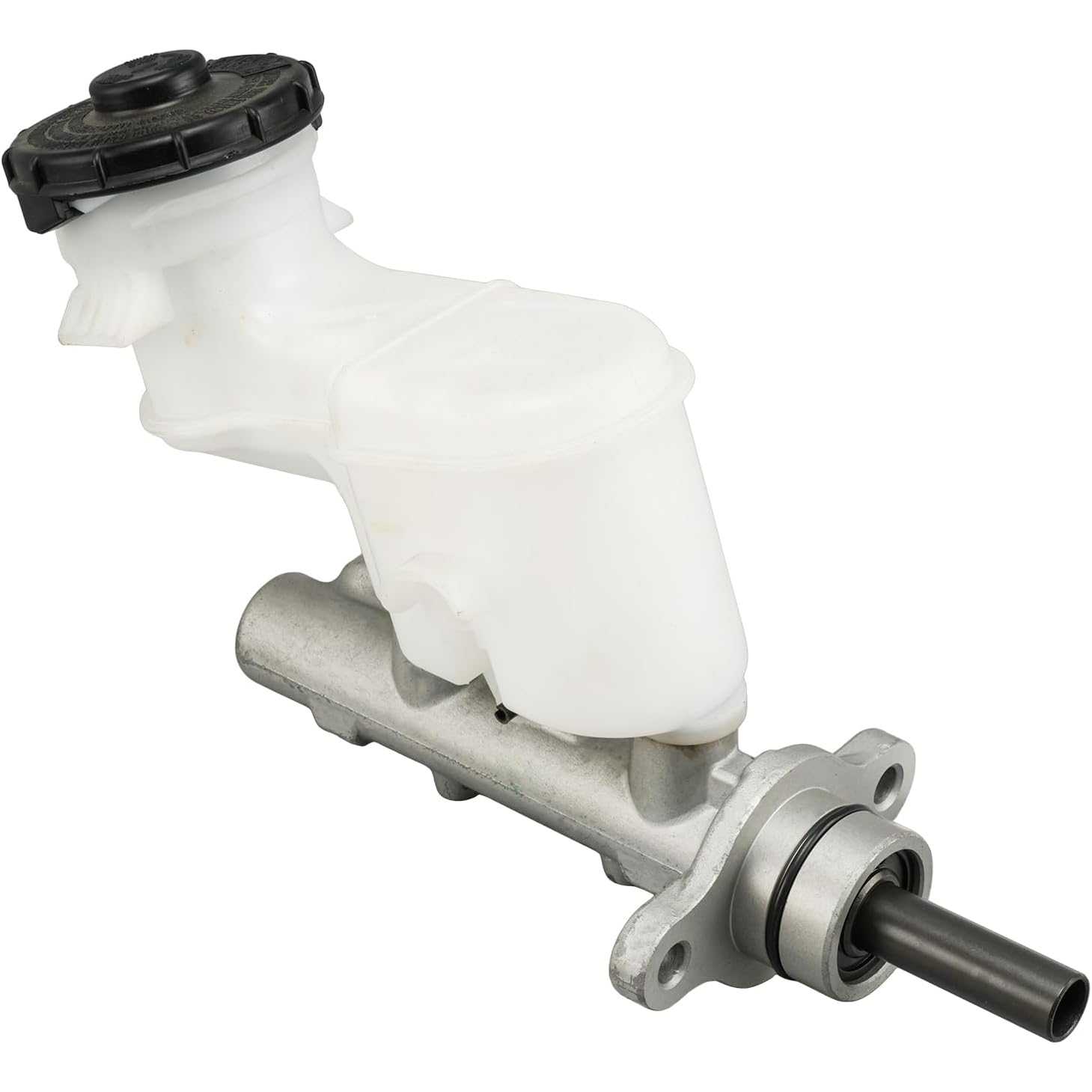

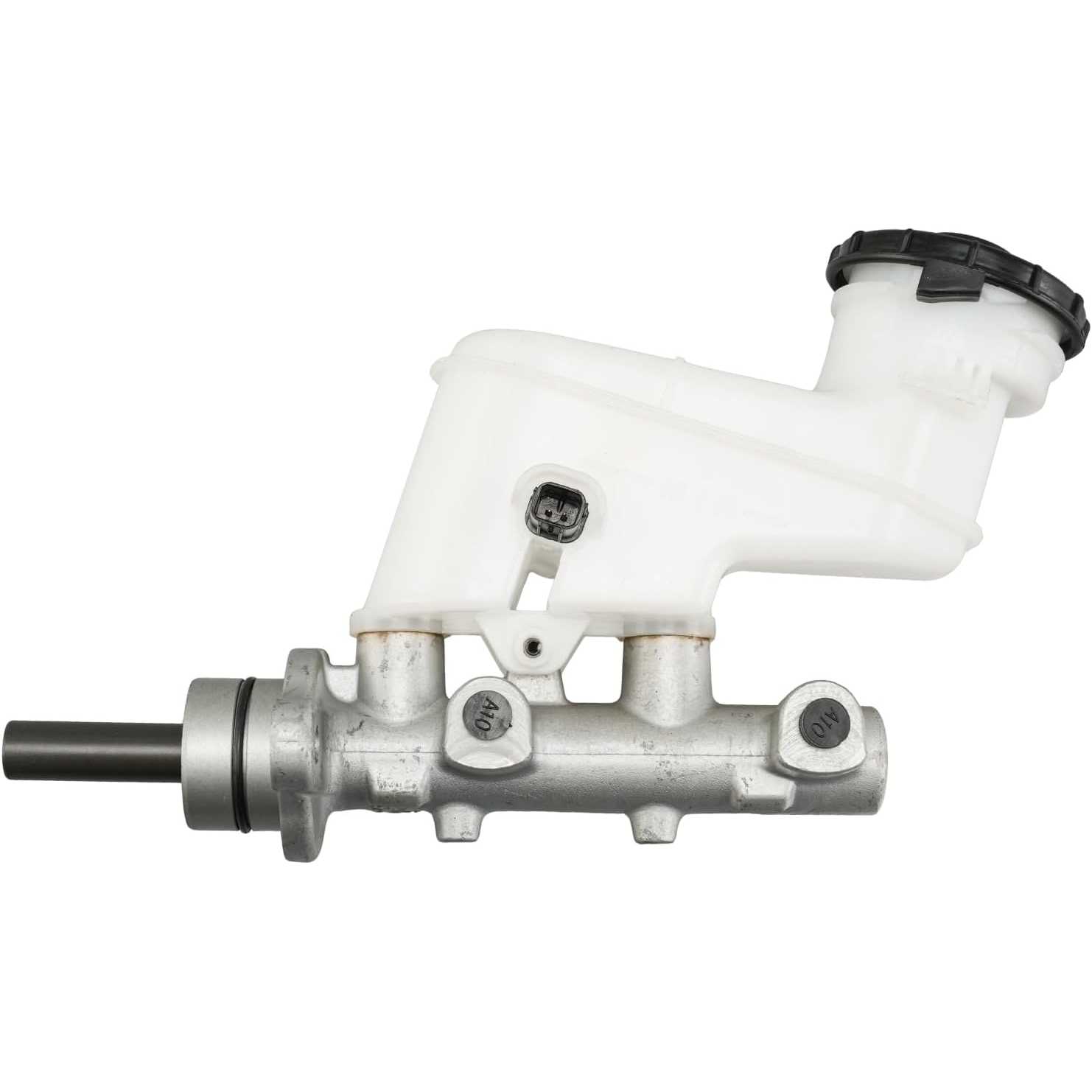

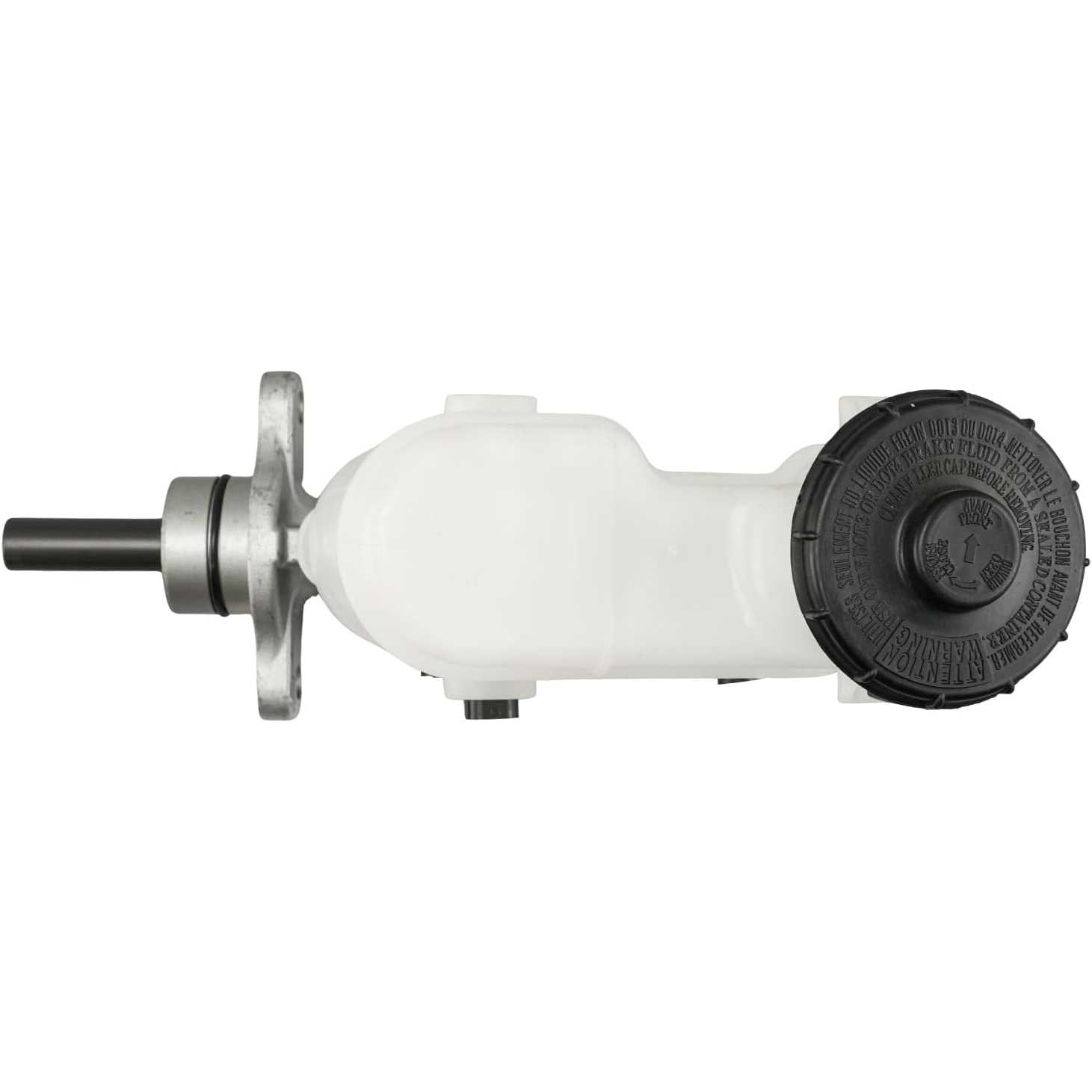

2003-2007 Honda Accord 2.4L | Brake Master Cylinder | M630295 - PHILTOP

2003-2007 Honda Accord 2.4L | Brake Master Cylinder | M630295 - PHILTOP

Sensor Included

Reservoir Included

Leak-Resistant Seal

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
95ISBMC2137US

Specifications

Brand
PHILTOP
Bore Diameter
0.813 in
Outlet Count
2
Rearward Outlet Size
M10 X 1.0
Reservoir Included
Yes
Secondary Outlet Thread Size
M10 X 1.0
Sensor Included
Yes
Items Included
1x Master Cylinder - M630295
Material
Aluminum
Quantity
1
Warranty Period
2-Year
Part Number
M630295

Highlights

  • [Vehicle Fitment]: PHILTOP Brake Master Cylinder Compatible with Honda Accord 2003-2007 2.4L.
  • [Reference Number]: PHILTOP Brake Master Cylinder Assembly Replacement for: M630295,46100SDAA01.
  • [Precise Replacement]: PHILTOP Brake Master Cylinder Assembly are made entirely of new materials, not remanufactured, to ensure highest quality and safety; cylinder housing is constructed to match the casting material of the original part and ensure similar performance.
  • [Specifications]: ①Condition: New; ②Reservoir Included: Yes; ③Material: Aluminium; ④Master Cylinder Bore Diameter: 0.813(IN); ⑤Number of Outlets: 2; ⑥Rearward Outlet Size: M10 x 1.0; ⑦Sensor Included: Yes.
  • [Note]: Please check the “Philtop Confirmed Fit” bar at the top of this page before buying product to ensure this product works for your vehicle. If the “Philtop Confirmed Fit” bar has an “i” in a blue circle, this product has additional notes. Please hover over the “i” on the bar to see notes before making your purchase.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2003 - 20052003 - 200720072003 - 20072006200520072006 - 2007
MakeHondaHondaHondaHondaHondaHondaHondaHonda
ModelAccordAccordAccordAccordAccordAccordAccordAccord
TrimDXEXEX-LLXLX Special EditionSESpecial EditionValue Package
Engine2.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L4
Note
Bore: 13/16 In.
Bore: 13/16 In.
Bore: 13/16 In.
Bore: 13/16 In.
Bore: 13/16 In.
Bore: 13/16 In.
Bore: 13/16 In.
Bore: 13/16 In.

How to Install?

Installation Manual Download

User manual (PDF)
Download

Installation Steps

  • Step-1: Remove the Old Unit: Extract the brake fluid, disconnect the brake lines and cap all openings immediately to prevent air and contamination from entering.
  • Step-2: Inspect the Booster: Remove the old master cylinder. Inspect the booster push rod, seal and mounting surface for wear, deformation or fluid leakage.
  • Step-3: Bench-Bleed the New Master Cylinder: Bench-bleed the new master cylinder with fresh, vehicle-approved brake fluid until no air bubbles remain. Follow the product instructions or vehicle service manual.
  • Step-4: Install the New Unit: Align the master cylinder with the booster push rod. Hand-start the mounting nuts, then tighten them evenly to the specified torque. Do not force the master cylinder into position.
  • Step-5: Reconnect the Brake Lines: Hand-start each brake-line fitting to prevent cross-threading, then tighten it to the vehicle manufacturer’s specification.
  • Step-6: Fill and Bleed the Brake System: Fill the reservoir with fresh brake fluid to the MAX line. Bleed the complete brake system in the sequence specified by the vehicle service manual. Keep the fluid level above MIN throughout the process. ABS/ESP systems may require a scan tool.

After Installation

  • Bleed the complete brake system after installation, following the sequence specified in the vehicle service manual. Keep the reservoir above MIN throughout the process.
  • Refill the brake fluid to the MAX line after bleeding.
  • With the engine off, pump the brake pedal until it feels firm with normal travel.
  • Check the brake-line fittings and master-cylinder-to-booster surface for leaks.
  • Confirm that the brake and ABS warning lights are off.
  • Perform a low-speed road test and confirm effective, straight braking.
  • Recheck the fluid level and all connections after the road test.

Product Video

Product Description

11

Reviews

4.8/5

Based on 5 reviews

580%
420%
30%
20%
10%

Steve_DIYer_187

12/28/2025

The delivery was lightning quick and the part was packaged securely. Had a question and the customer service team answered it promptly. Very satisfied.

Chris_GearHead_887

12/29/2025

Wasn't too hard to put in. Much simpler than I expected, especially compared to some aftermarket parts that can be a pain. Bolted right up.

FAQS

Stop the installation and contact Philtop customer support. Please provide your vehicle information, order number and photos of the original and received parts so we can help review the fitment.

Check the package contents listed on the product page. If an included item is missing, contact us with your order number and photos of everything received.

Please do not install the product. Take photos of the item, packaging and shipping label, then contact Philtop customer support as soon as possible for assistance.
