2006 Lincoln Zephyr 3.0L V6 | Brake Master Cylinder | M630527 - PHILTOP

2006 Lincoln Zephyr 3.0L V6 | Brake Master Cylinder | M630527 - PHILTOP

Sensor Not Included

Leak-Resistant Seal

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
40ISBMC3737US

Specifications

Brand
PHILTOP
Bore Diameter
0.875 in
Outlet Count
2
Rearward Outlet Size
M10 X 1.0
Reservoir Included
No
Secondary Outlet Thread Size
M10 X 1.0
Sensor Included
No
Items Included
1x Master Cylinder - M630527
Material
Aluminum
Quantity
1
Warranty Period
2-Year
Part Number
M630527

Highlights

  • [Fitment]: This PHILTOP brake master cylinder fit for 2008-2009 Ford Fusion, 2006-2007 Ford Fusion 3.0L/2.3L, 2006-2008 Mazda 6, 2007-2009 Lincoln MKZ, 2007-2009 Mercury Milan, 2006 Lincoln Zephyr, 2006 Mercury Milan 3.0L/2.3L.
  • [OE Replace Number]: This PHILTOP brake master cylinder replaces OE#: 9E5Z2140C,M630527.
  • [Specifications]: ①Condition: New; ②Reservoir Included: Yes; ③Material: Aluminum; ④Master Cylinder Bore Diameter: 1.313(IN); ⑤Number of Outlets: 2; ⑥Rearward Outlet Size: 9/16-18; ⑦Sensor Included: Yes.
  • [Safty&Durability]: This PHILTOP brake master cylinder is builted with high-grade materials and precision engineering. Features a corrosion-resistant bore, durable seals, and undergoes rigorous pressure and leak testing. DOT compliant to deliver the firm pedal feel and dependable stopping power your vehicle requires.
  • [Risk-free Purchase]: Buy with confidence! Backed by a 2 year warranty and dedicated customer service. If any issue arises, we provide hassle-free returns and replacements.

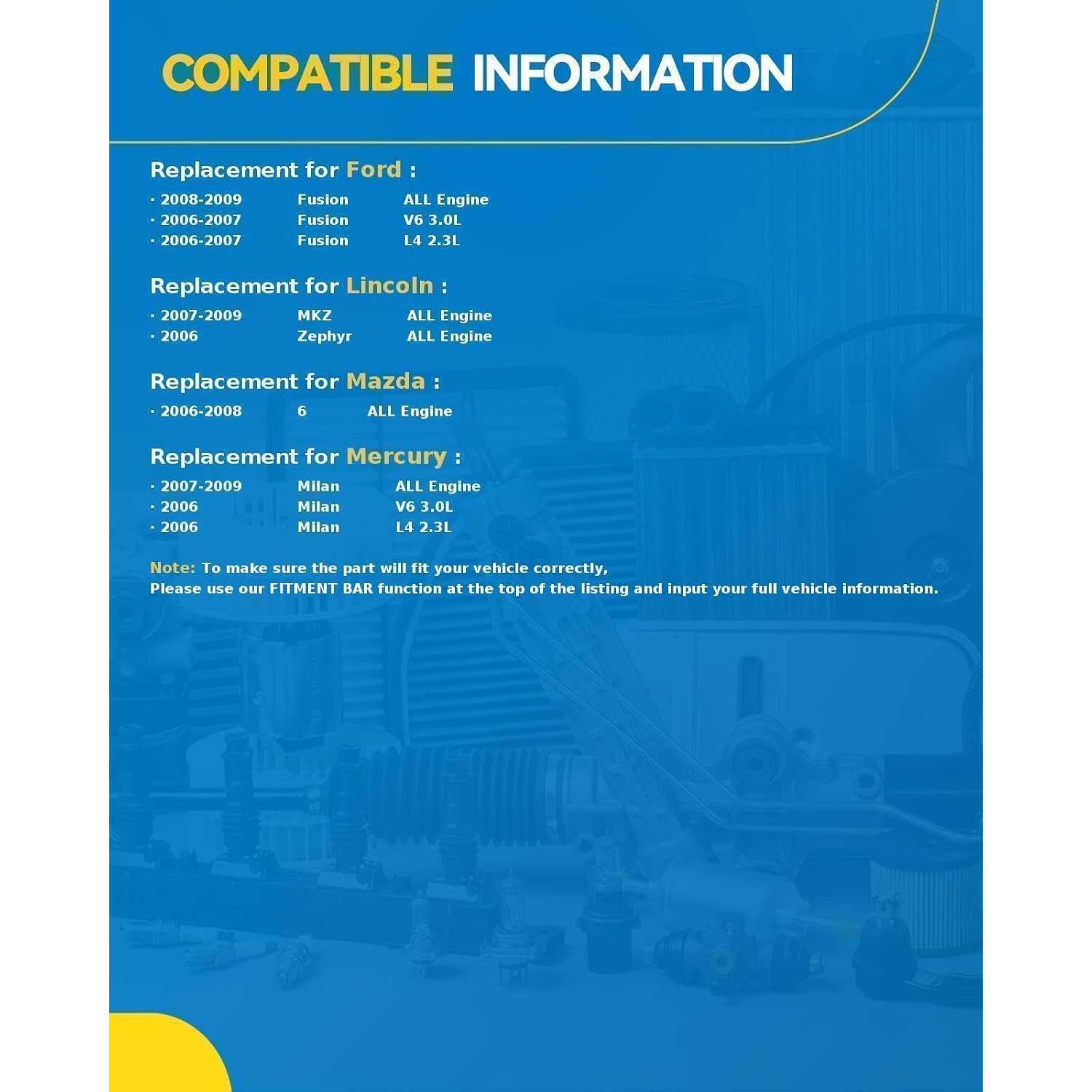

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2006 - 200820092006 - 200820092006 - 200820092006 - 200820092006 - 2008200920072008 - 200920062006 - 20072006 - 20082006 - 20082006 - 20072008 - 20092006 - 20072008 - 20092006 - 20072008 - 20092006 - 20072008 - 2009
MakeFordFordFordFordFordFordFordFordFordFordLincolnLincolnLincolnMazdaMazdaMazdaMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercury
ModelFusionFusionFusionFusionFusionFusionFusionFusionFusionFusionMKZMKZZephyr666MilanMilanMilanMilanMilanMilanMilanMilan
TrimSSSESESESESELSELSELSELBaseBaseBaseMazdaspeedSiBaseBaseBaseBasePremierPremierPremierPremier
Engine2.3L L42.3L L42.3L L42.3L L43.0L V63.0L V62.3L L42.3L L43.0L V63.0L V63.5L V63.5L V63.0L V62.3L L43.0L V62.3L L42.3L L42.3L L43.0L V63.0L V62.3L L42.3L L43.0L V63.0L V6
Note
Bore: 7/8 Inch
Bore: 7/8 Inch;Exc. Advanced Traction Control
Bore: 7/8 Inch
Bore: 7/8 Inch;Exc. Advanced Traction Control
Bore: 7/8 Inch
Bore: 7/8 Inch;Exc. Advanced Traction Control
Bore: 7/8 Inch
Bore: 7/8 Inch;Exc. Advanced Traction Control
Bore: 7/8 Inch
Bore: 7/8 Inch;Exc. Advanced Traction Control
Bore: 7/8 Inch
Bore: 7/8 Inch;Exc. Advanced Traction Control
Bore: 7/8 Inch
Bore: 7/8 Inch;w/ Anti-Lock Brake System (ABS)
Bore: 7/8 Inch;w/ Anti-Lock Brake System (ABS)
Bore: 7/8 Inch;w/ Anti-Lock Brake System (ABS)
Bore: 7/8 Inch
Bore: 7/8 Inch;Exc. Advanced Traction Control
Bore: 7/8 Inch
Bore: 7/8 Inch;Exc. Advanced Traction Control
Bore: 7/8 Inch
Bore: 7/8 Inch;Exc. Advanced Traction Control
Bore: 7/8 Inch
Bore: 7/8 Inch;Exc. Advanced Traction Control

How to Install?

Installation Manual Download

User manual (PDF)
Download

Installation Steps

  • Step-1: Remove the Old Unit: Extract the brake fluid, disconnect the brake lines and cap all openings immediately to prevent air and contamination from entering.
  • Step-2: Inspect the Booster: Remove the old master cylinder. Inspect the booster push rod, seal and mounting surface for wear, deformation or fluid leakage.
  • Step-3: Bench-Bleed the New Master Cylinder: Bench-bleed the new master cylinder with fresh, vehicle-approved brake fluid until no air bubbles remain. Follow the product instructions or vehicle service manual.
  • Step-4: Install the New Unit: Align the master cylinder with the booster push rod. Hand-start the mounting nuts, then tighten them evenly to the specified torque. Do not force the master cylinder into position.
  • Step-5: Reconnect the Brake Lines: Hand-start each brake-line fitting to prevent cross-threading, then tighten it to the vehicle manufacturer’s specification.
  • Step-6: Fill and Bleed the Brake System: Fill the reservoir with fresh brake fluid to the MAX line. Bleed the complete brake system in the sequence specified by the vehicle service manual. Keep the fluid level above MIN throughout the process. ABS/ESP systems may require a scan tool.

After Installation

  • Bleed the complete brake system after installation, following the sequence specified in the vehicle service manual. Keep the reservoir above MIN throughout the process.
  • Refill the brake fluid to the MAX line after bleeding.
  • With the engine off, pump the brake pedal until it feels firm with normal travel.
  • Check the brake-line fittings and master-cylinder-to-booster surface for leaks.
  • Confirm that the brake and ABS warning lights are off.
  • Perform a low-speed road test and confirm effective, straight braking.
  • Recheck the fluid level and all connections after the road test.
